Trumpai apie prekę
Prekė: Elektromobilių remonto įrenginys. Kategorija: Vonios svarstyklės.
- Gamintojas: no brand
- Modelis: ZD269383-Type A

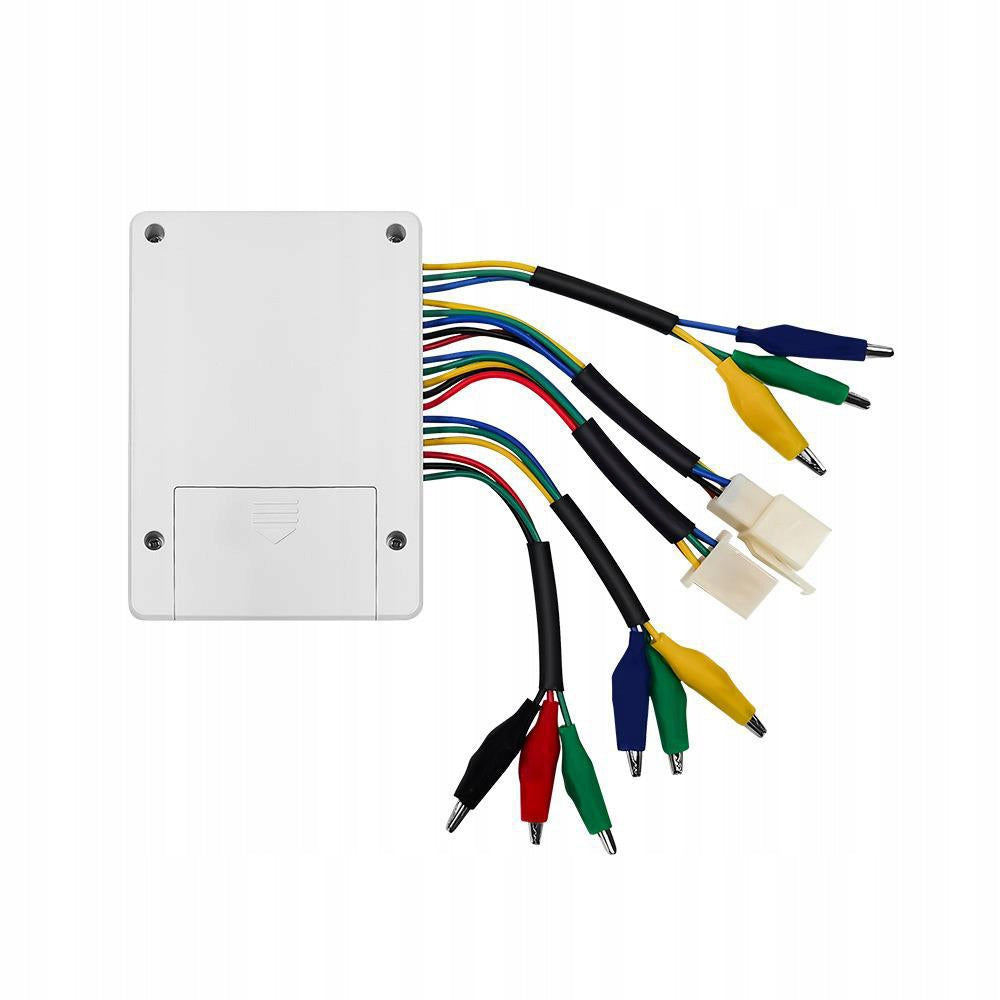

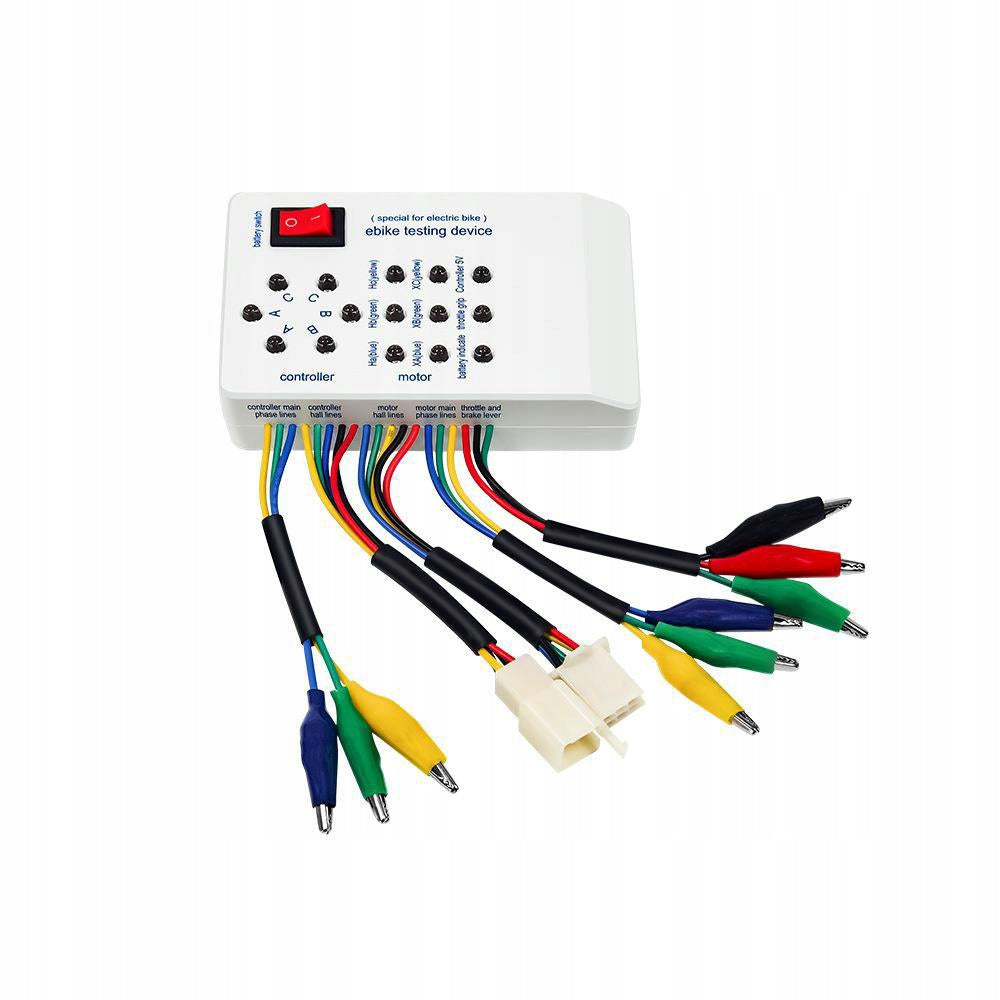

This product contains an industrial grade chip with strong electromagnetic interference and low temperature resistance. There is a self-test function to check if the car itself has quality problems. The detection effect is more intuitive, by transforming the circular light system, we distinguish brushless controller is 120 degree or 60 degree phase angle and brushless controller error. Quickly detect brushless motor, motor phase sequence, controller and brake. Suitable for two-wheeled or three-wheeled electromobilities 24V/36V/48V/60V/72V.
Features:
Built-in industrial grade chip, antistatic, strong anti-electromagnetic interference, low temperature resistance.
Using one switch to turn on/off, quickly detects safety and convenience
There is a self-test function to check if the car itself has quality problems.
The detection effect is more intuitive, by transforming the circular light system, we distinguish brushless controller is 120 degree or 60 degree phase angle and brushless controller error.
Crocodile clamps bite hard and clamp hard, not easy to fall off.
All wire cores use pure copper wire and thickened wire to ensure good conductivity.
Top quality rubber sleeve, insulation, prevent short circuits.
The battery can be easily removed, open the battery compartment and replace the battery.
The rapid detection of the phase angle of the motor and controller is 60 degrees or 120 degrees.
Quickly detect brushless motor, motor phase sequence, controller and brake.
Brushless motor and fast driver wiring (36 types of connections).
Suitable for two-wheeled or three-wheeled electromobilities 24V/36V/48V/60V/72V.
Technical data:
Name: Electromobile Detector
Material: Plastics
Battery: 1*9V battery (not included)

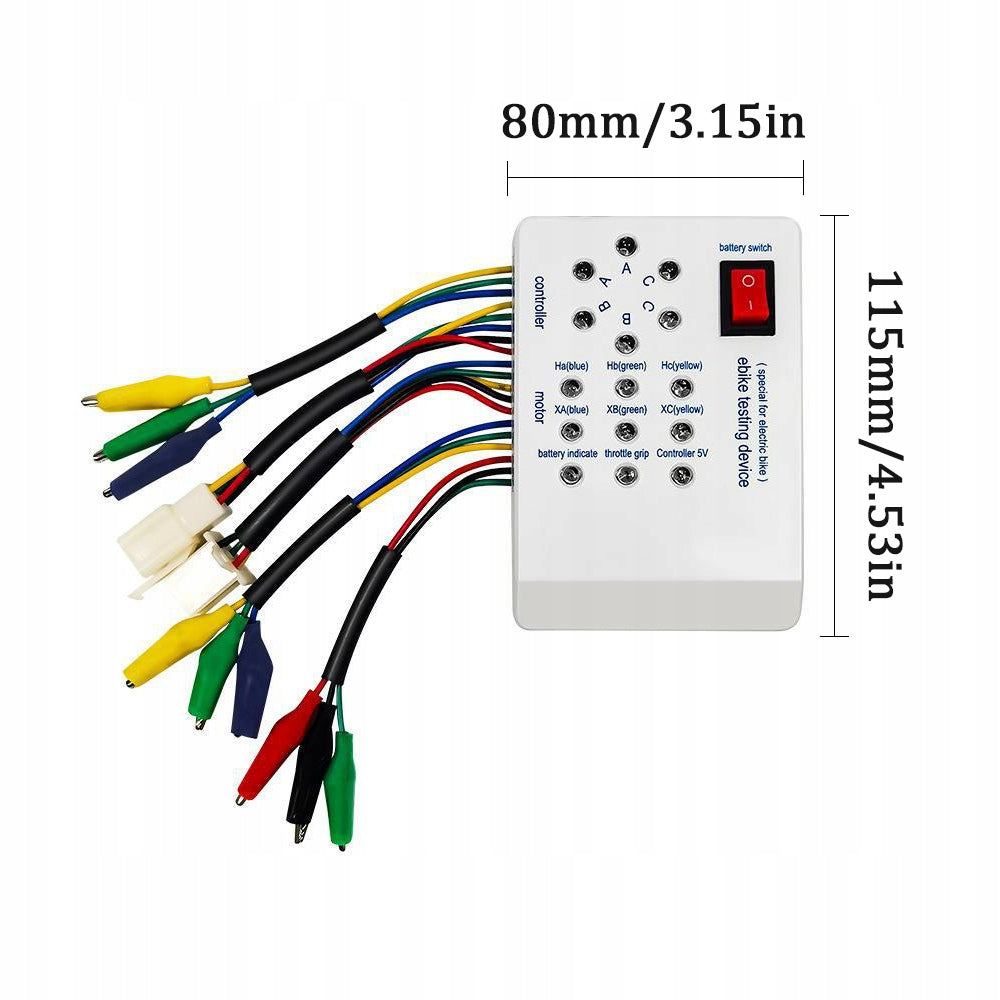

Product Size: 115*80*25mm/4,53*3,15*0,98inch
Package Size: 140 * 110 * 40 mm / 5,51 * 4,33 * 1,57 inch
Package Weight: 153g / 5,40oz
List of things to pack:
1 * Detector
Specifications
| Group | Name | Value |
|---|---|---|
| Parametry | Condition | new |
| Parametry | Invoice | Without VAT invoice |
| Parametry | Brand | no brand |
| Parametry | Model | ZD269383-Type A |
| Parametry | Platform material | other |
| Parametry | Dominant color | multicolor |
| Parametry | Manufacturer code | 9793112076520 |
| Parametry | EAN (GTIN) | 0750749748779 |
| Parametry | Batteries included | no |
