Elektrinis dviračio akumuliatorius 36V 10Ah 360W, 10S3P, XT60, su BMS, Bafang

Trumpai apie prekę

Prekė: Elektrinis dviračio akumuliatorius 36V 10Ah 360W, 10S3P, XT60, su BMS, Bafang. Kategorija: Dviračių akumuliatoriai ir įkraunamos baterijos.

• Gamintojas: no brand
• Modelis: 10S3P-36V10Ah
• Įtampa: 36 V
• Ilgis: 28 cm
• Aukštis: 6 cm
• Talpa: 10 Ah
• Svoris: 2.5 kg

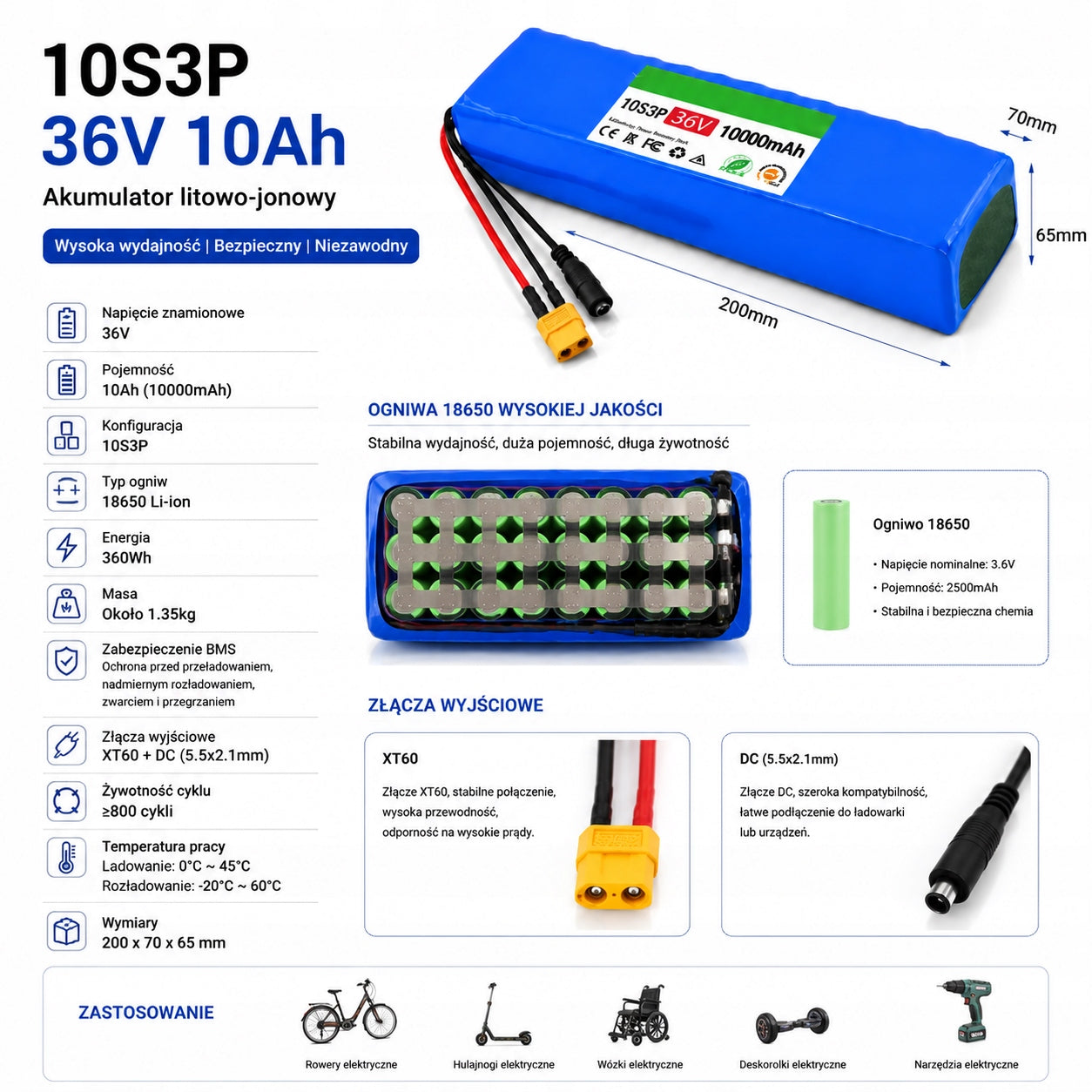

Main technical parameters

Lithium-ion battery with 10S3P configuration, 36V rated voltage and actual 10Ah capacity with a maximum power of 360W. The built-in BMS protection module protects the cells from overcharging, over-discharge, short circuit and overheating, which significantly extends the life of the entire set. The XT60 output connector and DC charging socket ensure stable power transmission and simple installation.

Construction and quality of workmanship

The product is built with high-quality cells with a long cycle life – it supports more than 800 full charge and discharge cycles. Durable plastic housing protects the inside of the battery from mechanical impacts, slight moisture and scratches. The compact size allows installation in both horizontal and vertical positions in the frame of most electric bikes.

Wide compatibility

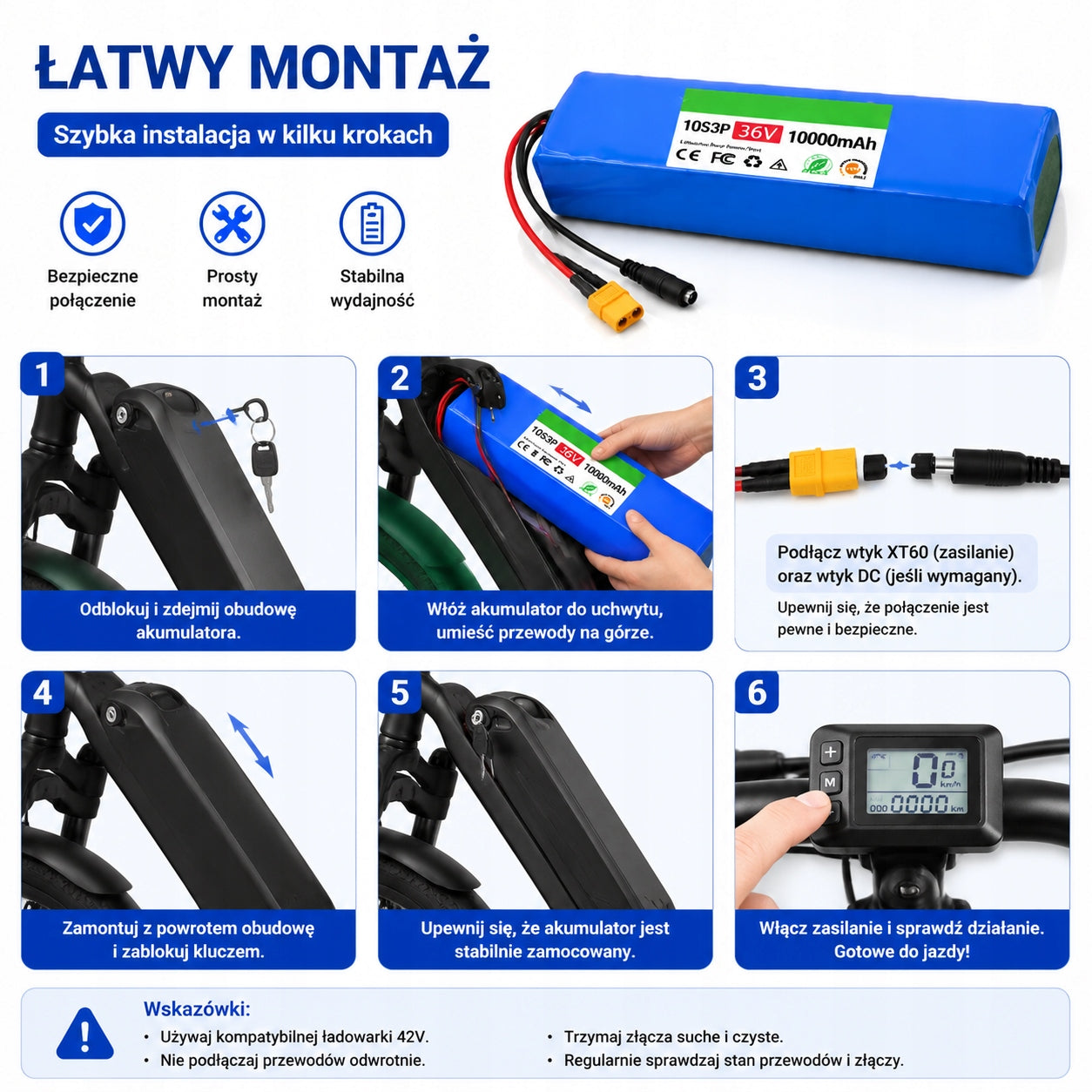

The kit is universal and fits most electric bike motors with a working voltage of 36V, including Bafang, Bosch, and Yamaha models. It works perfectly in city bikes, tourist bikes and light off-road bikes. Installation does not require complicated tools, just adjust the connector wires to the installation of the vehicle.

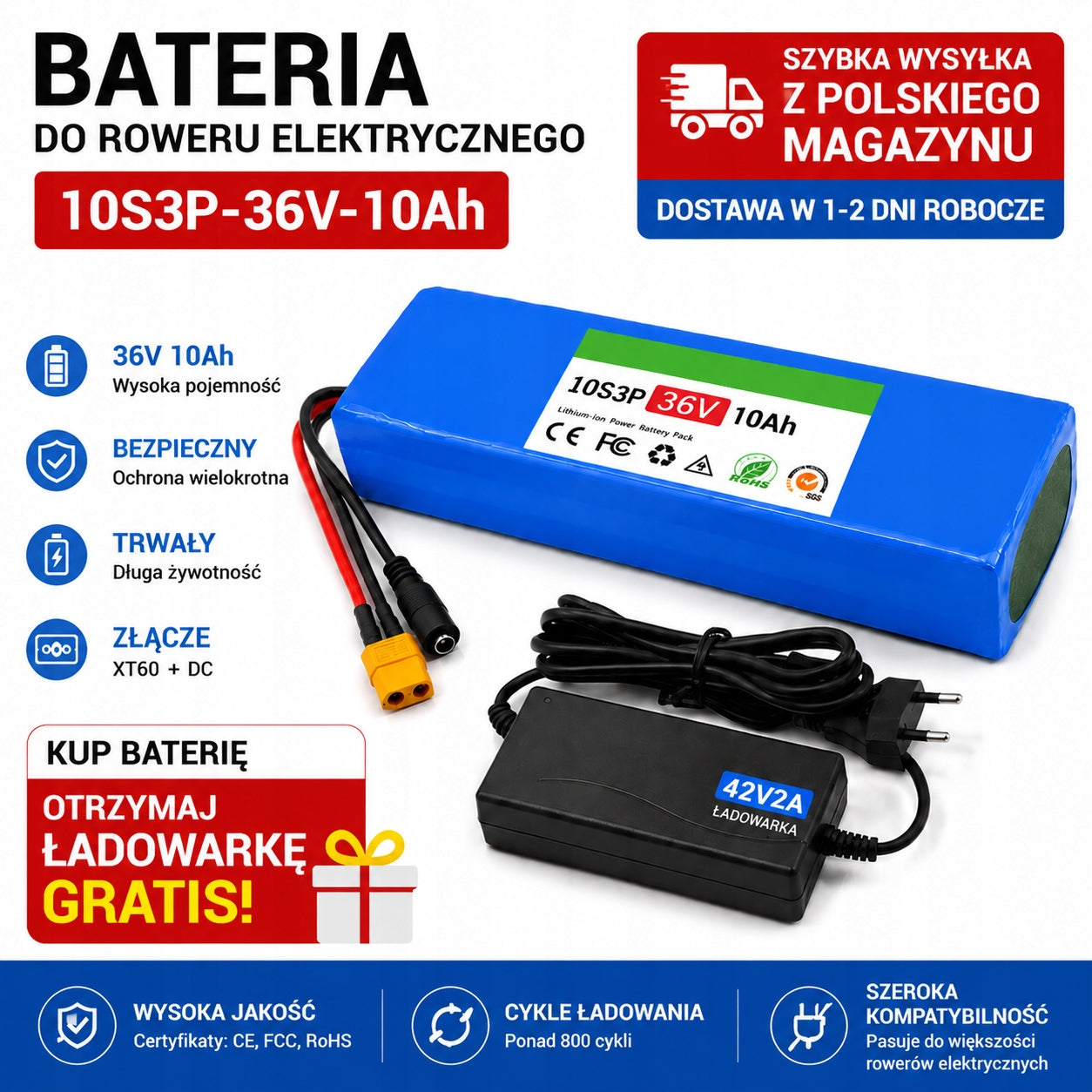

Contents of the complete set

In the package you get all the elements you need for immediate use:

1. 36V 10Ah 360W Full Lithium-Ion Battery with Built-in BMS
2. Output cable with XT60 connector and DC socket
3. Original charger with battery-matched parameters (42V 2A)
4. User manual with clear description of charging and assembly rules

Certificates and safety of use

The battery has passed all the required quality tests and is CE, RoHS and UN38.3 certified, meeting the safety standards of the European Union. The built-in BMS system continuously monitors the temperature and charge level of the cells, minimizing the risk of failure while driving or charging. To maintain the full efficiency of the device, store the battery in a dry and cool room, away from flammable materials.

Usage advantages

• Actual capacity without artificial overestimation of parameters
• Dual mounting options (horizontal and vertical)
• The included dedicated charger eliminates the need for additional purchases
• Large number of charging cycles for long service life
• Universal compatibility with most popular electric bike motors
