Elektrinio dviračio greičio jutiklis su dviem Hall davikliais, 12 magnetų

Trumpai apie prekę

Prekė: Elektrinio dviračio greičio jutiklis su dviem Hall davikliais, 12 magnetų. Kategorija: Pavarų perjungikliai.

• Gamintojas: no brand
• Modelis: 2716220040511
• Svoris: 400 g

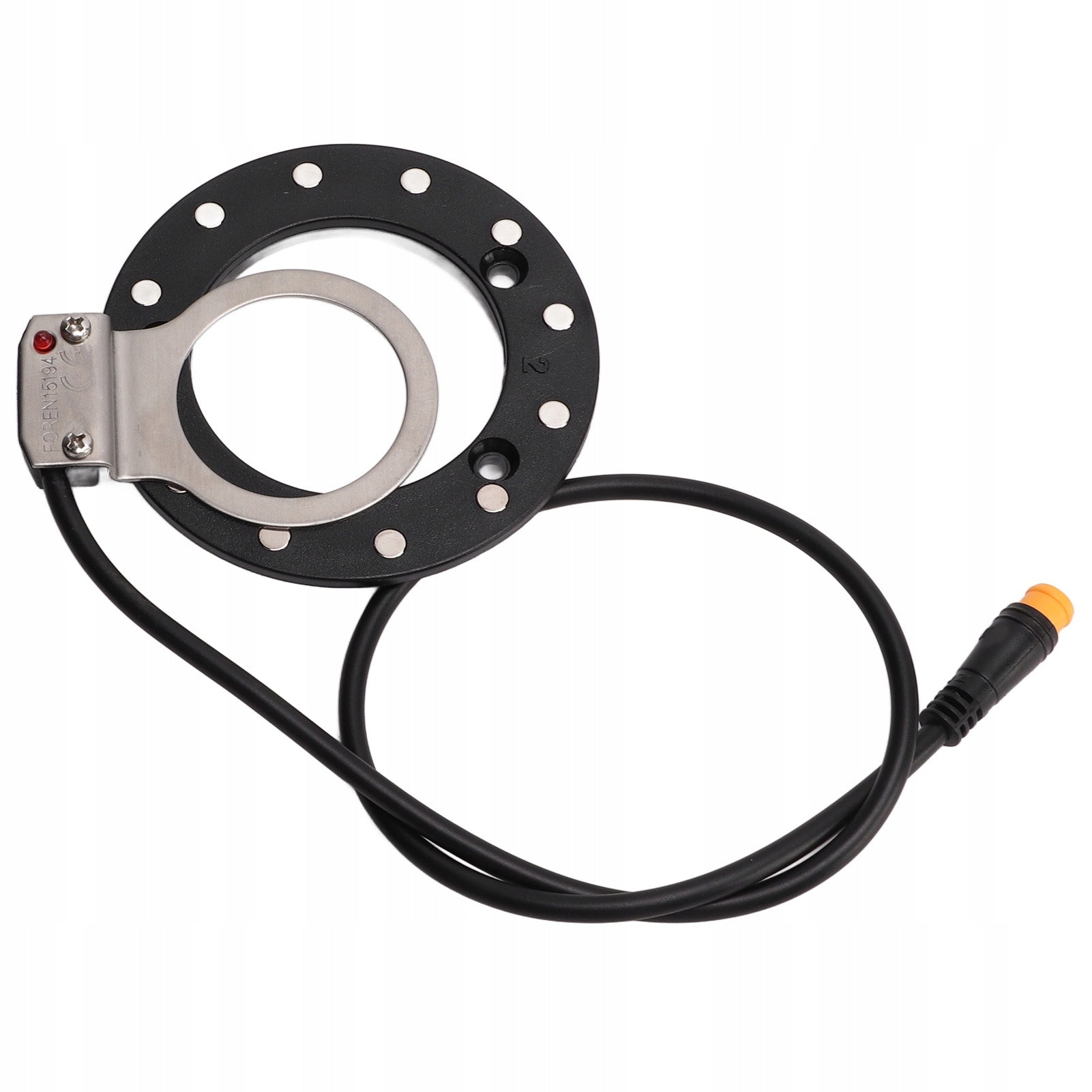

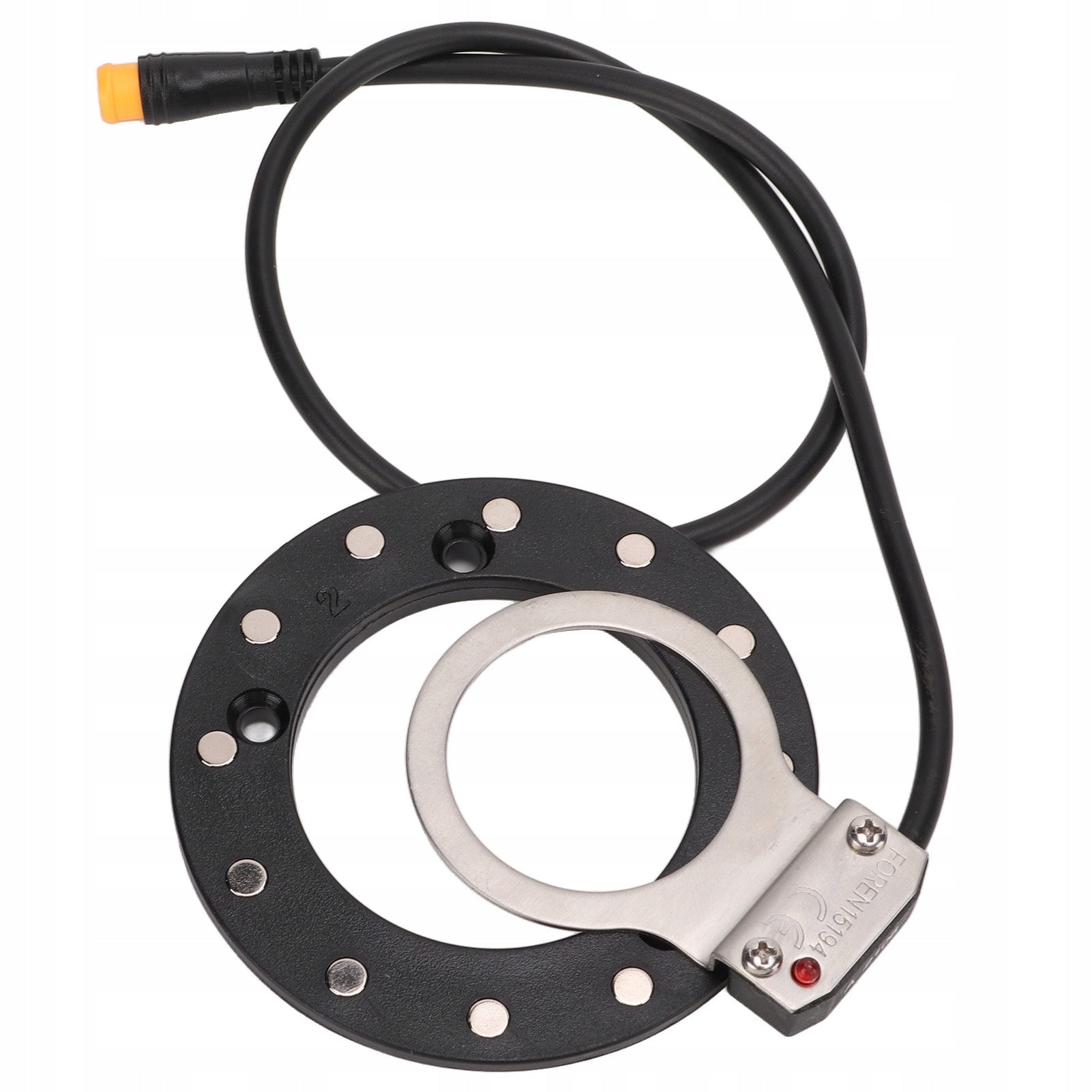

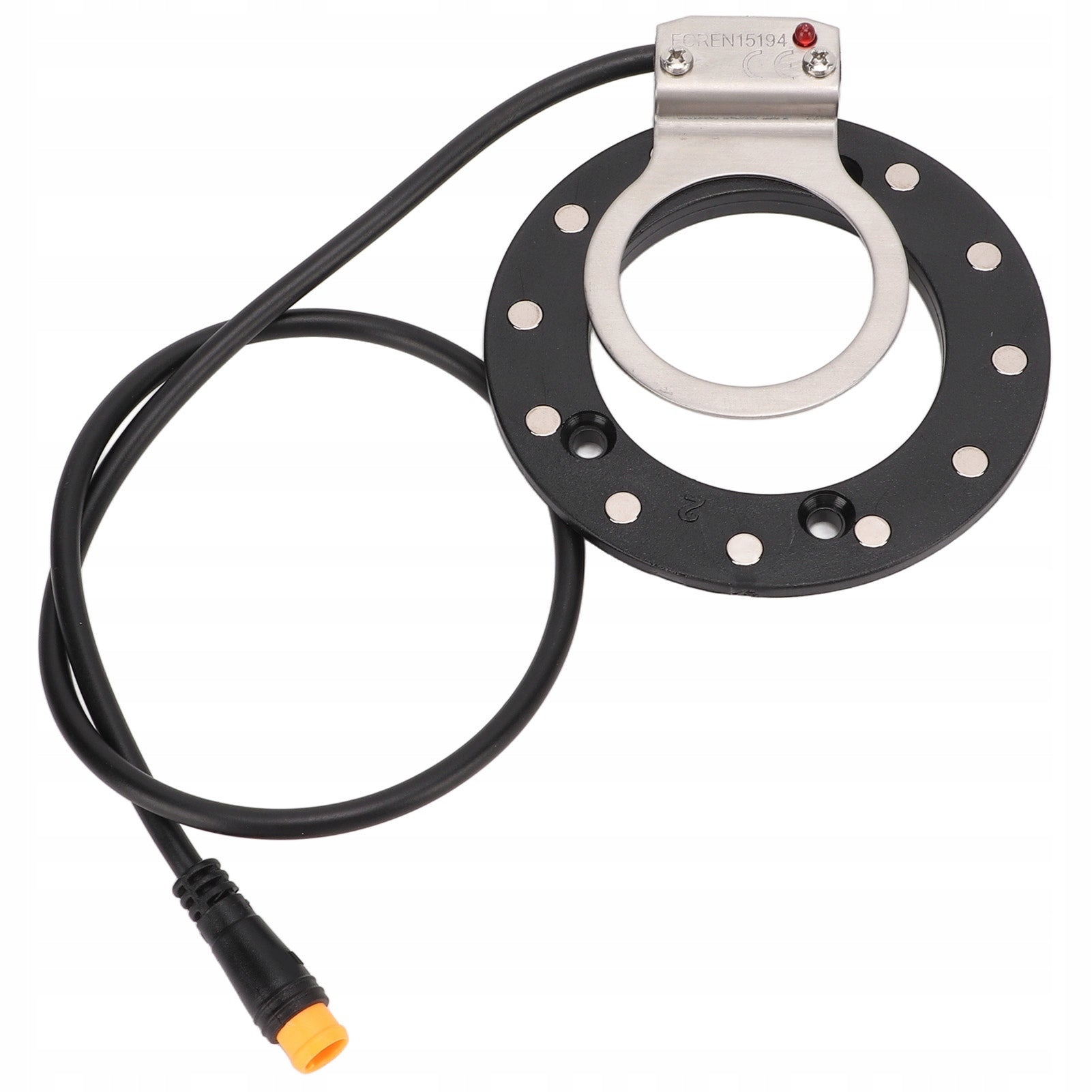

SENSOR E-BIKE SPEED BELT DUAL HALL SENSORS 12 MAGNETS

Function:

✅1. Double hall sensors: The electric bike assist sensor housing has dual hall sensors to detect cycling.

✅2.12 Magnets: Thanks to 12-magnets, the accuracy will be higher than that of 5-magnets, and the distance from the sensor will be longer. In terms of sensitivity, this is 2 to 3 times larger than the usual five magnets and has no bad effect.

✅3. Pulse signal: By default installed on the right side of the pedal, with 12 pulses in the circle. The chip shields and identifies the pulse signal to determine the direction of rotation. The forward direction is important and the reverse direction is incorrect.

✅4. LED: When the pedal moves forward, the sensor will send a pulse signal, and the LED is at a low level (with or without pulse signal), so the LED will not flash.

✅5. Characteristics: Made of high quality material, strong and durable. Professional production, stable performance and high reliability. Easy installation and disassembly, waterproof interface.

⏪ Specification:

• Item Type: Electric Bicycle Assist Sensor
• Material: PC Plastic
• Hall Electrical service life: >20M times
• Rated voltage: 4.5-6V (DC)
• Brak brake current: < 5mA
• With brake current: < 6mA
• Insulation Wet conditions: > 2M ohm
• Corresponding braking time: < 0.001S
• Suitable distance: 2-3mm

⭕List of packages:

• 1 x Sensor Cables
• 1 x Sensor Sheet
