Echolotas Lowrance HDS-10 PRO be daviklio

Trumpai apie prekę

Prekė: Echolotas Lowrance HDS-10 PRO be daviklio. Kategorija: Echolotai.

• Gamintojas: Lowrance
• Modelis: Echosonda Lowrance HDS-10 PRO

LOWRANCE ECHOSONDA HDS 10 PRO Without transducer

See more and catch more with the new HDS PRO fishing echo sounder/navigation plotter.

Watch the fish react live on the bait with the new ActiveTarget® 2 Live Sonar with high resolution and find fish and holding structure with the new Active Imaging™ HD ultra-high resolution technology.

Quickly find fishing areas with the latest and most detailed C-MAP® maps and enjoy a full network fishing system with extended boat control from bow to stern.

The Elite Fishing System (FS) provides access to a full range of Lowrance fish detection tools, including ActiveTarget™ 2 live sonar, Active Imaging™ and Active Imaging™ HD* and preloaded C-MAP® Discover Onboard maps, allowing you to make the most of your time on the water.

*Active Imaging HD requires S3100 module

TECHNICAL DATA

Display

* Backlight color - pure white LED

* 10'' screen diagonal

* Display resolution - 1920x1080

* Viewing angles - 80° up/down, 80° left/right

Communications

* Bluetooth - integrated Bluetooth 4.0 with Bluetooth Classic support

* Ethernet ports - 2 x 100 Mbit, 6 max. MFD in the Network

* Wi Fi Connectivity - Internal 802.11b/g/n and compatible with WiFi-1 module

* NMEA2000 - 1x micro-C connectivity

* SD card storage - 2 micro SD cards up to 32 GB

Cartography

* Supported charts - C-MAP RevealC-MAP DiscoverC-MAP Reveal XC-MAP Discover XC-MAP (MAX N, MAX N+)C-MAP GenesisC-MAP Precision Contour HD (AMER ONLY)Navionics (Gold, NAV+ Platinum+)Insight (Pro and HD) Lowranc Regional Mapping Partners

Compatibility with sonar

* Integrated - CHIRP, Broadband, Active Imaging™ HD DownScan, Active Imaging™ HD SideScan, Active Imaging™ DownScan, Active Imaging™ SideScan

* Compatible - ActiveTarget® 2, ActiveTarget®, S3100, SonarHub®, StructureScan®, StructureScan®HD, StructureScan®3D, LiveSight (requires PSI-1)

* Maximum depth - 5000 feet (1524 m) depending on the transducer

Points, routes, tracks

* 3000 points

* 100 routes

* 100 trails with up to 10 000 points per trail

Supply voltage

* 12 V DC (10,8 – 17 V DC)

* 4 7,7 W (3,6 A at 13,8 V DC)

* Recommended fuse value - 5A

* Weight of the display itself - 3,6 kg

Key features

* SolarMAX™ HD touchscreen visible from extreme angles and through polarized lenses

* New! High resolution up to 1,2 MHz Active Imaging™ HD ready (Lowrance CHIRP/SideScan/DownScan Imaging™)

* New! Ready-made high-resolution ActiveTarget® 2 live sonar

* FishReveal™ with new SideScan and Downscan* views

* Available with 9, 10, 12 and 16 inch displays

* Preloaded C-MAP® DISCOVER OnBoard maps with 1 foot levels for more than 19 000 lakes in the US, more than 9400 lakes in Canada or base maps worldwide

* Real-time mapping available with C-MAP® Genesis Live.

* Support for new ActiveTarget® Scout and Ghost® Trolling Motor 360 map overlay views

* Large programmable keys for sizes 10, 12 and 16 inches

* Touchscreen control with Power-Pole® anchors, Ghost® outboard motor, autopilot and Lowrance outboard remote control

* NMEA 2000®, wireless and Bluetooth® connectivity — plus smartphone notifications

* A wide range of optional map updates including C-MAP® REVEAL, Navionics®, Florida Marine Tracks and more.

*SidescanFishReveal requires S3100 module and compatible transducer

NEW

ACTIVE IMAGING™ HD 3 IN 1

Experience a new level of transparency and improved target discrimination with incredibly detailed views of fish and structures where fish are found, such as piles of stones, standing wood, brush, trenches, falls and more.

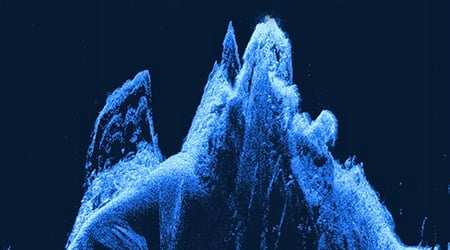

DownScan HD Image

DownScan Imaging™ makes it easy to determine how fish relate to a structure by providing photographic images of rocks, trees, bottom composition and other underwater structures directly under the boat.

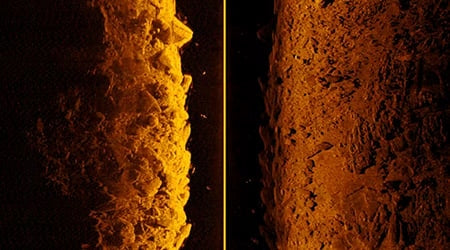

SideScan HD Image

Ideal for finding large areas for fish storage structures, it allows you to cover more water in less time and view areas too shallow for your boat - for example, next to the shore or shore.

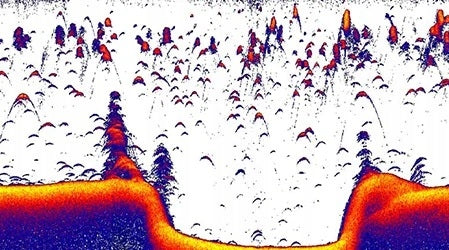

Sonar CHIRP

See fish, structure and bottom with greater clarity thanks to Lowrance CHIRP technology, which provides the best view of individual ryb.

INCLUDED IN THE SET:

* SONAR DISPLAY SCREEN

* DISPLAY SCREEN STAND

* TRANSDUCER MOUNT FOR PERMANENT TRANSOM INSTALLATION

* POWER CABLE

* INSTRUCTION MANUAL in Polish

* PROOF OF PURCHASE
