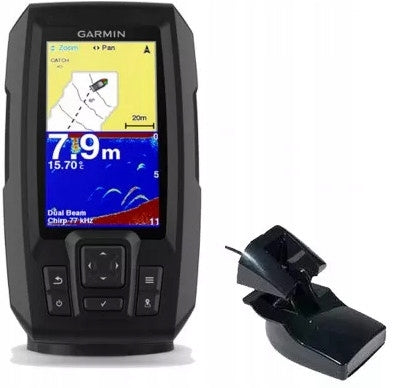

Echolotas Garmin Striker Plus 4 su 77/200 kHz keitikliu

Trumpai apie prekę

Prekė: Echolotas Garmin Striker Plus 4 su 77/200 kHz keitikliu. Kategorija: Echolotai.

• Gamintojas: Garmin
• Modelis: STRIKER PLUS 4 + TRANSDUCER

The subject of the offer is a new Echo Sounder with GPS Garmin Striker Plus 4 with 77/200 kHz converter

Catalog number: 010-01870-01

Main features:

• Color screen 4,3" HVGA 480 x 272 pixels
• Menu in Polish and metric system
• rich color palette of the displayed image
• 10 position very bright screen backlight
• possibility of vertical and horizontal division of the screen up to 2 windows
• built-in precision GPS: marking positions up to 5000 points, drawing the trace traveled, boat speed (without the possibility of uploading maps)
• Quickdraw Contours allows you to create your own bathymetric maps in HD quality while swimming (internal memory can accommodate over 800 thousand. hectares of maps with isobaths every 30 cm)
• maximum range 490 m fresh water, 230 m salt water
• measurement of water temperature in the transducer
• measurement of power source voltage
• max. current consumption 1,5A
• supply voltage 10-20V DC
• Operating temperature -15°C to +55°C
• waterproof housing class IPX 7

By purchasing this product, you get:

• sonar screen
• tilt-turn stand
• 77/200 kHz converter
• fixed transducer attachment to transoms
• attachment of the transducer to the electric motor
• power cable with fuse
• instruction in Polish
• 2-year warranty

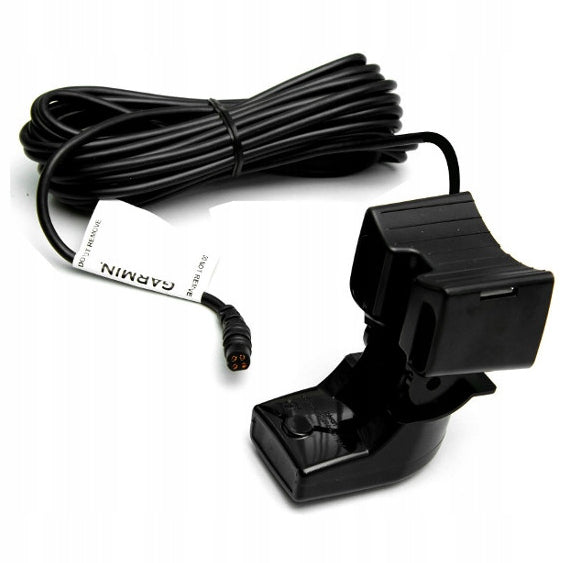

Main features of 77/200 kHz converter

• classic imaging 77/200 kHz 500W beam width (-3dB) 45/15 degrees
• max. range 570 m fresh water, 270 m salt water
• measurement of water temperature in the transducer
• number of 4-pin contacts
• cable length 6 m

Other parameters:

• Supported Frequency: 50/77/200 kHz
• Identification of fish symbols - an advanced feature showing fish as icons of different sizes with the ability to display the depth at which they are located
• Color Line - allowing you to determine the hardness of the bottom
• HD-ID™ - increased image resolution for increased object discrimination efficiency
• Zoom - function allows you to enlarge fragments of water tone and automatically track the bottom
• Sonar history browsing function - scrolling backwards to several screens of the recorded image
• Smooth Scalling™ - smooth image scaling when changing depth range
• Ultrascroll™ - display of fish shoals at higher boat speed
• AutoGain technology - reduces clutter, increases goals achieved
• A-scope - real-time display of fish flowing through the transducer beam
• Adjustable depth line - depth measurement of underwater objects
• Alarms: shallow water, deep water, battery voltage
• Fish alerts: all fish, medium and large fish, only large fish
• GPS alerts: reaching, exiting the course, anchor
• Internal settings memory - the device remembers the last settings even after turning off
• Recording and graphing of water temperature

CHIP echo sounder

With the STRIKER Plus 4 sonar, finding fish has never been easier. Mark your places so you can get back to them, as well as bridges for boats and docks. It is also possible to share points and routes with other STRIKER and echoMAP multifunction devices. Thanks to the Smooth Scaling function, switching between depth ranges does not cause any interruptions in the displayed image. The story scroll function in sonar allows you to view sonar images backwards to mark route points that may have been missed. Additionally, the sonar is equipped with a built-in sonar screen that displays speed data. Includes tilt-turn handle, transom and trolling motor installation brackets, software and cables.

Explore the purity of the CHIRP sonar signal

The STRIKER Plus 4 echo sounder is equipped with a CHIRP wide beam transducer from Garmin,which provides much higher clarity and accuracy in fish imaging and structures compared to traditional 77/200 kHz transducers.CHIRP sonar does not send a single signal of a certain frequency,a series of signals of different frequencies, which are then interpreted individually upon their return. Due to the fact that signals of different frequencies provide more information, CHIRP sonar technology provides clearly outlined arcs depicting fish with excellent distinction of objects. It is also possible to upgrade to Garmin’s high-performance CHIRP technology, which provides crystal clear sonar images, with even better object differentiation and excellent resolution of both surface and deep water. It provides better visibility of the bottom contours even at high speeds and better suppression of signal interference in deeper waters, giving a better view of the situation underwater, which in turn increases the pleasure of fishing.

Quickdraw Contours lets you create your own HD maps

This feature allows you to create real-time bathymetric maps while swimming. Create personalized HD fishing maps on the screen with isobaths every 30 cm. Customize them to your needs. Maps can be freely colored. We choose the color and set our own depth ranges.

Determination of fish taking locations thanks to high sensitivity GPS receiver

Unlike typical fishing sonars, STRIKER sonars are equipped with a built-in high-sensitivity GPS receiver for fast and precise location of the current position and maintaining GPS location anywhere on the lake. More importantly, they make it possible to mark the places where fish are taken, which makes it possible to return to them in the future. You can also mark docks, boat piers and other locations on the lake. All you have to do is follow the path set on the screen to return to them at any time. The map with route points provides easy navigation.

The high-sensitivity GPS receiver of the STRIKER series provides the ability to track your position relative to marked points of the route. Marked points such as thickets, stumps, docks, piers are displayed on the map. The device allows you to navigate to them. This is an excellent tool for finding your way back.

Checking the speed on the screen

On the screen of the STRIKER sonar you can quickly and easily check the speed of the boat. This tool also gives you confidence in the right fishing speed in relation to the bait used and the species of fish. It is also a good way to check the right speed in areas of controlled track traffic.
