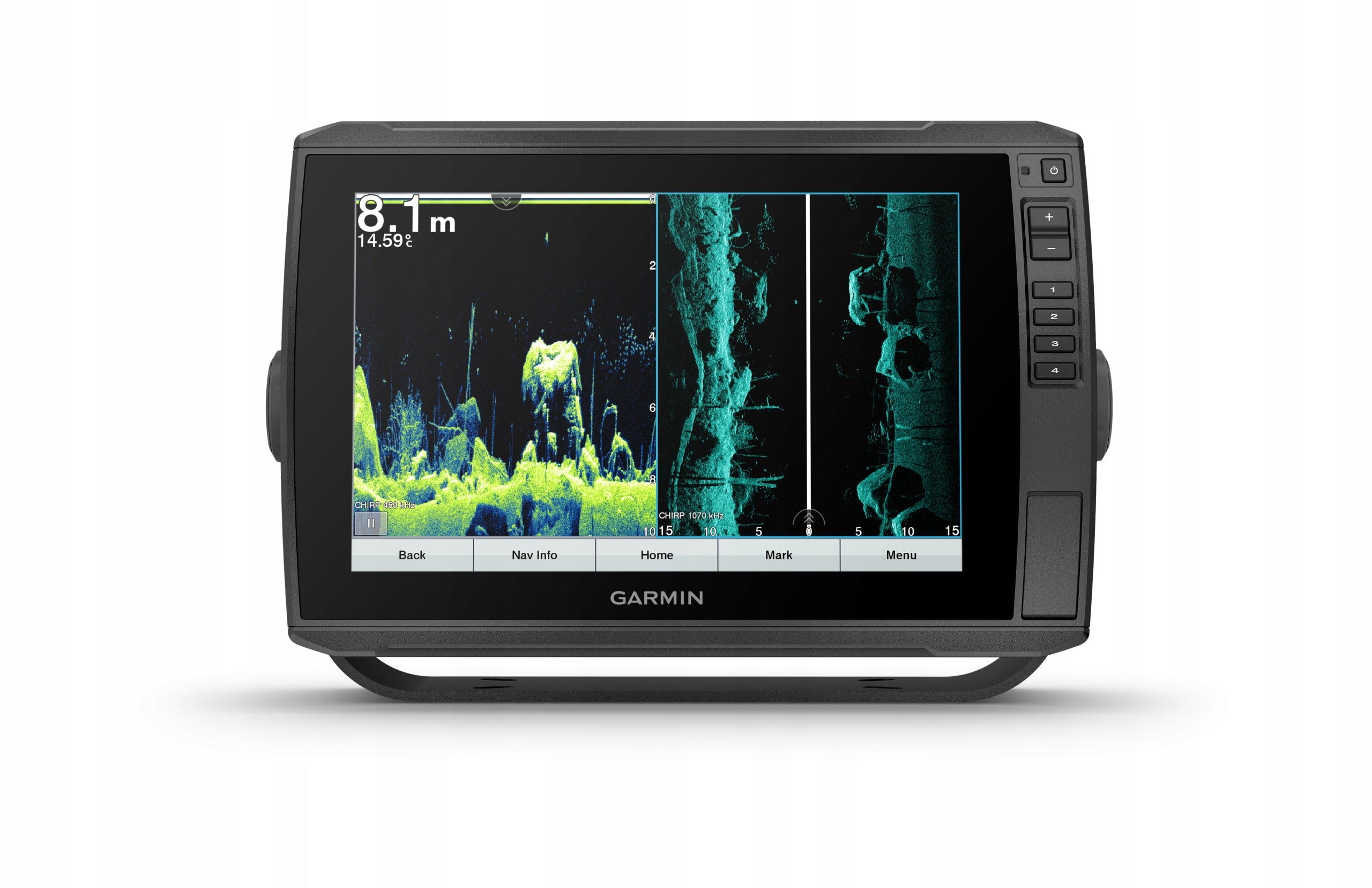

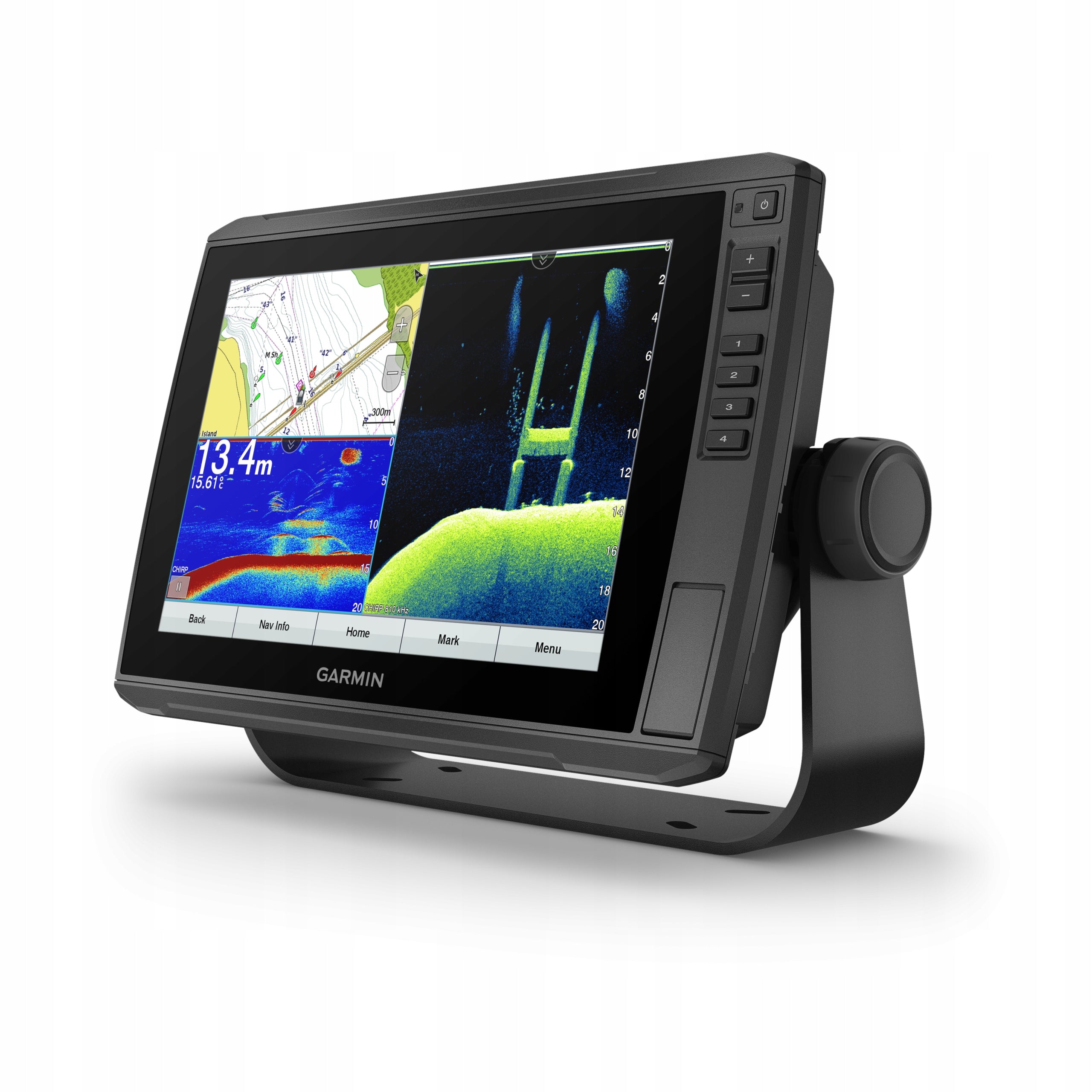

Echolotas Garmin ECHOMAP Ultra 102sv su GT56

Trumpai apie prekę

Prekė: Echolotas Garmin ECHOMAP Ultra 102sv su GT56. Kategorija: Echolotai.

• Gamintojas: Garmin
• Modelis: ECHOMAP Ultra 102sv +GT56

Main features:

• IPS 10" WXGA 1280 x 800 pixels colour multi-touch screen
• good visibility in polarized glasses
• Menu in Polish and metric system
• rich color palette of the displayed image
• 10 position very bright screen backlight
• possibility of vertical and horizontal division of the screen up to 4 windows
• 4 hotkeys
• supported frequencies depending on the transducer:
• traditional: 50/77/83/200 kHz and CHIRP (low, medium and high frequencies)
• realistic lower scan CHIRP ClearVü 260/455/800 kHz and UHD ClearVü 800/1000/1200kHz
• realistic side scanning CHIRP SideVü™ 260/455/800 kHz and UHD SideVü 800/1000/1200kHz
• built-in precision GPS 10Hz: marking positions up to 5000 points, drawing the trace traveled, boat speed, the ability to read maps
• Quickdraw Contours allows you to create your own bathymetric maps in HD quality while swimming
• measurement of power source voltage
• max. current consumption 2A
• supply voltage 10-20V DC
• Operating temperature -15°C to +55°C
• waterproof housing class IPX 7
• slot for two micro SD memory cards up to 32 GB
• Garmin Navionics+, Garmin Navionics+ Vision, BlueChart g3 and BlueChart g3 Vision HD
• communication NMEA2000
• communication NMEA0183
• support for all Panoptix transducers including LVS12
• 2 Ports GARMIN MARINE NETWORK

• sonar screen
• screen protector

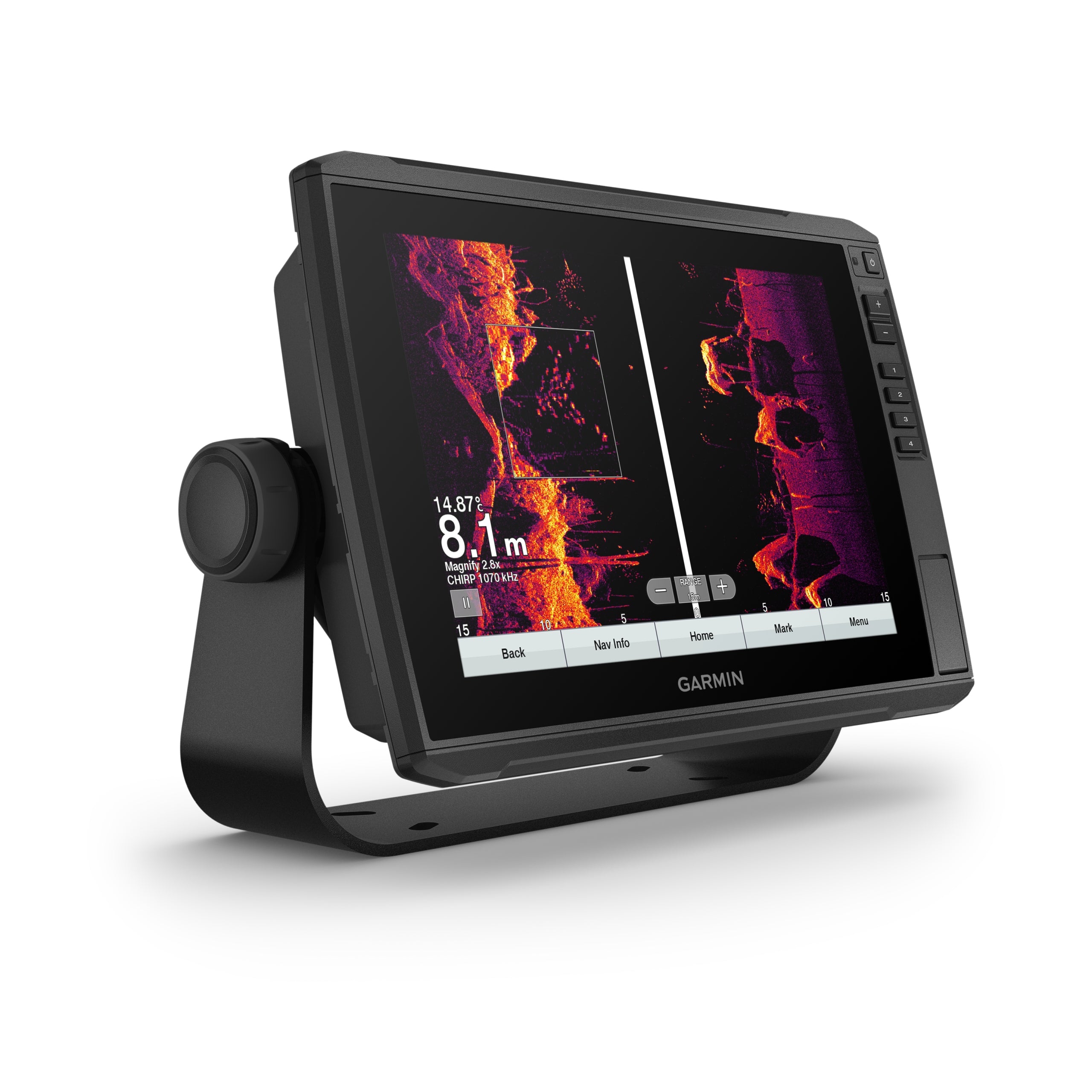

• Tilting handle with quick disconnect mechanism
• GT56UHD-TM converter with frequency 150-240/455/800/1100 kHz
• fixed transducer attachment to transoms
• attachment of the transducer to the electric motor
• power cable with fuse and for data transmission
• instruction in Polish

Main features of the Garmin GT56UHD-TM converter:

• classic imaging CHIRP 150-240 kHz 350W beam width (-3dB) 24-16 degrees
• realistic bottom scan UHD ClearVü CHIRP 455 kHz (425 – 485 kHz), 800 kHz (790 – 850 kHz), 1000 kHz (940 – 1100 kHz) 500W
• realistic side scanning UHD SideVü 455 kHz (425 – 485 kHz), 800 kHz (790 – 850 kHz), 1000 kHz (940 – 1100 kHz) 500W
• max. range classic imaging 244 m fresh water
• max. range realistic lower ClearVü 122 m
• Side scanning SideVü 152 m
• measurement of water temperature in the transducer
• number of 12-pin contacts
• cable length 7,62 m

Other parameters:

• Supported frequencies: 50/77/200 kHz and ClearVü and SideVü™260/455/800 kHz and UHD ClearVü™ 800 kHz and UHD SideVü 1200 kHz
• Identification of fish symbols - an advanced feature showing fish as icons of different sizes with the ability to display the depth at which they are located
• Color Line - allowing you to determine the hardness of the bottom
• ClearVü - provides an almost photographic representation of the bottom and objects in the water under the boat
• SideVü™ - so-called side scanning provides almost photographic representation of the bottom and objects located on both sides of the boat up to 150 m
• HD-ID™ - increased image resolution for increased object discrimination efficiency
• Zoom - function allows you to enlarge fragments of water tone and automatically track the bottom
• Sonar history browsing function - scrolling backwards to several screens of the recorded image
• Smooth Scalling™ - smooth image scaling when changing depth range
• Ultrascroll™ - display of fish shoals at higher boat speed
• AutoGain technology - reduces clutter, increases achieved goals
• A-scope - real-time display of fish flowing through the transducer beam
• Adjustable depth line - depth measurement of underwater objects
• Alarms: shallow water, deep water, battery voltage
• Fish alerts: all fish, medium and large fish, only large fish
• GPS alerts: arrivals, exits, anchorages
• Internal settings memory - the device remembers the last settings even after turning off
• Water temperature recording and graph

According to the "Act of 4 February 1994 on Copyright and Related Rights", any use of these materials in whole or in fragments without the consent of the owner is prohibited.

High-quality built-in sonar functions

The device equipped with a 10″ touch screen and buttons includes a universal transducer for traditional CHIRP scanning echo sounders, Ultra High-Definition ClearVü and SideVü

Built-in support for the full range of Panoptix™ and Panoptix LiveScope™ scanning sonars, including Panoptix LiveScope LVS12 probes

Share data from echo sounders, route points and routes with other users of the ECHOMAP Ultra 10″ and 12″ and ECHOMAP Plus 7″ and 9″ models

Includes Quickdraw Contours software to help you create your own isobath fishing maps every 0,3m on the screen while fishing

NMEA 2000® network support provides network connectivity for course sensors, autopilots, digital switching, FUSION-Link™ audio system and more

Support for Panoptix sonar

The ECHOMAP Ultra 102sv multifunction device with GT54UHD-TM also supports the optional Panoptix LiveScope LVS12 sonar (no black boxes required) and the full range of Panoptix™ sonar transducers with a wide field of view. It also supports Panoptix LiveScope System LVS32.

CHIP sounder with DownVü and SideVü scanning sonar

With the Echomap Ultra sonar, finding fish has never been easier. Mark your places so you can get back to them, as well as bridges for boats and docks. It is also possible to share points and routes with other multifunctional devices from the Echomap series. Thanks to the Smooth Scaling function, switching between depth ranges does not cause any interruptions in the displayed image. The story scroll function in sonar allows you to view sonar images backwards to mark route points that may have been missed. Additionally, the sonar is equipped with a built-in sonar screen that displays speed data. Includes tilt handle, transom and trolling motor installation brackets, software and cables.

Explore the purity of the CHIRP sonar signal

The Echomap Ultra echo sounder is equipped with a wide beam CHIRP transducer from Garmin, which provides much higher clarity and accuracy in fish imaging and structures compared to traditional 77/200 kHz transducers. CHIRP sonar does not send a single signal of a certain frequency, but a series of signals of different frequencies, which it then interprets individually when they return. Because signals of different frequencies provide more information,CHIRP sonar technology provides clearly outlined arches depicting fish with excellent object differentiation.It is also possible to upgrade to high-performance CHIRP technology from Garmin,which provides crystal clear sonar images,with even better distinction of objects and excellent resolution of both surface and deep water. It provides better visibility of the bottom contours even at high speeds and better suppression of signal interference in deeper waters, giving a better view of the situation underwater, which in turn increases the pleasure of fishing.

Quickdraw Contours lets you create your own HD maps

This feature allows you to create real-time bathymetric maps while swimming. Create personalized HD fishing maps on the screen with isobaths every 30 cm. Customize them to your needs. These maps are yours – they are yours. Keep the data to yourself or share it with the Quickdraw community in Garmin Connect™. Maps can be freely colored. We choose the color and set our own depth ranges.

Position and direction updated 10 times per second

The 10Hz GPS receiver with short response time refreshes position and direction 10 times per second for smooth movement on the screen. Now you can quickly and easily observe up to 5000 exact points, so you can find your way to your “secret” fishing spots.

Take the ECHOMAP Ultra with you

When you want to get off the boat, you can easily disconnect the ECHOMAP Ultra and hide it in a safe place. You do not have to fight with wiring when connecting and disconnecting the device, because all cables are connected directly to its tilt-turn handle with a quick release mechanism. This allows the ECHOMAP Ultra to be quickly connected to power and to the holder – and disconnected just as quickly.

ActiveCaptain app

After you have exercised, you can view notifications from your phone directly on the screen. You can also use the Quickdraw Contours community and share your maps and download new map data. ActiveCaptain also allows you to download updates for your fishing echo sounder over Wi-Fi.

Specifications

Group	Name	Value
Parametry	Condition	new
Parametry	Invoice	With VAT invoice
Parametry	Brand	Garmin
Parametry	Manufacturer code	010-02526-01
Parametry	Model	ECHOMAP Ultra 102sv +GT56
Parametry	EAN (GTIN)	0753759264505
Parametry	Batteries included	no
Parametry	Packaging status	original
