Dvivėrių vartų komplektas DE250WiFi, 2x2,5 m, 400 kg, su Wi-Fi ir 2 pulteliais

Trumpai apie prekę

Prekė: Dvivėrių vartų komplektas DE250WiFi, 2x2,5 m, 400 kg, su Wi-Fi ir 2 pulteliais. Kategorija: Kietieji diskai.

• Gamintojas: Delmar
• Modelis: DE250WiFi
• Įtampa: 24 V

Maximum length of one wing 2,5m, weight 200 kg. The gate can be a total of 5 meters long and 400 kg in weight.

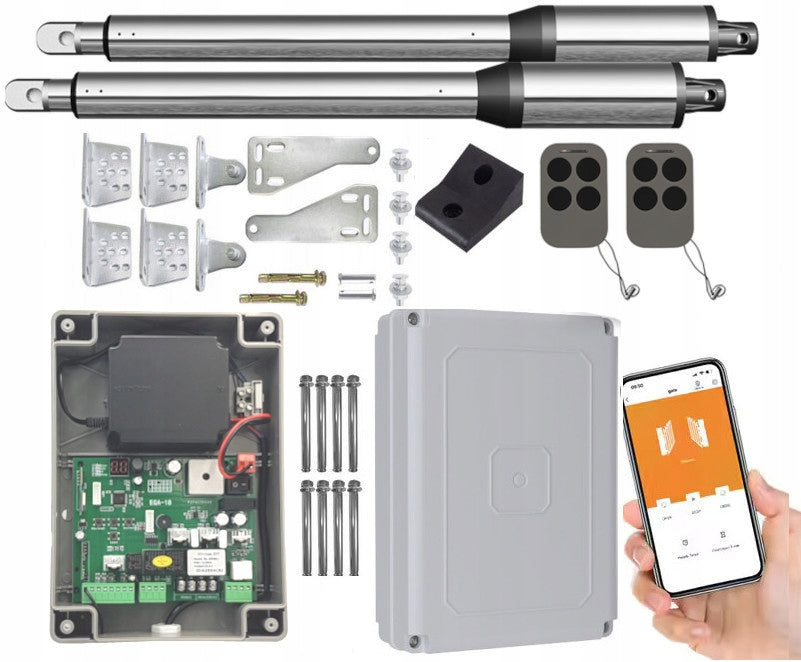

The set includes:

• 2x electromechanical actuators KM-C01 with fixing elements
• Control panel with WiFi
• Housing for control panel - hermetic
• Mounting pins for the control panel
• 2 x 4-channel remote control
• Mounting brackets for posts and gate wings
• 2x Keys for emergency opening of the gate in the absence of voltage
• User manuals in Polish
• Warranty card - 24 months

Thanks to the remote-controlled drive connection to the gate, you can open the gate with a single push of a button on the remote control.

At any time of the year, day or night in all weather conditions, whether in rain or snow, thanks to the installed remote-controlled gate drive, you can safely enter the property without having to get out of the car. The DE250 set is designed for double-leaf gates with a length of one wing up to 2,5 meters and a wing weight of up to 200kg (the entire gate up to 400 kg weight up to 5 meters length)

After reading the instructions, the DE250 kit can be mounted on its own. A step-by-step dot according to the information contained in the instructions can be successfully self-assembly. If there are any questions, we will be happy to answer and clarify the issues that are bothering you.

As an attachment to the auction, we have added assembly instructions (in the "Additional information" tab below the product description) so that you can see how easy it is Before buying In the attachment to the auction we have attached instructions so that you can see how simple it is.

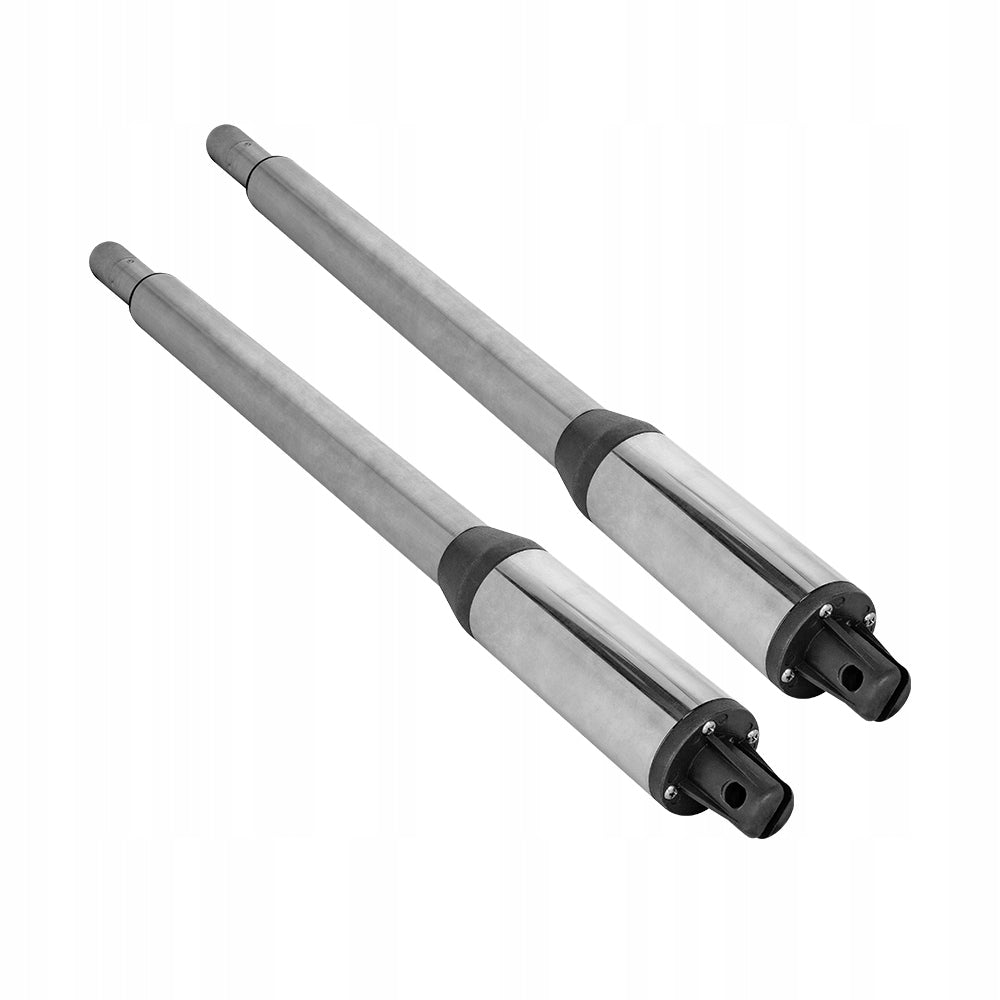

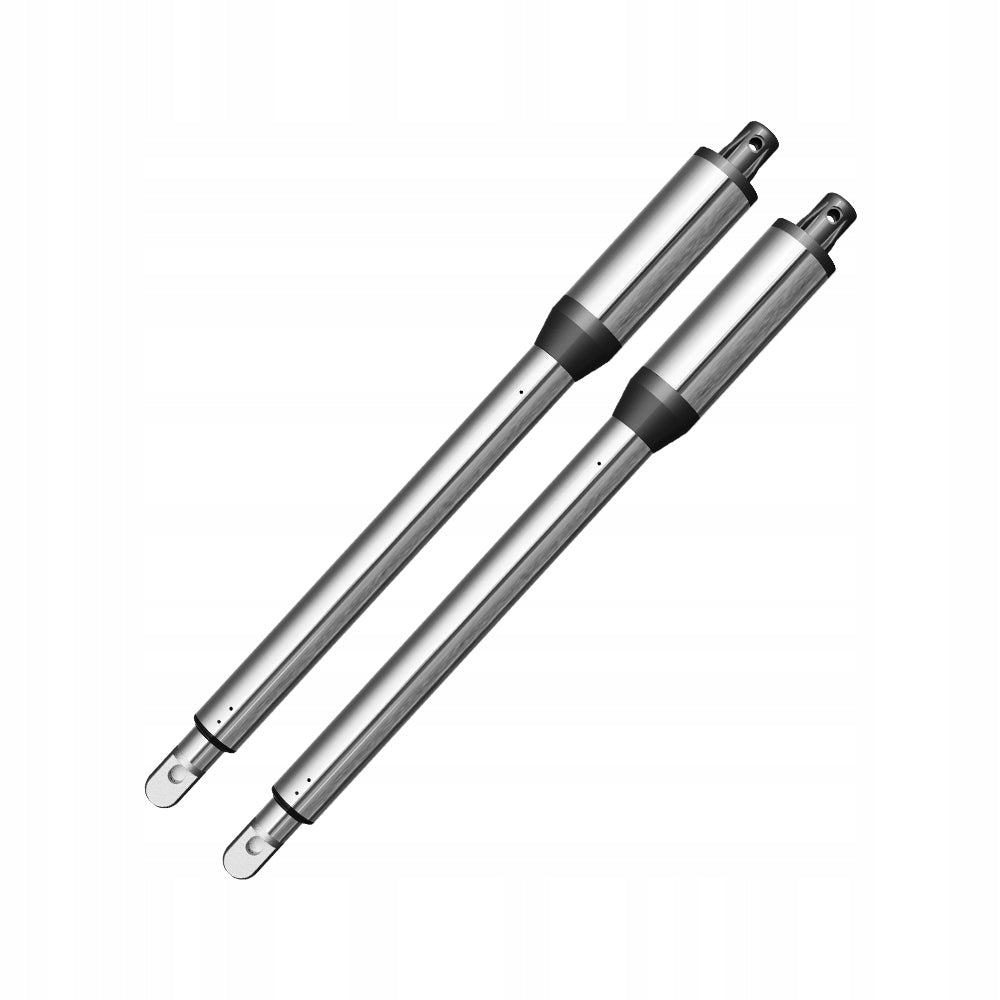

KM-C01 electromechanical actuators are a robust and durable construction that uses high brightness inductive brushless motor. Brushless motor is characterized by greater efficiency and durability than standard brush motors and also consumes less electricity. KM-C01 actuators will also work where there is not much space next to the gate and the post is narrow. Thanks to the universal multi-position handles included in the set, installation is very simple.

The actuator housing made of aluminum provides high resistance to weather conditions, while the sprockets and gears are made of high-quality brass alloy, which guarantees increased strength and resistance to damage.

The range of motion of actuators during operation is determined by means of an overload switch, i.e. After reaching a certain point (bumper attached to the ground), the control panel disconnects the power supply.

The kit is equipped with solid, multi-position universal mounting brackets, which makes it very easy to install and reduces its time. Universal mounting brackets are perfect for double-leaf gates in virtually any configuration.

Possibility of mounting on gates with high breathability.

The set comes with two keys to unlock the gate emergency. In the event of an interruption in the supply of electricity, manually unlock (using the included key) the actuators, remove them from the wing and manually open the gate.

The control panel also provides the possibility of ordering an emergency battery power supply, which will open the gate in the event of an interruption in the supply of electricity.

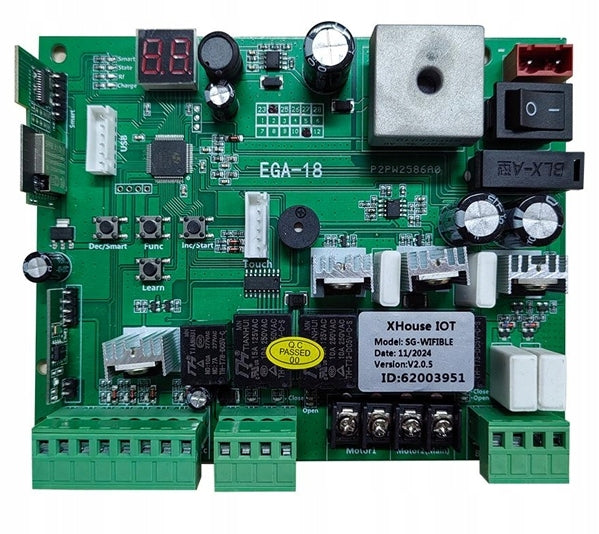

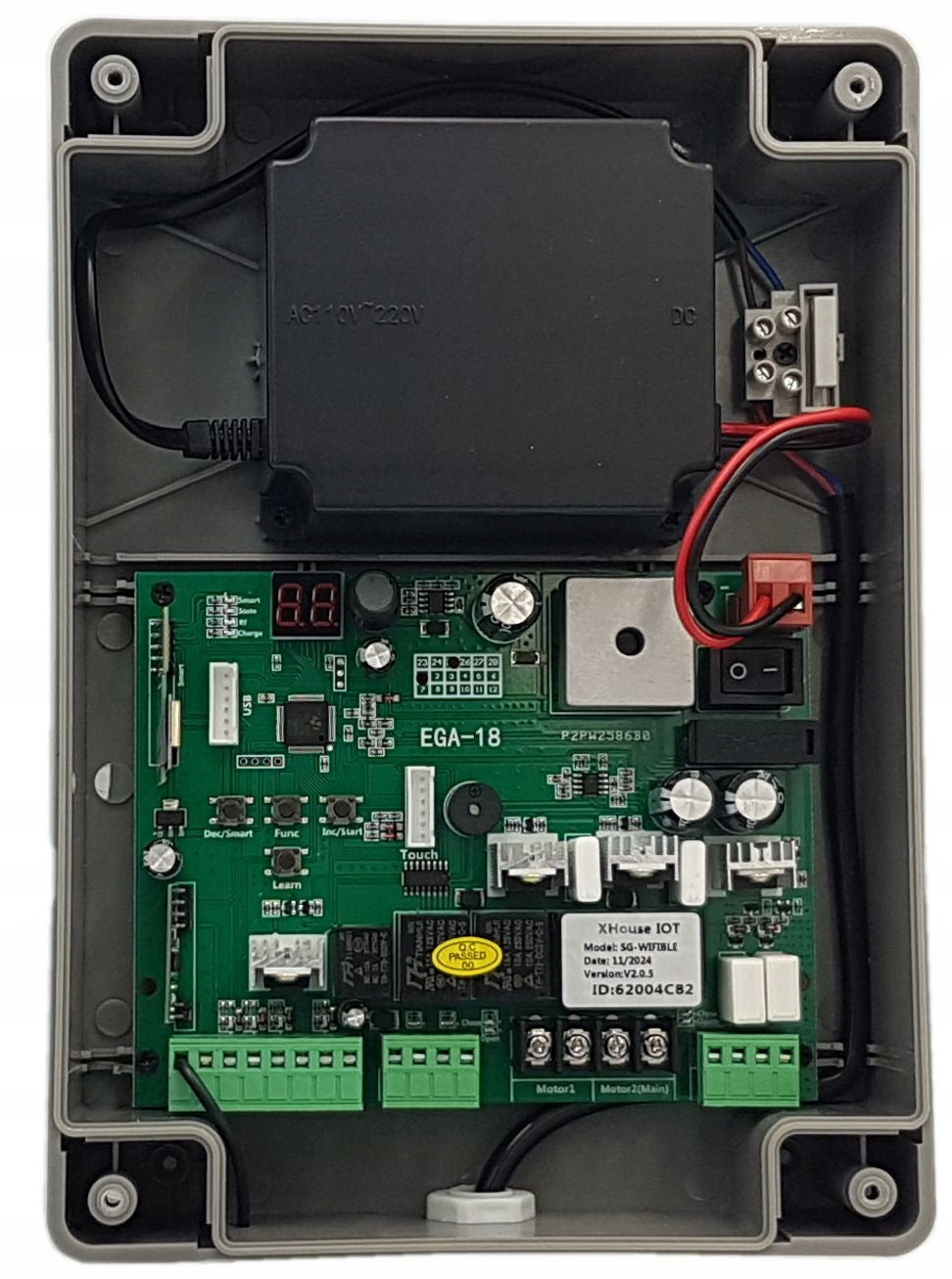

The control panel is intuitive and easy to install. Thanks to the simple and intuitive to use led display, the control panel will be programmed even by a person who has never had contact with it. Power supply from the 230V mains is realized using a high-quality toroidal transformer, which eliminates unwanted voltage spikes.

• External control: If you want to remotely open the gate from the garage, from home or from anywhere in the world? No problem. You can connect devices to the control panel with which we will be able to open the m.in gateway.: videophone, intercom, code keyboard, phone control from anywhere in the world using the application (connection to the control panel via WiFi), universal radio. Thanks to the universal radio, we can also control this device using remote controls of another brand.
• Soft start and stop of actuators so-called. "Soft Start" and "Soft Stop" - guarantees smooth operation during the opening of the gate and braking of the gate wings in the final phase of work, thanks to which the closing of the gate is gentle and quiet (we avoid slamming). Thanks to this function, a high working culture of actuators is ensured.
• Gate function (for opening gates or only one gate leaf) if opening the entire gate is not necessary, e.g. When we want to go for a walk or go by bike, we can open only one gate leaf.
• Automatic closing - you can program the time in the control panel, after which the gate will automatically close.
• Support for various types of m.in gates. gates in which one of the wings has a closing strip where the gate works "on the tab". This allows you to set the time of overtaking one of the wings in relation to the other.
• Indication of the operating status of the device with an LED display, which helps in the configuration of the device and diagnostics.
• Possibility of connecting emergency powered (12V or 24v battery), which will ensure uninterrupted operation of the device even in the event of an interruption in the supply of electricity.

• Overload protection: during drive operation, the control panel measures the actuator operating intensity on an ongoing basis. After exceeding the value set in the control panel (after encountering an obstacle e.g. car) the gate automatically stops.
• Optical protection: a set of photocells can be connected to the set (not included). . When the infrared beam between the photocells is interrupted by an object entering the gate light (even before physical contact with the gate), the gate will automatically stop.
• Auto-locking the actuator after stopping: you do not need to use additional locks on the gate to protect it from intruders. The construction of the automatic transmission means that when the gate is closed, the actuator locks, keeps the gate in a closed position.

• Power supply for actuators: 24VDC
• Actuator power: 40W
• Maximum length of one wing: 2,5 meters
• Maximum weight of one wing: 200kg
• Maximum opening angle: 110 degrees
• Arm extension speed: 16 mmm/s
• Rotary speed：250 RPM
• Plunger extension: 300mm
• Protection class：IP55
• Sturdy transmission made of high quality metal alloy
• Emergency attachment of the front mount

• WiFi control via apps on your phone (Android and iOS)
• Up to 126 pilots can be uploaded
• Control panel power supply: 230V +/- 15%
• Actuator supply voltage: 24VDC
• Power supply of control panel: 230V
• Remote control frequency: 433.92Mhz
• Max. Remote control range: 150 meters
• Emergency battery connection option: 12V/24V
• Protection Class: IP55
• Operating temperature: -25°C ~ +65°C
• Amperometric, thermal, overload protection
• Automatic closing
• Gate function
• Delay function of one wing relative to the other
• Soft start and stop function of actuators
• Control inputs for video intercom
• Possibility of connecting a wired wall switch
• Easy connection and programming

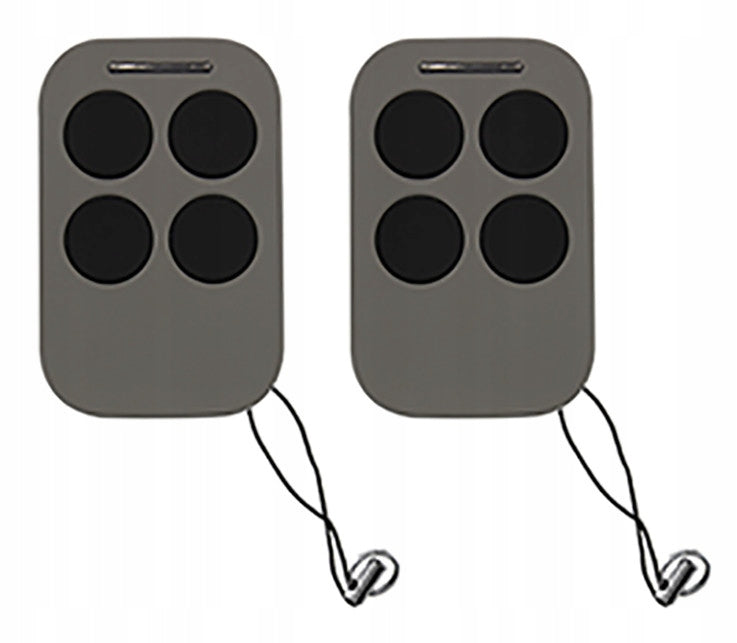

Remote control for 4-channel gate, with dynamically randomly variable code with a frequency of 433.92 MHz. Gate remotes will help you manage your home automation. Each gate remote has its own identity code – so that the remotes can be copied to the remote control.

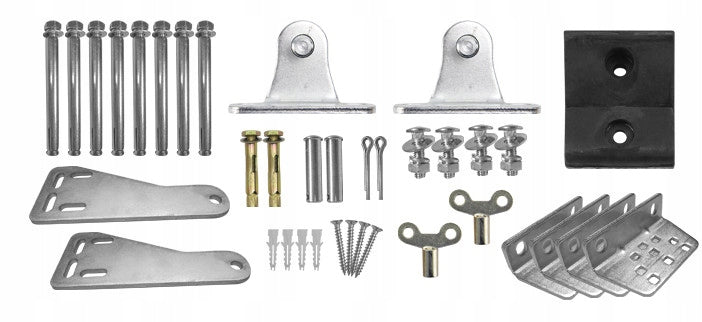

Set of anchors and mounting screws for fixing handles

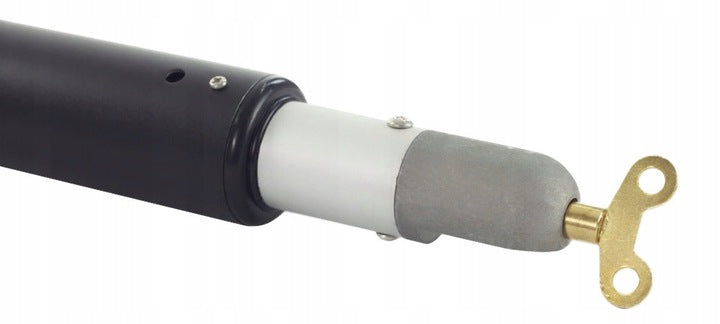

To manually unlock the gate drive in case of an interruption in the supply of electricity

Multi-position handles protected against corrosion - galvanized

Mounted to the ground to stop the gate in a closed position

• Condition: New
• Brand: Delmar
• Product weight with unit packaging: 15kg
• Type of drive: for double-leaf gates
• Maximum wing length: 3m
• Maximum wing weight: 200kg
• Power supply voltage of actuator: 24V
• Working temperature: -20C - +50C

Specifications

Group	Name	Value
Parametry	Condition	new
Parametry	Invoice	With VAT invoice
Parametry	Brand	Delmar
Parametry	Product weight with unit packaging	15 kg
Parametry	Drive type	for double-leaf gates
Parametry	Maximum wing weight	200 kg
Parametry	Maximum wing length	2.5 m
Parametry	Supply voltage	24 V
Parametry	Maximum opening angle	110°
Parametry	Operating temperature	0–20°C
Parametry	Engine power	30 W
Parametry	Manufacturer code	DE250WiFi
Parametry	Packaging status	original
Parametry	Batteries included	no
Parametry	Set contents	control unit,unlock key,mounting elements,drive,remote control,mounting kit with plate
Parametry	Additional features	automatic closing function,gate function,mobile application control function,controlled from intercom
Parametry	Certificates of conformity	CE,WEEE
