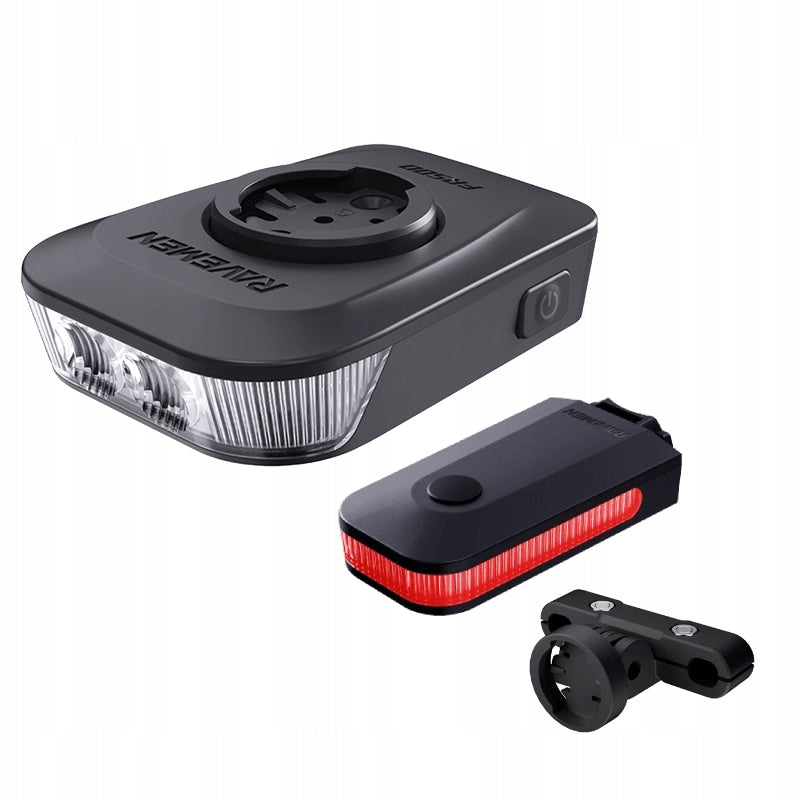

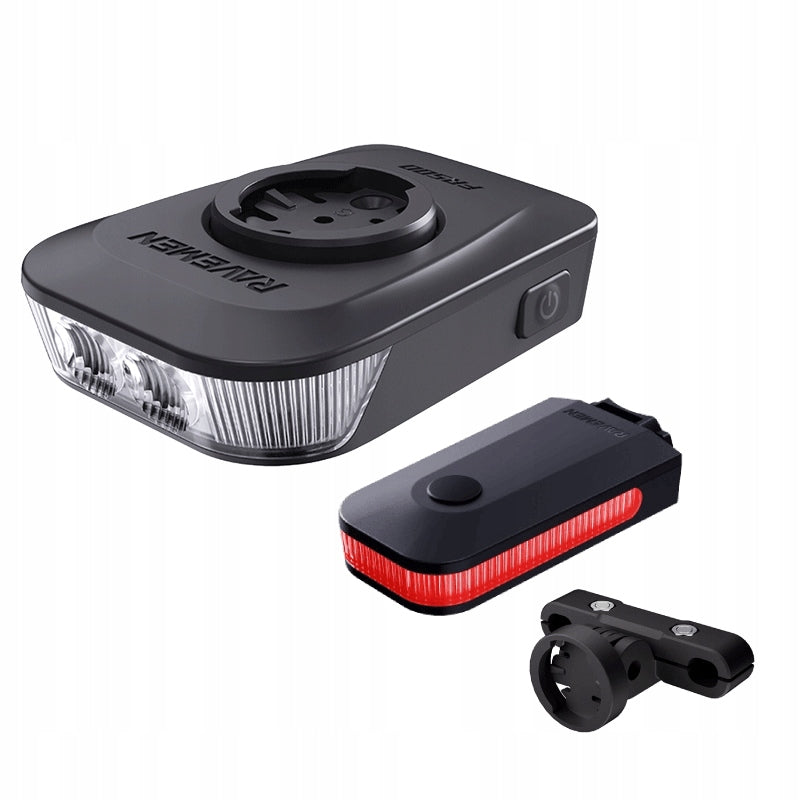

Dviračio žibintų rinkinys RAVEMEN FR500+CL01pro (priekinis ir galinis)

Trumpai apie prekę

Prekė: Dviračio žibintų rinkinys RAVEMEN FR500+CL01pro (priekinis ir galinis). Kategorija: Apšvietimas.

• Gamintojas: Ravemen
• Modelis: FR500+CL01pro
• Spalva: black

➡ Product parameters

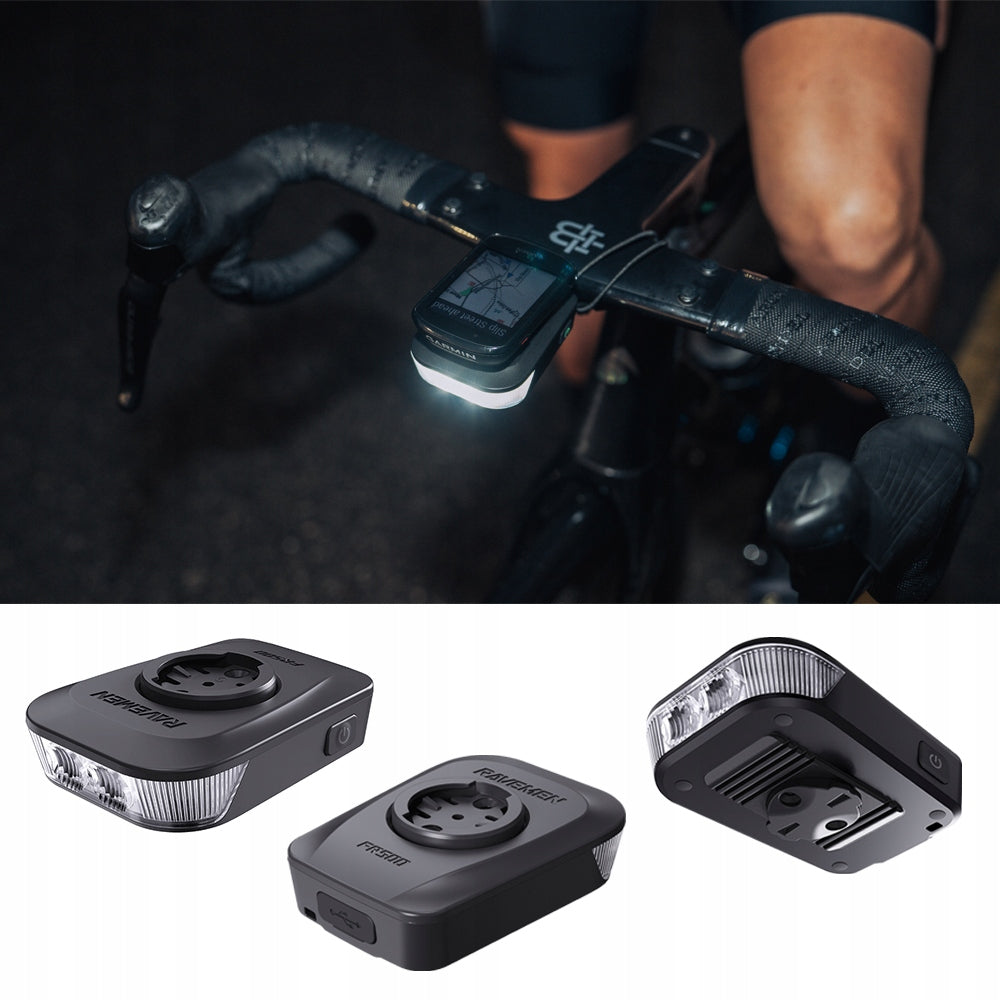

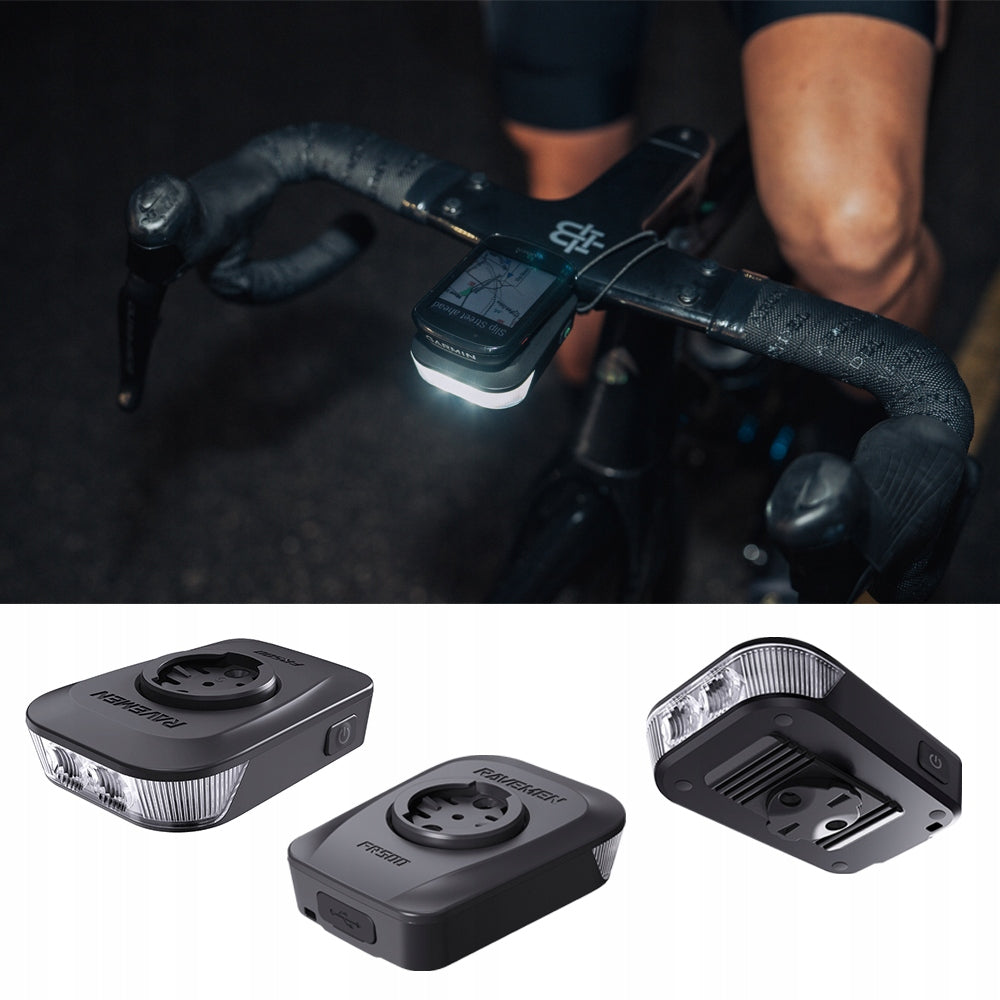

Product name: RAVEMEN FR500

Light Source Type: LED

Maximum brightness: 500 lm

Maximum range: 75 m

Adjusted speed: ＜ 30 km/h

Battery capacity: 2000 mAh

Charging time: 2 h

Charging Interface: USB‑C

Waterproof rating: IPX6

Product Dimensions: 82 mm * 60 mm * 16 mm

Product weight: 100 g

Housing Material: PC

Product Certificates: CE, RoHS

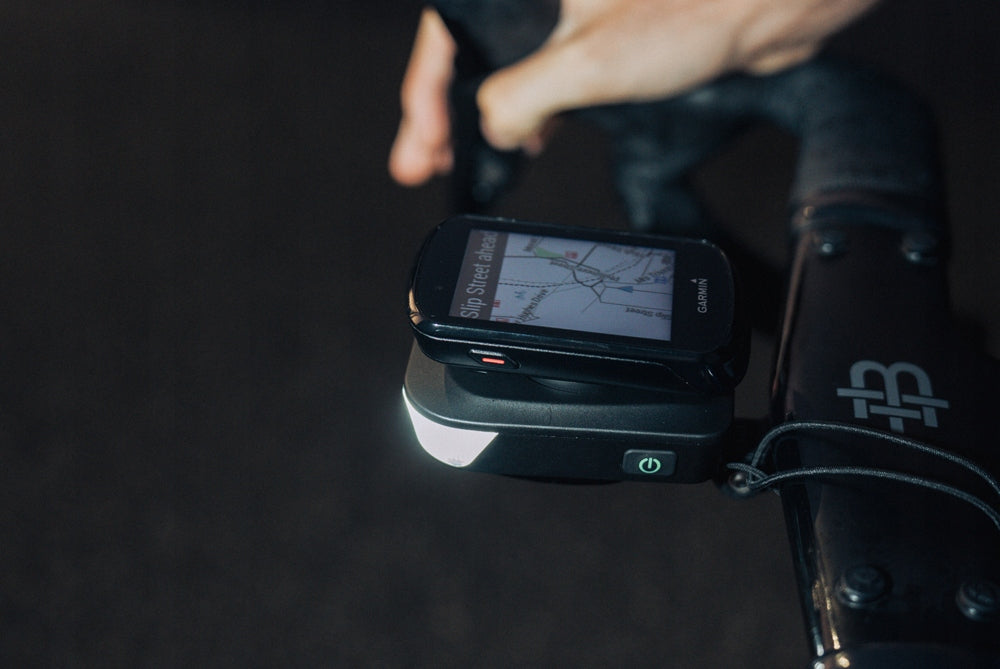

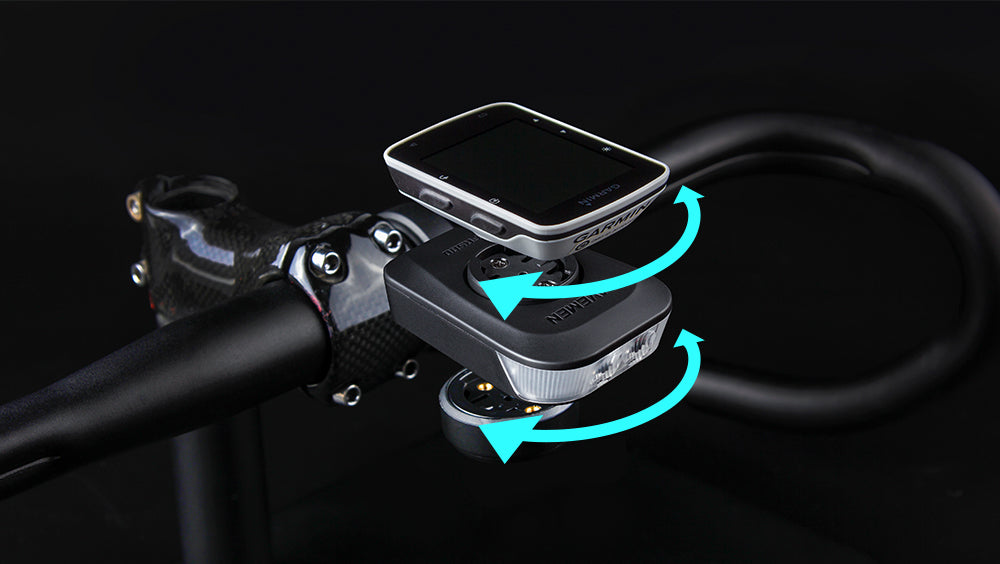

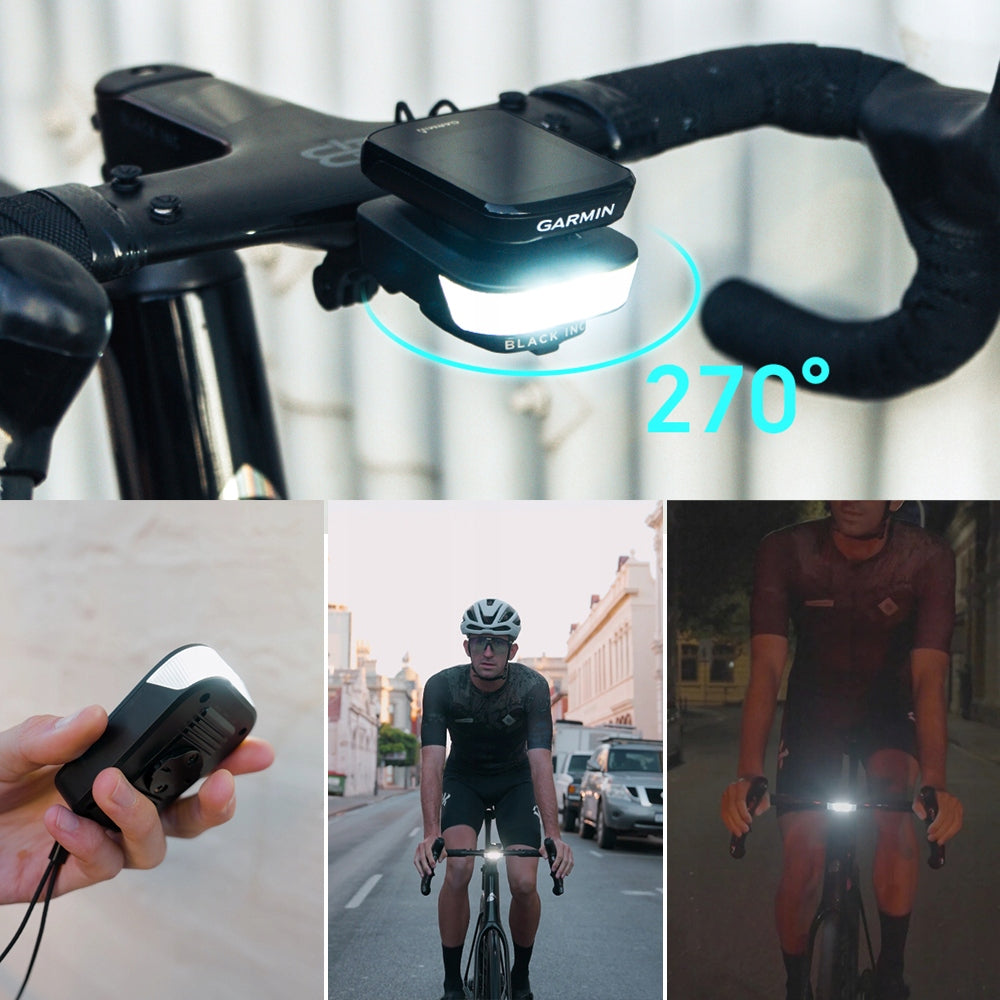

Special Features: Bicycle Computer Mount, 270° Wide Viewing Angle, Automatic On and Off, Power Bank Function

Mode / Brightness in lm / Working time

• High brightness: 500 lm | 2.5 h

• Average brightness: 300 lm | 3.2 h

• Low brightness: 150 lm | 6.5 h

• Warning flickering: 500 lm | 36 h

• Fast flickering: 300 lm | 13 h

• Slow flickering: 150 lm | 24.5 h

Note: All parameters have been tested under standard laboratory conditions, actual data may vary depending on the usage environment

【Quick start】

1、Press and hold the power button for 1.5s to turn the light on/off; single press changes the light modes

2、Automatic on and off mode

On: In the light off state, press and hold the power button for 3 seconds until the light starts flashing quickly, then release. In this mode, the light turns off automatically after 2 minutes of stillness and turns on quickly when vibration is detected

Off: In the light off state, press and hold the power button for 3 s until the light starts flashing slowly, then release

3、Memory function:

Light automatically remembers mode when off, no need to adjust again when turned on again

4、Battery Level Indicator:

Green power button indicator lights up continuously: 40%~100%

Red power button indicator lights up continuously: 5%~40%

Red power button indicator flashes: ＜ 5%

When the light is off, a single press of the power button activates the battery level indicator

5、USB-C charging

Standard charging time: 2 h

Maximum input: 5 V, DC/1 A

Built-in overcharge protection

Note: Some chargers may not charge the light due to differences in charging protocol, just replace the charger or charging cable

6、Charging indicator:

Red indicator flashes: Charging in progress

Green indicator lights up constantly: Charging completed

➡ Product Description

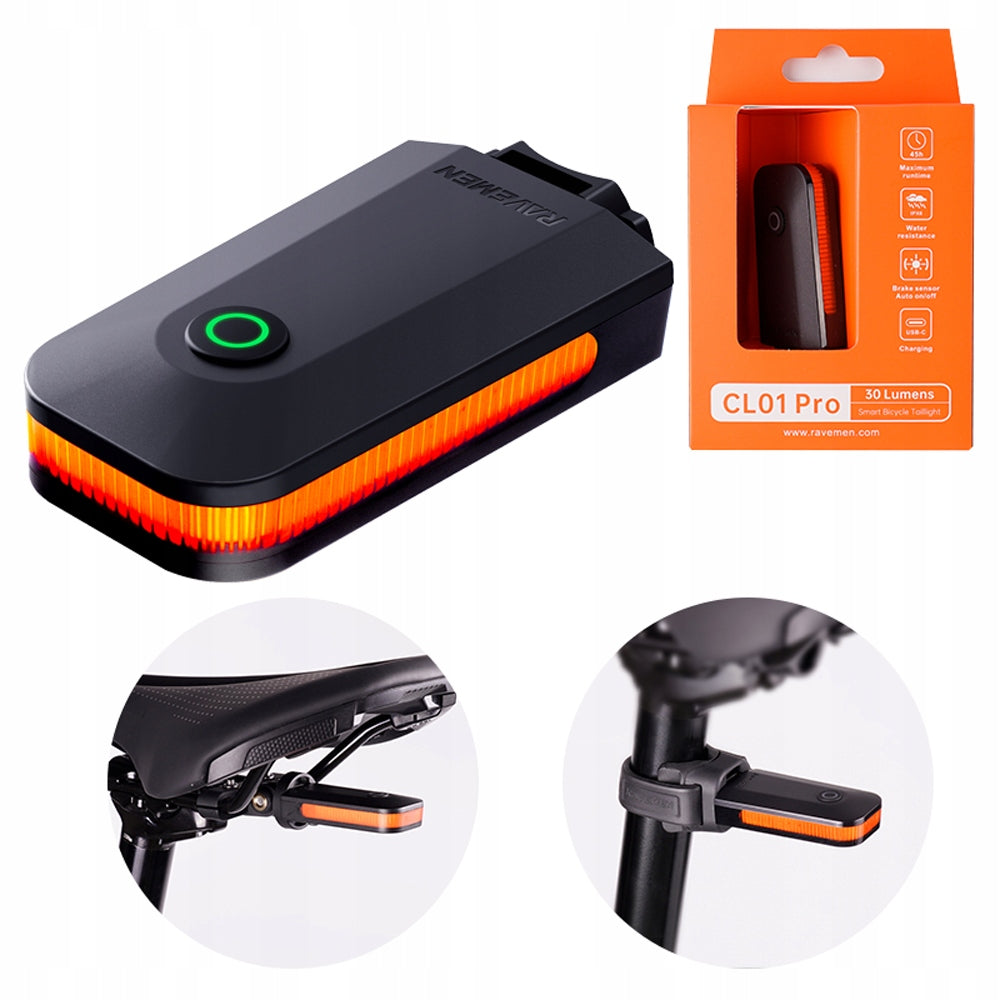

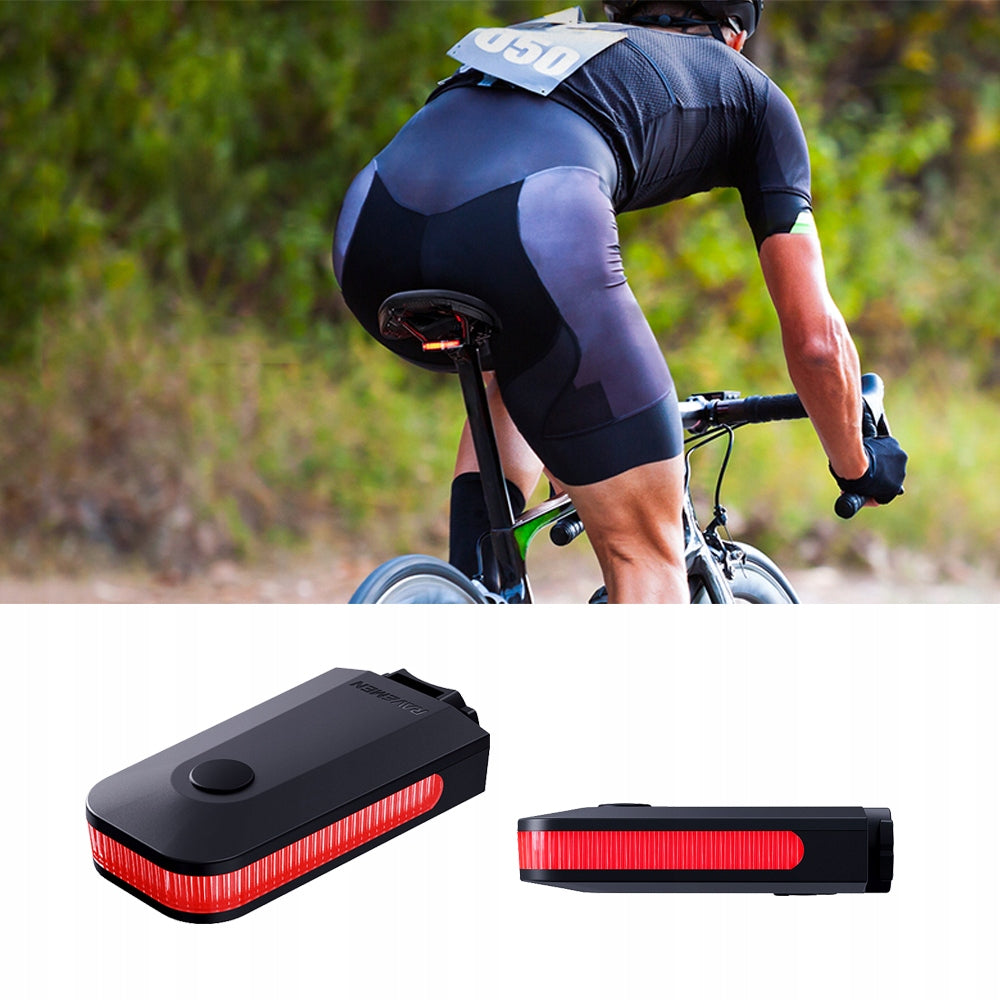

Product Name: RAVEMEN CL01pro

Light Source Type: COB LED

Maximum brightness: 30 lm

Battery capacity: 200 mAh

Charging time: 2.2 h

Charging Interface: USB‑C

Waterproof rating: IPX6

Product Dimensions: 55mm*30mm*14mm

Product Weight: 22 g

Product Certificates: CE, RoHS

Special Features: 300° Viewing Angle, Intelligent On/Off Sensor, Braking Warning, Battery Level Indicator, Mode Memory

Mode / Brightness in lm / Working time

• High brightness: 5 lm | 5 h

• Low brightness: 2 lm | 10 h

• Warning flickering: 30 lm | 9.5 h

• Fast flickering: 5 lm | 11 h

• Slow flickering: 0.5 lm | 45 h

Note: All parameters have been tested under standard laboratory conditions, actual data may vary depending on the usage environment

【Quick start】

1、Press and hold the power button for 0.5s to turn the light on/off; single press changes the light modes

2、Automatic on/off and braking mode

These two functions are integrated and can only be turned on or off together

Turn on mode: When the light is off, press and hold the power button until the light starts flashing quickly, then release the button, the light activates this mode

In this mode, when braking is detected (with adequate braking force), the light switches to a constant glow of 10 lm for 2 s for warning;

In this mode, the light turns off automatically after 2 minutes of stillness and turns on quickly when vibration is detected

The light has a memory function, just turn it on manually once, it will work until you manually turn it off

This mode does not affect the light modes, you can normally switch modes manually

Turn off mode: When the light is off, press and hold the power button until the light starts flashing slowly, then release the button, the light will turn off this mode

3、Memory function:

Light remembers mode and setting when off

4、Battery level indicator

A single press of the power button turns on the indicator for 2 seconds, showing the current battery level

Green light: ＞40%

Red light: 5%-40%

Red flickering: ＜5%

5、USB-C charging

Standard charging time: approx. 2.2 h

Input: 5 V, DC/140 mA

Charging Indicator:

Red flickering: Charging in progress

Green Fixed Light: Charging Completed
