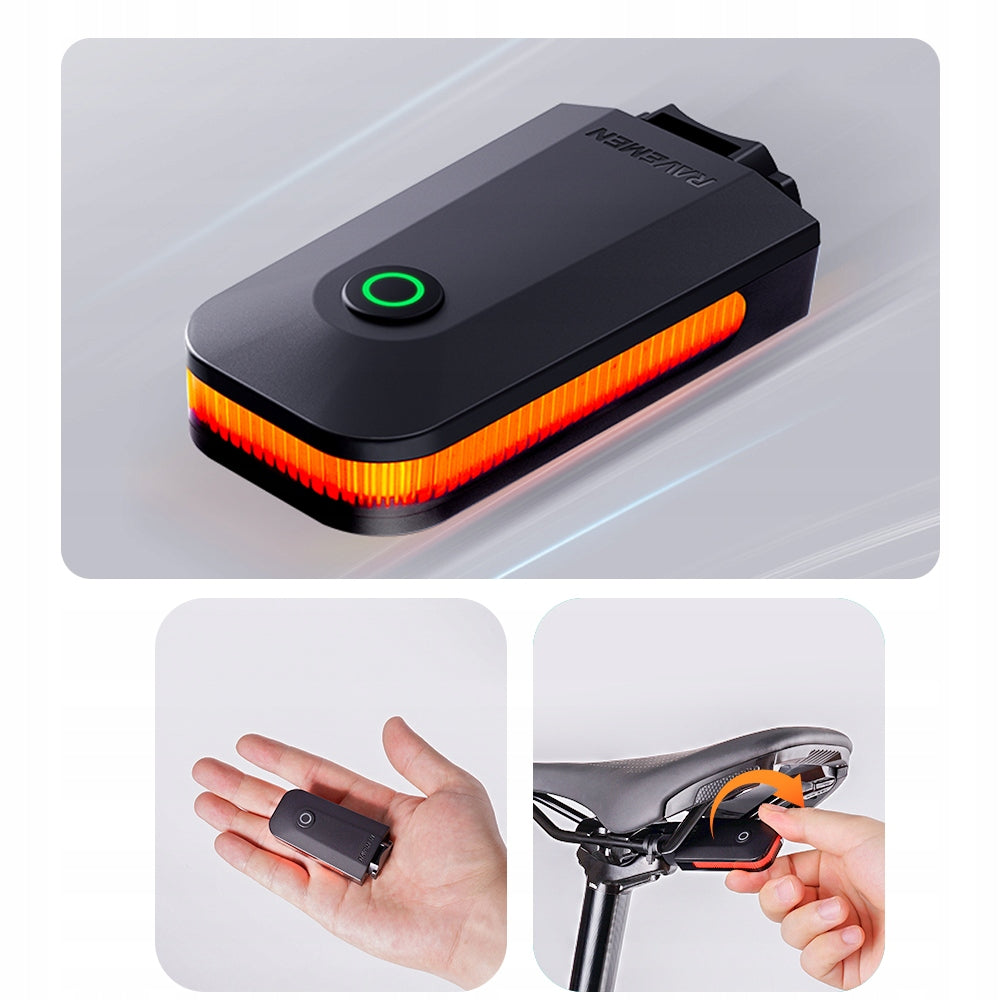

Dviračio galinis žibintas Ravemen CL01pro, USB-C, 200 mAh, 30 lm

Trumpai apie prekę

Prekė: Dviračio galinis žibintas Ravemen CL01pro, USB-C, 200 mAh, 30 lm. Kategorija: Apšvietimas.

• Gamintojas: Ravemen
• Modelis: CL01pro
• Spalva: black

✅ Target group: Cyclists looking for a light rear light, appreciating the aesthetics and uniformity of mounting the light with the bike

✅ Tailored weather conditions: All day and all conditions — day, dusk, night, rain, fog, snow

✅ Tailored routes: Full coverage of urban, rural and suburban roads

⚠ Note: If you want to mount on the saddle arch, make sure you have a horizontal saddle arch under the saddle

⚠ Note: The light port is not a Garmin port, does not support mounting on a Garmin mount

➡ Product parameters

Product Name: RAVEMEN CL01pro

Light Source Type: COB LED

Maximum brightness: 30 lm

Battery capacity: 200 mAh

Charging time: 2.2 h

Charging Interface: USB‑C

Waterproof rating: IPX6

Product Dimensions: 55mm*30mm*14mm

Product Weight: 22 g

Product Certificates: CE, RoHS

Special Features: 300° Viewing Angle, Intelligent On/Off Sensor, Braking Warning, Battery Level Indicator, Mode Memory

Mode / Brightness in lm / Working time

• High brightness: 5 lm | 5 h

• Low brightness: 2 lm | 10 h

• Warning flickering: 30 lm | 9.5 h

• Fast flickering: 5 lm | 11 h

• Slow flickering: 0.5 lm | 45 h

➡ Why use a warning tail light?

Insufficient visibility increases driving risk

Basic safety values of CL01pro:

• Improves visibility throughout the day: Suitable in the sun/clouds/rain/fog

• Reduces blind spots: Collisions often occur at intersections, light effectively alerts you in advance

• Reduces the risk of collision: 300° viewing angle, alerts nearby vehicles and pedestrians

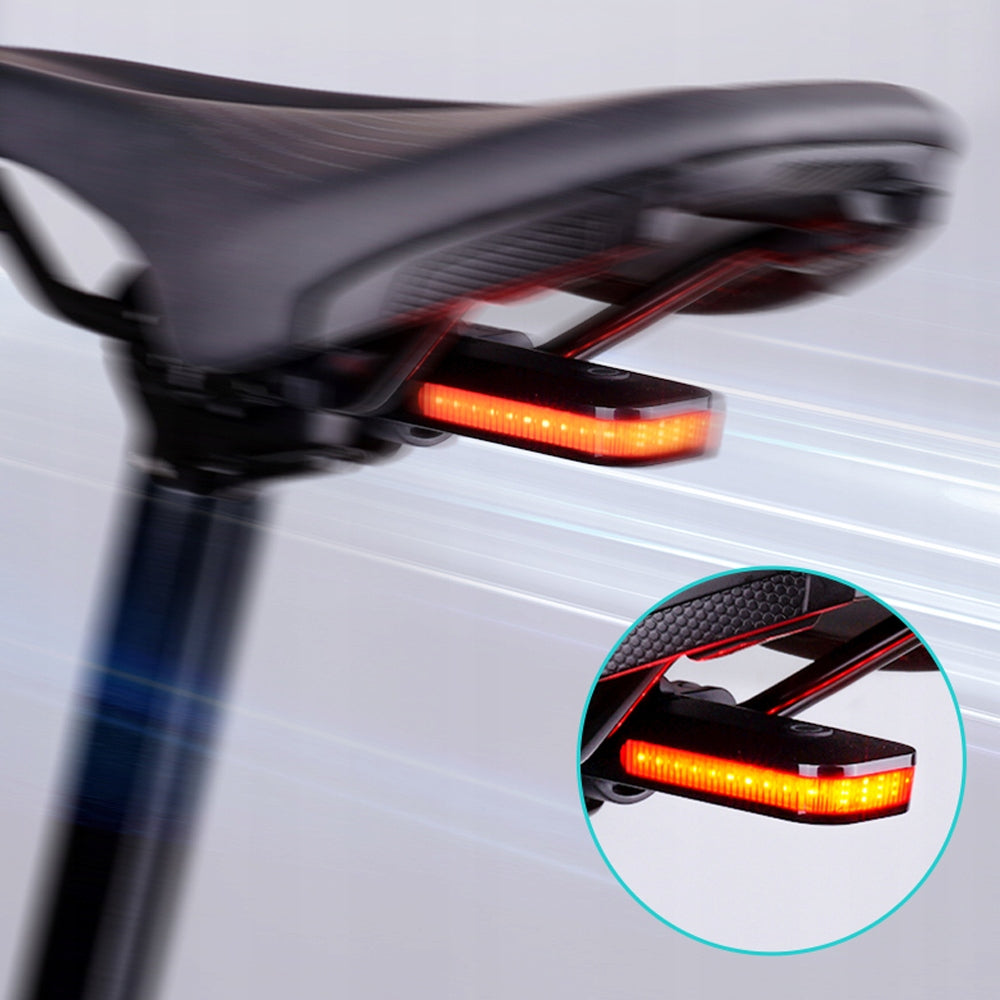

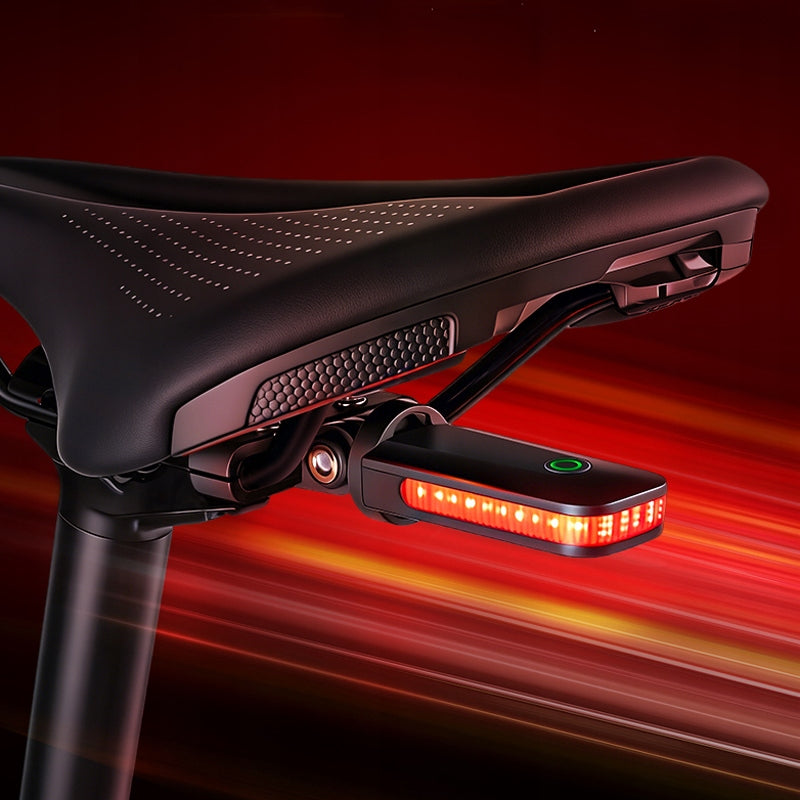

➡ Designed to be mounted on the saddle arch

Hidden mounting on saddle arch, high uniformity, neat and aesthetic appearance

➡ Streamlined shape

Effectively reduces air resistance, weight only 22 g, driving is easier

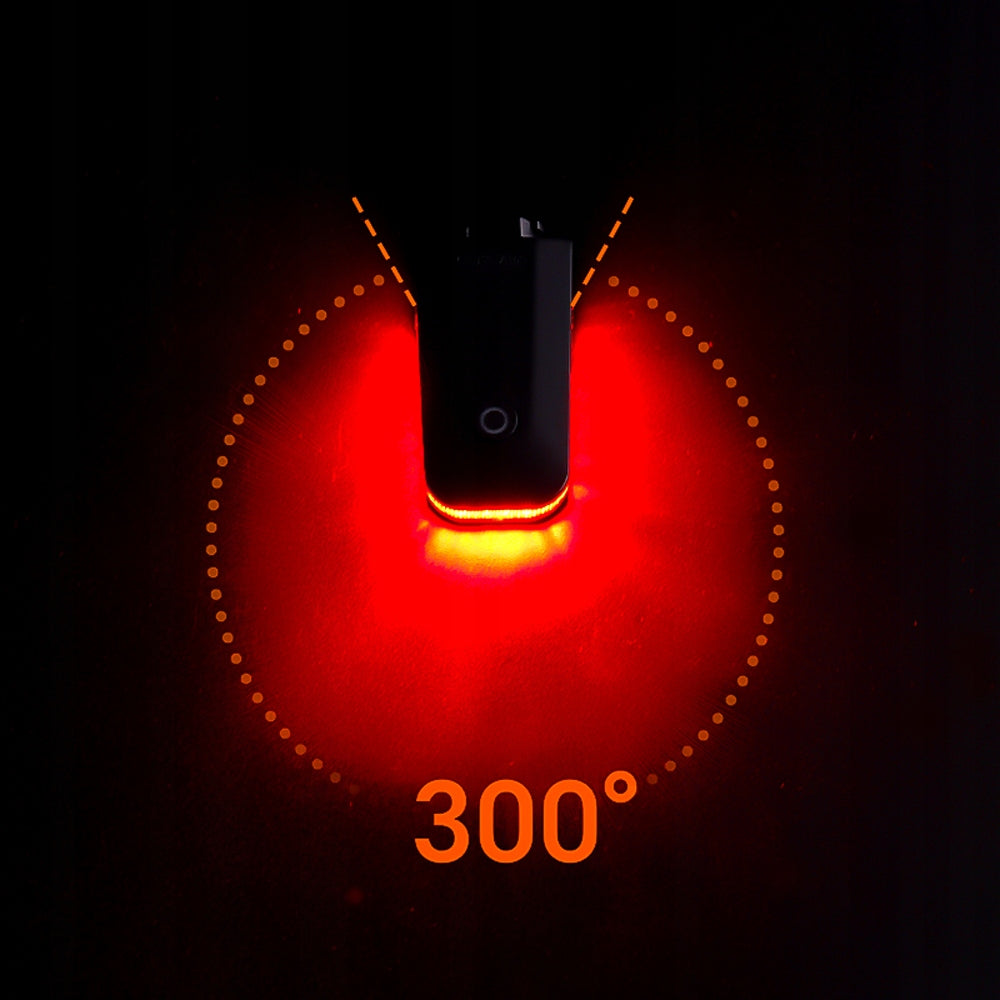

➡ Viewing angle 300°

Reduces the risk of dead zones, improves driving safety

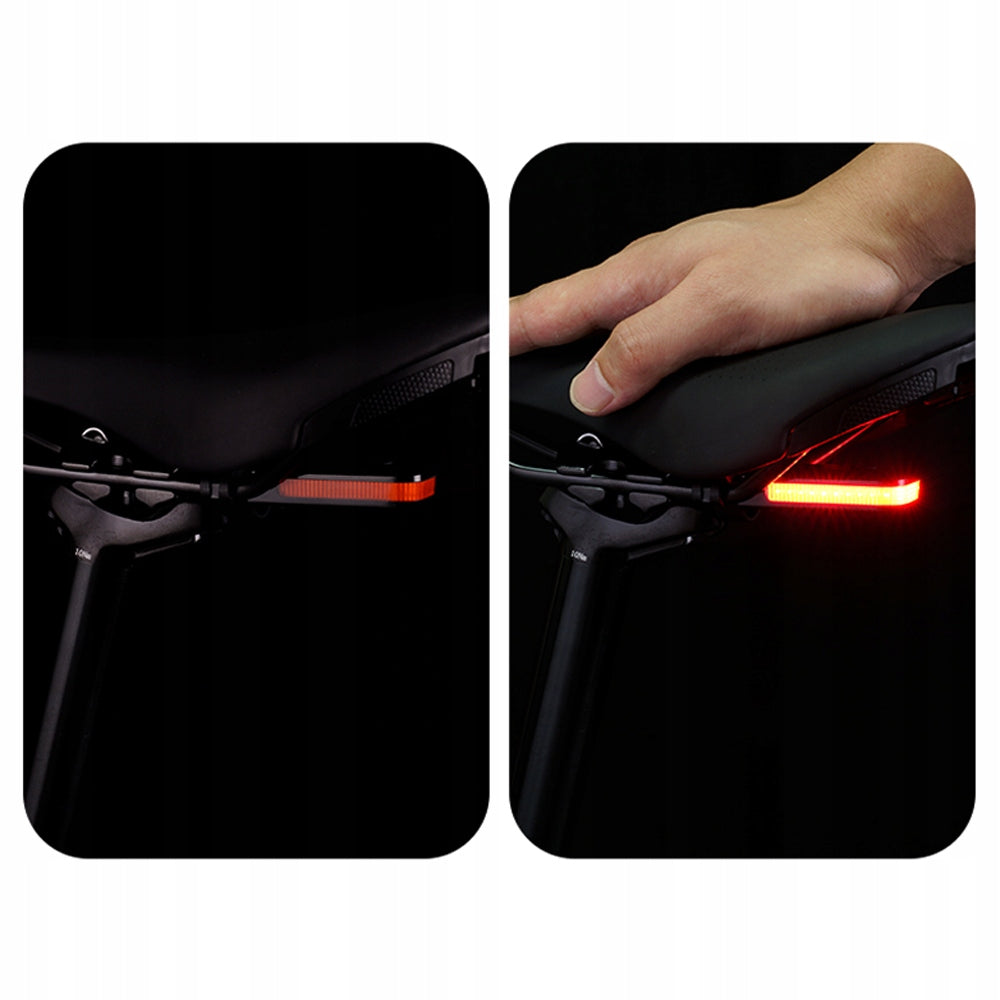

➡ Automatic on/off mode

Light turns off automatically after 2 minutes of stillness

Turns on quickly when vibration is detected

➡ Intelligent brake warning

When braking is detected, the light automatically switches to 10 lm constant illumination for 2 seconds

(This feature is integrated with auto-on/off mode)

➡ IPX6 waterproof

Suitable for driving in the rain, does not require protection when used in the rain

⚠ Note: The charging port is not waterproof, be sure to close the charging port cap before using in the rain

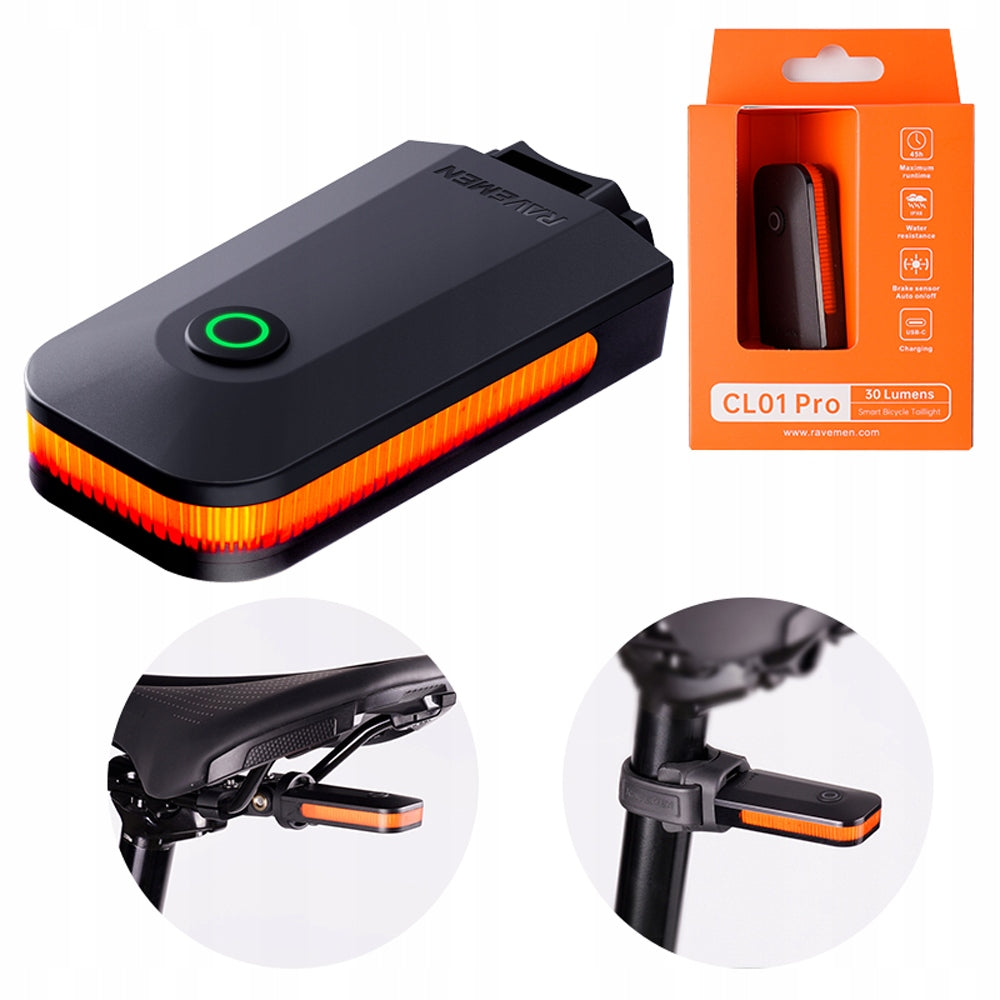

➡ Two ways of installation

1、Assembly on saddle arch: The distance between the centers of saddle arch holders is 4.2cm, with free space on both sides, supports mounting on most saddle arches

2、Assembly on saddle tube: The saddle tube holder strap has good stretchability (can be extended to a maximum of 17.5 cm), supports mounting on round saddle arches, D-type saddle tubes and aerodynamic saddle tubes

➡ Practical details · Easy to use

High homogeneity: Does not fall and does not shake, aesthetic installation,

One-button control: All light functions can be controlled with the power button

Mode Memory: Automatically remembers the current mode when turned off, no need to adjust again when turned on

USB-C port: Insert no matter the side, built-in overcharge protection

➡ Contents of the set

① CL01pro *1

② USB-C charging cable *1

③ Saddle arch holder *1

④ User Manual *1

⑤ Mounting Wrench *1

⑥ Saddle Pipe Holder *1

➡ Saddle tube mounting steps

1、Remove all accessories

2、First mount the port accessories (screw inserted from the side without metal)

3、Adjust the saddle arch to the correct position

4、 Tighten the screw (screw inserted from the side without metal)

5、Put the light into the port and turn right

6、Assembly completed

➡ Saddle tube mounting steps

1、Hold the strap on the left side, press firmly so that the saddle tube holder adheres to the saddle tube

2、Wrap the strap around the saddle tube and lock

3、If the strap is too long, it can be bent backwards

4、Assembly of saddle tube holder completed

5、Put the light into the port and turn right

6、Assembly completed

➡ Frequently Asked Questions

1、Is the maximum brightness of only 30 lm sufficient?

A: The main function of the rear light is warning, the brightness of 30 lm fully meets the warning needs of daily driving and effectively improves visibility

2、What is the difference between CL01pro and CL01?

A: The lights of both models are identical, they differ only in saddle arch holders. The CL01pro bracket supports mounting on most saddle arches. If you want better grip compatibility or frequent removal of the handle, choose CL01pro

➡ Product Description

Product Name: RAVEMEN CL01pro

Light Source Type: COB LED

Maximum brightness: 30 lm

Battery capacity: 200 mAh

Charging time: 2.2 h

Charging Interface: USB‑C

Waterproof rating: IPX6

Product Dimensions: 55mm*30mm*14mm

Product Weight: 22 g

Product Certificates: CE, RoHS

Special Features: 300° Viewing Angle, Intelligent On/Off Sensor, Braking Warning, Battery Level Indicator, Mode Memory

Mode / Brightness in lm / Working time

• High brightness: 5 lm | 5 h

• Low brightness: 2 lm | 10 h

• Warning flickering: 30 lm | 9.5 h

• Fast flickering: 5 lm | 11 h

• Slow flickering: 0.5 lm | 45 h

Note: All parameters have been tested under standard laboratory conditions, actual data may vary depending on the usage environment

【Quick start】

1、Press and hold the power button for 0.5s to turn the light on/off; single press changes the light modes

2、Automatic on/off and braking mode

These two functions are integrated and can only be turned on or off together

Turn on mode: When the light is off, press and hold the power button until the light starts flashing quickly, then release the button, the light activates this mode

In this mode, when braking is detected (with adequate braking force), the light switches to a constant glow of 10 lm for 2 s for warning;

In this mode, the light turns off automatically after 2 minutes of stillness and turns on quickly when vibration is detected

The light has a memory function, just turn it on manually once, it will work until you manually turn it off

This mode does not affect the light modes, you can normally switch modes manually

Turn off mode: When the light is off, press and hold the power button until the light starts flashing slowly, then release the button, the light will turn off this mode

3、Memory function:

Light remembers mode and setting when off

4、Battery level indicator

A single press of the power button turns on the indicator for 2 seconds, showing the current battery level

Green light: ＞40%

Red light: 5%-40%

Red flickering: ＜5%

5、USB-C charging

Standard charging time: approx. 2.2 h

Input: 5 V, DC/140 mA

Charging Indicator:

Red flickering: Charging in progress

Green Fixed Light: Charging completed

【Usage Notes】

1、Before the first use of the product, it is recommended to fully charge the battery

2、Before long storage, it is recommended to charge the battery up to 50%

3、Do not disassemble or modify the light body yourself, otherwise you will lose the right to replace under warranty

4、Built-in rechargeable battery: Prohibited heating and combustion to avoid safety risk

5、Before using in the rain, be sure to close the charging port stopper, only protect against splashing water, not from immersion

6、When charging, place the light in a ventilated, cool place, away from high-temperature, flammable and explosive objects to prevent overheating during charging
