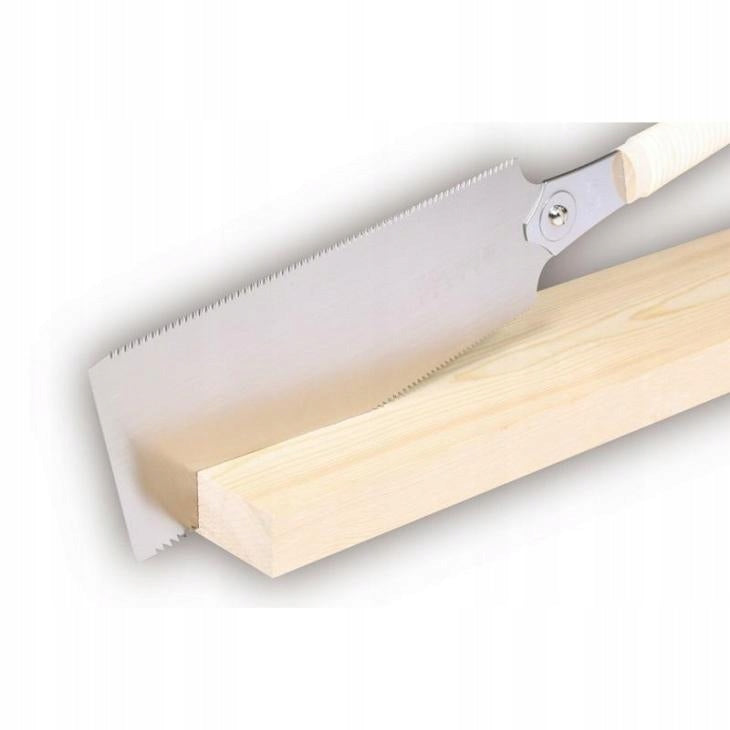

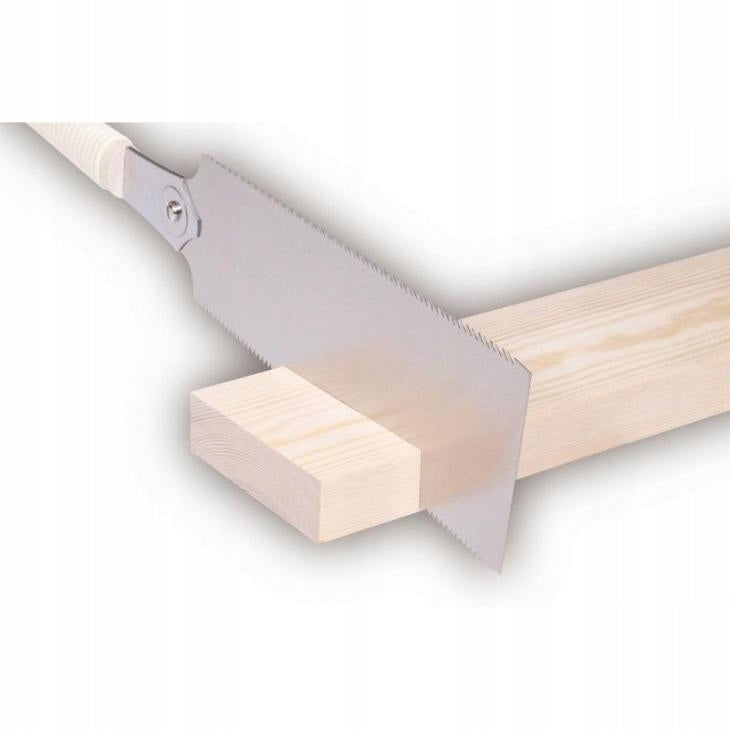

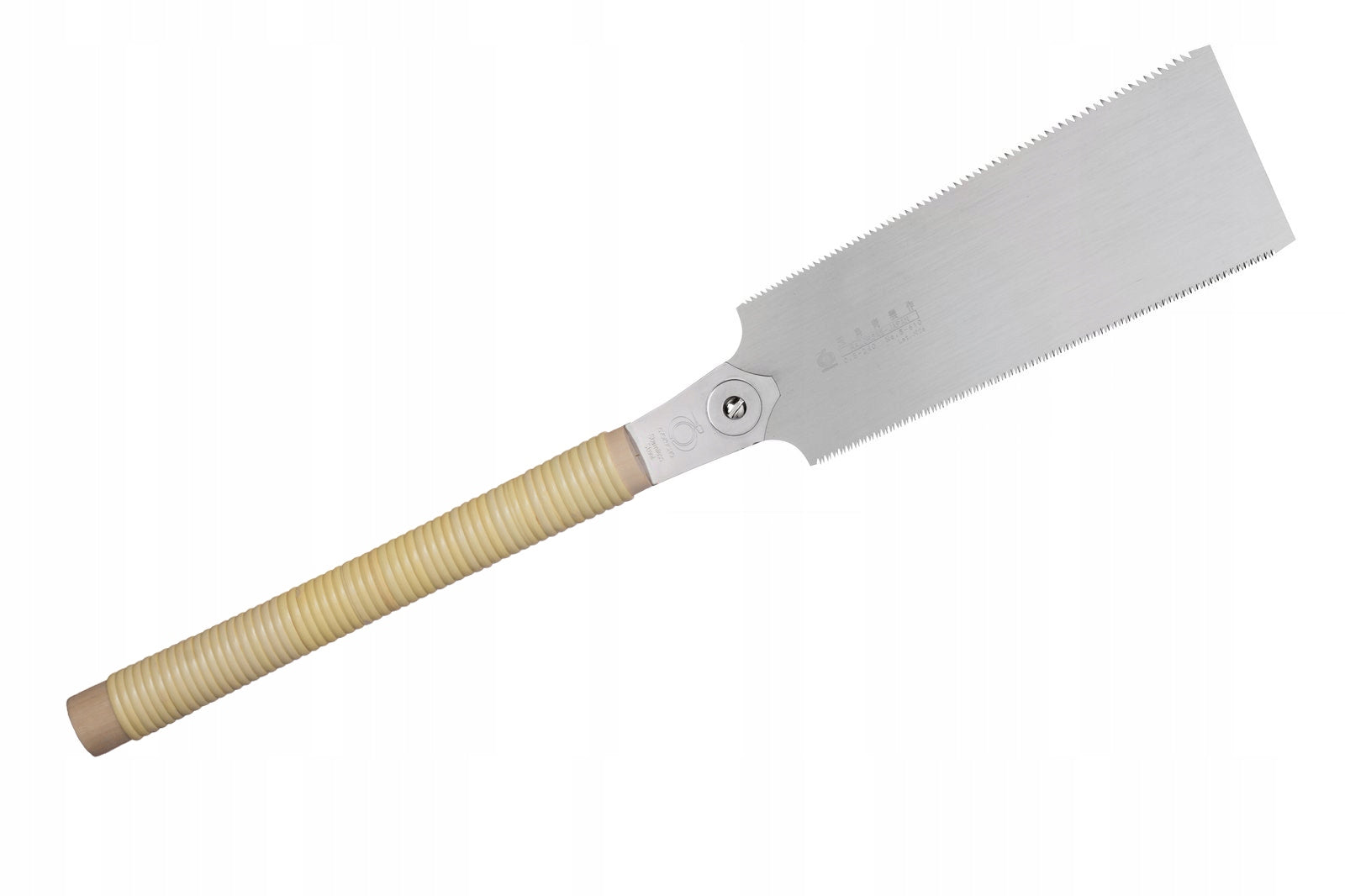

Dvipusis japoniškas pjūklas GYOKUCHO RYOBA SEIUN 240 mm

Trumpai apie prekę

Prekė: Dvipusis japoniškas pjūklas GYOKUCHO RYOBA SEIUN 240 mm. Kategorija: Rankiniai pjūklai.

• Gamintojas: Gyokucho
• Modelis: G-610

Application:

Precision double-sided saw for demanding work – allows you to cut quickly and cleanly along and across wood.

• on one side of the saw blade teeth for longitudinal, on the other side for transverse cutting of solid dry wood
• to work in both soft and very hard wood
• cutting dry wood, chipboard, bamboo, laminated wood, composite wood panels
• carpentry and carpentry work
• making carpentry joints
• precise adjustment of elements
• cutting of structural and finishing elements
• for heavier, more demanding jobs (e.g. for larger projects), where greater stability and strength of the saw is needed.

Effect: clean, fast cutting and high line control

.

Technical data:

• tooth: on one side for cross-cutting / on the other for longitudinal cutting
• Total length: 600 mm
• blade length: 240 mm
• blade thickness: 0,5 mm
• thickness of kerf: 0,75 mm / ed. 0,7 mm

Usage instructions:

• Drive the saw lightly – works when moving to yourself
• start with a gentle incision to set the track
• choose the side of the blade for the cutting direction
• Work smoothly using the entire length of the blade
• do not press – let the saw work
• Drive the saw with both hands
• maintain a constant steering angle and control the cutting line
• After work, secure the blade

Technical information:

• The teeth are impulse hardened, each one individually, so that each tooth has the same hardness and the saw stays sharp longer. However, this type of hardening prevents the saws from sharpening again. The used saw blade can be used as a cyclin - see leaflet dot. preparation of cyclins for work.
• On the one hand, a blade dedicated to longitudinal cutting, with a triangular tooth for better grain separation. The shape of the teeth allows for easy cutting and also increases the efficiency of the entire process.
• On the other hand, trapezoidal teeth, dedicated to cross-cutting. Thanks to the alternating tooth cut and triple cutting surface, it precisely cuts wood fibers.
• A wider saw blade is usually more stable when cutting, reducing the risk of the saw jamming in the material, which is especially important when cutting thicker wood. It will work during intensive use.
• Saw blade fixed with a screw. A flat screwdriver is required to replace it.
• The saw teeth are open to the sides which prevents the saw from wedged during operation.
• The handles of Japanese saws are made of natural materials - most often from kiri or hinoki wood, wrapped in rattan. Losses in the material that do not affect the work are permitted.

Comments:

• For greater safety, the saws can be unscrewed during transport.
• The saw has one saw blade cover made of plastic.
