Trumpai apie prekę

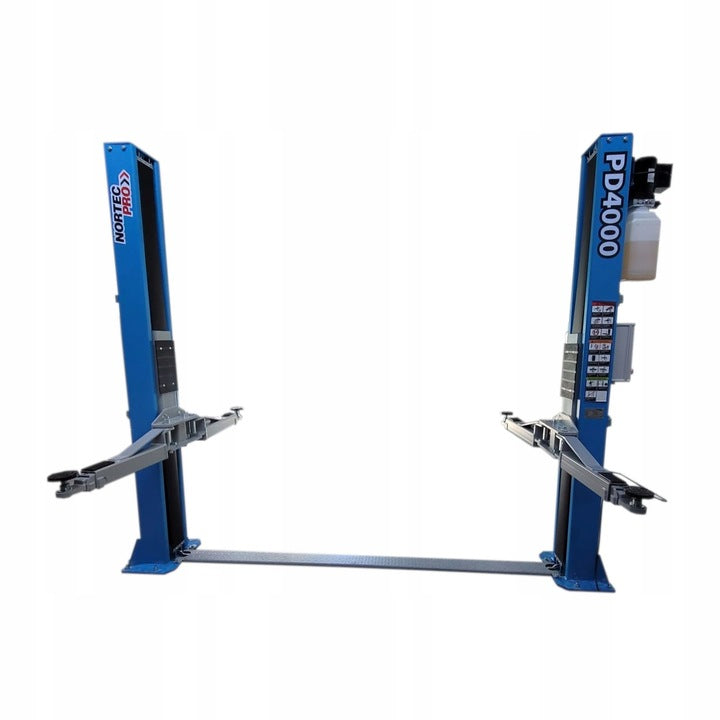

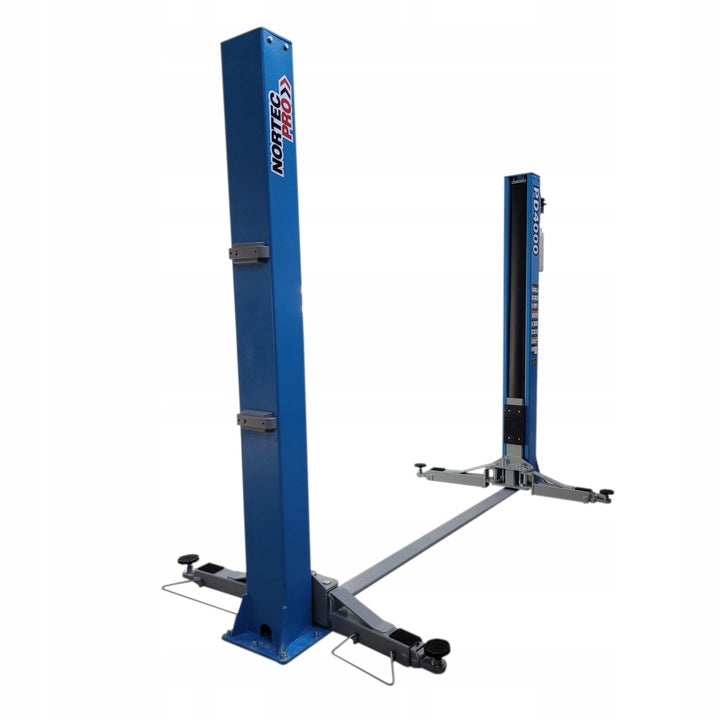

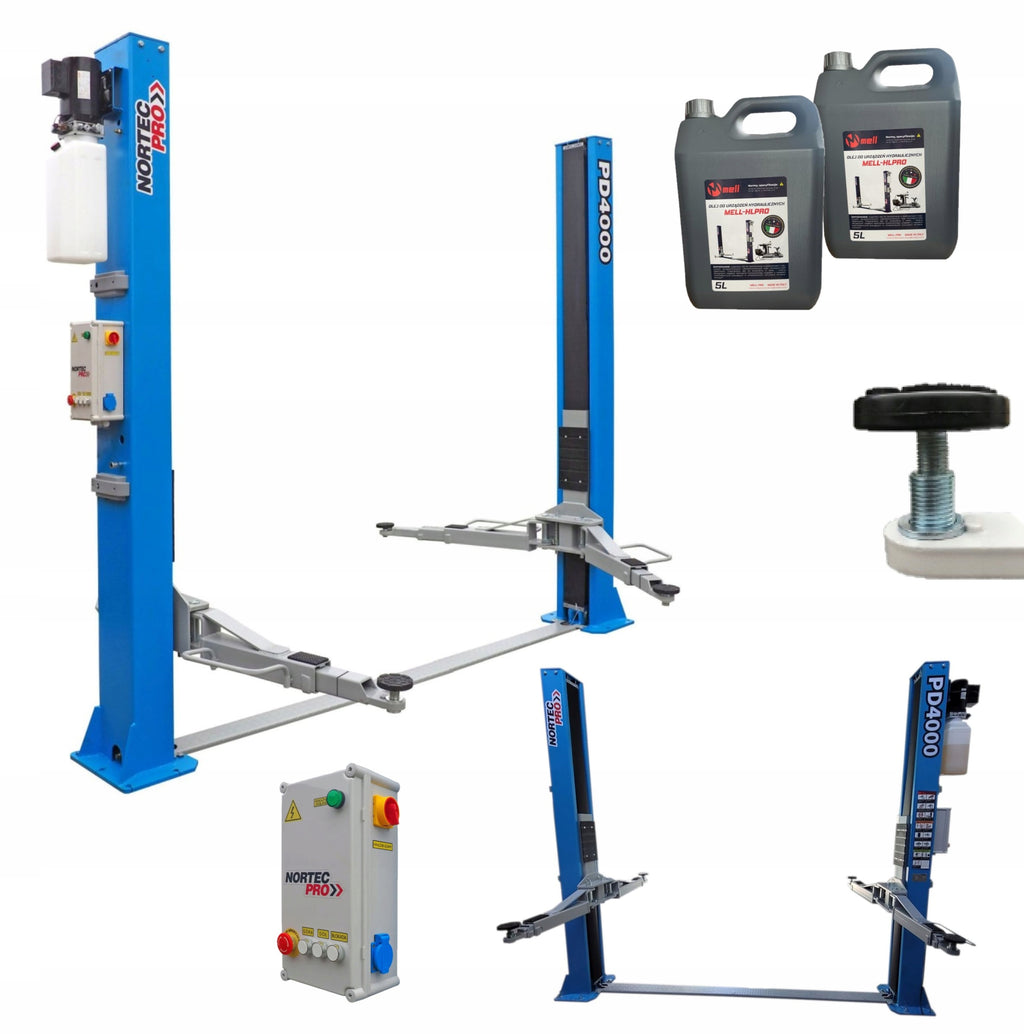

Prekė: Dvikolė keltuvas NORTEC PRO 4T PD4000. Kategorija: Kolonų keltuvai.
- Gamintojas: Nortec
- Modelis: PD4000N
Description of the device:
- Type: 2-column, electrohydraulic
- Blocks: Automatic (electromagnets)
- Emergency lowering: YES
- Color: BLUE
- Sync method: Ropes
- Adapters available as an option for an additional fee.
- Mounting anchors included in the price.

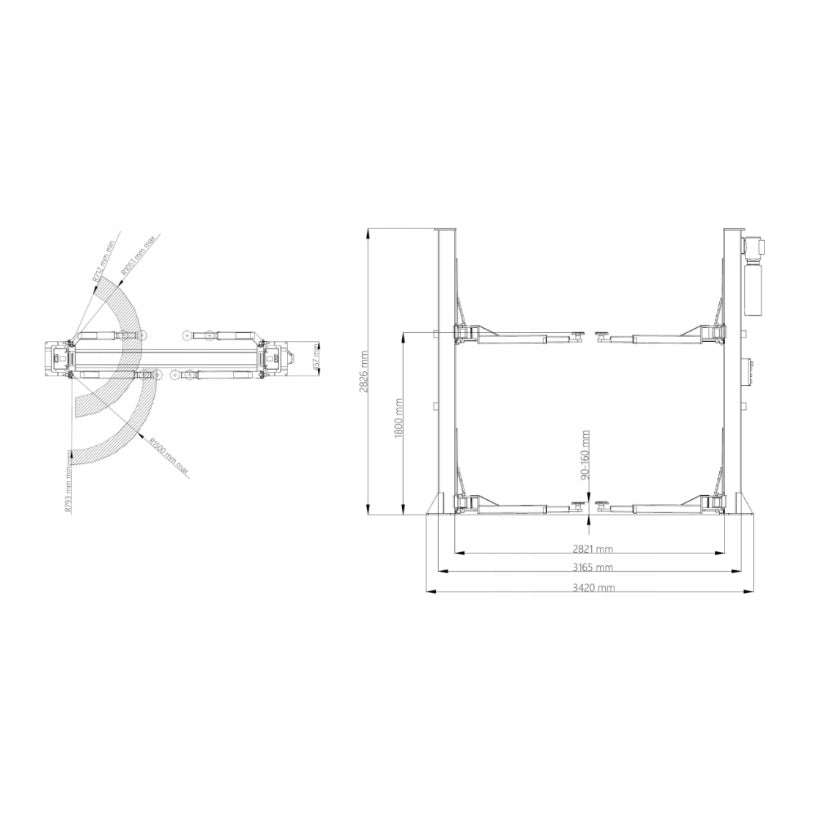

Technical data:
- Leverage: 4000 kg
- Power supply: 400V/50Hz
- Engine power: 2.2 kW
- Width between columns: 2820 mm
- Total width: 3160 mm
- Height of lift: 2830 mm
- Front arms: 3-piece (712-1051 mm)
- Rear arms: 3-piece (793-1500 mm)
- Lifting height: 1800 mm
- Minimum paw height: 85 mm
- Lifting time: 60 s
- Leaving time: 40 s
- Oil pressure: 16 MPa
- Noise level: ≤75 dB
- Weight: 620 kg
Technical documentation:
- User manual in Polish.
- (DTR)Certificate of conformity with the Machinery Directive 2006/42/EC.
- Declaration of conformity with the Machinery Directive 2006/42/EC.
- Translation of certificate and declaration.
Specifications
| Group | Name | Value |
|---|---|---|
| Parametry | Condition | new |
| Parametry | Invoice | With VAT invoice |
| Parametry | Product weight with unit packaging | 620 kg |
| Parametry | Brand | Nortec |
| Parametry | Manufacturer code | PD4000N |
| Parametry | EAN (GTIN) | 5904954680491 |
| Parametry | Number of columns | 2 |
| Parametry | Drive | electrohydraulic |
| Parametry | Column connection | bottom |
| Parametry | Overall width | 3420 mm |
| Parametry | Overall height | 2826 mm |
| Parametry | Power supply | 400 V |
| Parametry | Engine power | 2.2 kW |
| Parametry | Lifting capacity | 4000 kg |
| Parametry | Minimum lifting height | 97 mm |
| Parametry | Maximum lifting height | 1800 mm |
