Dvikolė keltuvas ETGE-3440ASY, automatinės asimetrinės kolonos, 4T

Trumpai apie prekę

Prekė: Dvikolė keltuvas ETGE-3440ASY, automatinės asimetrinės kolonos, 4T. Kategorija: Kolonų keltuvai.

• Gamintojas: Euro Trade
• Modelis: ETGE-3440ASY BLACK

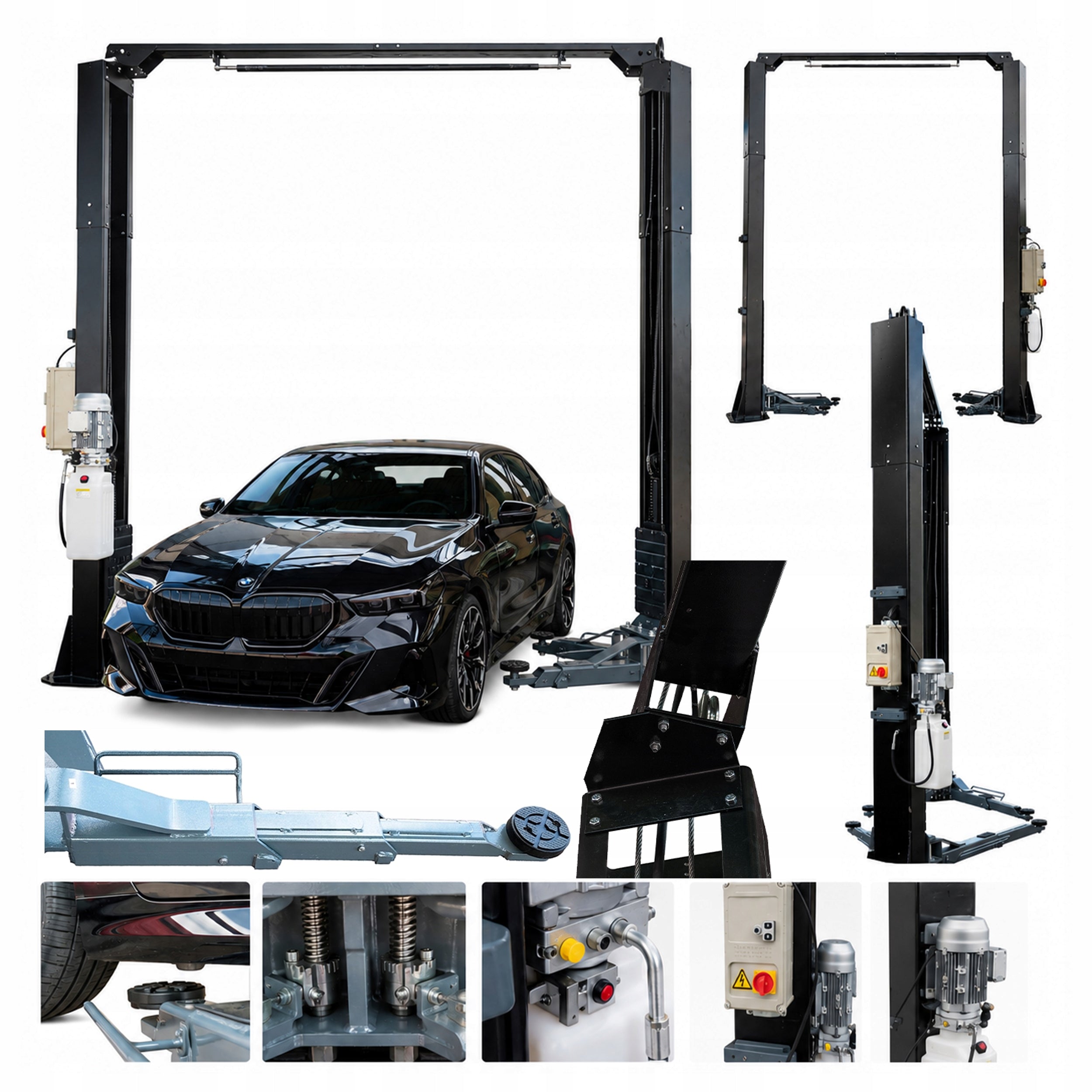

This is Euro Trade ETGE-3440ASY BLACK two-post electrohydraulic lift with a lifting capacity of up to 4,000 kg.

This is a technologically advanced device with top synchronization (free passage) , designed for professional car services that focus on maximum ergonomics, work speed and modern design.

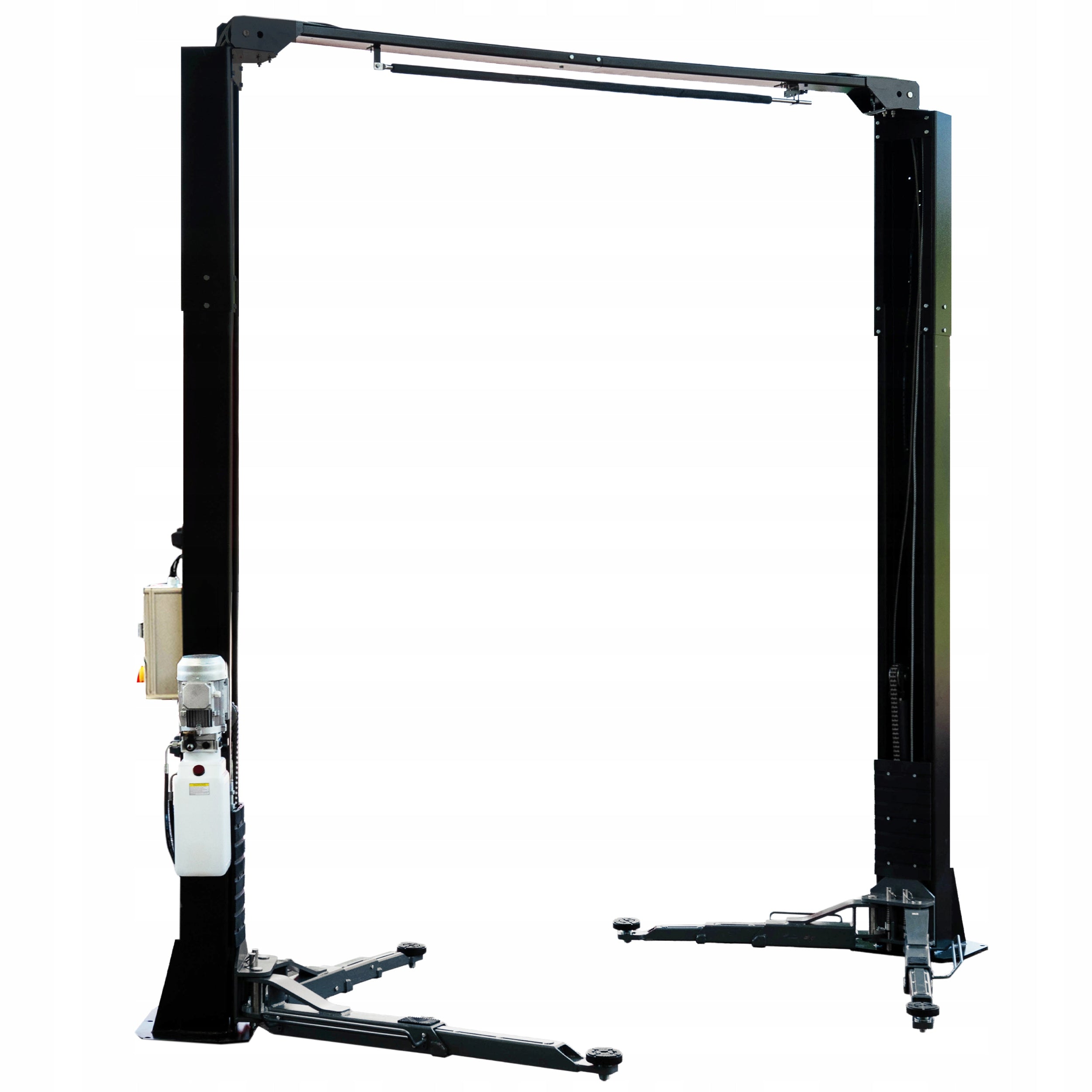

By moving the synchronizing elements to the upper beam, you gain a completely free ride between the columns. No more cumbersome driving over the threshold with a tool trolley, oil extractor or gearbox.

The BLACK version is not only a prestigious look for your stand, but above all a powerful, reinforced structure that can easily handle low sports cars , heavy SUVs and delivery vans.

• Model: ETGE-3440ASY BLACK
• Brand: Euro Trade
• Maximum lift: 4000 kg (4 tonnes)
• Lift type: Two-column, electrohydraulic, automatic

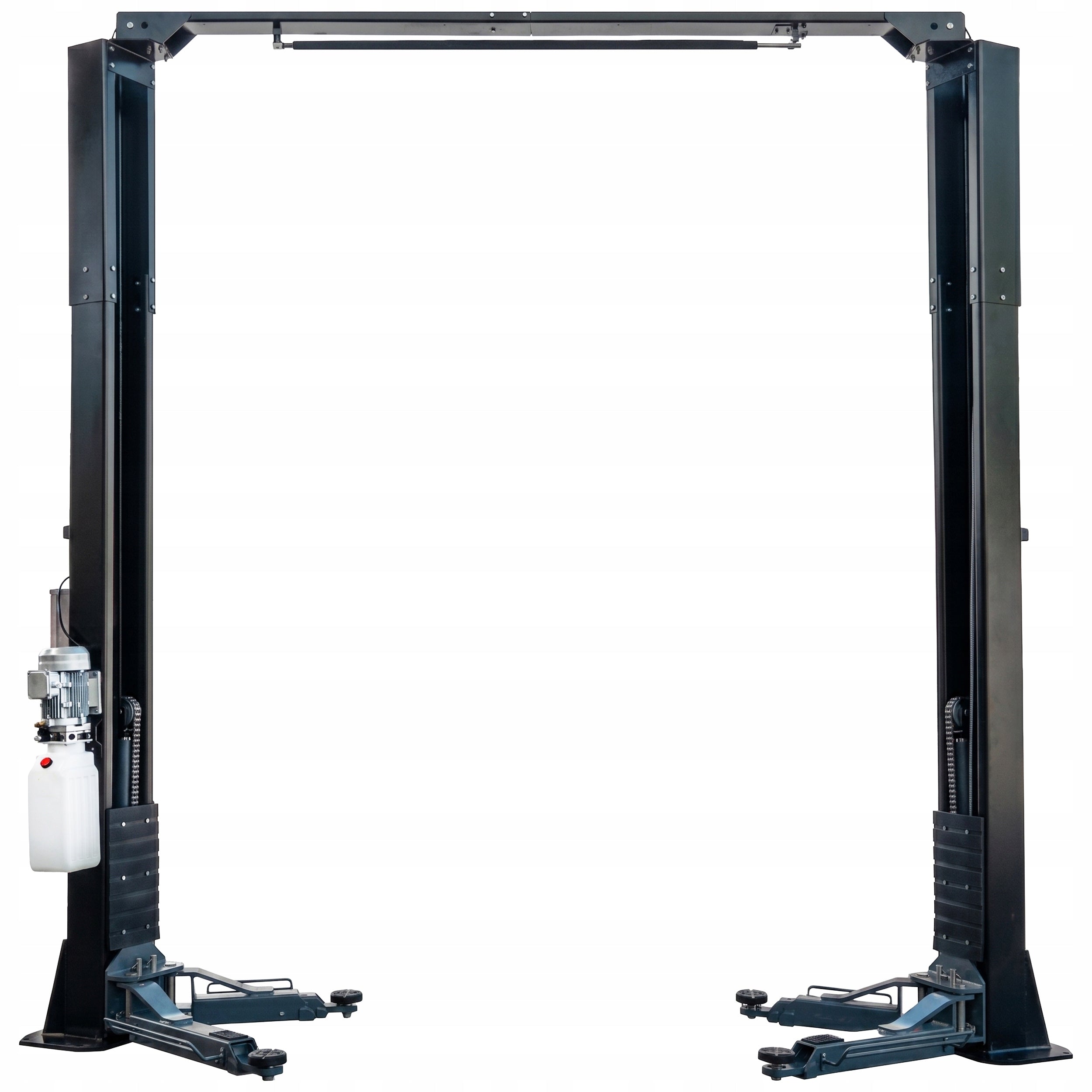

• Sync: Free passage (upper synchronization beam)
• Maximum lifting height: 1900 mm
• Minimum arm height (grip point): 110 mm (low profile)
• Total height: 3770 mm
• Total width: 3773 mm
• Width between columns (usable): 2900 mm
• Front arm arrangement: 3-stage, asymmetrical (600 – 1100 mm)
• Rear arm arrangement: 2-stage, asymmetrical (845 – 1330 mm)
• Lifting/lowering time: approx. 55 seconds / 45 seconds
• Power of the drive motor: 2,2 kW
• Power supply: 380V / 50Hz / 3 phases (400V)
• Locking system: Automatic, electromagnetic (button release)
• Painting: Powder, resistant to workshop chemistry (Black version)

Open Doors Without Fear of Damage!

One of the many frustrations for mechanics is the difficulty of exiting the vehicle after parking it on the lift.

In the ETGE-3440ASY BLACK model, this problem has been completely eliminated.

By using an angled asymmetrical post setup and asymmetrical arms, the vehicle's center of gravity is shifted backward.

• Maximum door opening angle: You can freely open the driver's door and get out of the car without the risk of upholstering the paint against the steel column.
• Excellent access to the interior: Easier work on computer diagnostics, electrical engineering and repairs under the dashboard.
• Optimal balance: The design perfectly distributes the weight of the vehicles, guaranteeing absolute stability when working at maximum height.

Innovative Arm Layout (3-Stage Front / 2-Stage Rear)

The versatility of this lift lies in its arms. The use of 3-degree telescopic arms (range 600 to 1100 mm) on the front and 2-degree long arms (845 to 1330 mm) on the rear makes one lift handle extremely different vehicles:

1. City and sports cars: Short, 3-stage front arms allow you to easily reach deep-seated support points in small compact cars.
2. Buses and vans (L1, L2, L3): Long rear arms perfectly support heavy vans with long wheelbase (e.g. Mercedes Sprinter, Renault Master, Fiat D

Forget the days when you had to use wooden blocks for SUVs or Off-road vehicles.

The ETGE-3440ASY Lift features special, triple screw-type adapters with stepless height adjustment and rubber pads on the longer arm.

These allow for precise raising of the support point, making it easier to safely lift vehicles with high ground clearance or with deeply recessed frames.

Full 24V automatic – forget about cables and runs around the lift!

Time is money, and manually unlocking ratchets in a modern workshop is a waste of energy.

Often in cheaper competition lifts the mechanic has to run around the columns and tug at the links, to leave the car.

You can handle the entire process of lifting, lowering and locking from one ergonomic control panel.

Electromagnetic ratchet you do not have to touch – you press the button on the panel, and the electromagnets automatically release the safety locks, after which the vehicle smoothly descends down.

Upper and lower limit switch

To ensure absolute safety, the device has been equipped with two limit switches:

• Upper roof end: Automatically cuts off engine power when the roof of the tall van approaches the upper beam. Protects the customer's car from crushing and damage.
• Lower end of safety: Protects the mechanic's feet during the final phase of leaving the vehicle, forcing a warning signal.

By purchasing the Euro Trade ETGE-3440ASY BLACK lift, you are investing in equipment that is 100% legal and safe, meeting strict European standards.

The lift comes with a complete set of documents necessary for trouble-free registration of the device with the Office of Technical Inspection (UDT) :

• Current EC Declaration of Conformity,
• CE certificate,
• Full, detailed operating and assembly instructions in Polish

To ensure safe and correct operation of the Euro Trade ETGE BLACK SAE-40 two-column lift, it is necessary to properly prepare the substrate before installing the device. Meeting the following requirements is crucial for the stability of the structure and maintaining the full performance of the lift.

• Minimum floor area: 2,0 m × 4,0 m
• Minimum floor thickness: 25 cm
• Type of concrete: concrete class B25
• Substrate: maximum level, leveled
• Floor construction: uniform, monolithic concrete slab
• Concrete ripening time: minimum 28 days for fresh spout

The user is obliged to bring the power cord to the device on their own.

FAQ – Frequently Asked Questions (12 questions and answers)

1. Does this lift need to be reported to the UDT (Office of Technical Inspection)?

Answer: Yes, according to Polish law, every car lift with mechanical drive operated in the workshop is subject to technical supervision and must be reported to the appropriate UDT branch before starting work. Working on the device without a valid decision permitting operation is prohibited.

2. Do you provide a set of documents for submission to UDT?

Answer: Yes, together with the lift we provide a full, ready set of technical and legal documentation in Polish. It includes the current EC Declaration of Conformity, CE certification, and detailed instruction manual and assembly. With this package of documents, the notification of the device and its receipt by the UDT inspector runs smoothly and without problems.

3. What does "free passage" mean in this model?

Answer: The free passage design means that all synchronizing elements (steel ropes and hydraulic lines) have been placed in the upper beam connecting the columns. The floor between the columns is completely flat, which eliminates the need to pass through the threshold and allows you to freely roll trolleys with tools, oil sinks or gearbox lifts.

4. What is the difference between 3+2 asymmetrical arms and regular symmetrical arms?

Answer: In the ETGE-3440ASY BLACK, the front arms are 3-stage (shorter, triple-extension) and the rear arms are 2-stage (longer). This allows for precise adjustment of the support points for both very short city cars and long vans, optimally distributing the weight of the vehicle on the lift structure.

5. How does the asymmetrical design affect the opening of the door in the vehicle?

Answer: The lift columns are positioned at a slight angle to each other, and the arms move the center of gravity of the car backwards. Thanks to this, the driver’s and passenger’s doors open much wider than in symmetrical lifts. The mechanic can get out of the vehicle freely without the risk of upholstering the edge of the door against a steel column.

6. How does the full automation system work in this lift?

Answer: This is a fully automatic lift, which means that the lifting and lowering process is controlled only by buttons on the control panel. Unlike manual versions, the mechanic does not have to approach each column separately and manually pull the cables – the built-in electromagnets automatically release the safety locks when lowering.

7. What is the upper end (roof band) used for?

Answer: The upper end is a key safety component when working with tall vans or buses. When the roof of the lifted car touches the bar located under the upper beam, the power supply of the hydraulic motor is immediately cut off. This protects the customer's vehicle from crushing and damage.

8. What is the task of the lower end of safety?

Answer: The lower end protects the feet of the operator and other persons in the vicinity of the workstation. When leaving the vehicle, in the final phase, the movement is automatically stopped, and further descent takes place while triggering a continuous warning signal, which forces additional attention.

9. What do triple-screwed height adapters (feet) give?

Answer: They have a smooth thread adjustment with three degrees of height, which allows for precise elevation of the support point. This solution completely eliminates the need for makeshift pads and allows for safe and stable operation of vehicles with higher clearance, such as SUVs, off-road cars or cars with a chassis frame.

10. What type of power supply is required to connect the device?

Answer: The lift is equipped with a 2,2 kW motor and requires a three-phase AC power supply with a voltage of 380V / 400V (50 Hz). The control system itself on the panel for operator safety reasons operates at a low voltage of 24V.

11. Is the BLACK paint coating resistant to workshop conditions?

Answer: Yes, the lift is finished by powder coating. This coating is characterized by very high resistance to mechanical scratches, chips and long-term contact with aggressive workshop chemicals, such as brake fluids, engine oils or removers.

12. What requirements must the floor for the installation of this lift meet?

Answer: Due to the lifting capacity of 4000 kg and the frame structure with free passage, a stable, uniform concrete substrate of the appropriate class is required (the minimum recommended is concrete C20/25) and a minimum thickness of 30 cm, completely free of cracks. Detailed guidelines for the spout can be found in the included instruction manual.
