Dvigubų vartų komplektas FORCE SW200, 2 x 2 m, 400 kg, su WiFi

Trumpai apie prekę

Prekė: Dvigubų vartų komplektas FORCE SW200, 2 x 2 m, 400 kg, su WiFi. Kategorija: Kietieji diskai.

• Gamintojas: Force
• Modelis: SW200
• Įtampa: 230 V

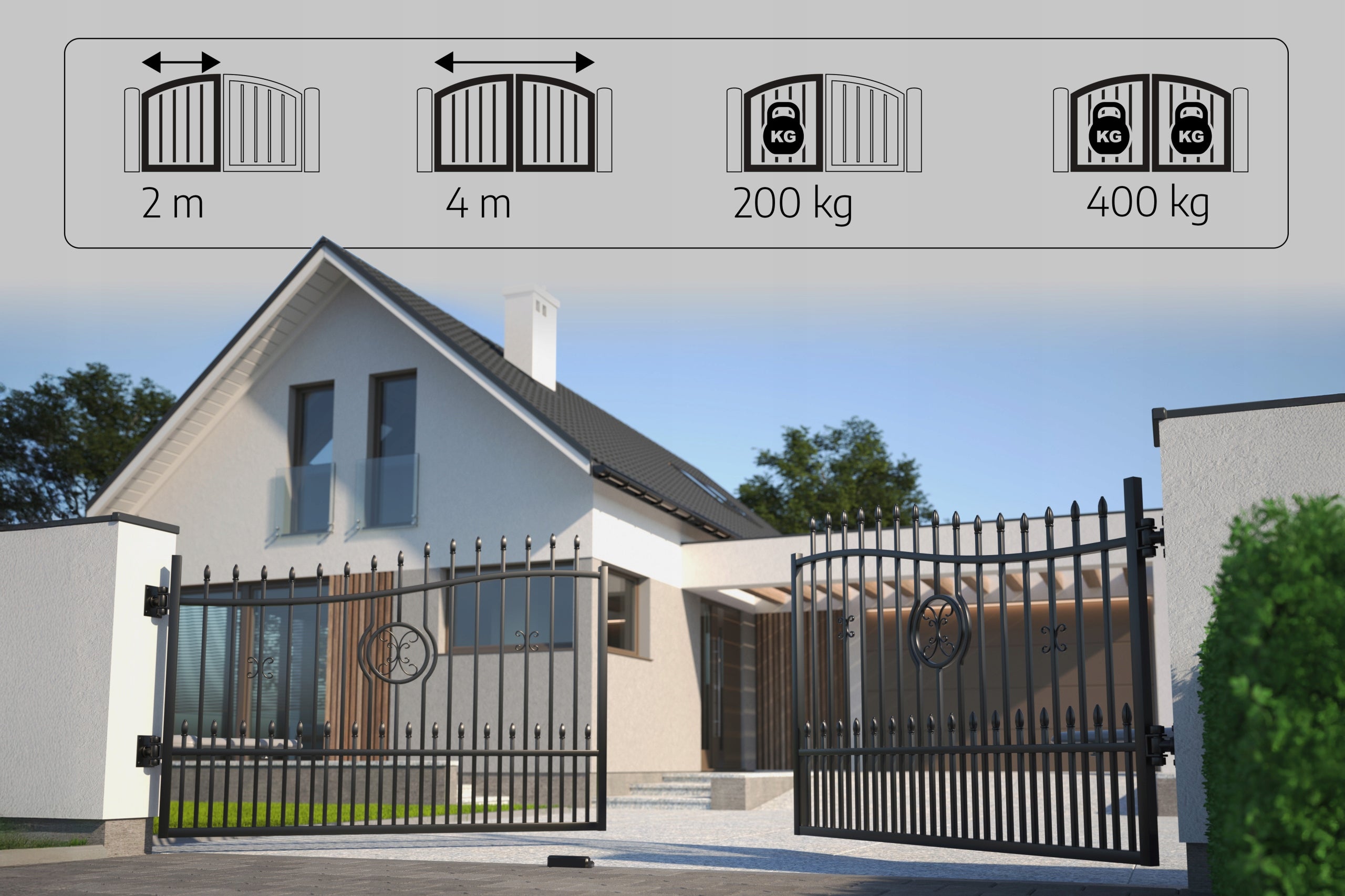

Maximum length of one wing 2m, weight 200 kg so the total gate can be 4 meters long and 400 kg

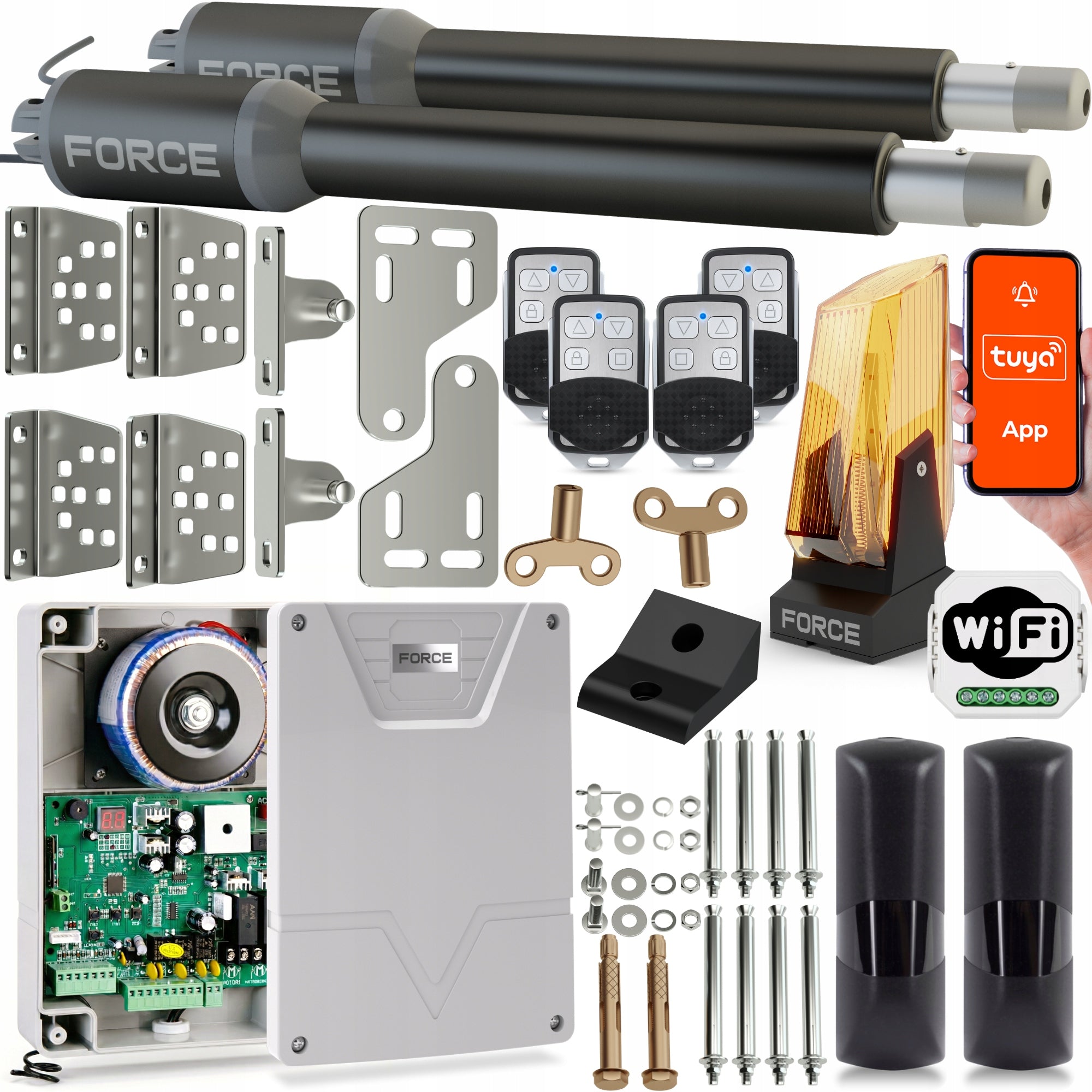

The set includes:

• 2x electromechanical actuators Force SW200 with mounting elements
• Control panel
• Housing for control panel - hermetic
• Mounting pins for the control panel
• 4 x 4-channel remote control Force
• Indicator lamp with antenna for increased remote control range
• Force Smartbox Wifi - Two in one: WiFi + universal radio
• Photocells Force
• Mounting brackets for posts and gate wings
• 2x Keys for emergency opening of the gate in the absence of voltage
• User manuals in Polish
• Warranty card - 24 months

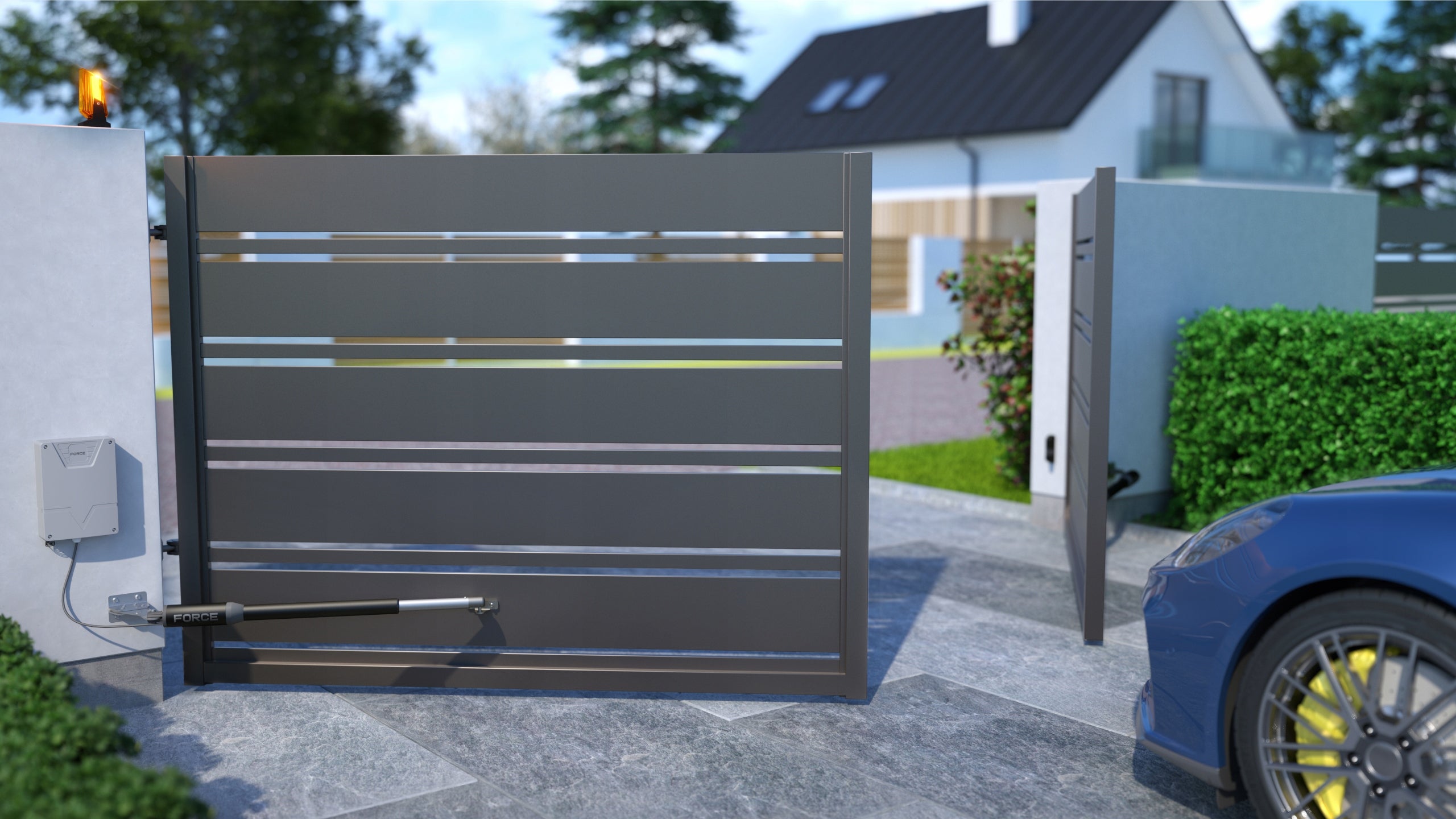

At any time of the day or night, in all weather conditions, whether in rain or snow, thanks to the automatically controlled gate, you can safely enter the property. You can open the gate with a single press of a button on the remote control. The FORCE SW200 set is designed for double-leaf gates, whose one wing is up to 2 meters long and 200 kg weight (the entire gate max. 4 meters and weight up to 400 kg). The set is dedicated to gates mounted on posts where the distance from the edge of the post to the hinge axis is up to 10 cm.

The FORCE SW200 can be mounted on its own. So alone. After reading the instructions, you can successfully make the assembly yourself. If any questions arise, our technicians will answer by phone and clarify the issues that bother you. You will certainly be proud of the work done and the money saved and for the other household members you will become a "Home Hero".

In the attachment to the auction, we have attached instructions to see how easy it is (below the product description in the "Additional information" tab).

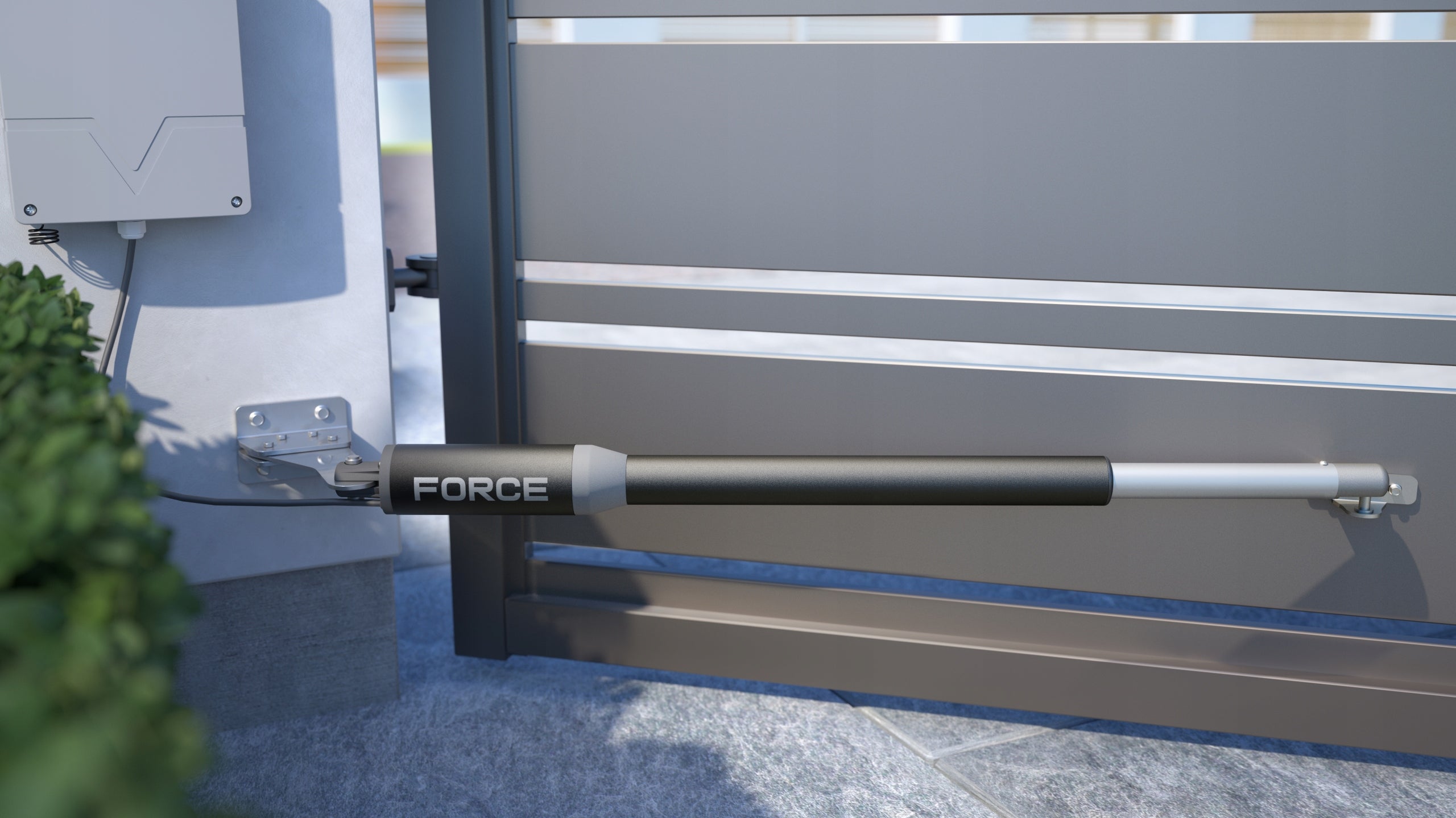

The FORCE SW200 actuator is a robust and durable design that uses high brightness inductive brushless motor. Brushless motor is characterized by greater efficiency and durability than standard competitors motors and also consume less electricity. The slim shape of the actuator also allows mounting to gates where there is not much space and the posts are narrow. The slender shape of the actuator means that it fits into any type of gate without significantly affecting its aesthetics. And thanks to the universal multi-position handles included in the set, installation is very simple.

The actuator housing is made of aluminum, providing excellent resistance to weather conditions, while the sprockets and gears are made of high-quality brass alloy, which guarantees increased strength and resistance to damage.

FORCE SW200 is a strong, robust and durable product that has been popular among individual customers and professional installers for many years.

The range of motion of actuators during operation is determined by means of an overload switch, i.e. After reaching a certain point (bumper attached to the ground), the control panel disconnects the power supply.

• Actuator dedicated to metal posts or others where the hinges on the post are not larger than 10 cm see Fig. below.
• Installation on gates with high breathability.
• The kit is equipped with solid, multi-position universal mounting brackets, which makes it very easy to install and reduces its time. Universal mounting brackets are perfect for double-leaf gates in virtually any configuration.

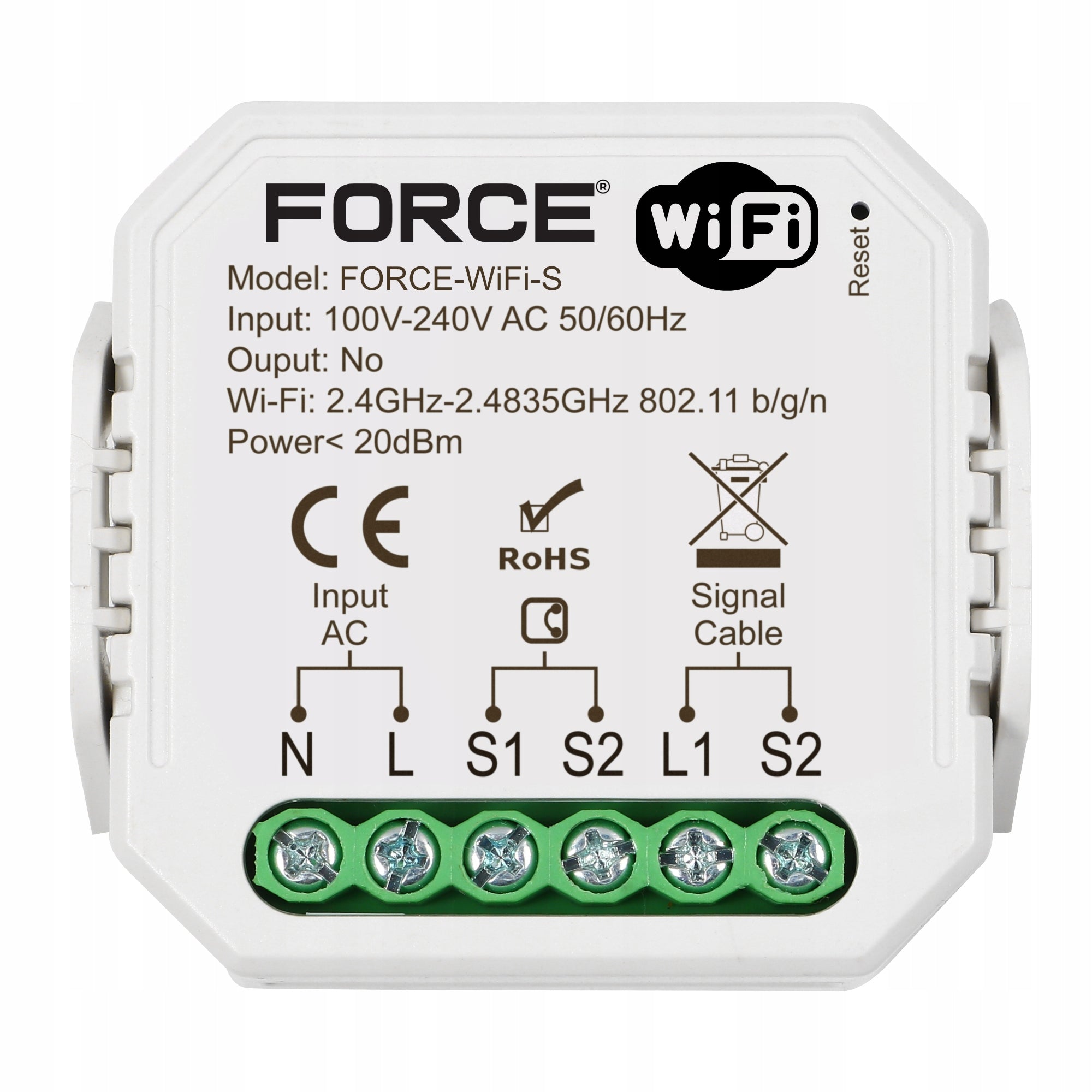

Control is managed through the TUYA app, available for smartphones and tablets (Android and iOS, Play Store and App Store). This app allows you to connect multiple devices with TUYA controllers, enabling you to manage devices like driveway and garage gates, roller shutters, cameras, alarms, lighting, heating, air conditioning, network sockets, and more, all from a single app on your phone. You can control these devices from anywhere in the world with an internet connection.

Thanks to the included sensors that are mounted on the gate, you can see in the app whether the gate is open or closed.

The operating app is available in Polish

Specification:

• Input Voltage: AC 100v ~ 240 V
• Operating Frequency: 2.4G~2.4835GHz
• Safety mechanism: WPA/WPA2
• Working environment: temperature:-10 ℃ ~ + 55 ℃ humidity: 20% ~ 93%
• Dimensions: 46*46*18mm

The set includes:

• WIFI controller
• 2x magnetic sensor
• User manual in PL
• Pack size

The control panel is powered by a high-quality toroidal transformer connected to the 230V network, which eliminates unwanted voltage spikes. The control panel is intuitive and easy to connect. The Force SW200 kit will be programmed even by a person who has not had contact with electronics before, all thanks to a simple, intuitive LED display.

• "Soft Start" and "Soft Stop" - soft start and stop actuators guarantees smooth operation during the opening of the gate and braking of the gate wings in the final phase of work, thanks to which we get a gentle quiet closing of the gate (avoid slamming). Thanks to these functions, a high working culture of actuators is guaranteed.
• Automatic closing - allows you to program the time after which the gate will automatically close.
• Support for various types of m.in gates. gates in which one of the wings has a closing strip where the gate works "on the tab". This allows you to set the time of overtaking one of the wings in relation to the other.
• Gate function (e.g. to open gates or only one gate leaf), if there is no need to open the entire gate, e.g. When we want to go by bike or go for a walk with the dog, we can open only one wing of the gate.
• Indication of the operating status of the device with LEDs, which helps in device configuration and diagnostics.
• Possibility of connecting emergency powered (24v), which will ensure uninterrupted operation of the device even in the event of an interruption in the supply of electricity.
• External control: Need to open the drive from your garage or home with the push of a button? No problem. We can easily connect devices to the control panel with which we will be able to open the m.in gate: videophone, intercom, code keyboard, phone control from anywhere in the world using a WiFi controller, universal radio. Thanks to the universal radio, we can also control this device using remote controls of another brand.

• Overload protection: during the operation of the automatic gate, the electronics measure the operating intensity of the actuator on an ongoing basis. After exceeding the value set in the control panel (when encountering an obstacle e.g. car) the gate automatically stops.

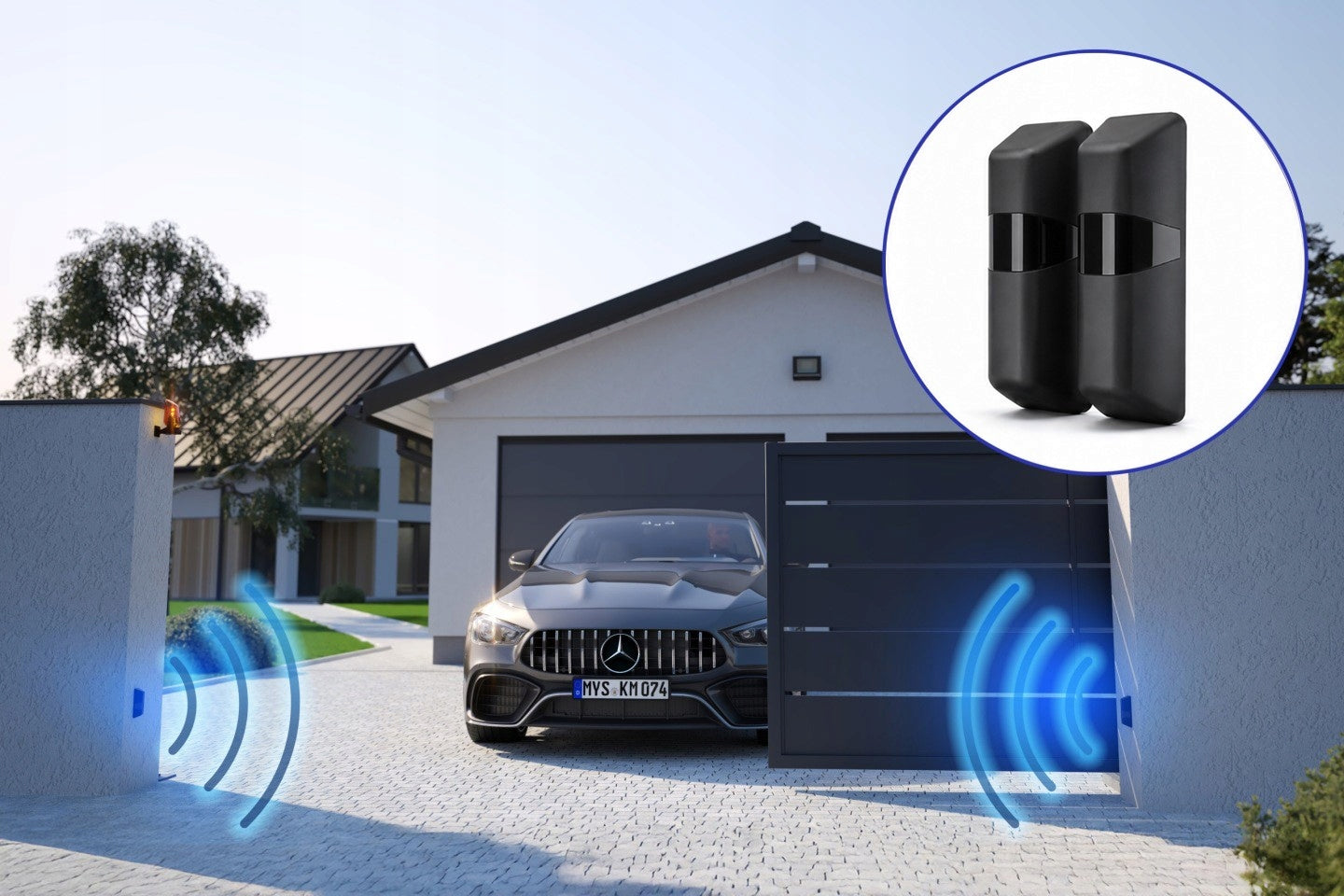

• Optical protection: safety photocells are included in the kit. There is an infrared beam between the photocells. When the photocell line is broken (even before physical contact with the gate), the gate will automatically stop.
• Auto-locking the actuator after stopping: you do not need to use additional locks on the gate to protect it from intruders. The construction of the automatic transmission makes the actuator lock when the gate is closed, keeps the gate in a closed position.

• Power supply for actuators: 24VDC
• Actuator power: 40W
• Maximum length of one wing: 2 meters
• Maximum weight of one wing: 200kg
• Maximum opening angle: 110 degrees
• Arm extension speed: 16 mm/s
• Sturdy transmission made of high quality metal alloy
• Designed for narrow posts

• Amperometric, thermal, overload protection
• Automatic closing
• Gate function
• Delay function of one wing relative to the other
• Soft start and stop function of actuators
• Control inputs for WIFI, GSM or video intercom modules
• Possibility of connecting a wired wall switch
• Easy connection and programming
• Up to 120 pilots can be uploaded
• Control panel power supply: 230V +/- 15%
• Actuator supply voltage: 12VDC/24VDC
• Remote control frequency: 433.92Mhz
• Remote control range up to: 100 meters
• Emergency Battery Connection Option: 24V 5Ah
• Protection Class: IP55
• Operating temperature: -25°C ~ +65°C
• Control panel dimensions: 260x185x85 mm

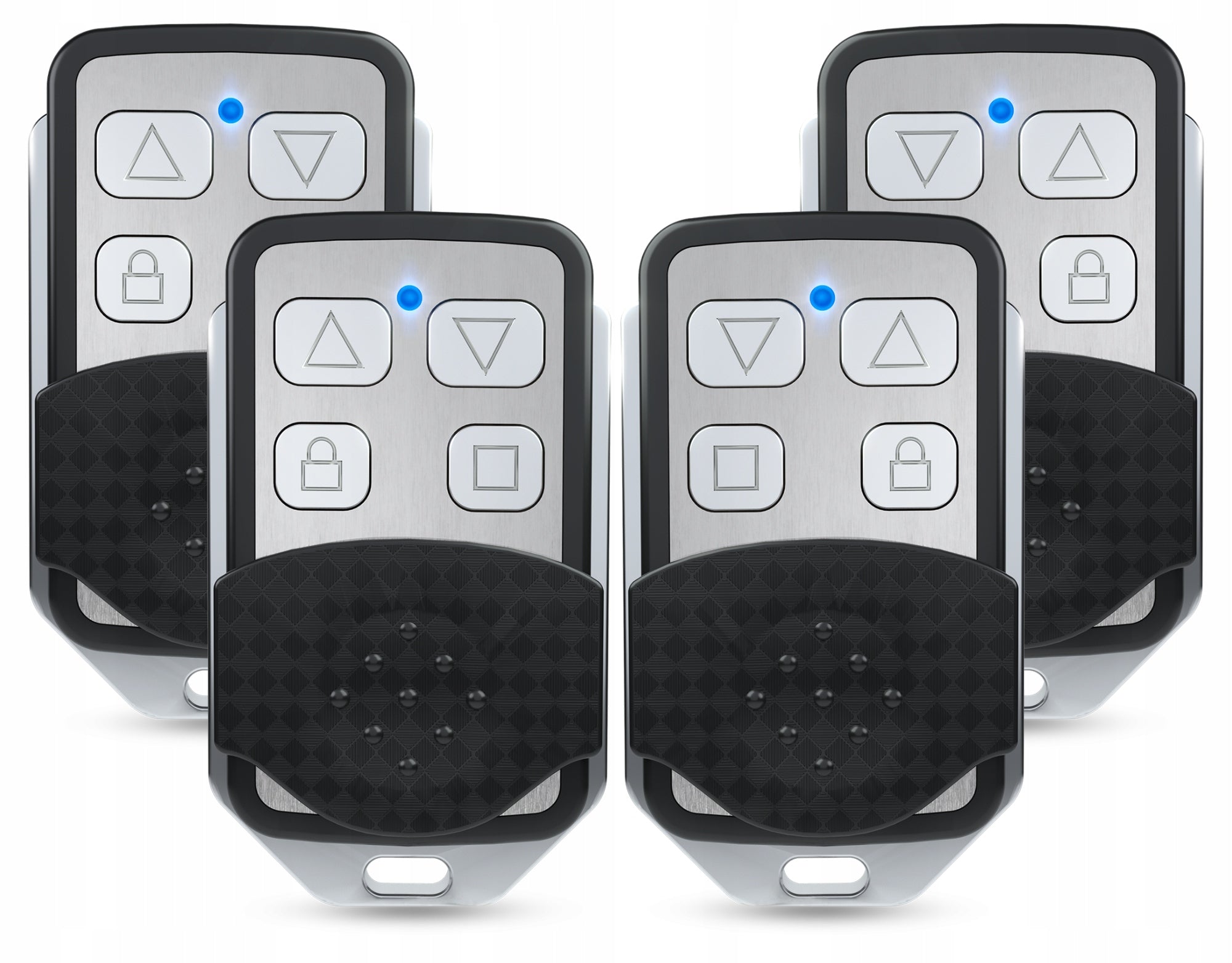

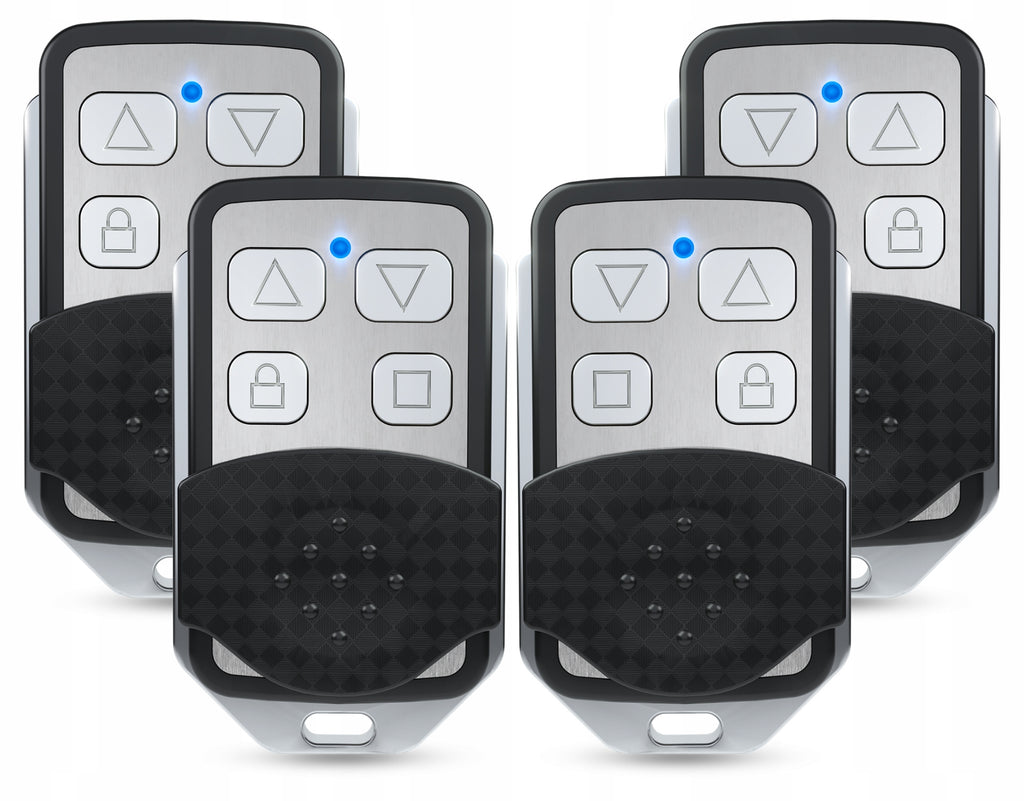

FORCE 4-channel remote control, with dynamically randomly variable code with a frequency of 433.92 MHz.

Key features of appearance:

• Chrome border: A sturdy metal frame surrounding the body, providing a sleek shine and durability.
• Housing: black, high-quality matte plastic, resistant to scratches and everyday use.
• Appearance: compact, ergonomic design that fits comfortably in your hand.
• Buttons: 4 buttons, designed in a subtle and aesthetic way.

Functionality and technical features:

• Range: Provides an excellent range of up to 120 meters, allowing you to conveniently open the gate without driving up to it.
• Convenience: The practical pendant allows you to use it as a keychain.
• Protection: zippered flap to protect against accidental button press

Technical parameters:

• Frequency: 433,92 MHz
• Number of buttons: 4
• housing: chrome-plated metal with plastic
• zippered flap to protect against accidental pressing
• Battery: NM27 12V (included)
• dimensions: 33 x 9 x 60 mm
• Remote control range: up to 120 meters

Technical specification:

• Dimensions: 108mm x 35mm x 30mm
• Power Supply: 12-24V DC/AC
• Range: max 15meters
• Current Consumption: RX 15Ma - TX 30mA
• Relay: 1A max 36V
• Frequency: 1,92Khz
• Wavelength: 940nm
• Operating temperature: -20 to +55°C
• Viewing angle: 180 degrees (adjustable)
• Operation: from all angles (vertical and level)
• Weight: 105g
• Pins for mounting included

Convenient to install, because on narrow metal posts they can be mounted on the planes of the post from the outside (from the side of the road) and only rotate the electronics element 90 degrees towards the second photocell so that the photocells "see each other".

Indicator lamp FORCE Crystal

Tasteful design, quartz crystal inspired shape. The modern Crystal lamp will be the crowning achievement of your beautiful fence.

• High-brightness LEDs for very good visibility and long life
• Built-in antenna for increased remote control range
• Mounting base for mounting to a vertical plane under different accounts
• 360 degree direction of illumination
• Operating mode: continuous illumination/pulse illumination
• Light pulsing frequency: 1 Hz/0 Hz (60 flashes per minute/continuous light)
• Power consumption (continuous illumination): 2,5 W

In the event of an electrical power outage, we attach two emergency unlock keys to the set, so you can manually open the gate easily and quickly.

The control panel also provides the possibility of connecting an emergency battery power supply, which will open the gate when there is a power outage in the network.

• Mounting brackets for actuators for gate posts and wings
• 2x Unlocking Keys
• Anchors
• Mounting element (pins, bolts, pins, washers, nuts)

Mounted to the ground to stop the gate in a closed position

Above factory mounting brackets: multi-position brackets for posts, handles for gate wings, anchors, bolting, rubber bottom stop to stop the gate in the closed position. The mounts come with keys for emergency unlocking in the event of a power outage.
