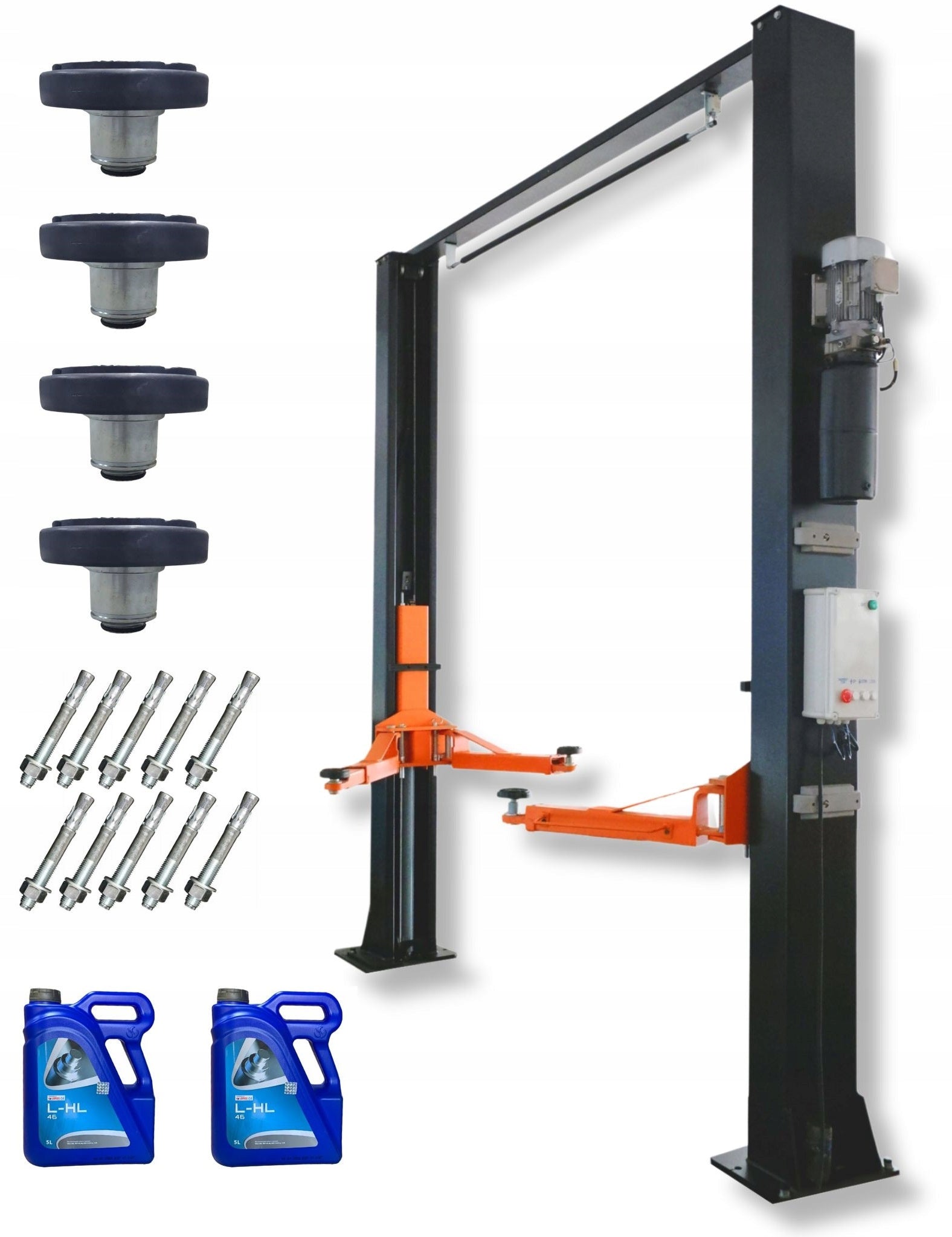

Dvigubos kolonos automobilio keltuvas ir prekių automatas 4T 4,9 m

Trumpai apie prekę

Prekė: Dvigubos kolonos automobilio keltuvas ir prekių automatas 4T 4,9 m. Kategorija: Kolonų keltuvai.

• Gamintojas: TM-Group
• Modelis: SF-C4000ESXL

⭐ IDEAL FOR HIGH ROOMS

⭐ DOES NOT RESTRICT ENTRY

⭐ HIGH QUALITY OIL AND MOUNTING KIT

Specification:

✅ Producer: TM-GROUP

✅ Maximum lifting capacity: 4 tons

✅ Connection: Upper

✅ Power supply: 400V (optional 230V)

✅ Lowering time: 30 seconds

✅ Lifting time: 40 seconds

✅ Lifting height: 10 - 196 cm

✅ Column base dimensions: 360 x 450 mm

✅ Thickness of the required floor: 30 cm

✅ Limit switch: Yes

✅ Engine power: 2,2 kW

✅ Arm length range: 760 - 1450 mm

✅ Anchors Included: Yes

✅ Meets UDT certification requirements: Yes

✅ Hydraulic oil 10L: included

✅ Dimensions (W x H): 3380 x 4909 mm

✅ Does not have a bottom connection (convenient access for the tool trolley)

✅ Perfectly suited for use on car ducts

Is this lift for me❓

The lift is suitable for handling virtually any passenger car, from a 2-door coupe to large 4x4 off-road vehicles. The load capacity of 4000kg (4T) will also allow smaller vans to be lifted.

⭐ IS IDEAL FOR SITUATIONS WHEN WE DO NOT HAVE 3-PHASE POWER SUPPLY. WORK FROM AN ORDINARY OUTLET 230V⭐

The lift is controlled from one column, so that controlling we do not have to walk around the lift. During installation, you can decide on which side to install the control box.

What about the scope of repairs ❓

Our lift is great for repairing suspension as well as cyanobacteria or gearbox. Of course, high lifting (over 190cm) will allow you to make any inspection and even tall people work comfortably and are not limited by movement.

1. Three-stage screw-on washers.
2. Power supply unit.
3. Reinforcement of lift arms.
4. Upper limit switch.
5. Rubber protection against door abrasion.
6. Control valve.

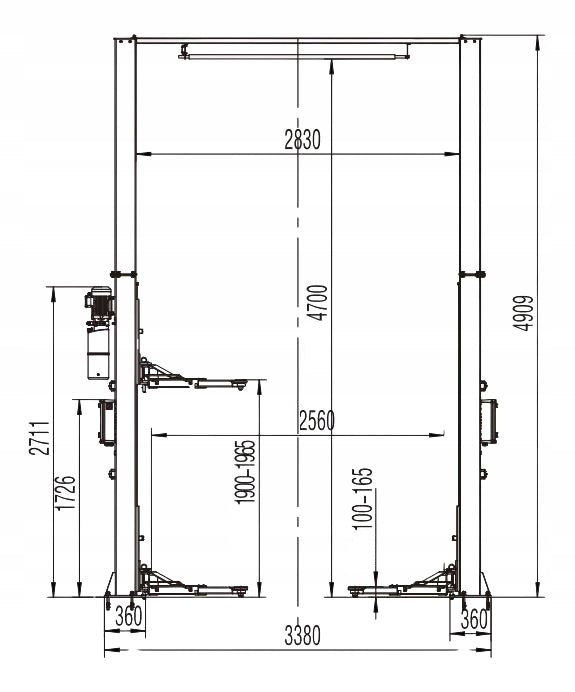

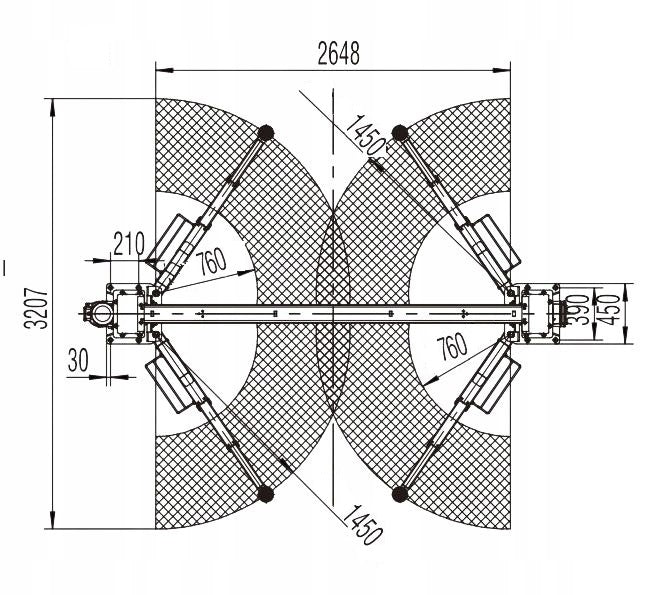

Technical drawing:

Substrate for lift:

Work safety is not only a great lift but also the ground under the lift, the correct attachment of the lift to a properly prepared floor is a key element in maintaining health and safety rules

There are 2 methods of preparing the substrate for a 4T two-column lift:

Uniform Plate Method:

• substrate surface area 1,6 - 2,0 m x 4 m x 30 cm
• maximum flat surface
• minimum thickness of the foundation slab: 30 cm
• minimum concrete class C20/25 (formerly called B25)
• 28 days, waiting time for the floor to dry and harden (in the case of a fresh spout)
• The floor must be in the form of a homogeneous concrete slab, with the above-mentioned parameters.
• cross reinforcement, minimum bar ⌀8

Method of Concrete Poles:

• substrate area 2 sloops measuring 1 m x 1 m 1 m
• maximum flat surface
• minimum concrete class C20/25 (formerly called B25)
• 28 days, waiting time for the floor to dry and harden (in the case of a fresh spout)
• double-row reinforcement, minimum bar ⌀8

⭐ UDT

Documentation:

The lift is delivered with the necessary documentation to be provided when registering with the Office of Technical Inspection:

✅ Declaration of conformity with CE certificate

✅ User manual in Polish

In the case of transport by courier:

The lift is sent on a transport rack, which ensures safe transport.

Approximate transport dimensions (due to the fact that one package may slightly differ from the other):

• Length: 272cm
• Height: 150cm
• Width: 43cm
