Dviejų varčių vartų pavara ETM-01, 4 m, 300 kg

Trumpai apie prekę

Prekė: Dviejų varčių vartų pavara ETM-01, 4 m, 300 kg. Kategorija: Kietieji diskai.

• Gamintojas: Elektrobim
• Modelis: ELEKTROBIM_ETM-01L

• Silent opening of the gate in a few seconds
• Set for narrow metal posts
• Designed for light and airy gates
• High quality and service life of actuators
• Metal gears in gear
• Matching mounting brackets
• Professional control panel
• Two radio four-channel remote controls
• Functions e.g. soft start/stop
• Possibility of self-assembly of the set

Automation of the gate is an incredible comfort. All you have to do is click the button in the remote control and the ETM set will open the gate for us in a few moments. No more freezing or soaking when manually opening the gate. The automation set ETM-01 Light, brand Elektorobim is designed for double-leaf gates, whose wing does not exceed 2 meters in length and weight 150 kg. The drive is designed for gates embedded on metal posts. If the wings are lighter, the machine provides a large supply of power, thanks to which the set will overcome wind gusts and guarantee a secure start of the wings on cold winter mornings.

It is obvious that in order for you to fully enjoy the automatic opening of your gate, the system must first of all be reliable. When you drive up to your property, you want to be sure that every time the gate will work – this is the primary purpose of assembling this product. For many years of correct operation of the gate, you need a quality machine, made of proven materials and thoroughly tested for durability and resistance to weather conditions.

It is worth noting that the ETM drive can be mounted on its own. Yeah, alone. You can do it after reading our instructions. And if you don’t understand something, our technicians will be happy to answer all your questions. You will certainly be proud of the work done and the money saved. The assembly process will be much faster and simpler after getting acquainted with video guides Elektrobim online.

⭐ In the attachment to the auction we have attached the instruction to see how simple it is (tab "Additional information").

⭐ By buying ETM-01 Light you get access to the mounting point calculator completely free!

If you live on a busy road, you no longer have to worry about blocking traffic when entering the property. In a few moments, your gate will open itself. To make the use of the drive a pleasure, the actuators have been designed to work as quietly as possible. The slim shape of the actuator will make it suitable for any type of gate without disfiguring it. Thanks to the matching mounts included in the set, the assembly process is extremely simple.

As specialists in the industry, we make sure that our product is durable, easy to use and safe for the user. Thanks to many years of experience, a drive has been created that will serve trouble-free for years.

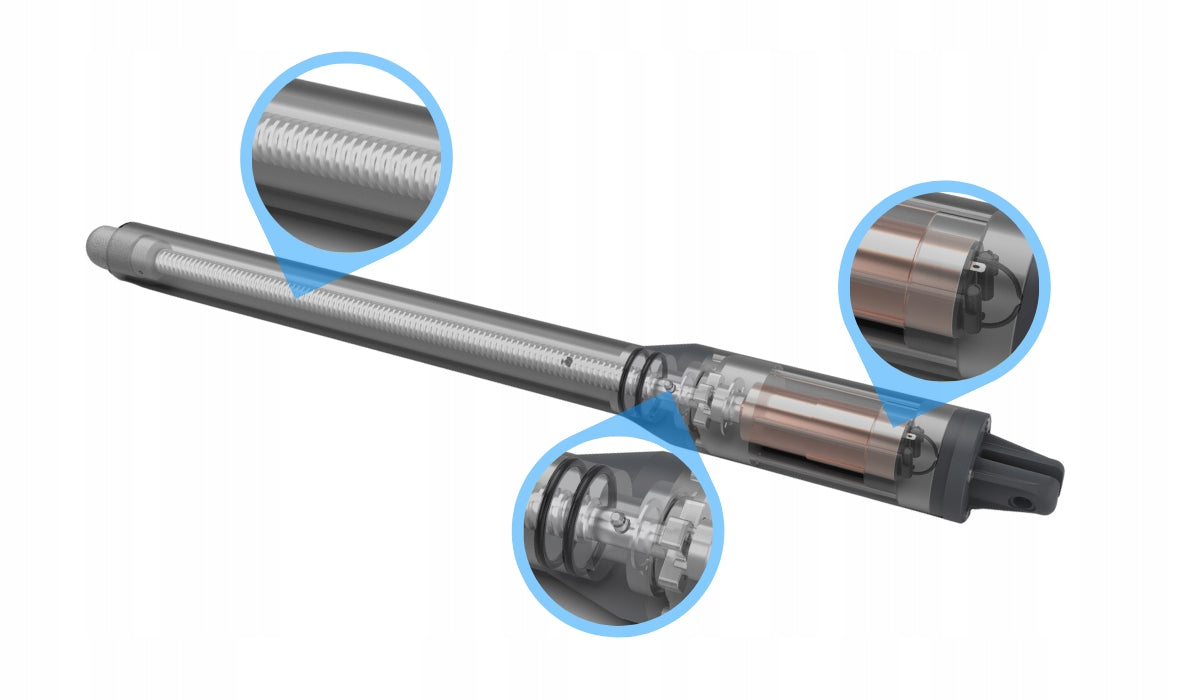

The cylinder housing is made of aluminum. It provides high resistance to weather conditions. In turn, metal sprockets in the transmission translate into increased strength and resistance to damage.

The Light version was created for the lightest and airy gates.

The scope of work is determined by means of an overload switch, i.e. After reaching a specific point (bumper), the control panel disconnects the power supply.

• Actuator designed for metal posts.
• Installation on gates with low weight and high breathability.
• The set is equipped with a solid, universal and very flexible in terms of mounting options. This makes it perfect for double-leaf gates in virtually any configuration.

An important aspect of gate automation is opening in conditions of lack of power. That's why we include an emergency unlock key set so you can manually open the gate. The ETM control panel also provides the possibility of connecting an emergency battery power supply, which will open the gate when there is a power outage in the network.

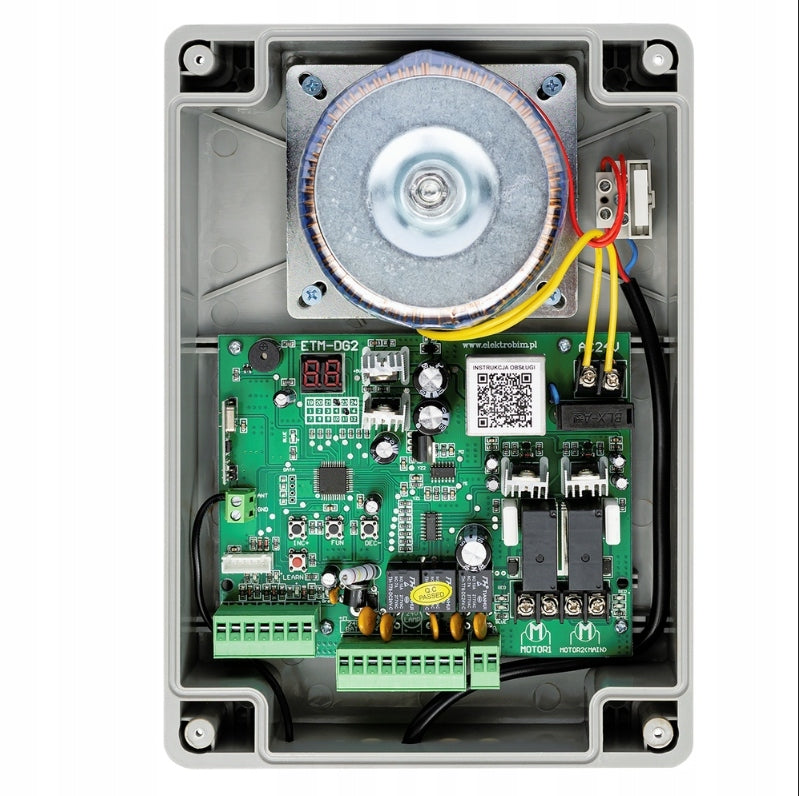

The box is equipped with a digital control panel, powered by a toroidal transformer, connected to the 230V network. With clear instructions, programming the control panel is a breeze. By replacing the electronic converter with a classic transformer in the power section, voltage spikes and any surges go into oblivion. The equipment will be programmed even by a person who has not had contact with electronics before, using an easy-to-use LED display. The most important features and benefits of the control panel include:

• Soft start and release of actuator rotation before closing guarantees smooth and impeccable opening of the gate without tugging the wings.
• The automatic closing function (adjustable time to auto-closing) allows you to program the time after which the gate will close itself.
• Cooperation with many types of gates, including with tab closure. This allows you to set the time before one of the wings.
• Function to operate only one actuatora (e.g. to open the gates or only one gate leaf), if we do not need to open the entire gate at a given moment, because, for example, we go somewhere by motorbike or bicycle.
• Indication of the operating status of the device with LEDs, which helps in the configuration of the device.
• Touch buttons to open the gate on the control panel to make it easier to open the gate if we do not have a remote control on hand (if they are not used, they can be detached).
• Possibility of connecting emergency powered (24V), which will ensure uninterrupted operation of the device.
• External control of the machine operation. Need to open the drive from the garage with a button? No problem. We can also easily connect an external receiver to the KSE board or control the machine using the button on the videophone and intercom, combination keyboard. Thanks to this, you can connect an external radio receiver to the device and control it with remote controls from different manufacturers.

The control panel is equipped with a number of security features:

• Overload protection: during the movement of the gate, electronics measure the motor current on an ongoing basis. After exceeding the value set in the control panel (e.g. when encountering an obstacle), the machine reacts adequately to the emergency situation.
• Optical protection: photocells can be connected to the machine. Even before the gate touches the obstacle, the system will detect its presence and react in an appropriate manner. Possibility to connect more optical detectors and other security features (e.g. emergency button).
• Auto-locking the actuator after stopping: you do not need to use additional locks on the gate to protect it from intruders. The construction of the automatic transmission makes it completely unnecessary.

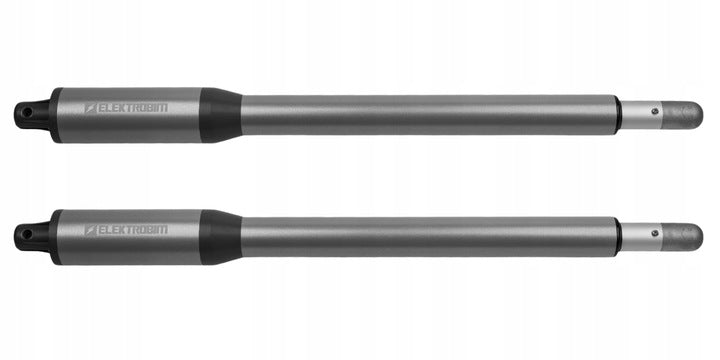

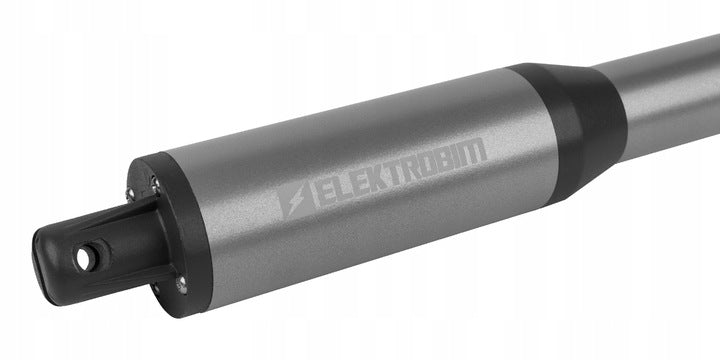

NEW ACTUATORS FOR SWING GATE

✅ Powered by 24V DC safe voltage

✅ Heavy-duty transmission with metal modes

✅ New, fashionable colour

✅ Simple installation

✅ Emergency attachment of the front mount

✅ Designed for narrow posts

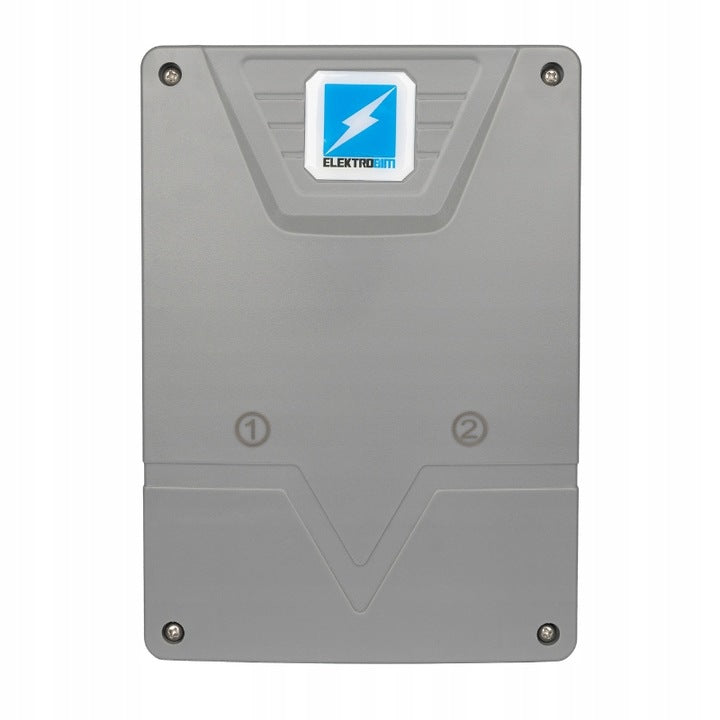

CONTROL PANEL ETM-DG2

✅ NEW SOFTWARE 2025

✅ Amperometric, thermal, overload protection

✅ Soft start and stop function

✅ Control inputs for WIFI, GSM or video intercom modules

✅ Possibility of connecting a wired wall switch

✅ Easy connection and programming

✅ Up to 99 Elektrobim remote controls can be uploaded

2x remote control ELEKTROBIM 4-channel 433MHz PS-10

✅ Interference resistant remote controls operating at 433.92MHZ

✅ Seamless operating range up to 100m

✅ Special manufacturer coding to ensure the safety of entry to the property

✅ Remote controls equipped with a battery

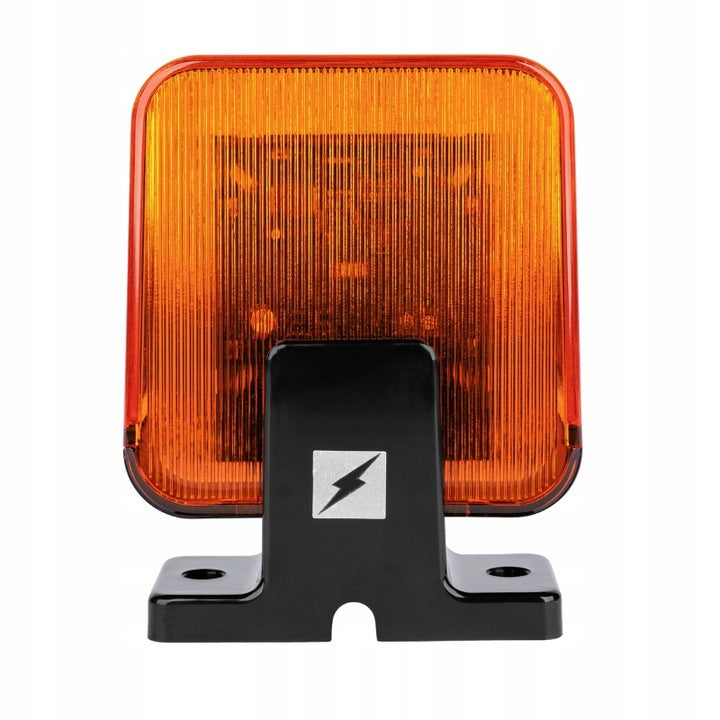

LED signal lamp

✅ Automation movement warning element, especially useful after dark when it is dark at the gate

✅ Universal 12-265V AC/DC power supply

SET OF ADJUSTABLE PHOTOCELLS

✅ Photocells, protecting the gate from collisions with other objects, e.g. by car

✅ Infrared ray direction adjustment 90°

✅ Attachments included

✅ Range up to 12m

Dedicated mountings with screws for mounting

✅ Rubber Bumper (Mandatory Assembly)

✅ Wing and post mounts

✅ Keys for emergency removal of the actuator from the mounts

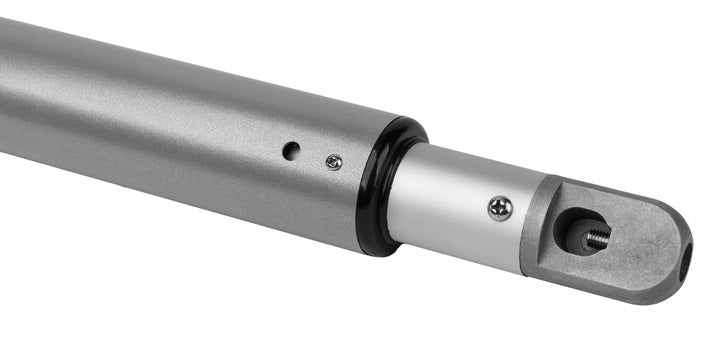

Dimensions of the actuator

• Overall length in assembly condition: 700 [mm]
• Arm extension: 300 [mm]

Other actuator data

• Engine power: 24VDC 40[W]
• Pull-out speed: 16 [mm/s]
• Rotation speed: 250 [rpm /min]
• Weight: ~1.5 [kg]
• Max. length of opening sash: 2 [m]
• Max. wing filling: 20%
• Max. Wing opening weight: 150 [kg]
• Protection class: IP55

Control panel

• Driver power supply: 230VAC +/- 15%
• Actuator supply voltage: 12VDC/24VDC
• Remote control frequency: 433.92 MHz
• Max. Remote control range: 100 meters
• Possibility to connect an emergency battery: 24V 5Ah
• Protection class: IP55
• Operating temperature: -25°C ~ +65°C

Specifications
