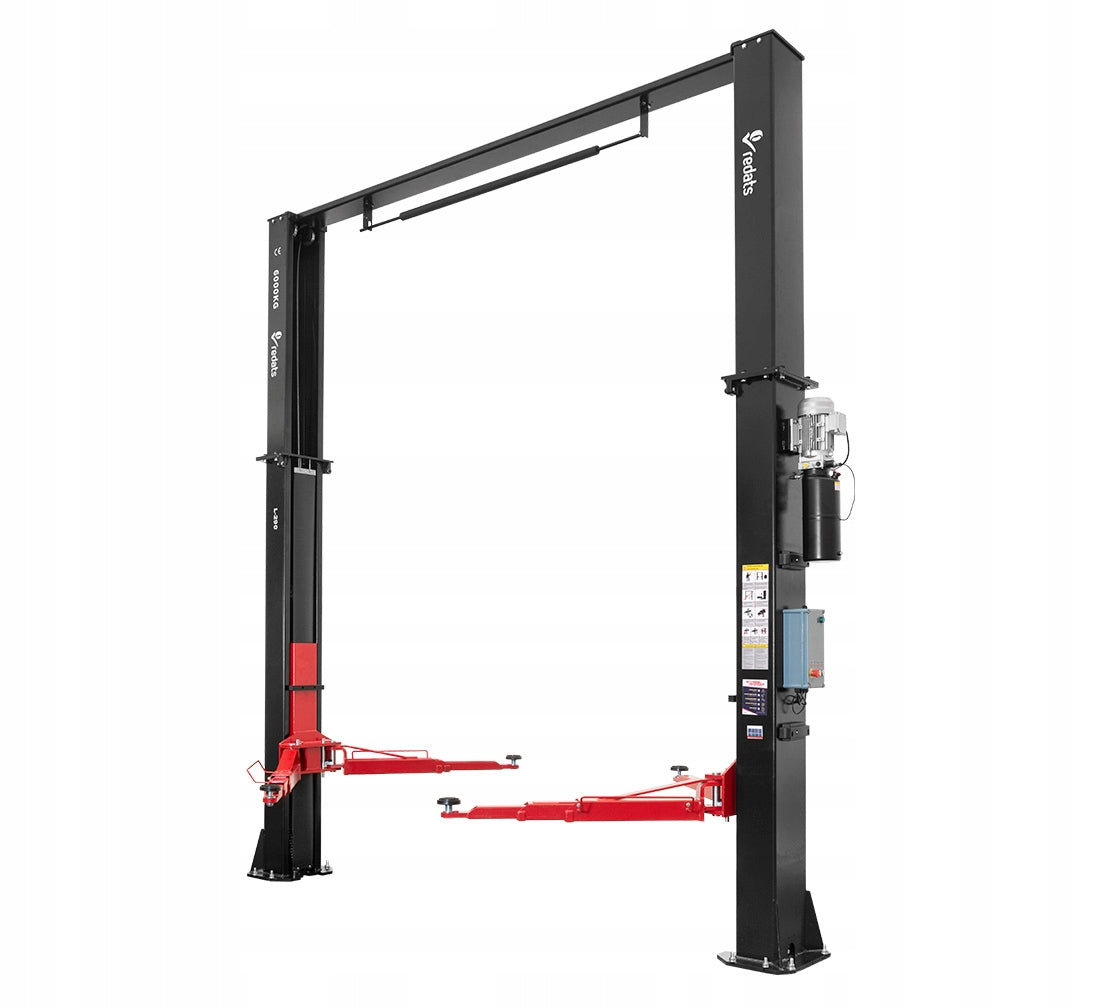

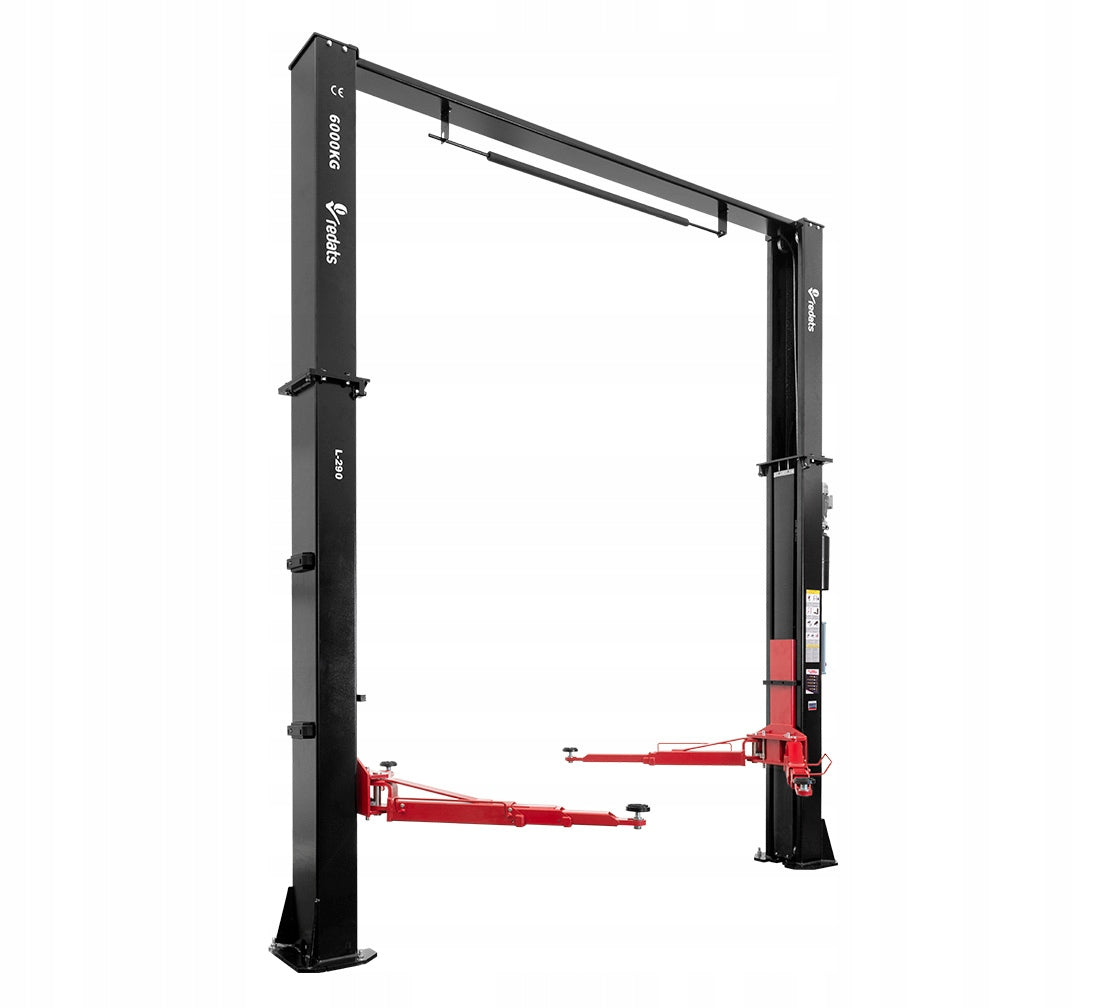

Dviejų kolonų keltuvas REDATS L-290 6t, aukštas viršutinis balkis, autobusams

Trumpai apie prekę

Prekė: Dviejų kolonų keltuvas REDATS L-290 6t, aukštas viršutinis balkis, autobusams. Kategorija: Kolonų keltuvai.

• Gamintojas: Redats
• Modelis: 30-11-40

• Brand: REDATS
• Symbol: 30-11-40
• Maximum lifting capacity: 6 tons
• Type: automatic
• Power Supply: 400V
• Arm length range: 896 -1780 mm
• Floor thickness: 30 cm
• Beam: Upper
• Leaving time: approx. 50 seconds
• Lifting time: approx. 50 seconds
• Maximum width of the car: 3022 mm
• Engine power: 3 kW
• Lifting height: 1995 mm
• Column base dimensions: 420 x 520 mm
• Limit switch: yes
• Telescopic lift arms: yes
• Additional Features: Rope Guards, Column Limit Switch, Top Beam Limit Switch
• Anchors included: yes
• Meets UDT certification requirements: yes

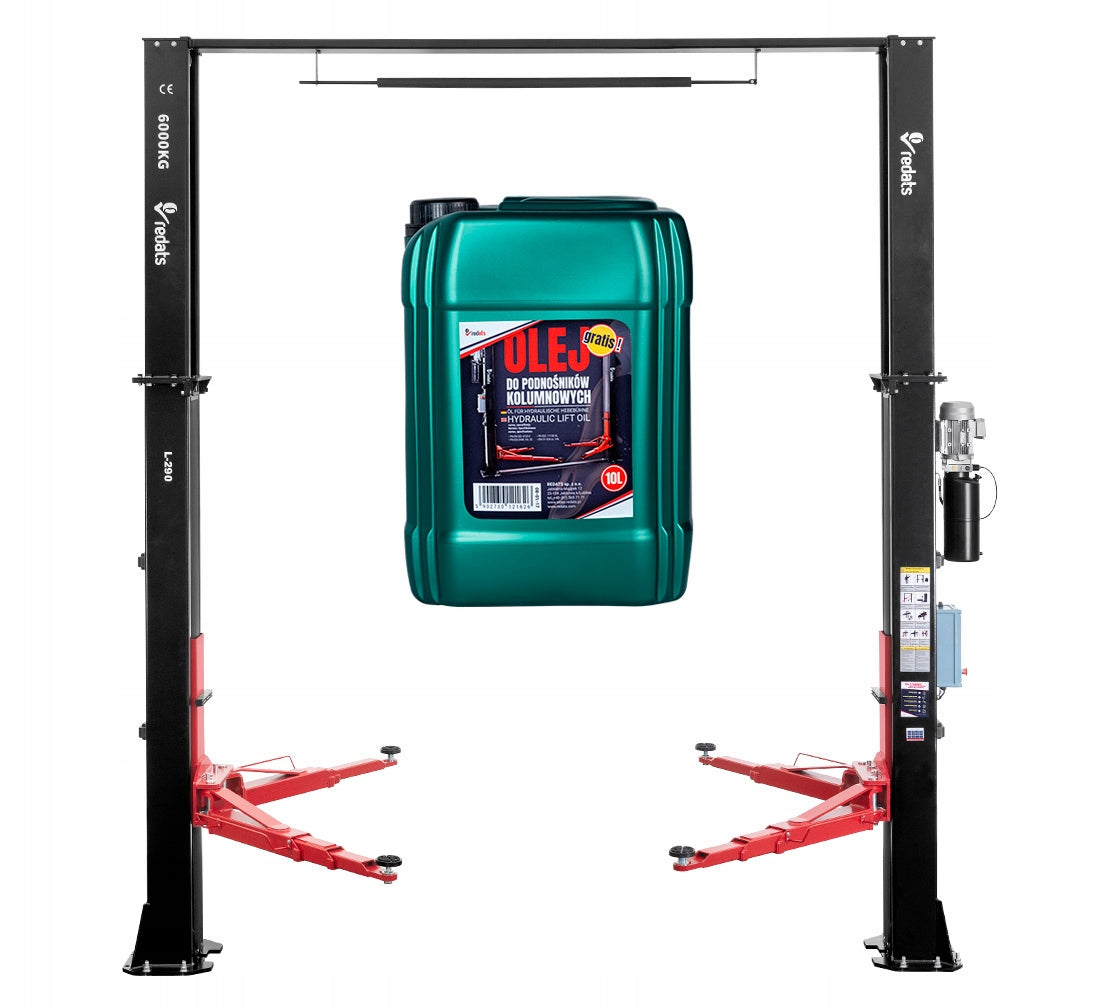

• Hydraulic oil 10L: free
• Dimensions (W x H): 3980 x 4460 mm
• Unladen weight: 1104 kg

Choose it if you are looking for a lift that will give you more stock with heavier cars and convenient access to the chassis.

• Crane 6 tons , so you can also work with buses, pickups and long vans.
• It has a top beam , so there is no bottom joint on the floor.
• It has a range of arms of 896 - 1780 mm, so it is easier to set your paws under different cars.
• It raises the car to 1995 mm , so you have convenient access to the suspension, exhaust and chassis.
• Supports cars up to 3022 mm wide , so you can also handle wider vehicles.

The first such a powerful and so high two-column lift in REDATS

Here you have 6000 kg lifting capacity and a structure with a height of 4460 mm . This is a lift for a workshop where larger cars appear and you want to work on equipment with a large supply.

Upper beam

The lift has a top beam , so there is no bottom joint on the floor. It is easier to drive a lower car and more convenient to move the tool trolley on wheels.

Lifting height 1995 mm

You lift the car to 1995 mm . This gives you convenient access to the chassis, suspension, exhaust system and other components under the car. You just don't have to bend over. Your back will thank you.

With a construction height of 4460 mm and a lifting height of 1995 mm you have about 2465 mm of ground clearance , so you can easily fit taller vehicles here as well.

Shoulder range 896 - 1780 mm

Telescopic arms have a range of 896 - 1780 mm . It is easier to set your paws for shorter passenger cars, but also for larger vans.

Maximum width of the car 3022 mm

The lift supports cars up to 3022 mm wide. This gives you more freedom with wider SUVs, pickups or larger vans.

What does it look like in practice?

See the technical diagrams of this lift below - paw spacing, width, height and other useful data!

Automatic and simple operation

It is a automatic lift with 400 V power supply and 3000 W motor. You operate it from the control panel, so you quickly pick up and lower the car.

Raising and lowering time: after 50 s

You can quickly set the car at working height and leave it just as efficiently. It's important when there's a line of cars outside the gate.

Occupational safety

You have a limit switch in the column and top beam and rope guards. The lift also meets the requirements for UDT certification, and you get anchors included.

Summary

If you are looking for a lift for larger and heavier cars, this model will give you a clear stock. 6 tons of lifting capacity, 4460 mm of height, upper beam and a wide range of arms make it comfortable to work with larger vehicles.

Buy and expand the possibilities of your workshop.

UDT - to report or not?

You often ask whether you need to report the lift to the UDT (Office of Technical Inspection). According to Polish law, this must be done. Few sellers talk about it, but in light of the regulations, it does not matter whether you use the lift for your business or privately. Whether you work alone or hire people - the lift is worth registering in UDT.

Want to report a lift to UDT?

If you want UDT to collect and allow your new lift to be put into operation, it is worth outsourcing its installation to a team with appropriate permissions.

Preparation of the substrate

Basic requirements for the preparation of the substrate for the installation of a two-column lift:

• Substrate area 1,5m x 4,5m x 30cm.
• Maximum flat surface.
• Minimum floor thickness: 30 cm.
• Concrete class B25.
• 28 days, waiting time for the floor to dry and harden (in the case of a fresh spout).
• The floor must be in the form of a homogeneous concrete slab, with the above-mentioned parameters.

Important!

Before buying, be sure to check the location of the support points in the cars you want to service. Power cord with plug must be independently supplied to the jack
