Dronas DJI Mavic 3 Multispectral Professional C2 20MP RTK su DJI Care 1 metams

Trumpai apie prekę

Prekė: Dronas DJI Mavic 3 Multispectral Professional C2 20MP RTK su DJI Care 1 metams. Kategorija: Dronai ir multikopteriai.

• Gamintojas: DJI
• Modelis: DJI Mavic 3 Multispectral C2

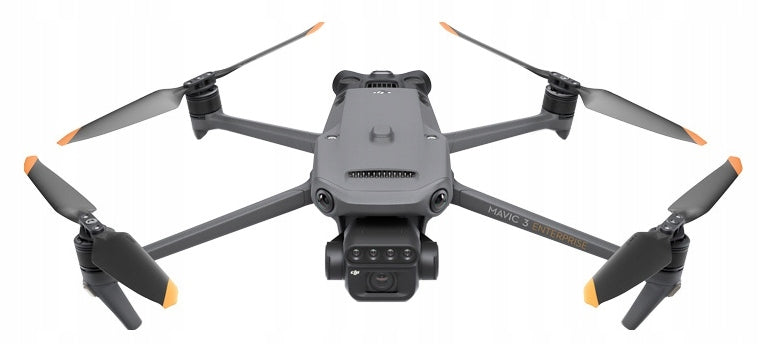

DJI Mavic 3 Multispectral

✅ In order to conduct effective aerial measurements, you must see the invisible. Therefore, Mavic 3 Multispectral offers two forms of vision.

✅ Combines an RGB camera with a multispectral camera, to scan and analyze crop growth, providing complete transparency.

✅ Managing agricultural production requires precision and data, and the Mavic 3M meets both of these conditions.

✅ Newly improved system imaging with one camera 20 MP RGB and four multi-spectral 5 MP cameras (green band, red band, red edge and close to infrared).

✅ It will work well in such applications as, for example, precise aerial measurements, monitoring crop growth and research natural resources.

Specification:

➡ Net weight (with propellers and RTK module): 951 g

✅ After folding (without propellers): 223×96.3×122.2 mm (length × width × height)

➡ Unfolded (without propellers): 347.5×283×139.6 mm (length × width × height)

✅ Max. wind resistance: 12 m/s

➡ Max. flight time (without wind): up to 43 min

✅ Maximum flight distance: up to 32 km

➡ Operating temperature range: -10° to 40° C4

✅ Engine model: 2008

➡ Propeller model: 9453F - Enterprise

✅ Light sensor: Built-in drone

➡ Image sensor: 4/3 CMOS

✅ Effective pixels: 20 MP

➡ Maximum image size: 5280×3956 px

Solar Light Sensor

✅ The built-in sensor captures solar radiation and saves it in an image file, allowing align of light during 2D reconstruction.

➡ As a result, you can enjoy more accurate NDVI, results as well as greater precision and consistency of data obtained over time.

Batteries Optimized for Performance

✅ Flight time up to 43 minutes allows you to cover more terrain during each mission, which allows to cover up to 200 hectares.

Convenient Charging

➡ Fast charging of batteries using a 100W HUB charger or direct charging of a drone using fast charging 88W.

Stable Signal, Smooth Image Transmission

✅ The O3 system integrates two signals transmitting and four receiving signals, thanks to which can provide a range of transmission up to 8 km.

Mapping of Orchards

➡ Mavic 3M enables to carry out measurements of terrain-follow aircraft in orchards – even on sloping areas.

✅ You can also use it in conjunction with DJI Terra or DJI SmartFarm Platform to reconstruct high-resolution maps and take advantage of the opportunity of automatically identifying trees, distinguishing trees from other objects, as well as generating three-dimensional operating routes for agricultural drones.

➡ All this translates into greater safety and work efficiency.

Intelligent Field Reconnaissance

✅ Mavic 3M can conduct automatic field reconnaissance and transmit field observation images to the DJI SmartFarm Platform in real time over the 4G network.

➡ Allows fast detection of irregularities such as shortages of emergence, density of weed or lounging of crops.

✅ It also allows to carry out intelligent analyses, for example, identification of cotton seedlings and testing of rice production.

➡ The drone uses artificial intelligence to provide real-time information about crop growth, facilitate the management of agronomic activities and enable problem-free management of up to 70 hectares of land by one person.

Monitoring of Environment and Natural Resources

✅ Mavic 3M will find application also in environmental and natural resource research, for example when monitoring water enrichment or checking distribution of forests, urban control of green areas and more.

Accurate Pictures That Give Back Every Pixel

➡ Mavic 3M has been equipped with an RTK module that provides positioning with accuracy up to centimeter.

✅ The flight control system, camera and RTK module synchronize within microseconds to precisely determine the location of the imaging center of each camera.

➡ This enables the Mavic 3M to carry out accurate aerial measurements without the use of ground-based checkpoints.

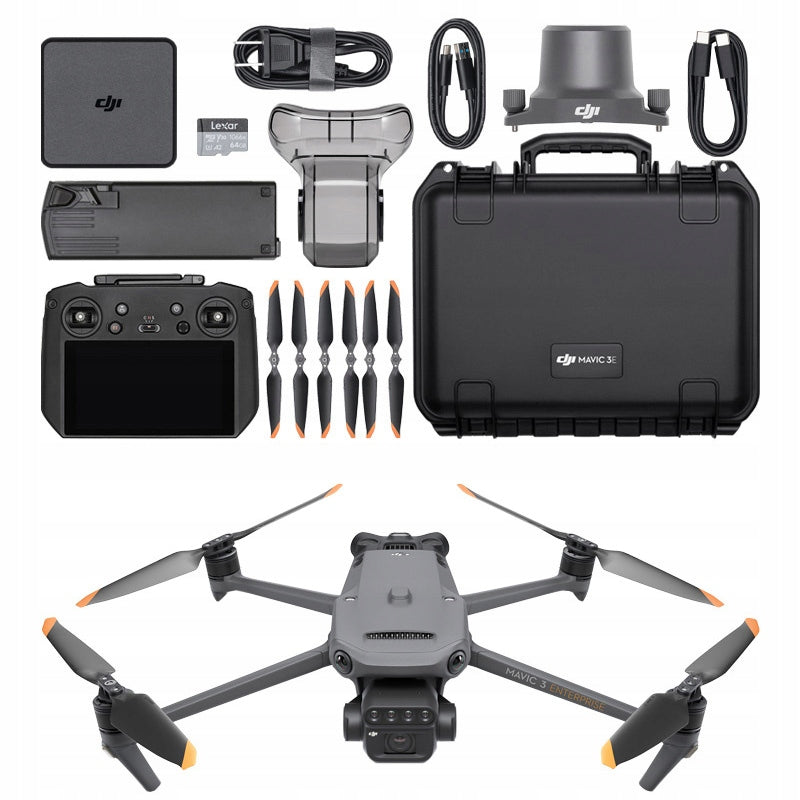

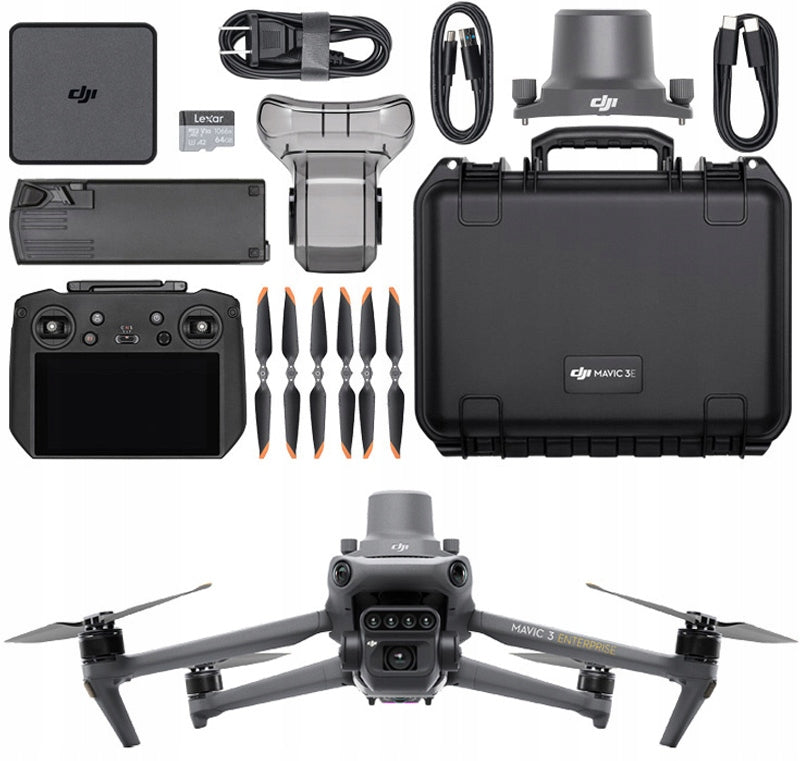

Contents of the Set:

✅ Mavic 3 Multispectral drone

➡ RTK module

✅ DJI Care Enterprise Basic for 1 year

➡ DJI SmartFarm Platform

✅ DJI Terra software for 3 months

➡ 1x Drone battery

✅ DJI RC Pro Enterprise control apparatus

➡ USB-C charger

✅ 2x USB-C cable

➡ Power cable

✅ Camera cover

➡ 3x pair of spare propellers

✅ Allen key

➡ Memory card 64GB

✅ Transport case

DRONE

➡ Net weight (with propellers and RTK module) [1]

✅ 951 g

➡ Maximum take-off weight

✅ 1050 g

➡ Dimensions

✅ After folding (without propellers): 223×96.3×122.2 mm

✅ Unfolded (without propellers): 347.5×283×139.6 mm

➡ Diagonal

✅ 380.1 mm

➡ Maximum Ascension Speed

✅ 6 m/s (Normal Mode)

✅ 8 m/s (Sport Mode)

➡ Maximum descent speed

✅ 6 m/s (Mode S)

✅ 6 m/s (N mode)

➡ Max. Flight speed (without wind)

✅ 15 m/s (N mode)

✅ Forward: 21 m/s

✅ Side to side: 20 m/s

✅ Backwards: 19 m/s (S Mode)[2]

➡ Max. resistance to wind speed

✅ 12 m/s[3]

➡ Maximum take-off height above sea level

✅ 6000 m (without payload)

➡ Max. flight time (without wind)

✅ up to 43 minutes[4]

➡ Max. hover time (without wind)

✅ up to 37 minutes

➡ Maximum flight distance

✅ up to 32 km (CE)[4]

➡ Maximum angle of inclination

✅ 30° (N Mode)

✅ 35° (S Mode)

➡ Maximum angular speed

✅ 200°/s

➡ GNSS

✅ GPS + Galileo + BeiDou + GLONASS

➡ Hover accuracy

✅ Vertical: ±0,1 m (with vision system); ±0,5 m (with GNSS); ±0,1 m (with RTK)

✅ Horizontal: ±0,3 m (with vision system); ±0,5 m (with high precision positioning); ±0,1 m (with RTK)

➡ Operating temperature range

✅ -10° to 40°C

➡ Internal memory

✅ None

➡ Engine model

✅ 2008

➡ Propeller model

✅ 9453F - Enterprise

➡ Light sensor

✅ Built-in drone

RGB CAMERA

➡ Image sensor

✅ 4/3 CMOS

✅ Effective pixels: 20 MP

➡ ISO Scope

✅ 100–6400

➡ Shutter speed

✅ Electronic shutter: 8 to1/8000 s

✅ Mechanical shutter: 8 to1/2000 s

➡ Maximum image size

✅ 5280×3956

➡ Shooting mode

✅ Single shot: 20 MP

✅ Timelapse: 20MP

✅ JPEG: 0,7/1/2/3/5/7/10/15/20/30/60 s

✅ JPEG + RAW: 3/5/7/10/15/20/30/60 s

✅ Panorama: 20 MP (original material)

➡ Video Resolution

✅ H.264:

✅ 4K: 3840×2160@30fps

✅ FHD: 1920×1080@30fps

➡ Maximum video transmission speed

✅ 4K: 130 Mbps

✅ FHD: 70 Mbps

➡ Supported file system

✅ exFAT

➡ Image format

✅ JPEG/DNG (RAW)

➡ Form of video

✅ MP4 (MPEG-4 AVC/H.264)

MULTISPECTRAL CAMERA

➡ Image sensor

✅ 1/2.8-inch CMOS

✅ Effective pixels: 5 MP

➡ Lens

✅ FOV: 73.91° (61.2° x 48.10°)

✅ Equivalent focal length: 25 mm

✅ Aperture: f/2,0

✅ Focus: Constant focus

➡ Multispectral camera bandwidth

✅Green (G): 560 ± 16 nm

✅Red (R): 650 ± 16 nm

✅ Red Edge (RE): 730 ± 16 nm

✅ Near Infrared (NIR): 860 ± 26 nm

➡ Range of reinforcement

✅ 1x–32x

➡ Shutter speed

✅ Shutter speed

➡ Maximum image size

✅ 2592×1944

➡ Image format

✅ TIFF

➡ Video format

✅ MP4 (MPEG-4 AVC/H.264)

➡ Shooting mode

✅ Single shot: 5 MP

✅ Timelapse: 5MP

✅ TIFF: 2/3/5/7/10/15/20/30/60 sec

➡ Video Resolution

✅ H.264

✅ FHD: 1920 x 1080@30fps

✅ Video content: NDVI/GNDVI/NDRE

➡ Maximum video transmission speed

✅ Stream: 60 Mbps

SENSOR SYSTEM

➡ Type of sensor system

✅ Multi-directional dual-sensor vision system with infrared sensor at the bottom of the drone

➡ Forward

✅ Measurement range: 0,5 – 20 m

✅ Detection range: 0,5 – 200 m

✅ Obstacle avoidance speed: ≤15 m/s

✅ FOV: 90° horizontal, 103° vertical

➡ Backwards

✅ Measurement range: 0,5 – 16 m

✅ Obstacle avoidance speed: ≤12 m/s

✅ FOV: 90° horizontal, 103° vertical

➡ Side to Side

✅ Measurement range: 0,5 – 25 m

✅ Obstacle avoidance speed: ≤15 m/s

✅ FOV: 90° horizontal, 85° vertical

➡ Up

✅ Measurement range: 0,2 – 10 m

✅ Obstacle avoidance speed: ≤6 m/s

✅ FOV: front and rear 100°, left and right 90°

➡ Down

✅ Measurement range: 0,3 – 18 m

✅ Obstacle avoidance speed: ≤6 m/s

✅ FOV: front and rear 130°, left and right 160°

➡ Operational environment

✅ Front, back, left, right, top: surfaces with clear patterns and lighting > 15 lux

✅ Below: surfaces with reflective material, reflectivity > 20%

✅ Suitable lighting: > 15 lux

GIMBAL

➡ Stabilization system

✅ 3-axis mechanical gimbal (tilt, roll, pan)

➡ Mechanical range

✅ Tilt: -135° to 45°

✅ Roll: -45° to 45°

✅ Pan: -27° to 27°

➡ Controlled scope

✅ Tilt: -90° to 35°

✅ Pan: Uncontrolled

➡ Max. control speed (slope)

✅ 100°/s

➡ Angular vibration range

✅ ±0.007°

✅ VIDEO TRANSMISSION

➡ Video transmission system

✅ DJI O3 Image Transmission Industry Edition

➡ Quality Live View

✅ Remote control apparatus: 1080p/30fps

➡ Working band

✅ 2.400 – 2.4835 GHz

✅ 5.725 – 5.850 GHz

➡ Maximum effective signal distance (no obstacles, no interference)

✅ CE: 8 km

✅ SRRC: 8 km

✅ MIC: 8 km

➡ Maximum transmission distance (with obstacles)

✅ Severe disturbances (cities, settlements): 1,5 to 3 km (FCC/CE/SRRC/MIC)

✅ Average interference (parks, suburbs): 3 to 6 km (CE/SRRC/MIC)

✅ Weak interference (open areas): 6 to 8 km (CE/SRRC/MIC)

➡ Maximum download speed

✅ 15 MB/s (with DJI RC Pro Enterprise Edition)

➡ Delay

✅ Approximately 200 ms (depending on environment and device)

➡ Antennas

✅ 4 antennas, 2 transmitting and 4 receiving

➡ Transmitter power (EIRP)

✅ 2.4 GHz: < 20 dBm (CE/SRRC/MIC)

✅ 5.8 GHz: < 30 dBm (SRRC), < 14 dBm (CE)

➡ Other

✅ Supports DJI Cellular

BATTERY

➡ Capacity

✅ 5000mAh

➡ Standard voltage

✅ 15.4 V

➡ Maximum charging voltage

✅ 17.6 V

➡ Type of cell

✅ LiPo 4S

➡ Chemical composition of the cell

✅ Lithium Cobalt

➡ Energy

✅ 77 watt-hours

➡ Weight

✅ 335.5 g

➡ Charging temperature

✅ 5° to 40°C

STORAGE

➡ Supported microSD cards

✅ Please use a memory card with a speed index of V30 or higher, or use a card from the recommended list

➡ Recommended microSD cards – remote control apparatus

✅ SanDisk Extreme PRO 64GB V30 A2 microSDXC

✅ SanDisk High Endurance 64GB V30 microSDXC

✅ SanDisk Extreme 128GB V30 A2 microSDXC

✅ SanDisk Extreme 256GB V30 A2 microSDXC

✅ SanDisk Extreme 512GB V30 A2 microSDXC

✅ Lexar 667x 64GB V30 A2 microSDXC

✅ Lexar High-Endurance 64GB V30 microSDXC

✅ Lexar High-Endurance 128GB V30 microSDXC

✅ Lexar 667x 256GB V30 A2 microSDXC

✅ Lexar 512GB V30 A2 microSDXC

✅ Samsung EVO Plus 64GB V30 microSDXC

✅ Samsung EVO Plus 128GB V30 microSDXC

✅ Samsung EVO Plus 256GB V30 microSDXC

✅ Samsung EVO Plus 512GB V30 microSDXC

✅ Kingston Canvas Go! Plus 128GB V30 A2 microSDXC

✅ Kingston Canvas React Plus 128GB V90 A1 microSDXC

➡ Recommended microSD cards – drone

✅ SanDisk Extreme 32GB V30 A1 microSDHC

✅ SanDisk Extreme PRO 32GB V30 A1 microSDHC

✅ SanDisk Extreme 512GB V30 A2 microSDXC

✅ Lexar 1066x 64GB V30 A2 microSDXC

✅ Kingston Canvas Go! Plus 64GB V30 A2 microSDXC

✅ Kingston Canvas React Plus 64GB V90 A1 microSDXC

✅ Kingston Canvas Go! Plus 128GB V30 A2 microSDXC

✅ Kingston Canvas React Plus 128GB V90 A1 microSDXC

✅ Kingston Canvas React Plus 256GB V90 A2 microSDXC

✅ Samsung PRO Plus 256GB V30 A2 microSDXC

BATTERY CHARGER

➡ Entrance

✅ 100V do 240V (AC), 50Hz do 60Hz, 2.5A

➡ Output power

✅ 100 IN

➡ Output

✅ Maximum output power 100 W (total)

✅ When both ports are used, max. Output power of one interface: 82 W

✅ Charger dynamically allocates power depending on load

✅ CHARGING HUB

➡ Entrance

✅ USB-C: 5V to 20V, 5.0A

➡ Output

✅ Battery Port: 12V to 17.6V, 8.0A

➡ Rated Power

✅ 100 IN

➡ Charging type

✅ 3 batteries charged individually

➡ Charging temperature

✅ 5° to 40°C

✅ RTK MODULE

➡ Dimensions

✅ 50.2 × 40.2 × 66.2 mm

➡ Weight

✅ 24 ± 2 g

➡ Interface

✅ USB-C

➡ Power

✅ approx. 1.2 IN

➡ RTK Position Accuracy (RTK Fix)

✅ Horizontal: 1 cm + 1 ppm

✅ Vertical: 1.5 cm + 1 ppm

✅ DJI RC ENTERPRISE EDITION

➡ Image transmission system

✅ DJI O3 Image Transmission Industry Edition

➡ Maximum effective signal distance (no obstacles, no interference)

✅ CE: 8 km

✅ SRRC: 8 km

✅ MIC: 8 km

➡ Working bandwidth of image transmission

✅ 2.400 – 2.4835 GHz

✅ 5.725 – 5.850 GHz

➡ Antennas

✅ 4 antennas, 2 transmitting and 4 receiving

➡ Transmission bandwidth and transmitter power (EIRP)

✅ 2.4 GHz: < 20 dBm (CE/SRRC/MIC)

✅ 5.8 GHz: < 14 dBm (CE); < 23 dBm (SRRC)

➡ Wi-Fi protocol

✅ 802.11 a/b/g/n/ac/ax

✅ Support 2×2 MIMO Wi-Fi

➡ Wi-Fi working bandwidth

✅ 2.400 – 2.4835 GHz

✅ 5.150 – 5.250 GHz

✅ 5.725 – 5.850 GHz

➡ Wi-Fi Transmitter Power (EIRP)

✅ 2.4 GHz: < 20 dBm (CE/SRRC/MIC)

✅ 5.1 GHz: < 23 dBm (CE/SRRC/MIC)

✅ 5.8 GHz: < 14 dBm (CE)

➡ Bluetooth protocol

✅Bluetooth 5.1

➡ Bluetooth Working Band

✅ 2.400 – 2.4835 GHz

➡ Bluetooth Transmitter Power (EIRP)

✅ < 10 dBm

➡ Screen Resolution

✅ 1920×1080

➡ Screen Size

✅ 5.5 inch

➡ Screen refresh rate

✅ 60 fps

➡ Screen brightness

✅ 1,000 nits

➡ Touch screen

✅ 10-point multi-touch

➡ Rechargeable battery

✅ Lithium-ion battery (5000 mAh, 7.2 V)

➡ Charging type

✅ 100W hub or 12V/15V USB charger recommended

➡ Rated Power

✅ 12 Watts

➡ Storage capacity

✅ Internal Memory (ROM): 64 GB

✅ Support microSD cards for memory expansion

➡ Charging time

✅ approx. 1,5 hours (hub 100W or USB 15V)

✅ approx. 2 hours (USB 12V)

✅ approx. 2 hours 50 min (hub 100 W with drone and remote control at the same time)

➡ Working time

✅ approx. 3 hours

➡ Video Output Port

✅ Mini HDMI port

➡ Operating temperature

✅ -10° to 40°C

➡ Storage temperature range

✅ < 1 month: -30° to 60°C

✅ 1 to 3 months: -30° to 45° C

✅ 3 to 6 months: -30° to 35°C

✅ >6 months: -30° to 25°C

➡ Charging temperature

✅ 5° to 40°C

➡ Supported drones

✅ DJI Mavic 3E

✅ DJI Mavic 3T

✅ DJI Mavic 3M

➡ GNSS

✅ GPS + Galileo + GLONASS

➡ Dimensions

✅ Folded antenna, no rods: 183,27×137,41×47,6 mm

✅ Extended antenna, with bars: 183,27×203,35×59,84 mm

➡ Weight

✅ approx. 680 g

➡ Model number

✅ RM510B

Specifications

Group	Name	Value
Parametry	Condition	new
Parametry	Invoice	With VAT invoice
Parametry	Brand	DJI
Parametry	Assembly	for assembly
Parametry	Model	DJI Mavic 3 Multispectral C2
Parametry	Drive type	electric
Parametry	Camera	drone with camera
Parametry	Number of propellers	other
Parametry	Flight time	43 min
Parametry	Battery capacity	5000 mAh
Parametry	Flight control range	8000 m
Parametry	Product weight with unit packaging	4.89 kg
Parametry	EAN (GTIN)	5906142967315
Parametry	Manufacturer code	Dron DJI Mavic 3 Multispectral Profesjonalny
Parametry	Maximum speed	54 km/h
Parametry	Camera resolution	20 Mpx
Parametry	Video recording resolution	4K
Parametry	Product weight	951 g
Parametry	Batteries included	yes
Parametry	Packaging status	original
Parametry	Age	16 years +
Parametry	Certificates of conformity	CE
