Trumpai apie prekę

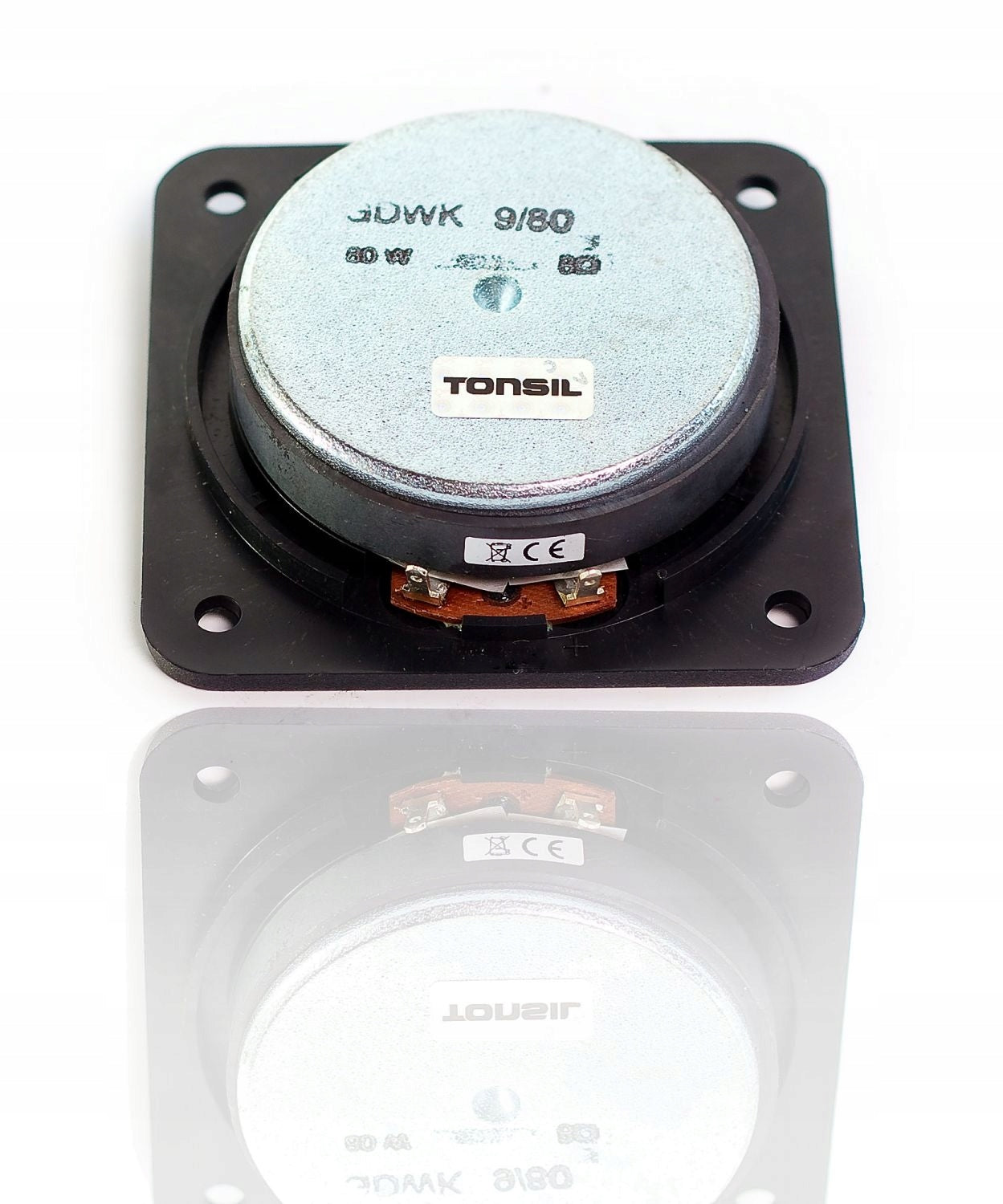

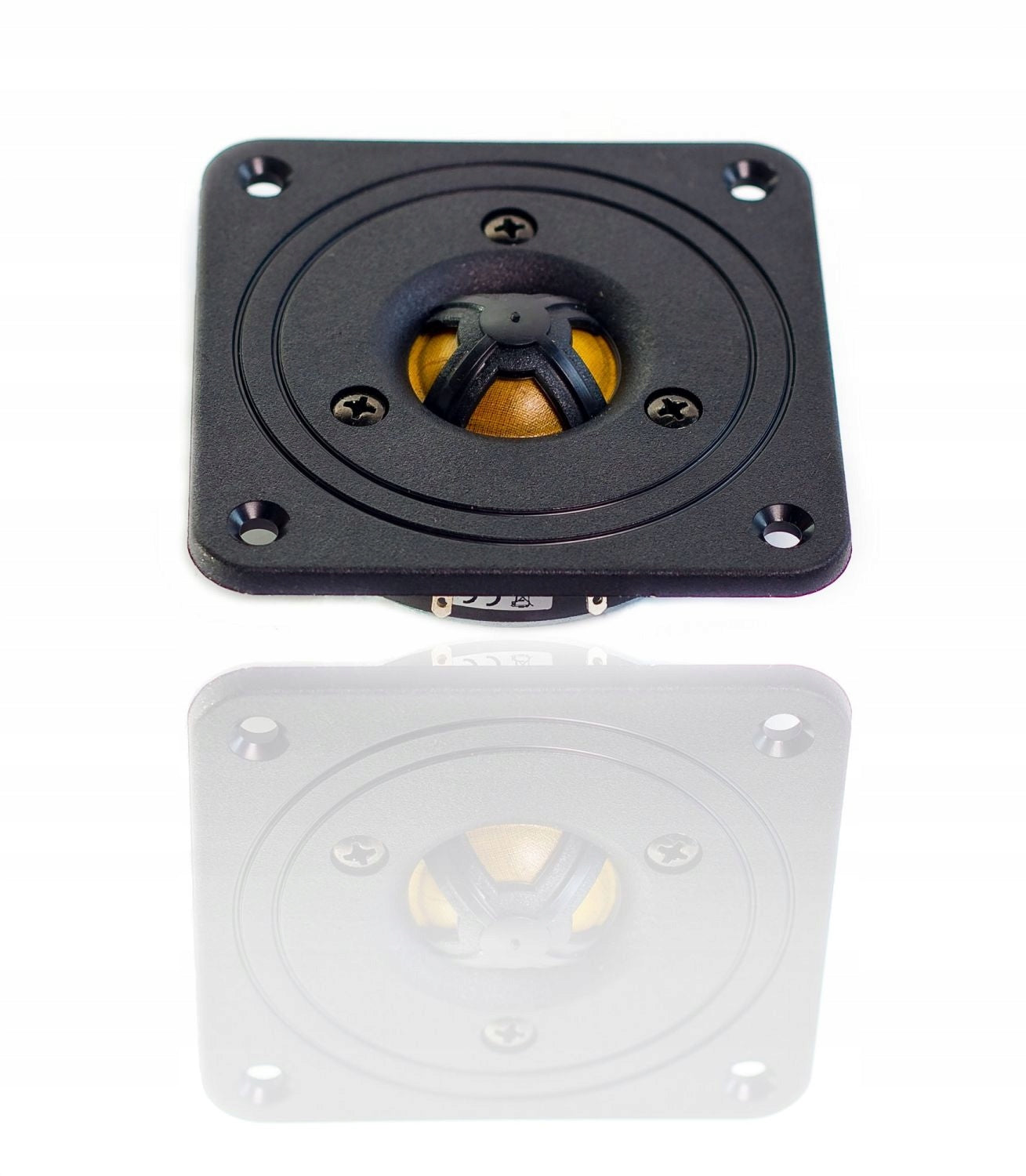

Prekė: Domeninis aukštų dažnių garsiakalbis Tonsil GDWK 9/80 8 Ohm. Kategorija: Aukštadažniai garsiakalbiai.
- Gamintojas: Tonsil
- Modelis: GDWK 9/80
- Spalva: black
GDWK 9/80 8 Ohms
Tweeter with laminate dome membrane.
- Impedance - 8 [Ohm]
- Frequency Response - 4 000 - 20 000 [Hz]
- Nominal power (power before filter/power after filter) - 80/2,5 [W]
- Maximum power - 160/5 [W]
- Efficiency - 88 [dB]
- Recommended frequency of division - 4 800 [Hz]
- Coil resistance - 6,3 [Ohm]
- Coil height - 1,9 [mm]
- Coil core diameter - 25 [mm]
- Slot height - 3 [mm]
- Slot width - 0,815 [mm]
- Outer diameter of magnet - 70 [mm]
- Inner diameter of magnet - 32 [mm]
- Magnet height - 10 [mm]
- Magnet weight - 0,15 [kg]
- Induction in slot B - 1,16 [T]
- Energy in the gap - 104,6 [mJ]
- Magnet material - ferrite
- Membrane material - laminate
- Coil body material - nomex
- Coil material - copper
- Basket material - ABS equalizer
- Speaker weight - 0,5 [kg]
709
Specifications
| Group | Name | Value |
|---|---|---|
| Parametry | Condition | new |
| Parametry | Invoice | With VAT invoice |
| Parametry | Design | one-way |
| Parametry | Brand | Tonsil |
| Parametry | Model | GDWK 9/80 |
| Parametry | Product weight with unit packaging | 0.8 kg |
| Parametry | EAN (GTIN) | 5904209570751 |
| Parametry | Manufacturer code | GDWK 9/80 |
| Parametry | Color | black |
| Parametry | Rated RMS power | 80 W |
| Parametry | Rated impedance | 8 Ω |
