Dirbtuvinis kranas, keliamoji galia 453,6 kg, strėlės aukštis 120–280 cm

Trumpai apie prekę

Prekė: Dirbtuvinis kranas, keliamoji galia 453,6 kg, strėlės aukštis 120–280 cm. Kategorija: Variklių stovai ir keltuvai.

• Gamintojas: Vevor
• Modelis: TCGLJKSDCZDJ

Versatile applications in lifting

Our loading crane is suitable for one person to load machinery, furniture, building materials, hay bales, agricultural equipment and heavy parts. It is compatible with pickups, vans, and platform trucks, and provides reliable support when lifting heavy loads.

High load capacity

360° rotation

telescopic boom

Protection against rust

Wide range of applications

Specifications

Article model number: HZ-05

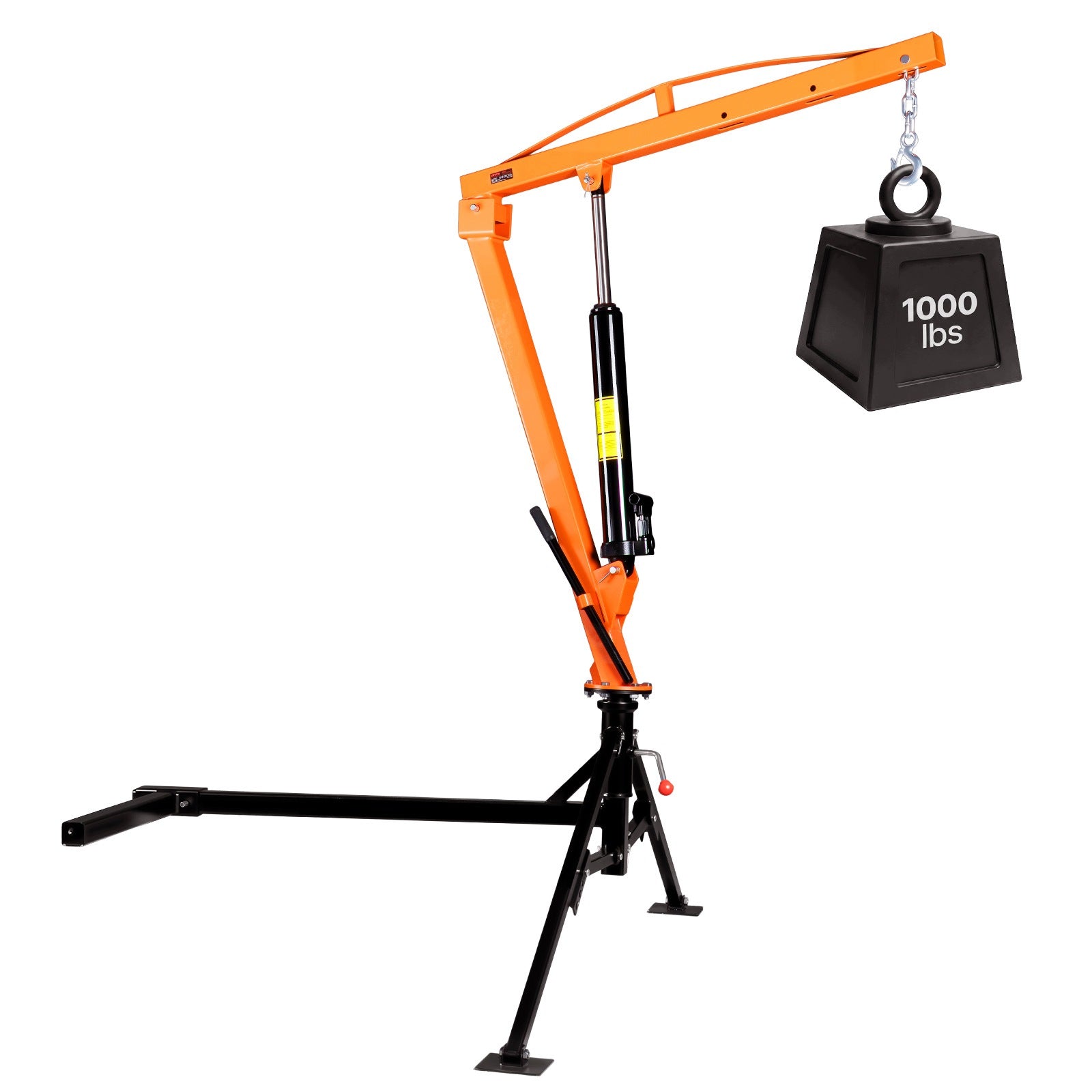

Load capacity: 1000 lbs / 453,6 kg

Rotation angle range: 0 – 35,4 inch / 0 – 900 mm

Boom Range: Hook Chain: 29,1 – 45,7 inch / 740 – 1160 mm

Boom height range: 47,2 – 110,2 inches / 1200 – 2800 mm

Main Material: Carbon Steel

Net weight: 120,81 lbs / 54,8 kg

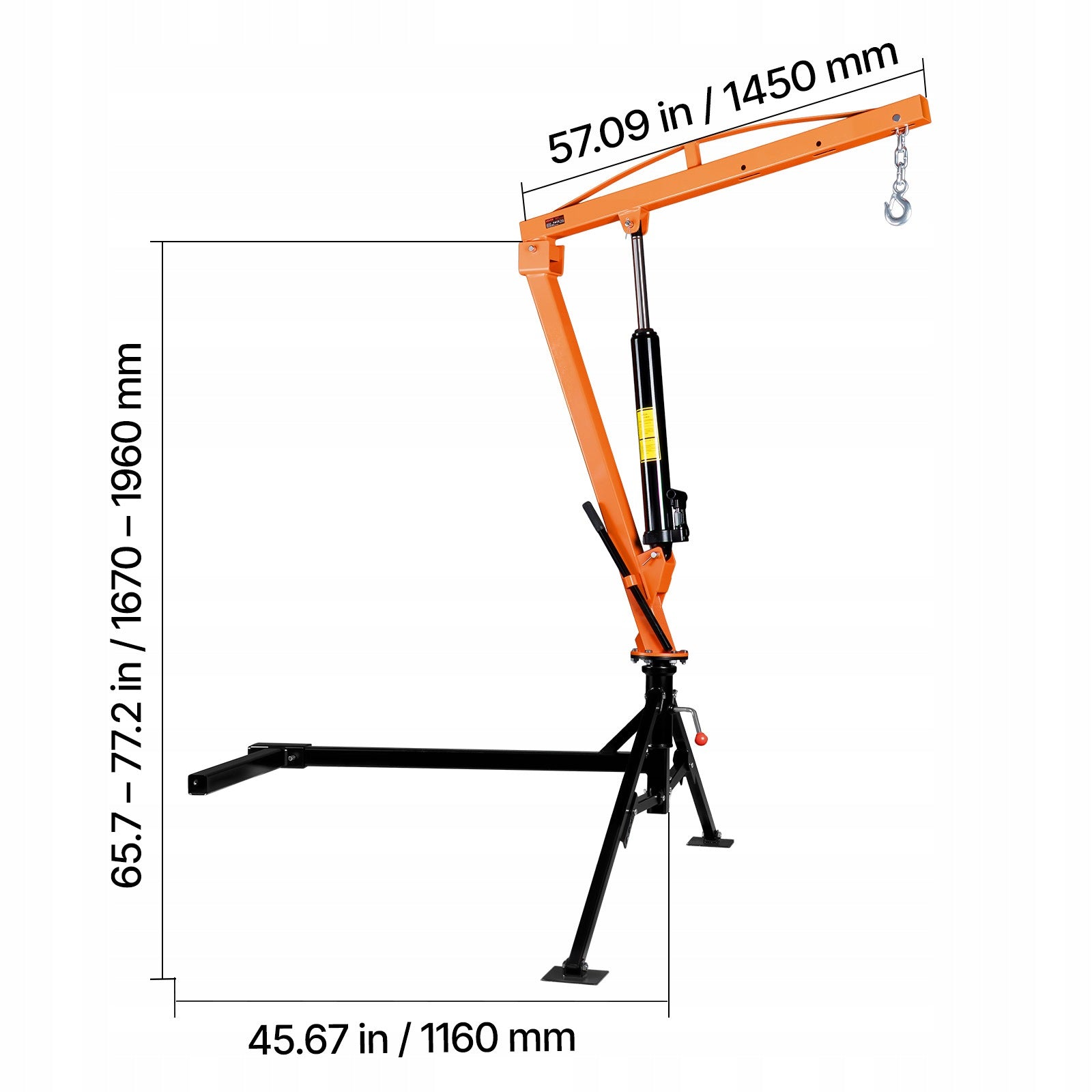

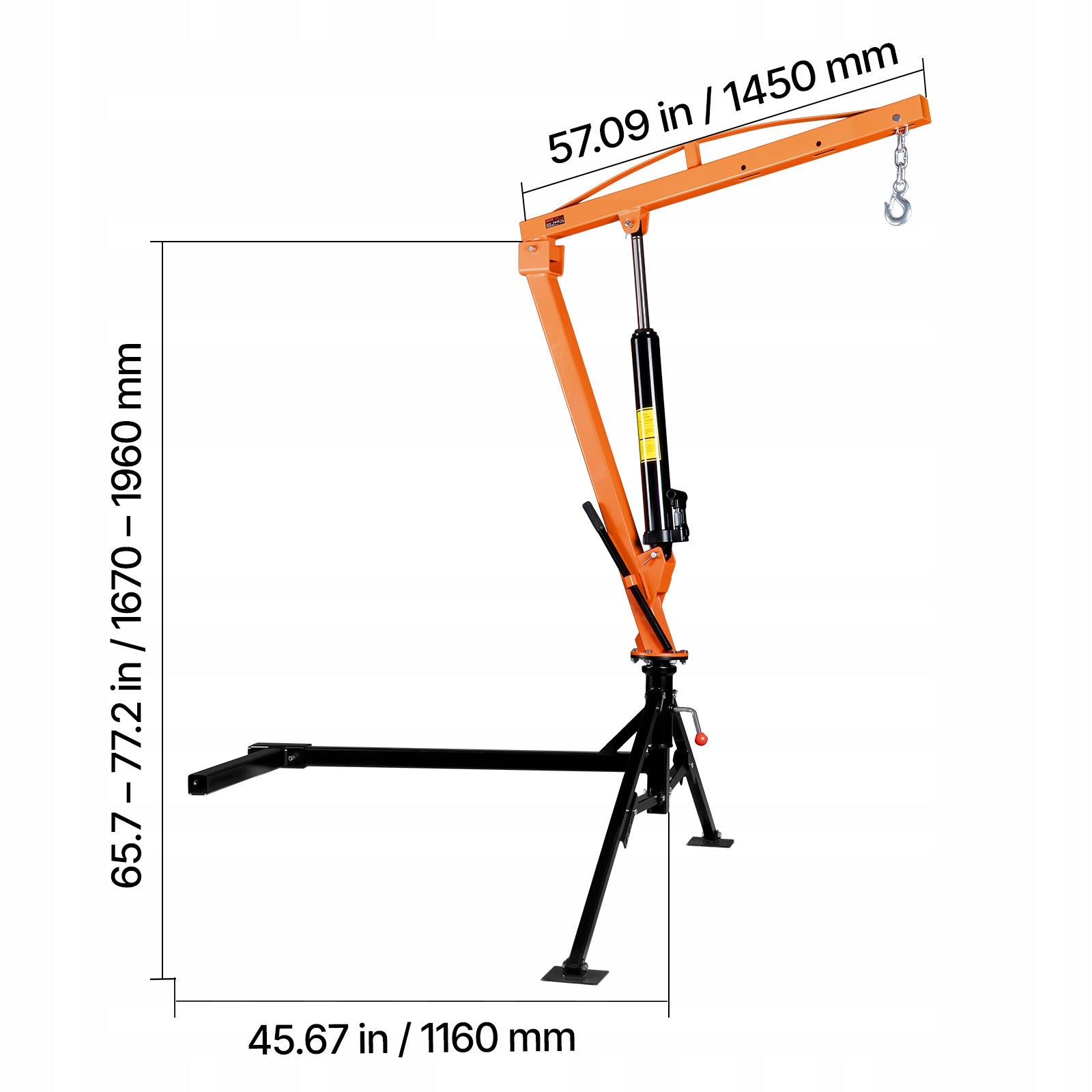

Product Dimensions (Maximum Size): 57,09 x 77,2 x 45,67 inches / 1450 x 1960 x 1160 mm

High Efficiency Galvanized Steel

This car crane is made of galvanized steel, making it resistant to deformation and cracks caused by long-term, intensive use.

360° rotation

The crane in the truck can be easily rotated to position heavy objects in any horizontal direction, thus facilitating loading and unloading.

Reinforced thick-walled pipes

Thanks to the construction using reinforced pipes with thick walls, this crane is resistant to bending and guarantees stable lifting operation without deformation.

Foldable storage space

The folding crane design for truck installation allows for quick storage, compact transport and space saving in the loading zone.

Use in multiple scenes

This reliable crane is ideal for loading and unloading machinery, furniture, building materials, hay bales, agricultural equipment, heavy parts and many other things, with the task being performed by one person.

Lifting device with chain hook

9 mm thick steel chain, sturdy and reliable, combined with hooks for easy and safe lifting of heavy objects, ideal for heavy equipment and demanding tasks.

Package Contents

1 x Pick-up Crane

1 x User Manual

Key features

Maximum lifting capacity of 453,6 kg (1000 lbs): This heavy-duty car crane is made of high-strength alloy steel and equipped with an 8-ton hydraulic cylinder. This makes it ideal for removals, lifting equipment, and commercial loading operations.

360° rotation for smooth turning: This crane is equipped with a two-bearing rotary system that provides extremely smooth and stable rotation. Combined with an extension of supports and adjustable support legs, it offers a lifting height range of 120 to 280 cm (47,2 to 110,2 inches), making it easy to load and unload.

Telescopic boom: The adjustable loading crane offers booms of 0,74, 0,95 and 1,16 m (29,1, 37,4 and 45,7 inches) for different working radii. This reduces the risk of cargo collisions with the vehicle and improves safety during loading and unloading.

Rust protection: This car crane is made of galvanized steel with a protective coating and designed to resist rust, wear, and damage from weather conditions, ensuring smooth operation both indoors and outdoors.

Wide range of applications: Our truck mounted boom crane has a boom height of 36,5 – 53 cm (14,4 – 20,9 inches) and an extended connecting rod length of 110 cm (43,3 inches). Suitable for various models of small and medium pickups.

Specifications
