Diagnostikos įrenginys AUTEL MaxiSys MS909 S2 |2026|VCI2|Topology 3.0|EV-ADAS-Ready|CAN-FD|DoIP

Trumpai apie prekę

Prekė: Diagnostikos įrenginys AUTEL MaxiSys MS909 S2 |2026|VCI2|Topology 3.0|EV-ADAS-Ready|CAN-FD|DoIP. Kategorija: Diagnostikos testeriai ir sąsajos.

• Gamintojas: Autel
• Modelis: AUTEL MaxiSys MS909 S2

Welcome to the auction < OBDTech>

Autel MaxiSys MS909 S2 is a new, improved generation of one of the most popular professional diagnostic testers. The S2 offers a stronger processor, more memory, faster operation, improved topology 3.0 and full support for electric vehicles (EVs). It's the perfect choice for workshops that want premium equipment, but without the Ultra S2 surcharge.

KEY FEATURES OF MS909 S2

• New fast Android diagnostic tablet

• 2.7 GHz 8-core processor

• Memory 256 GB + fast boot

• Large 10,1” high brightness display

• New VCI2 module

• CAN 3.0 network topology – a fuller, more detailed visualization

• More than 48 service functions

• Active testing and adaptations

• Advanced EV diagnostics (HV System)

• Compatibility with ADAS

• Full support for EU SGW Pack – 15 European brands

• PASS-THRU (J2534) function for OEM software

• Cooperation with geometry and ADAS systems: Autel IA900WA, IA1000WA

• One year access to Motor TRUSPEED (OE data)

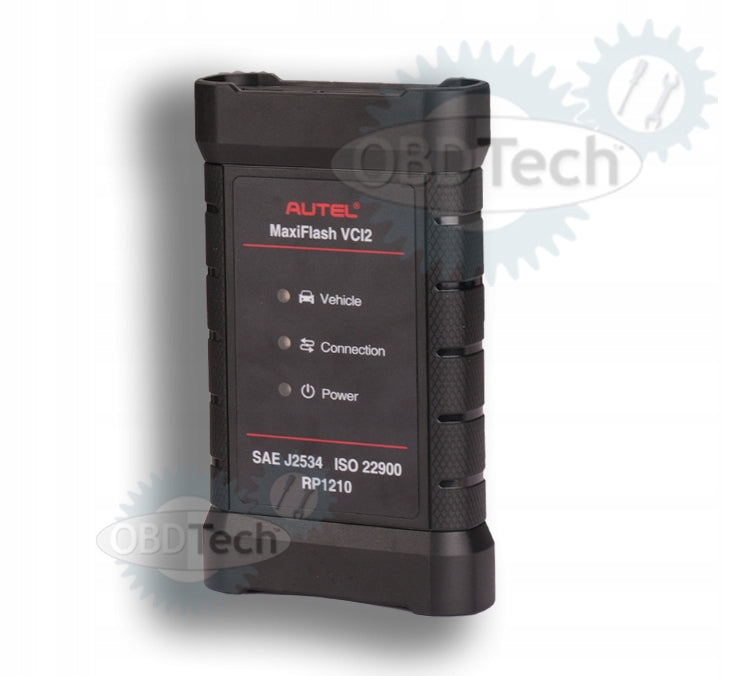

Autel MaxiSys MS909 S2 is equipped with a new VCI2 communication interface, which provides:

• Support for DoIP, CAN FD, CAN, K-Line, LIN protocols

• Stable and fast wired and wireless communication

• Full support for J2534 Pass-Thru diagnostics

• Ability to work with the latest vehicle models, including hybrids and EVs

• Compatible with Remote Expert (remote diagnostics)

VCI2 is the new generation of the Autel communication module – lighter, faster and more reliable than previous interfaces, designed for professional workshops.

The new S2 diagnostic platform introduces:

• Intelligent fault reports

• Automatic grouping of parameters

• Advanced PID charts and comparisons

• Min./max. alert settings for Live Data values

• Real-time data analysis

• Auto-scan of the entire vehicle with error structure

The system analyzes data faster and more accurately, which allows for more effective diagnosis of intermittent faults.

Version S2 received an improved topological map:

• full structure of all modules,

• color marking of states,

• fast transition between blocks of data,

• the ability to directly start the oscilloscope for the selected module,

• analysis of communication between controllers.

Topology 3.0 is a tool extremely helpful for:

• diagnosis of CAN,

• Uxxx errors,

• communication problems,

• diagnosis of intermittent malfunctions.

MS909 S2 offers full support for electric vehicles:

• AC/DC charging tests,

• diagnostics of the HV system,

• safety loop test h. tensions,

• traction battery test,

• calibration of the resolver,

• tests of the EV thermal system,

• control of HV pumps, HV compressors and power modules.

• Calibrations

• ECU coding

• Active tests

• DPF regeneration

• EPB brake reset

• Throttle Adaptations

• Key programming (selected models)

• TPMS support

• EV fluid replacement

• SAS Steering Wheel Calibration

• Radar and Camera Calibration (ADAS)

Fully legal and compliant diagnostics of protected European brands.

Supported m.in.:

• FCA, BMW, Mercedes, VAG, Renault, Ford, Volvo, Peugeot, Citroën, Opel, Toyota EU, Nissan EU, Hyundai/Kia EU... (update-dependent list)

It allows you to:

• oil reset,

• adaptations,

• active tests,

• coding,

• full diagnostics of controllers.

MS909 S2 is fully compatible with:

• Autel IA900 WA – advanced geometry + ADAS

• Autel IA1000 WA – new ADAS premium system

It is an ideal diagnostic center for modern workshops.

• 2.7 GHz processor – faster than its predecessor

• 256 GB SSD storage

• Wi-Fi 6 for faster updates

• long battery life

• solid industrial construction

• transport case with space for accessories

• Use the device only according to the manufacturer’s instructions.

• Diagnostics should be performed on stable ground, with the vehicle moving off.

• Do not touch HV cables in electric vehicles without adequate protection measures.

• Do not open the device housing or VCMI2 module.

• Use only original cables and accessories.

• Protect your equipment from moisture and heat.

• Take special care when operating with a high voltage during oscilloscope measurements.

• Perform updates only via Autel Cloud.

HARDWARE

Processor:

• MS909 S2: 8-core processor (Octa-core) – high performance and smooth multi-process operation at once
• MS909: Samsung Exynos 8895V Octa-core – slower, older generation

Screen:

• MS909 S2: 11" display
• MS909: 9,7" display

Resolution:

• MS909 S2: 2176 × 1600 – greater image detail
• MS909: 1536 × 2048

RAM operational memory:

• MS909 S2: 12 GB RAM
• MS909: 4 GB RAM

Internal memory:

• MS909 S2: 256 GB
• MS909: 128 GB

Battery:

• MS909 S2: 15000 mAh
• MS909: 15000 mAh (identical capacity)

Cameras:

• MS909 S2:

  Background: 16 MP

  Front: 16 MP

• MS909:

  Background: 16 MP

  Front: 5 MP

Connectivity and ports:

• MS909 S2:

  Wi-Fi 6 (802.11 a/b/g/n/ac/ax, 2×2 MIMO)

  Bluetooth 5.2 + EDR

  GPS

  USB 2.0 (2× USB-A)

  USB-C (charging + data transfer)

  HDMI 2.0

  SD reader (support up to 256 GB)

• MS909:

  Wi-Fi 5

  Bluetooth 2.1 + EDR

  GPS

  USB 2.0 (2× USB-A + 1× mini USB)

  HDMI 2.0

  SD reader up to 256 GB

VCI diagnostic module:

• MS909 S2: MaxiFlash VCI2 (newer, faster, more stable)
• MS909: MaxiFlash VCI (previous generation)

Weight:

• MS909 S2: 1656,5 g (3.65 lbs)
• MS909: 1,66 kg (3.66 lbs)

SOFTWARE AND FEATURES (SOFTWARE)

Operating system:

• MS909 S2: Android 13
• MS909: Android 7.0

Diagnostics:

• Both models support diagnostics of all systems, error reading/deleting, live data, frozen frames, active tests, and ECU coding and programming.

AI features and new technologies:

• MS909 S2:

  ✔ AI Assistant

  ✔ Digital Vehicle Inspection (AI Damage Detection)

  ✔ Live Data Fusion

  ✔ Parameter Reference Values

  ✔ CAN 3.0 Topology (Colorful, Intelligent, Interactive)

• MS909:

  ✘ No AI

  ✘ No digital inspection

  ✘ No data fusion

  ✘ No reference values

  ✔ Topology 2.0 (older generation)

Service functions:

• MS909 S2: 38+ functions
• MS909: 38+ functions

Vehicle cover:

• Both models: more than 150 global brands

Support for communication technologies:

• MS909 S2:

  ✔ Security Gateway (SGW)

  ✔ CAN FD

  ✔ DOIP

• MS909:

  ✔ Security Gateway

  ✔ CAN FD

  ✔ DOIP

Summary – key differences

MS909 S2 is a clear generational leap:

✔ more powerful processor

✔ huge RAM growth (12 GB vs 4 GB)

✔ bigger and brighter screen

✔ Wi-Fi 6 and Bluetooth 5.2

✔ newer VCI2 module

✔ Android 13

✔ AI and image analysis functions

✔ topology 3.0

✔ new live data merger

✔ 2× better front camera

✔ 256 GB memory

This makes the MS909 S2 work faster, more stable and provides much more accurate diagnostics.

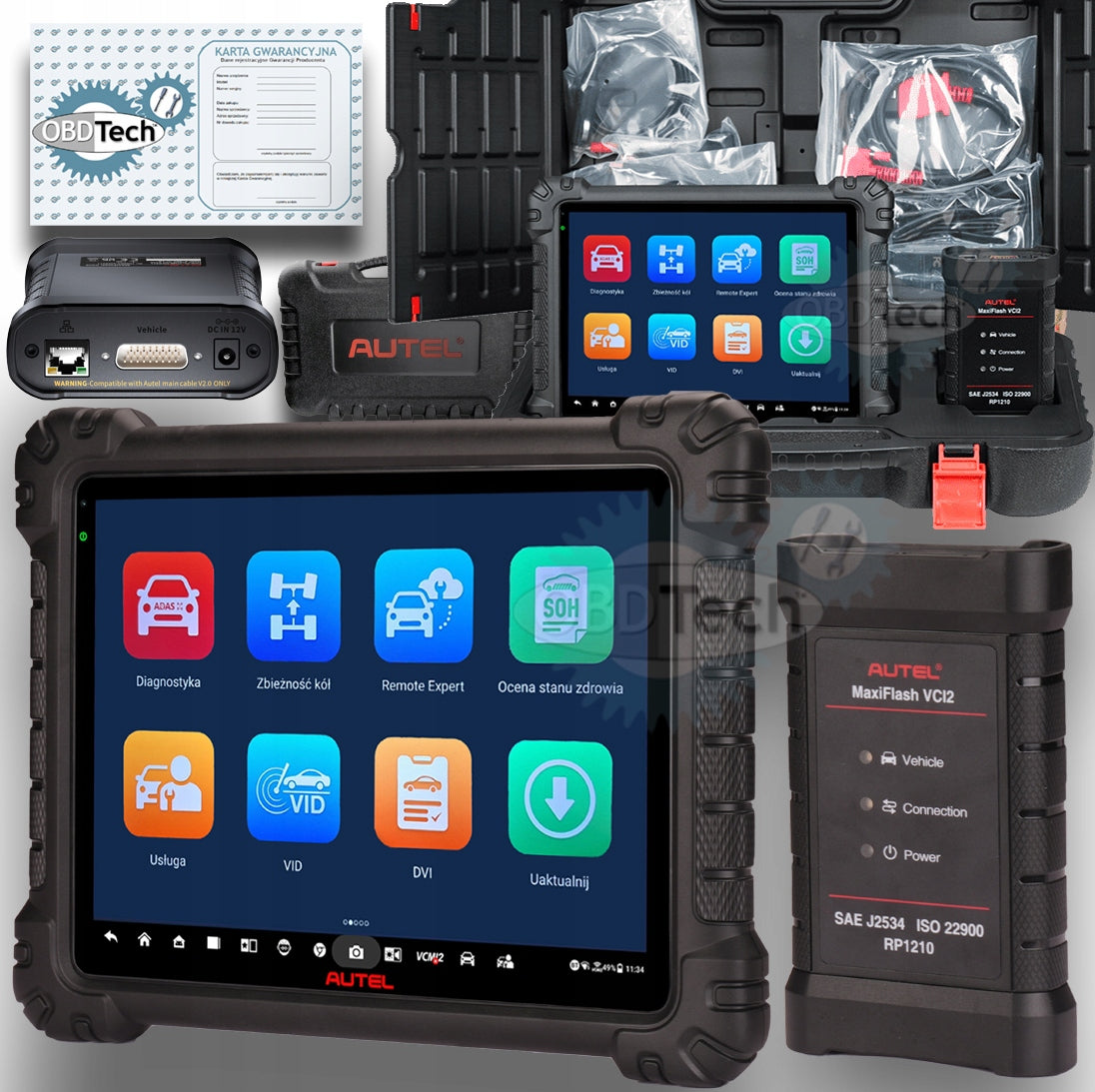

• Diagnostic tablet Autel MaxiSys MS909 S2
• Interface VCI2 (Bluetooth)
• OBD connectors + adapters
• Communication cables and charger

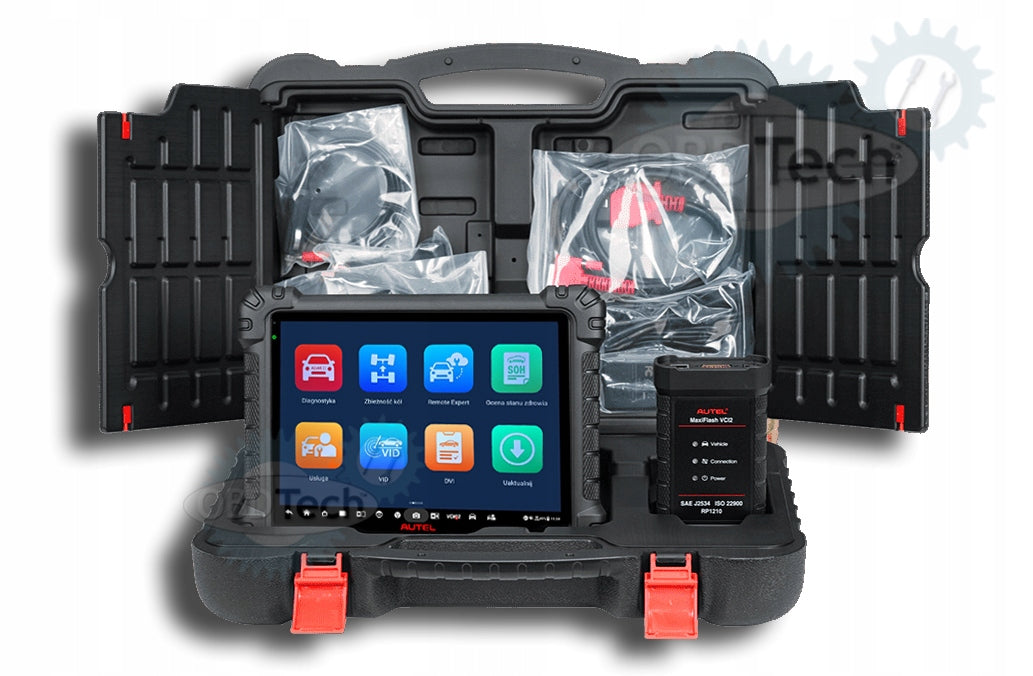

• Durable carrying case
• Instruction and documentation PL
• 2 years of online updates
• 2 years warranty.

• general workshops,
• services of electricians and hybrids,
• mobile diagnosticians,
• fleet services,
• workshops with ADAS and geometry.

We provide professional technical support.

Each of our devices is original, has Polish and is approved for the European market!

You buy the equipment from the European distribution company Autel.

We invite you to shop in our company.
