Dažų storio matuoklio ultragarsinė zondas 1-300mm LCD

Trumpai apie prekę

Prekė: Dažų storio matuoklio ultragarsinė zondas 1-300mm LCD. Kategorija: Dažų storio matuokliai.

• Gamintojas: Benetech
• Modelis: GT1201

⭐⭐⭐⭐⭐

This gauge is equipped with a micro-processor for fast and non-destructive measurement of material thickness and sound velocity.

A modern and user-friendly ultrasonic thickness gauge, rich in features and equipped with a microprocessor for fast and non-destructive measurement of material thickness and sound velocity.

The device is used for accurate measurement of the thickness of various materials or components in manufacturing. It is ideal for maintenance of pipelines or pressure vessels. It is useful in production, metal processing, quality control of goods, and other inspection areas. It works with any material that allows ultrasonic waves to travel at a constant speed and can distinguish reflected waves from the back surface.

⭐⭐⭐⭐⭐

This device can measure the thickness of any material that conducts ultrasonic waves well, and whose top and bottom surfaces are parallel. Examples include metal, plastic, ceramic, glass, aluminum, copper, gold, resin, water, glycerin, etc. It does not work with cast iron due to its large particles.

⭐⭐⭐⭐⭐

• Wide measurement range: 1 - 300 mm
• Data storage: up to 1500 data groups
• Large and clear screen - color display
• Data charts - generate clear charts for analysis directly on the device or in dedicated PC software

⭐⭐⭐⭐⭐

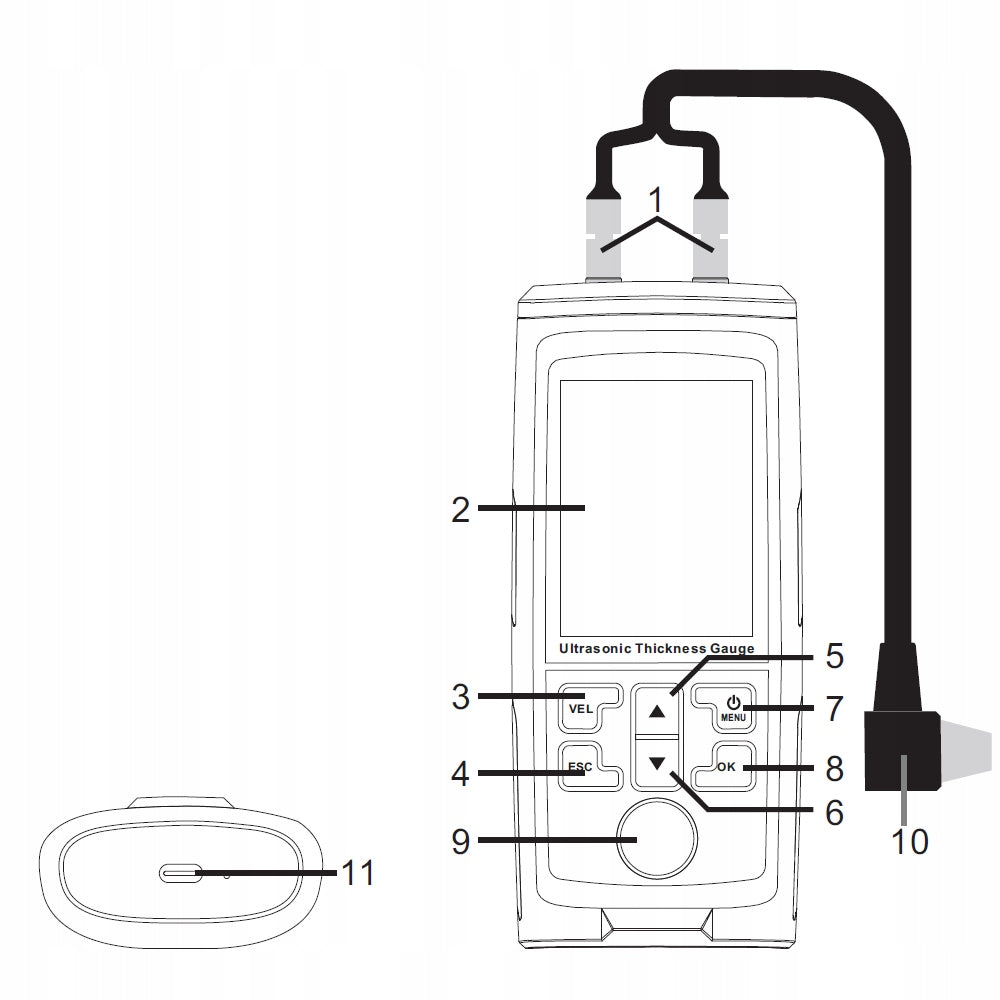

1. Probe input
2. LCD Display
3. VEL: Sound speed adjustment button
4. ESC: Exit button
5. "Up" button: Move up/increase value
6. "Down" button: Move down/decrease value
7. Power/Menu button
8. "OK": Confirm button
9. Calibration block
10. Probe
11. USB Port

⭐⭐⭐⭐⭐

VIEW A:

1. Selected material
2. Auto-save icon
3. File number
4. Battery level
5. Material sound velocity
6. Measurement value
7. Measurement unit
8. Coupling icon
9. Measurement information, Interface 1 or 2:

1. Number of measurements, average, maximum, minimum value of a single measurement set.

2. Probe, limit values set in the main menu.

VIEW B:

• Calibration interface

⭐⭐⭐⭐⭐

VIEW A:

1. Speed
2. Unit
3. Probe
4. Memory
5. Files
6. Alarm
7. Reset
8. Settings
9. Information

VIEW B:

• Table of saved measurement values

⭐⭐⭐⭐⭐

• Device Type: Thickness Gauge
• Material: ABS
• Purpose: Used for measuring the thickness of metal, glass, and other materials.
• Measurement Range for standard probe included (5Md10, 5Mhz): 1.00-300.00 mm
• Data Storage: 1500 records
• Probe: Yes
• Operating Frequency: 5MHz/2.5MHz
• Measurement Error: ±(0.5%H + 0.05)Mm
• Minimum diameter: Ф20x3mm (steel)
• Sound Velocity Adjustment: 1000-9999m/s
• Operating Temperature Range: 0~40°C
• Power Supply: 1000 mAh 3.7V Lithium Battery
• Charging: USB 5V 1A

⭐⭐⭐⭐⭐

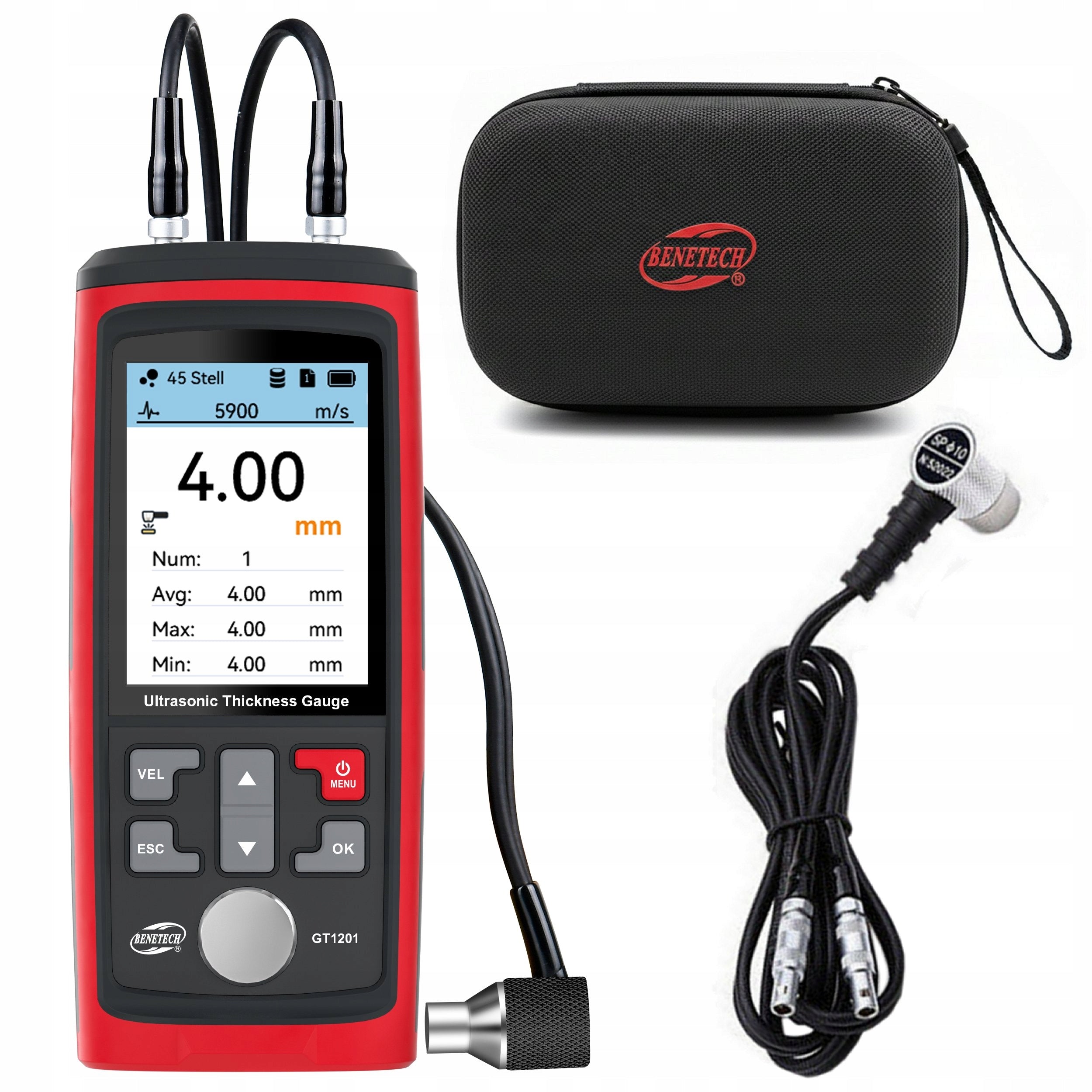

• Thickness gauge,
• User manual (in Polish),
• Protective case,
• USB cable,
• 5 Mhz Φ 10mm measurement probe
• USB charger,
• Original manufacturer packaging.
• PC software for download (more details in the user manual).
