Daugiafunkcis matuoklis Sonel MPI-507

Trumpai apie prekę

Prekė: Daugiafunkcis matuoklis Sonel MPI-507. Kategorija: Detektoriai.

• Gamintojas: Sonel
• Modelis: WMPLMPI507

MPI-507 multifunction meter with calibration certificate

Catalog index: WMPLMPI507

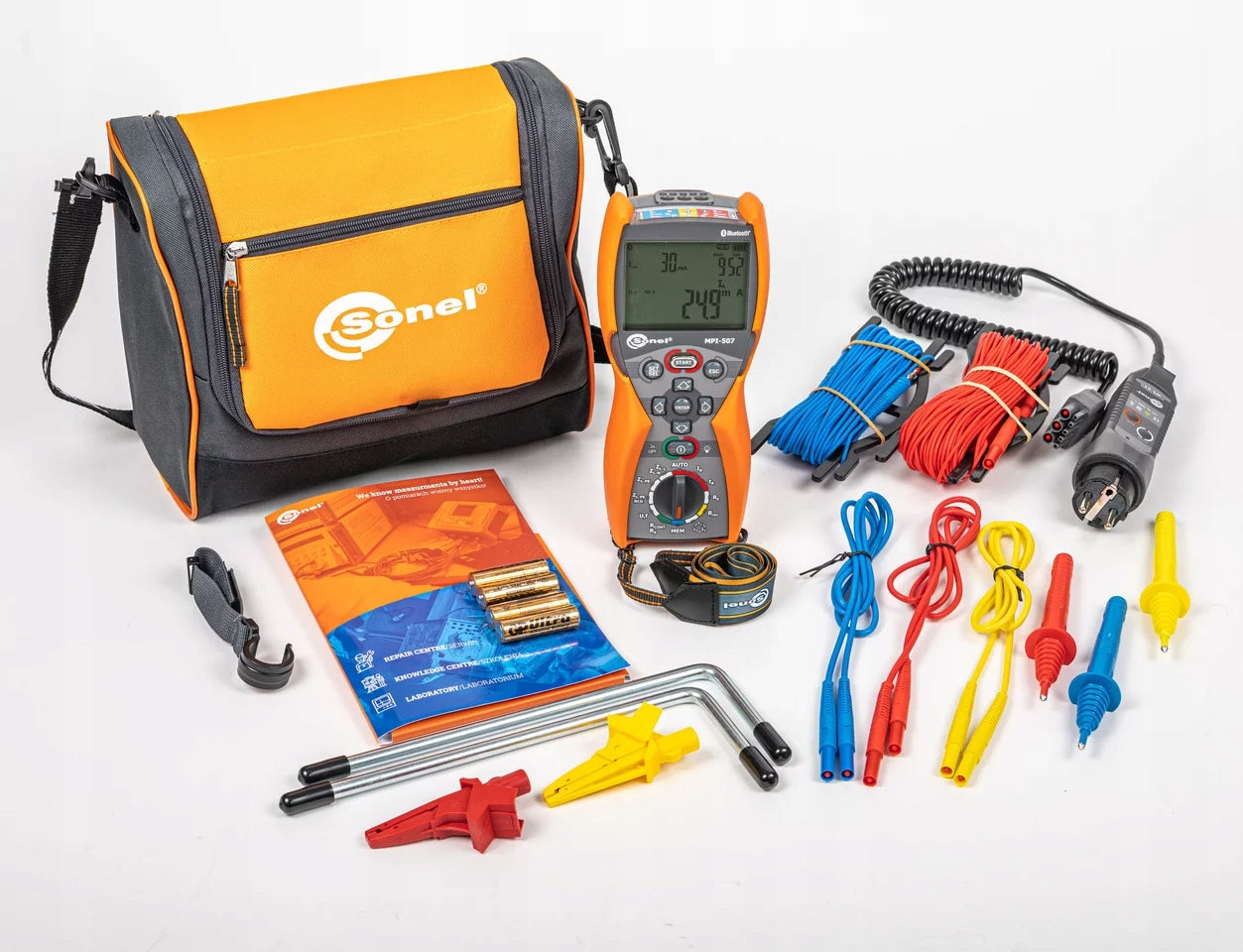

Standard accessories included

A calibration certificate is a document issued by the manufacturer during the production process of a meter, confirming that it has obtained metrological properties and maintained measurement traceability. This is a document issued only for brand new measuring instruments.

The calibration certificate has a place to enter the date of commissioning, which is the date of sale of the meter. It is recommended to carry out the next metrological confirmation (calibration) within 12 months from the date of purchase, but no later than 24 months from the date of production. When purchasing at our auctions, you are entitled to a 10% discount on subsequent calibration in our laboratory.

AUTHORIZED SONEL DISTRIBUTOR - YOU RECEIVE SUPPORT, CERTAINTY OF PURCHASING FULL-VALUED EQUIPMENT AND PROFESSIONAL ADVICE.

When you purchase a meter from Merazet, you receive a 10% discount on calibration at the Merazet laboratory.

Sonel MPI-507 multifunctional electrical installation parameter meter is a unique model of a handy meter used to perform precise measurements of electrical installation parameters. In its neat and small dimensions, the meter conceals a wealth of measurement functions. An additional advantage of this device is its exceptionally handy and ergonomic design, which makes it easier to carry and increases work comfort.

Sonel MPI-507 meter is one of the smallest multifunctional measuring devices on the market, surprising with its intuitive operation and extensive capabilities. It is a versatile device that is ready to work in all conditions. Designed for specialists in the installation and electrical industries, as well as for professional surveyors.

This device allows you to perform various basic measurements, including fault loop parameters, insulation resistance, protective and equipotential bonding resistance, grounding resistance, and testing AC and A-type differential circuit breakers. Due to its compact size and favorable price, the meter will appeal especially to beginner users. Its excellent precision means that its advantages will also be appreciated by advanced surveyors.

Characteristics

• Measurement of short circuit loop parameters

  Measurement of fault loop impedance in networks with rated voltages: 220/380 V, 230/400 V, 240/415 V and frequencies of 45...65 Hz, operating voltage range: 180...460 V

  Indications of fault loop resistance R and fault loop reactance X

  Measurement of fault loop impedance with a current of 15 mA without tripping differential circuit breakers

  Maximum measuring current: 7.6 A (at 230 V), 13.3 A (at 400 V)

• Testing of AC and A type differential circuit breakers

  Measurement of instantaneous, short-time delay and selective differential circuit breakers with rated differential currents of 10, 15, 30, 100, 300, 500 mA

  Measurement of the tripping current IA and the tripping time tA for currents 0.5 IΔn, 1 IΔn, 2 IΔn, 5 IΔn

  Measurement of RE and UB without tripping the RCD

  Extended AUTO RCD measurement function, with the ability to measure ZL-PE with low current

  Measurement of IA and tA with one RCD tripping

• Ground resistance measurement

  3-wire measurement

• Insulation resistance measurement

  Test voltages 100 V, 250 V, 500 V

• Measurement of resistance of protective and equipotential bonding connections

  Measurement of continuity of protective connections with a current of ±200 mA in accordance with the PN-EN 61557-4 standard

  Auto-calibration of measuring cables - any cables can be used

  Low current resistance measurement with sound signal

• Phase sequence indication

Additional features

• Checking the correct connection of the PE wire using a touch electrode.
• Voltage measurement (0...500 V) and network frequency.
• Memory 990 results.
• Wireless data transmission to a computer.
• Illuminated buttons.

Simplicity and advancement

Probably the world's smallest meter with so many measurement functions. Their selection is done using a rotary switch. Additional parameters are set using buttons located on the front of the housing. The settings are remembered by the device even if the battery is completely discharged. All buttons are backlit, as is the segmented display, making it easy to use in low light. Extensive memory eliminates the need to take notes during measurements.

Installation safety check

Thanks to the device, you can check home and industrial electrical installations for safety. Its advantage is the quick measurement (a few seconds! ) fault loop impedance in circuits with RCDs.

Research can be very easily automated by:

• testing of differential circuit breakers in Auto mode,
• using a WS type adapter to test the installation via a standard 230 V socket.

Ground resistance measurement

The device is ideal for measuring home grounding installations. Allows you to check the quality of the grounding system using the 3-pole method. During testing, the meter displays the interference voltage and the resistance of the auxiliary probes RS and RH.

Increased resistance to environmental conditions

The meter will cope well with difficult environmental conditions. Protection against dust and water ingress is provided by an IP67 housing.

Communication and software

Using Bluetooth wireless communication, you can transfer measurement data to a computer. To generate a test report on shock protection, use Sonel Electrical Measurements program. Sonel Reader allows you to save downloaded resources to the simplest formats and print them.

Specifications
