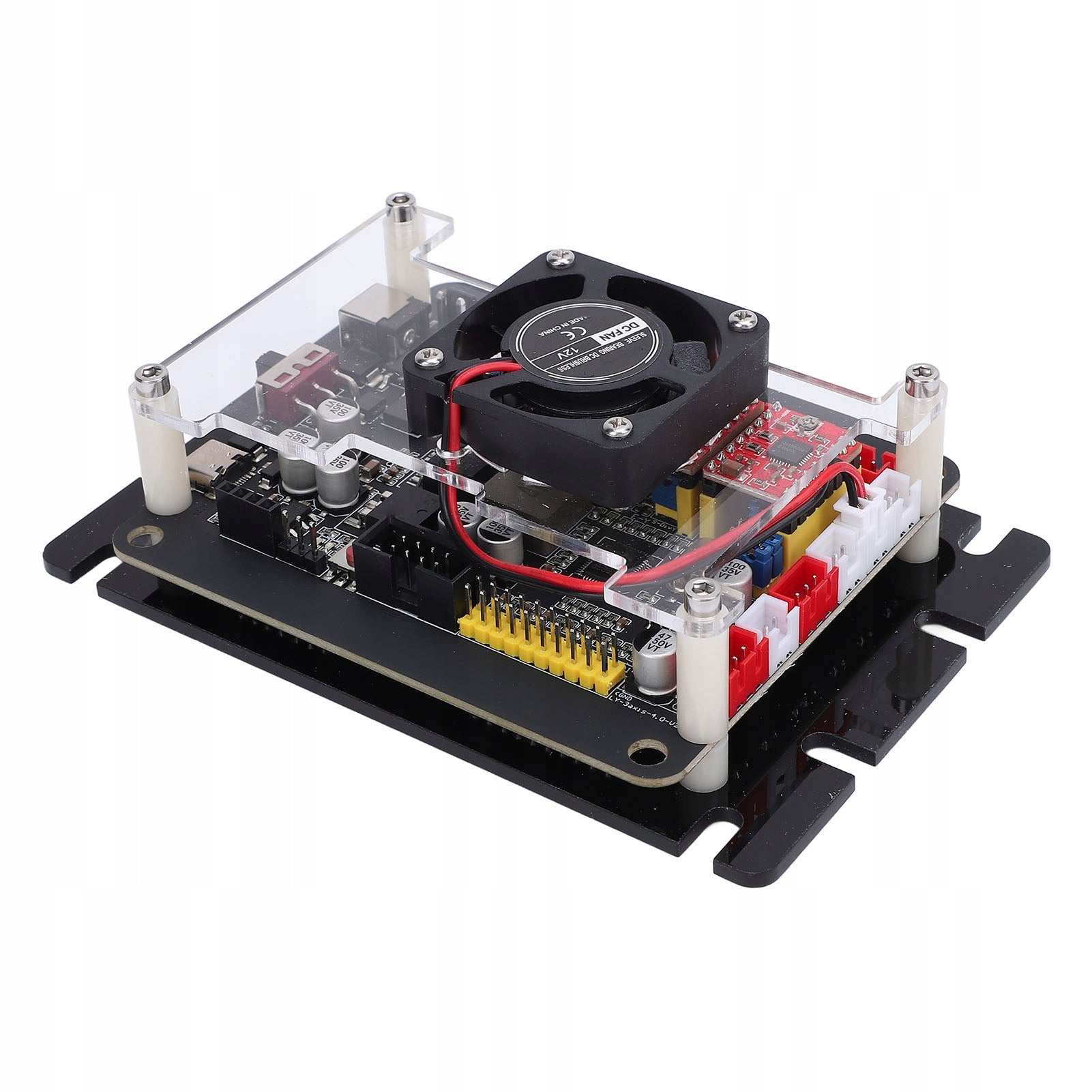

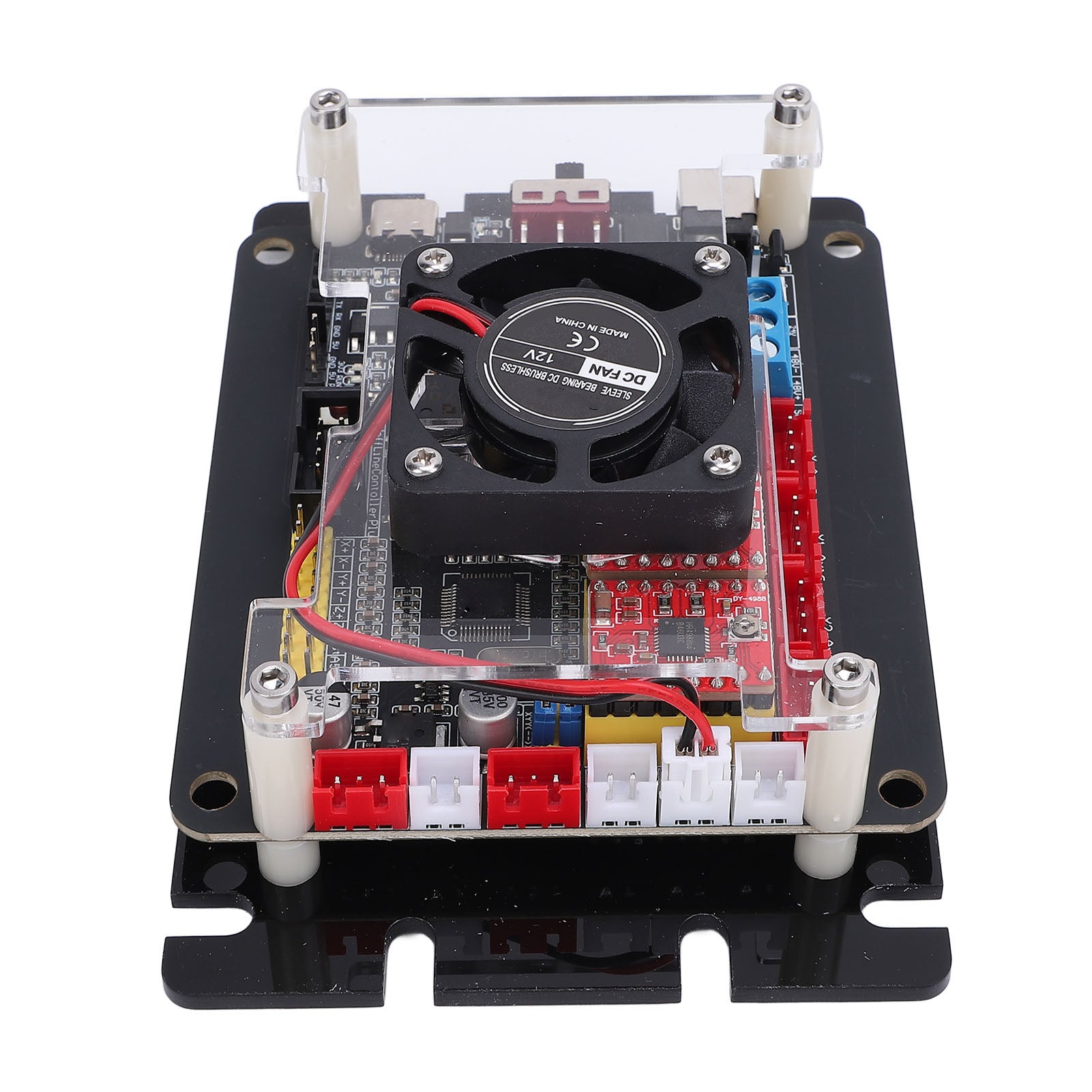

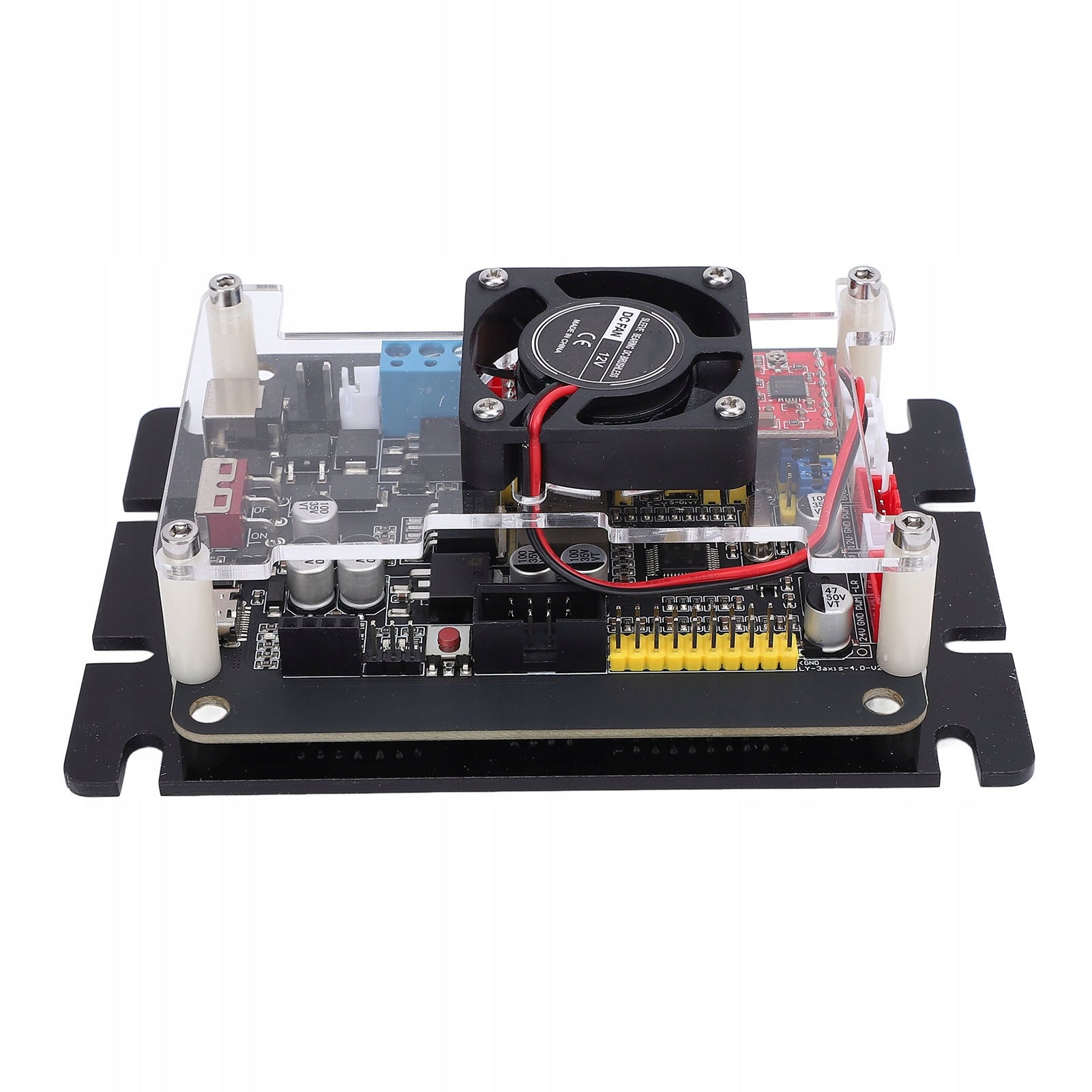

CNC graviravimo staklių valdymo plokštė su 2 P7 aušinimo ventiliatoriais

Trumpai apie prekę

Prekė: CNC graviravimo staklių valdymo plokštė su 2 P7 aušinimo ventiliatoriais. Kategorija: Rašaliniai ir lazeriniai spausdintuvai.

• Gamintojas: no brand
• Modelis: 5105HJVL

Function:

1. Double Y-axes: This control board supports 2 axes or 3 axes of engraving machine, has double Y-axes, supports XYZ or XYY combination for use.

2. Multi Interfaces: Supports 775 24V spindle motor, supports 0 to 500W 48V spindle motor connection. With 2 x 12V interface, 3 x 12V 3pin interface, 2 x 24V 2pin interface, 1 x 24V 3pin interface, meeting different needs.

3. 3 Drivers: Integrated with 3 x drivers, stepper controller can set the split, can directly connect four-way stepper motor. Added heat dissipation fan shell and control board.

4. More Features: Supports XYZ limit switch, hundreds of tools and limit switch interface, and supports connection to external offline airships.

5. Stable performance: This 32-bit GRBL control board has an input voltage of 7 to 36 VDC, with stable performance, faster speed, higher accuracy.

Specification:

• Item Type: CNC Engraving Machine Control Board
• Material: PCB, Aluminum Alloy
• Axles: x y z
• Controller: 32 -bit
• Input Voltage: 7-36v
• Firmware: GRB L1.1
• Power rating: 2000 W.
• Brak load speed: 18000 rpm
• Piston stroke length: approx. 1300 mm / 51,18 inch
• Maximum engraving depth: approx. 3 mm / 0,12 inch
• Characteristics:

1. GLBL 32-bit control board, stable performance, faster speed, higher accuracy

2. Double Y-axes, use XYZ or XYY in all directions (supports two axis engraving machine/three CNC axes)

3. The controller can be set under the scale

4. Integrated with 3 A4988/8825 controllers, directly connect the four-way stepper motor

5. Spindle support

6. Support 12V, 24V with TTL and without TTL

7. Adjustable controller subdivision

8. XYZ limit switch support, probe interface

9. Support external offline controller (optional)

10. Add fan housing and control

How to use:

• Directly install and use.
• List of packages

:

• 1 x CNC Engraving Machine Control Board
• 1 x Data Cable
• 1 x Motor Cable
