Belaidis stalo pjūklas FESTOOL CSC SYS 50 EB-Basic, 576820

Trumpai apie prekę

Prekė: Belaidis stalo pjūklas FESTOOL CSC SYS 50 EB-Basic, 576820. Kategorija: Giluminiai pjūklai.

• Gamintojas: Festool
• Modelis: 576820

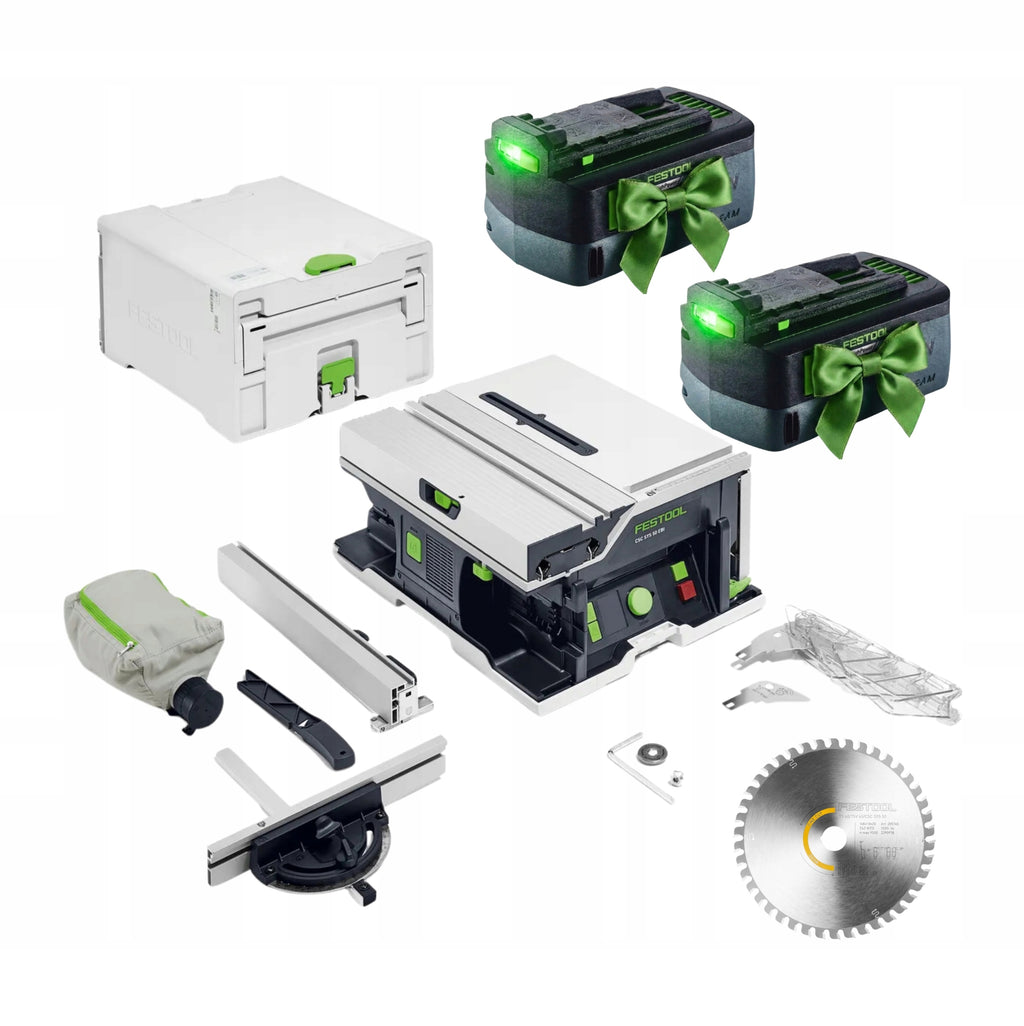

Contents of the pack:

• Saw CSC SYS 50 EBI
• wedge switchgear for hidden cuts
• wedge switchgear with cover
• Allen wrench SW 6
• pusher
• parallel guide
• Angular sampler
• saw blade WOOD FINE CUT HW 168x1,8x20 WD42
• chip bag

Technical data:

• Battery voltage: 36 V
• Idle speed: 4 500 – 6 800 min⁻¹
• Saw blade mounting hole: 20,00 mm
• Angle of inclination: -10 - +47 °
• Cutting height 0°: 0 - 48 mm
• Cutting height 45°: 0 - 34 mm
• Cutting height -10°: 21 - 32 mm
• Bevel angle: 0 - 70 °
• Parallel cutting width: 280,00 mm
• Table height: 280,00 mm
• Dimensions (L. x width x H ): 512 x 396 x 296 mm
• Dust extraction connection Ø: 27/36 mm
• Type of drive: Battery
• Product weight: 21,00 kg

✅ Cutting versatility – cuts parallel to 280 mm, transverse to 450 mm and cuts at an angle from -2° to 47°.

✅ Precise digital adjustment – cutting height and angle set to the accuracy of the tenth part of the millimeter.

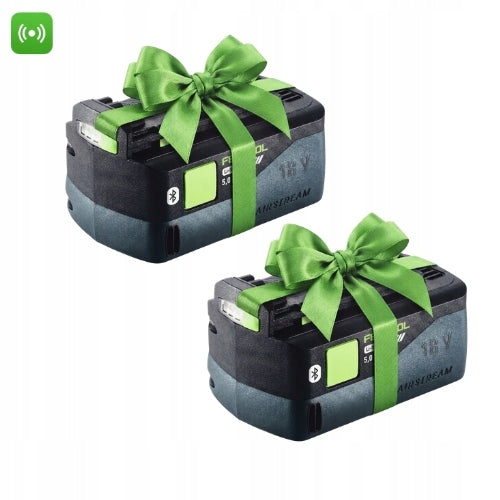

✅ Double battery system 2 x 18 V – high efficiency comparable to chainsaws.

✅ Brushless EC-TEC motor – speed 6800 rpm. /min for fast and clean cuts.

✅ Parallel guide with double mounting – precise setting and stability of operation.

✅ Sleighing on ball bearings – smooth cuts without and unevenness.

✅ Dust container – minimizing dust and the ability to work without a mobile vacuum cleaner.

✅ UG-CSC-SYS transport module – easy transport and the possibility of creating a workstation.

✅ Compact Systainer format – mobility and convenient one-handed transport.

✅ Cordless table circular saw CSC SYS 50 fits in Systainer.

✅ The CSC 50 allows you to make parallel cuts up to 280 mm wide, cross-cuts up to 450 mm and cuts at an angle of -2° to 47°.

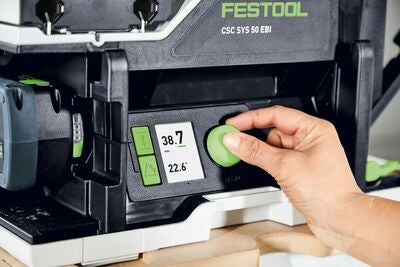

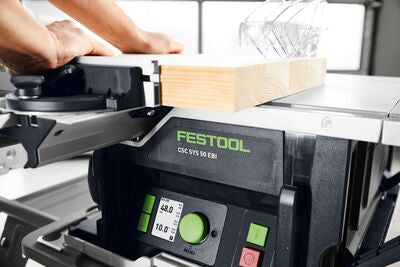

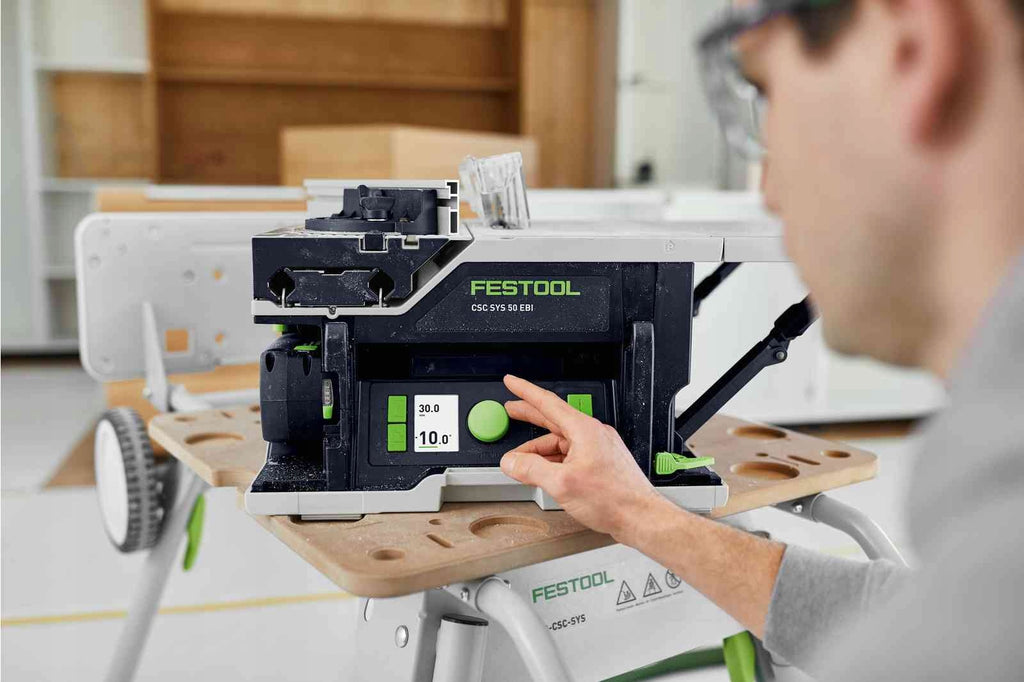

✅ Precise cuts at the touch of a button. Thanks to its unique digital operation, the height and angle can be adjusted to the accuracy of the tenth part of the millimeter: with a repeatability of 100% and an accuracy that outclasses all kinds of measuring cups.

✅ Even the most demanding cuts are made with extreme precision thanks to a robust guide system consisting of a parallel guide, angle gauge and sliding table.

✅ Parallel cuts up to 280 mm. The folding table offers compact dimensions during transport and precise, stable support for workpieces up to 280 mm long during cutting.

✅ Power comparable to a mains-powered tool. Even when making longitudinal cuts in solid wood, there is no difference compared to mains-powered machines: the double battery system 2 x 18 V combined with the brushless EC-TEC motor impresses with its full power.

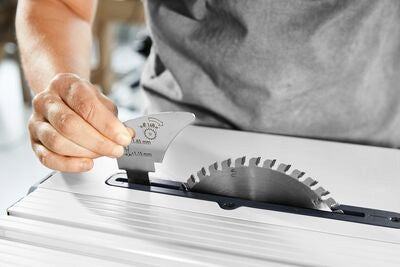

✅ Ideally suited for outlets. Uncomplicated replacement of the switchgear wedge – for hidden cuts and frames. In order to ensure safety of operation , an instant installation of the switchgear wedge with a cover is carried out (both elements are included in the scope of delivery).

✅ Also for machining long components. In combination with a sledge, angle guide with turntable and additional support of the transport module, it is possible to cut long elements precisely, safely and easily.

✅ Work in an upright position. With the transport module, you lift the cordless table circular saw to the ideal working height. It also allows for safe processing of long elements.
