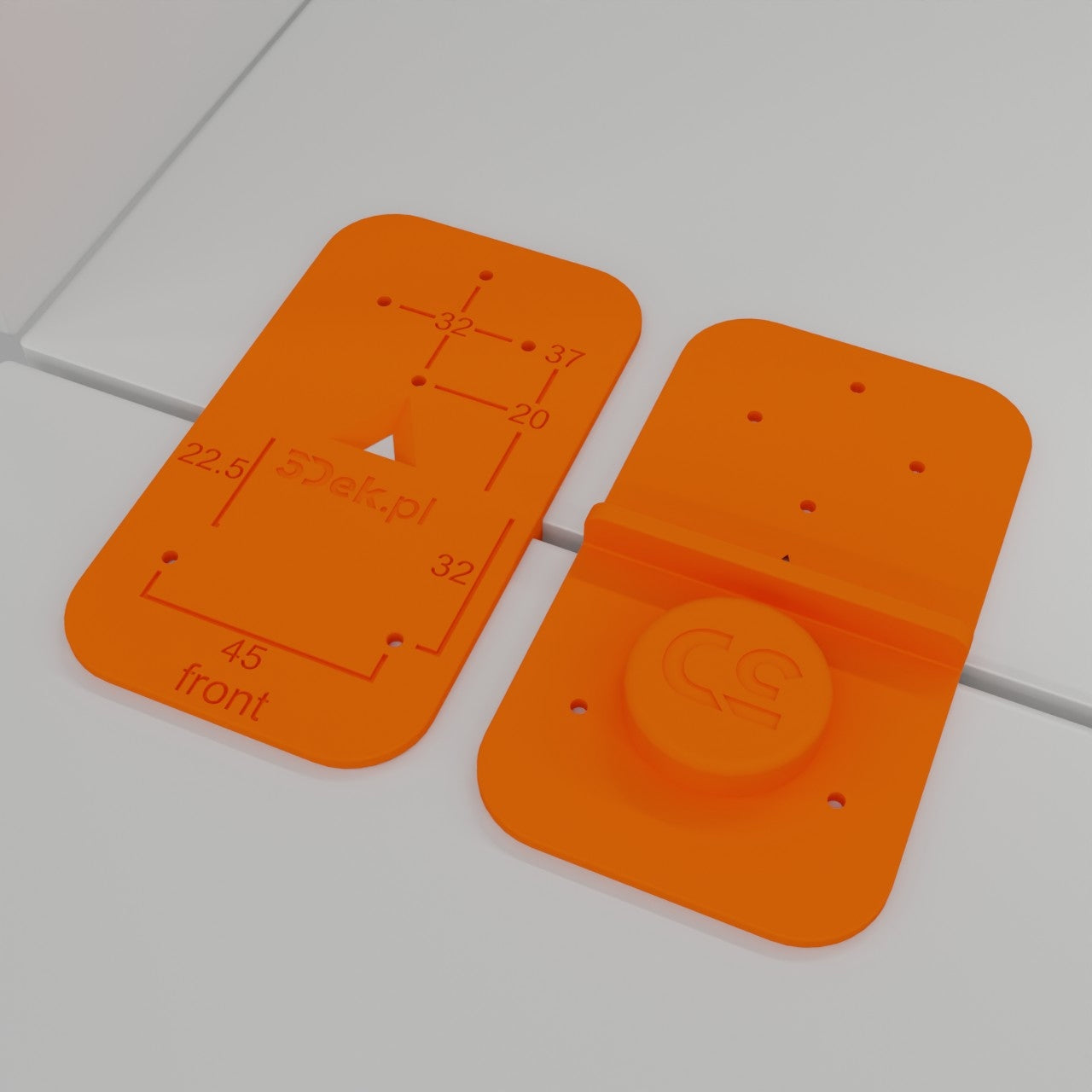

Baldų vyrių šablonas, tiesūs ir kryžminiai kreiptuvai

Trumpai apie prekę

Prekė: Baldų vyrių šablonas, tiesūs ir kryžminiai kreiptuvai. Kategorija: Šablonai, trafaretai.

• Gamintojas: no brand
• Modelis: 3DEK

Economical version of the template for mounting furniture hinges – designed for quick and repeatable determination of guide mounting holes and hinge can screws. The perfect solution for routing and scoring without measuring every time.

The template is my original construction – designed for real carpentry work. It’s a simplified, cheaper version without steel guide sleeves — designed primarily for routing, scoring or light drilling.

What the template is for

The template allows you to quickly determine:

• holes for straight hinge guides
• holes for cross hinge guides
• Hinge can screw holes in the front
• Hinge position set perfectly at 90°

Designed for applied hinges in the dimensional standard of most manufacturers.

How it works

The template is inserted directly into the pre-drilled hinge can in the front.

Then the front is applied with the inserted template to the side of the body (lying on the mounting table) and you can immediately mark the mounting points.

You can mark:

• 3 mm drill bit
• point
• with a pencil or a thin marker

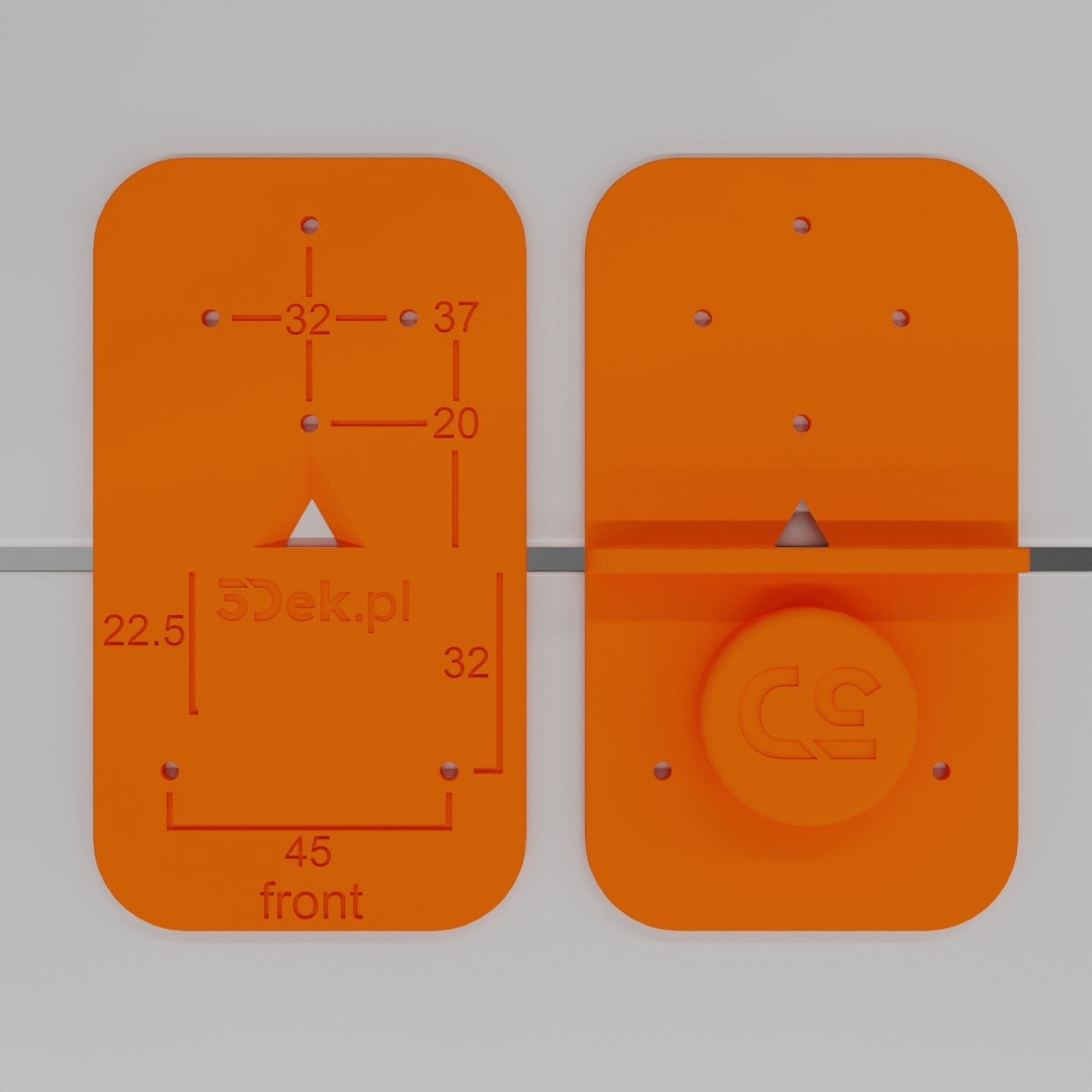

The holes and functions are readably described on the template.

Technical parameters

• Material: PETG
• Technology: FDM 3D Printing
• colour: orange
• dimensions: 70 × 125 × 12 mm
• number of holes: 6

  2 × front (can screws)

  2 × straight guides

  2 × cross guides

• Hole diameters: 3 mm
• Version: without steel sleeves

Economic version – important information

This is the budget version — without steel guide sleeves.

It works best for:

• routing
• scoring
• pre-drilling

Professional version with steel sleeves (for intensive drilling) is available at my other auctions.

Contents of the set

• template for hinges – 1 pc.

Project from a carpenter

I design templates as an active carpenter – for real installations, not for the catalog. The tools are designed to work quickly, repetitively and without combination.

Specifications

Group	Name	Value
Parametry	Condition	new
Parametry	Invoice	With VAT invoice
Parametry	Brand	no brand
Parametry	Manufacturer code	3DEK
Parametry	EAN (GTIN)	5908453131546
