Automobilių raktų diagnostikos įrenginys Autel IM608PRO II IMMO J2534 JVCI

Trumpai apie prekę

Prekė: Automobilių raktų diagnostikos įrenginys Autel IM608PRO II IMMO J2534 JVCI. Kategorija: Diagnostikos testeriai ir sąsajos.

• Gamintojas: Autel
• Modelis: IM608PROII EUROPE OFFICIAL PRODUCT 2L Aktual.

NOTE!!!

IMPORTANT BEFORE BUYING!!!

CHINESE AUTEL MODELS APPEARED ON ALLEGRO WITH A 1-YEAR SOFTWARE UPDATE, WITHOUT THE POSSIBILITY OF PURCHASING ACCESS TO SGW GATES (security gateway) IN AUTEL POLAND GLIWICE! (vehicles after 2018, equipment unusable for most popular brands! )

THESE MODELS ARE NOT AUTHORIZED AND ARE NOT GUARANTEED IN AUTEL EUROPE, AND AUTEL POLAND GLIWICE!

AT THIS AUCTION YOU BUY A MODEL WITH AUTEL EUROPE START LOGO WITH 2 YEARS OF SOFTWARE UPDATE AT THE PRICE FROM THE OFFICIAL DISTRIBUTION AUTEL POLAND GLIWICE, WARRANTY DIRECTLY FROM AUTEL POLAND GLIWICE!

Attention! Every Autel that does not have the logo of the startup system AUTEL EUROPE OFFICIAL PRODUCT is an e-commerce version! (model from Chinese Aliexpress)

AND MOST IMPORTANTLY WITH THE POSSIBILITY OF BUYING SGW GATES (SECURITY GATEWAY)

• VAG: (VW, AUDI, SEAT, SKODA, CUPRA, BENTLEY)
• MERCEDES: (MERCEDES, SMART)
• FCA: (FIAT, ABARTH, ALFA ROMEO, JEEP, CHRYSLER, DOODGE, RAM, MASERATI)
• NISSAN: (NISSAN, INFINITY)
• IVECO: (IVECO)

BY PURCHASING ON THE OFFICIAL ALLEGRO STORE OF THE AUTEL BRAND, YOU CAN BE SURE OF THE ORIGINALITY OF THE EQUIPMENT, AS WELL AS TECHNICAL, WARRANTY AND POST-WARRANTY SUPPORT. CONTINUATION OF SOFTWARE UPDATES, WHICH IS THE MOST IMPORTANT PART OF THE PURCHASED TESTER!

WE CORDIALLY INVITE YOU TO PURCHASE THE ORIGINAL, LICENSED, LEGAL DIAGNOSTIC TESTER OF THE TOP BRAND AUTEL!

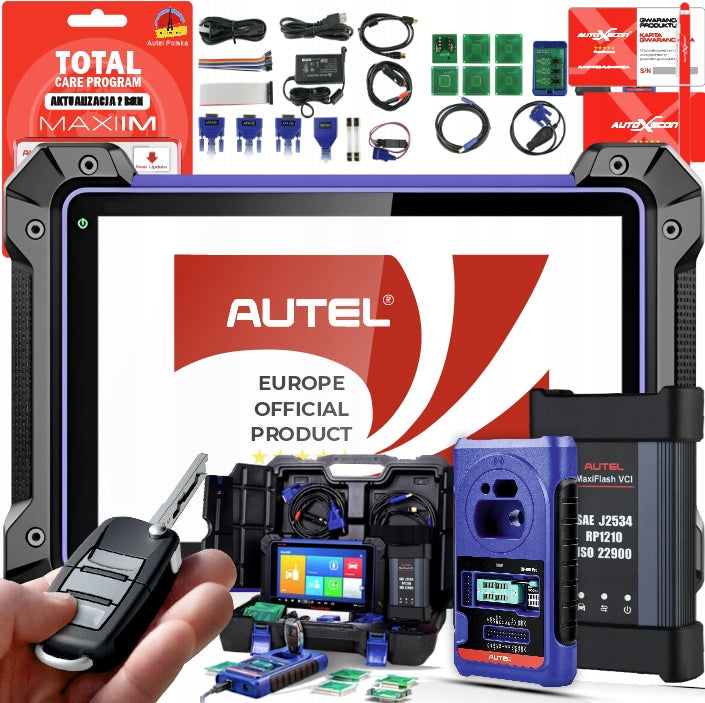

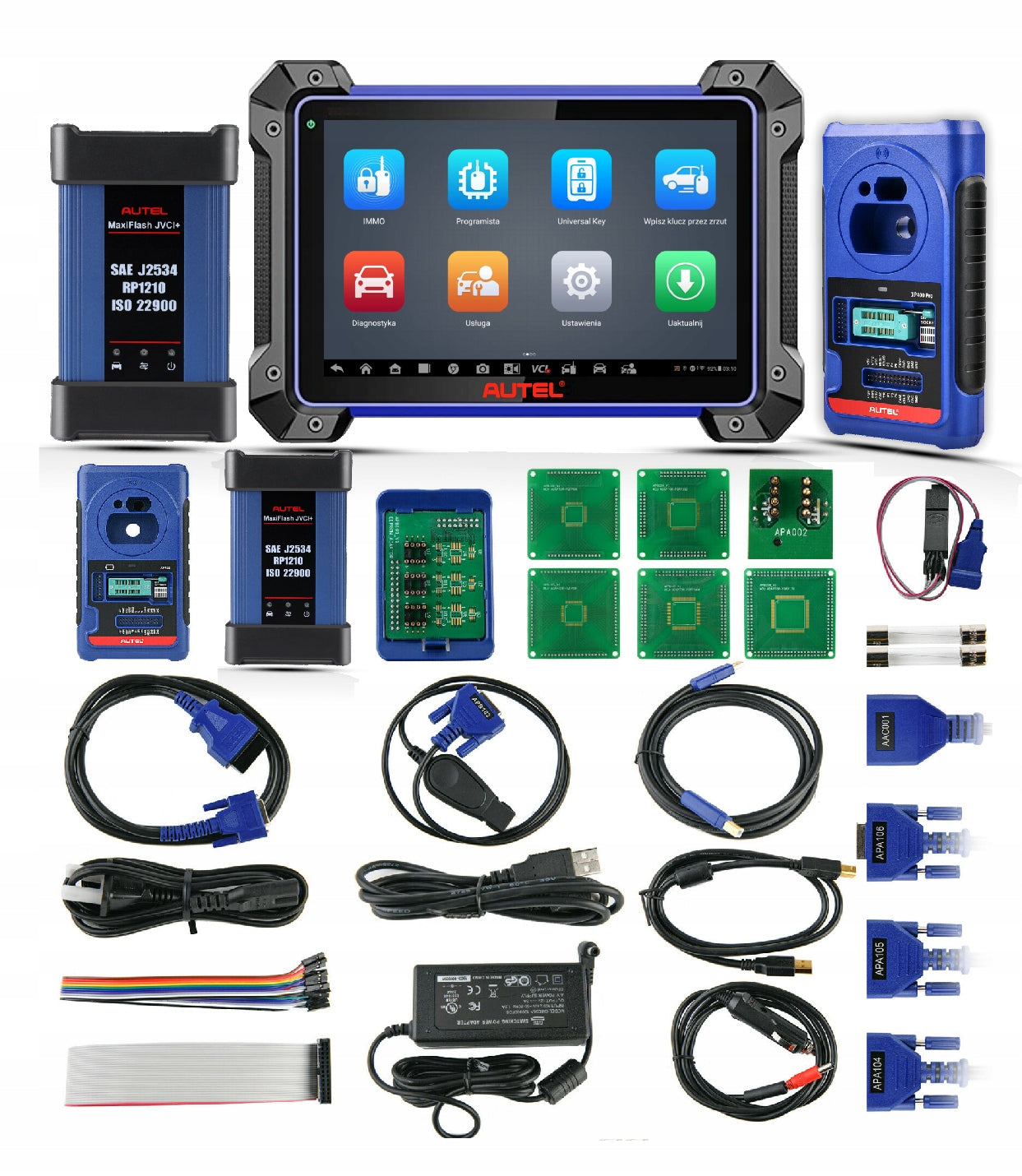

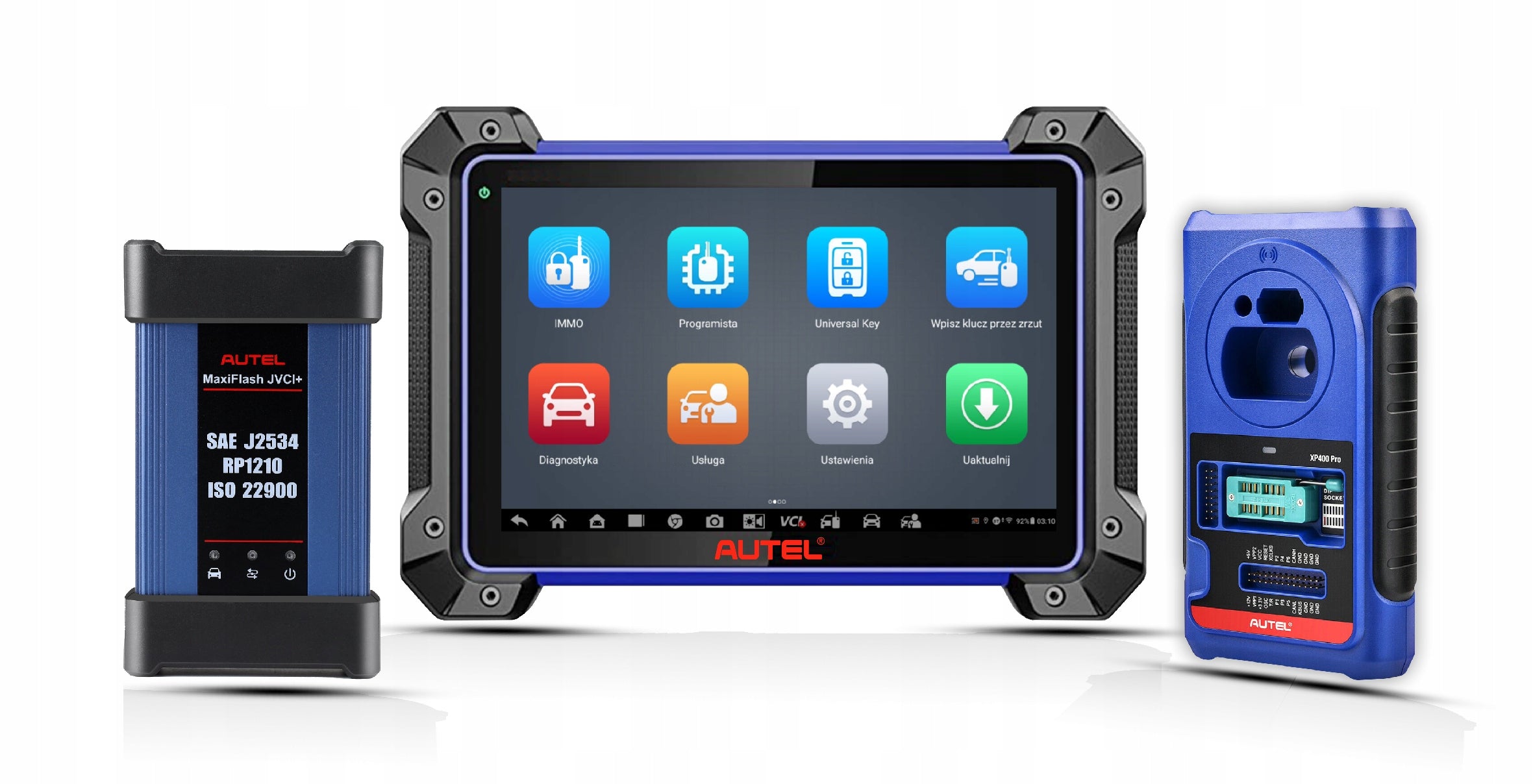

IM608 PROII is the most advanced and unique tool for key programming and diagnostics in one. The device combines advanced key programming, diagnostics of all electronic systems and advanced service functions in one 10,1-inch Android touch tablet. The tester is equipped with the XP400PRO key programmer and the MaxiFlash JVCI+ ECU programmer to provide full support for IMMO functions including programming. Along with the ability to quickly diagnose all modules of most makes and models on the market, the IM608PROII provides all special features. It is an unprecedented key programming and diagnostic tool you have ever needed.

Diagnoscope works in Polish!

Equipment from the authorized distribution of the AUTEL on Polish territory!

Original, legal hardware with online software updates from the diagnostic position!

ULTRA ADVANCED - ULTRA STRONG - ULTRA FAST - ULTRA MOBILE

Thanks to the latest technology, diagnostics are really fast...

• Extremely powerful six-core Cortex A7 + A15 processor
• 10,1 inch capacitive LED touch screen with 1920 x 1200 resolution
• Internal reliable built-in 64 GB memory for better performance
• Built-in 16-megapixel rear camera with autofocus and flashlight
• Wi-Fi 802.11 a/b/g/n/ac to access your favorite internet resources
• Open source Android operating system for quick startup and multitasking
• Efficient combination of advanced key programming / diagnostics of all systems / advanced maintenance services
• Professional key programming equipped with XP400pro key programmer and MaxiFlash JVCI+ ECU programmer for full Immo support
• Intelligent mode for targeted and automated key programming
• Expert mode for advanced key programming
• Read PIN/CS (lost all keys), generate key, key programming, remote control programming
• ECU IMMO Reset/Adaptive, Refresh/Coding
• Read/write transponder data, ECU/MCU/EEPROM data (e.g. 9S12 encryption chip), IC card, remote frequency detection
• Efficient OE-level diagnostics for more than 80 makes and models in the US, Asia and Europe
• Full code capabilities, real parameters, element active test, ECU information, adaptation, matching, coding, etc.
• All special functions, 36+ output service functions EPB, DPF, SAS, oil reset, BMS, TPMS sensor ID reconfiguration, etc.
• and much more...

UNIVERSAL EUROPE ASIA USA

List of supported brands: https://pro. autel . com/measurecarApp-1-1.html? m=94&operatorType=1

Product Model: IM608 PRO II (IMMO)

• Professional key programming via XP400 programmer and MaxiFlash JVCI+ ECU programmer for full Immo support
• Intelligent mode for targeted and automated key learning
• Expert mode for advanced key learning
• PIN/CS reading (lost whole key), generate key, key learning, remote learning
• ECU IMMO Reset/Adaptive, Refresh/Coding
• Read/write transponder data, ECU/MCU/EEPROM data (e.g. 9S12 encryption chip), IC card, remote frequency detection

• Diagnosis of all electronic systems of the vehicle (K and CAN line) including: Engine, ABS, Airbag, DPF, SAS, EPB, air conditioning, automatic transmission, comfort modules, etc...
• Information about ECU
• Reading error codes
• Deleting error codes
• Full support for current parameters during Live Data operation
• ECU programming
• Adaptations
• Coding
• Tests of executive elements
• Basic Settings
• Deleting Oil Service Inspections
• Support EPB parking brake (Reversing calipers for brake pad replacement)
• DPF (Particulate Filter) support
• SAS support
• Support for BMS
• Throttle Adaptation
• Flashing ECU, PassThru system

TECHNICAL DATA

Technical data:

• Operating System: Android™ 10.0
• Processor: Qualcomm SDM660 Octa-core Processor4x 2.2 GHz(A73) 4x 1.8 GHz(A53)
• 4GB RAM & 128GB On-board Memory
• 10.1-inch LED capacitive touch screen with 1920x1200 resolution
• USB Wi-Fi connectivity (802.11 a/b/g/n/ac): BT V5.0 + BR/EDR, SD Card (Support up to 62GB), HDMI
• Camera 8.0 Mexgapixel, AF with Flashlight
• Audio Microphone, Dual Speakers,3-Band 3.5 mm stereo/standard headset jack
• Sensors Gravity accelerometer, ambient light sensor (ALS)
• Power supply and battery 15000 mAh 3.8 V lithium-polymer battery Charging via 12 V AC/DC power supply with the temperature between 0°C and 45°C
• Input voltage 12 V (9-24 V)
• Power consumption 6.5 W
• Operating temperature -0 to 50 ℃
• Temp. storage -20 to 60 ℃
• Housing Strong plastic housing with rubber protections
• Dimensions 300 mm x 220 mm x 50mm
• Weight NW: 1.42 kg, MaxiSys GW: 8.655 kg
• Protocols:

ISO 9142-2, ISO 14230-2, ISO 15765-4, RP1210, ISO22900 K/L-Line, Flashing Code, SAE-J1850 VPW,

SAE-J1850 PWM, CAN ISO 11898, Highspeed, Middlespeed, Lowspeed and Singlewire CAN,

GM UART, UART Echo Byte Protocol, Honda Diag-H Protocol, TP 2.0, TP 1.6, SAE J1939,

SAE J1708 Fault-Tolerant CAN

The tester supports virtually all control modules that a given vehicle is equipped with, including the latest models from this year:

• engine
• ABS braking system
• airbags
• automatic transmission
• comfort module
• brake electronics
• ESP/ASR/EBD traction control
• TMPS tyre pressure system
• air conditioning
• power steering
• dashboard
• navigation
• audio system
• central lock
• anti-burglary system
• light electronics
• 4x4 drive
• memory of armchairs
• door electronics
• navigation
• Parking assistance
• Lane maintenance assistant
• reversing camera
• cruise control
• and many other vehicle equipment systems. .

Tester works in Polish!

Menu

Failure codes

Real parameters

Service procedures

(full polish technical descriptions of error codes! )

No forced annual subscription fees!

The tester works continuously and will never be blocked!
