Trumpai apie prekę
Prekė: Automobilių keltuvas REDATS L-240F 4T 230V simetriškas, ilgos atramos. Kategorija: Kolonų keltuvai.
- Gamintojas: Redats
- Modelis: 30-06-19

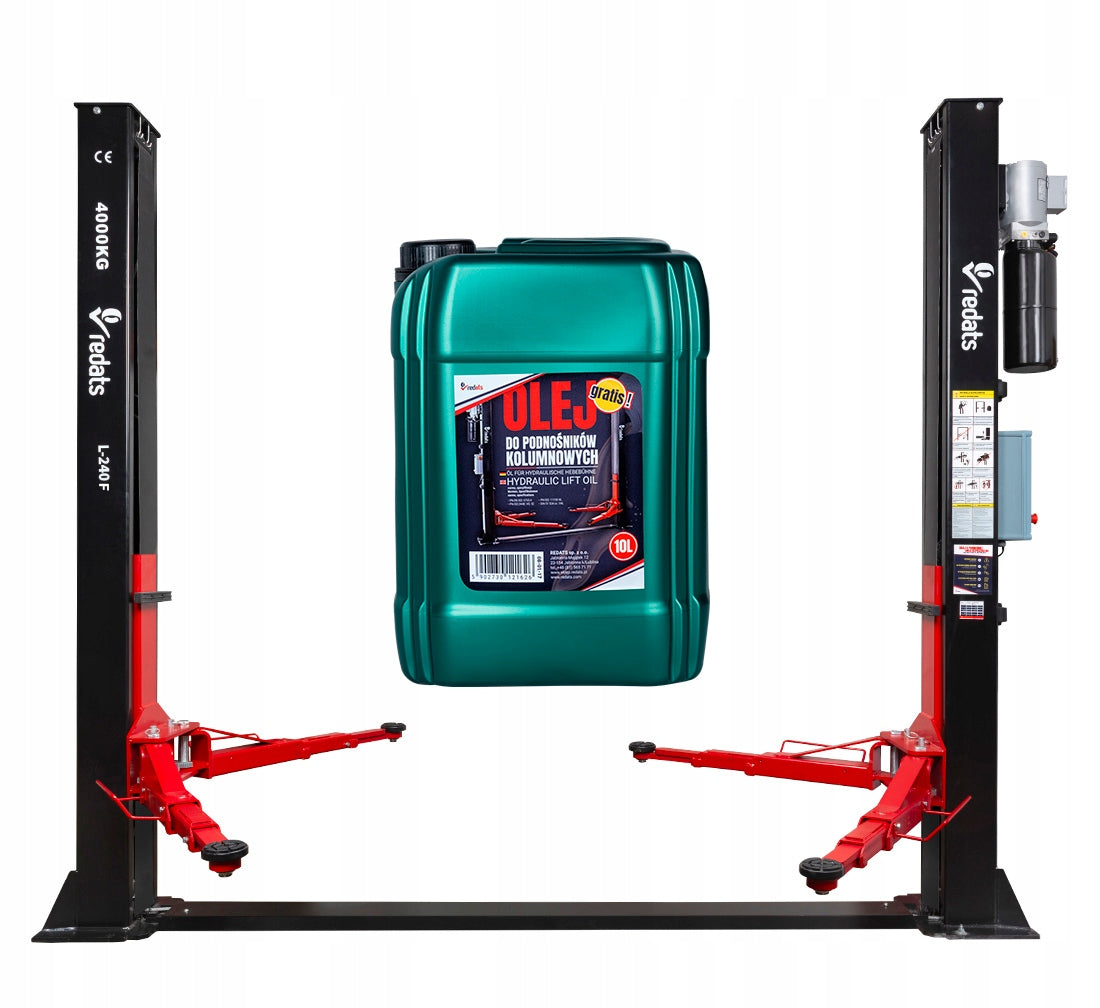

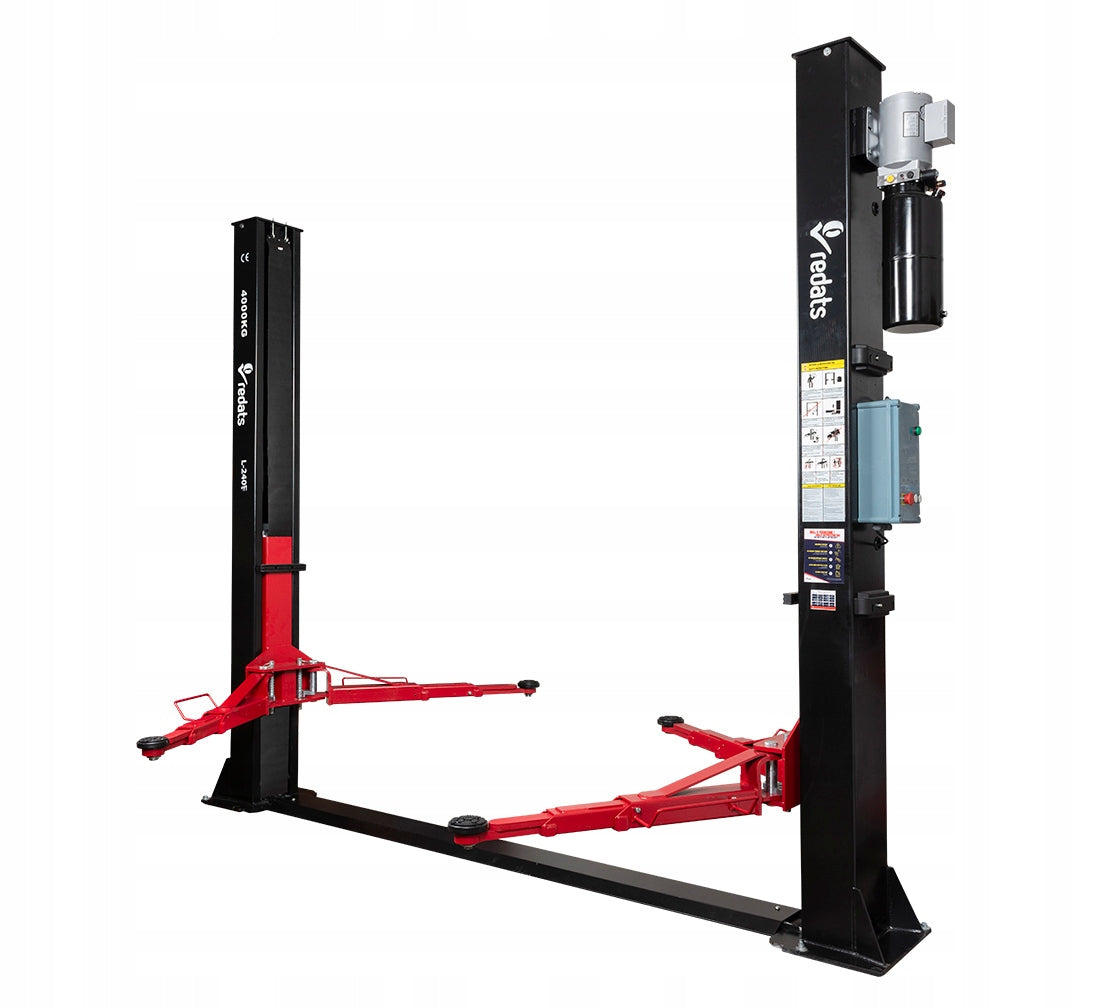

Two-column car lift 4T REDATS L-240F Automatic 230V + Oil Free
- Brand: REDATS
- Symbol: 30-06-19
- Dimensions (W x H): 3365 x 2824 mm
- Maximum width of the car: 2500 mm
- Maximum lifting capacity: 4 tons
- Type: automatic
- Reinforcement frame: no
- Arm length range: 700 - 1345 mm
- Floor thickness: 30 cm
- Beam: Lower
- Power supply: 230V 50Hz
- Lifting time: 50 seconds
- Lifting height: 90 - 1930 mm
- Column base dimensions: 380 x 450 mm
- Limit switch: yes
- Engine power: 2200 W
- Telescopic lift arms: YES
- Additional Features: Rope covers, symmetrical arms
- Weight: 610 kg
What kind of lift is that?
This automatic two-column lift will support you in the work of:
- passenger cars
- light commercial
It is ideal for working on suspension or pulling out the engine.
This lift
- Saves you time - no need to run from column to column
- lifts passenger cars and light commercial vehicles - lifting capacity 4000 kg
- You can handle even wide cars: max. width of the vehicle is 2500 mm
- will provide comfort of action - are you tall? Are you tired of bending under your car? This equipment raises to 193 cm
What else is worth knowing about him?
- Maximum lifting capacity: 4 tons
- Type: automatic
- Arm length range: 700-1345 mm
- Floor thickness: 30 cm
- Beam: lower
- Power supply: 230V 50Hz
- Maximum width of the car: 2500 mm
- Lifting height: 9-193 cm
- Column base dimensions: 380 x 450 mm
- Reinforcement frame: no
- Weight: 610 kg
- Dimensions (W x H) 3365 x 2824 mm
Below - paw spacing, width, height and other useful data!
ATTENTION!
Power cord with plug must be independently supplied to the jack
Are REDATS lifts durable?
Yes.
NO I?
That's what everybody says. Here's what you get:
- rope covers - protects ropes, chain, actuators from dust and dirt - thanks to these aprons, no dust or other dirt gets into the ropes/chain/actuators
- chain guard - against dirt and mechanical damage
- Slides - guarantee trouble-free operation of lifting trolleys
Durability = solutions that will keep you working with this lift for years to come. Failures are downtime, and you lose money.
Durability = solutions that will keep you working with this lift for years to come. Failures are downtime, and you lose money.

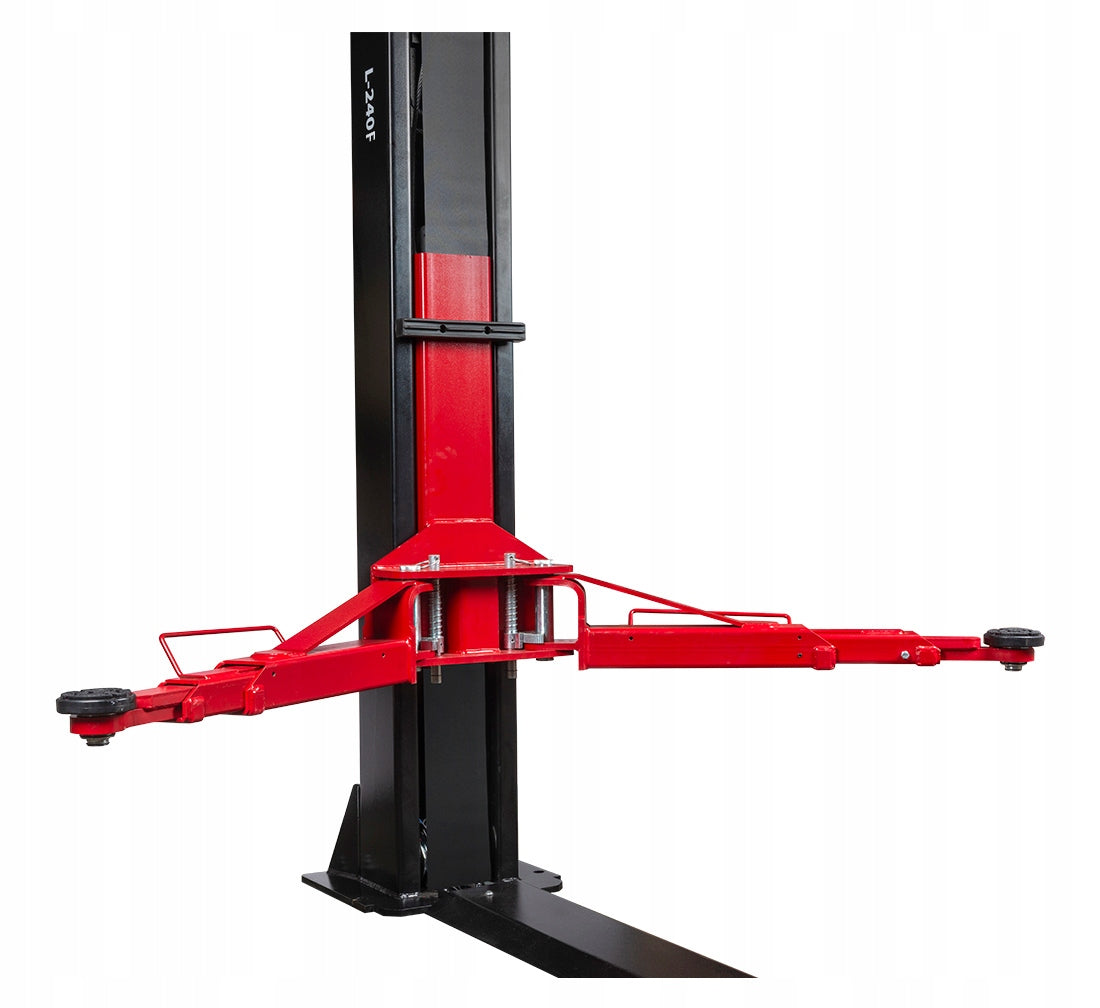

Symmetrical paws
This lift is equipped with symmetrical paws - length 700-1345 mm. This will make it easier for you to operate at the car - for example, when opening the car door on the lift.
Simple operation
You can set your paws in just a few seconds. To lift the car, press the (lift) button. To leave them, press the lower button.
Simple, isn't it? You can see that you will quickly learn how to use this device. It also has the ability to leave the car in case of a complete power outage.
Long-term durability
Perfect quality of components (durable chain and controls) and careful workmanship guarantee reliable use for many years.
We have parts for this lift, such as rubber, hydraulic or electronic components.
Perfect security
The limit switch will stop the paws when the car reaches the maximum lifting height. This is a guarantee of perfect safety of use.
Do I need to report the lift to the UDT (Office of Technical Inspection)?
By law, yes. It does not matter whether you use the lift for your business or privately.
Do you want to report the lift to UDT?
Do you want UDT to pick up and put your lift into service? have the eligible team assembled. We will help you - contact us, we will prepare a quote for you for such assembly.
Complete documentation (from the seller)
The lift has the necessary documentation that the seller should provide for registration with the Office of Technical Inspection, i.e. the EC declaration of conformity, the instruction manual in Polish, the protocol of quality control of the lift after assembly.
Remember that in addition to this documentation, you must submit a number of other documents to the Office of Technical Inspection.
Preparation of the substrate
Basic requirements for the preparation of the substrate for the installation of a two-column lift:
- substrate surface 1,5m x 4m x 30cm
- maximum flat surface
- minimum floor thickness: 30 cm
- Class B25 concrete
- 28 days, waiting time for the floor to dry and harden (in the case of a fresh spout)
- The floor must be in the form of a homogeneous concrete slab, with the above-mentioned parameters.
Quality REDATS!
By choosing REDATS you buy from the official distributor of devices of this brand in Poland and Europe. REDATS devices are manufactured in leading factories of this type of equipment, so you do not have to worry about the standards of workmanship or used parts.
Distributor of tools and machines REDATS is a company operating successfully on the Polish and international market since 2006. It is a recognized entity that has already gained the trust of over 500 000 recipients. When buying REDATS machines, you can count on professional and comprehensive support at every stage of the purchase or use of equipment.
Specifications
| Group | Name | Value |
|---|---|---|
| Parametry | Condition | new |
| Parametry | Invoice | With VAT invoice |
| Parametry | Brand | Redats |
| Parametry | Manufacturer code | 30-06-19 |
| Parametry | EAN (GTIN) | 5902730160205 |
| Parametry | Number of columns | 2 |
| Parametry | Column connection | bottom |
| Parametry | Overall width | 3365 mm |
| Parametry | Overall height | 2824 mm |
| Parametry | Power supply | 230 V |
| Parametry | Engine power | 2.2 kW |
| Parametry | Lifting capacity | 4000 kg |
| Parametry | Minimum lifting height | 900 mm |
| Parametry | Maximum lifting height | 1930 mm |
