Automobilių keltuvas, 6600 svarų keliamoji galia, minimalus aukštis 665 mm

Trumpai apie prekę

Prekė: Automobilių keltuvas, 6600 svarų keliamoji galia, minimalus aukštis 665 mm. Kategorija: Variklių stovai ir keltuvai.

• Gamintojas: no brand
• Modelis: ZZSQJDUXJ3TD8Z

Hydraulic lift long

Lift with confidence, lift with strength

Our long cylinder hydraulic lift combines high lifting capacity with a large lifting range. Y-type polyurethane seals prevent slow load drops and oil leaks, thereby extending the life of the lift. High-quality steel construction guarantees durability and resistance. Integrated oil bypass and overload valves guarantee safe and stable lifting. This motor lift is a reliable device, both for workshop cranes and for other lifting tasks.

Load capacity of 3 tons and adjustable height

Built to Survive

Effortless lifting

Safety and reliability

Versatile application

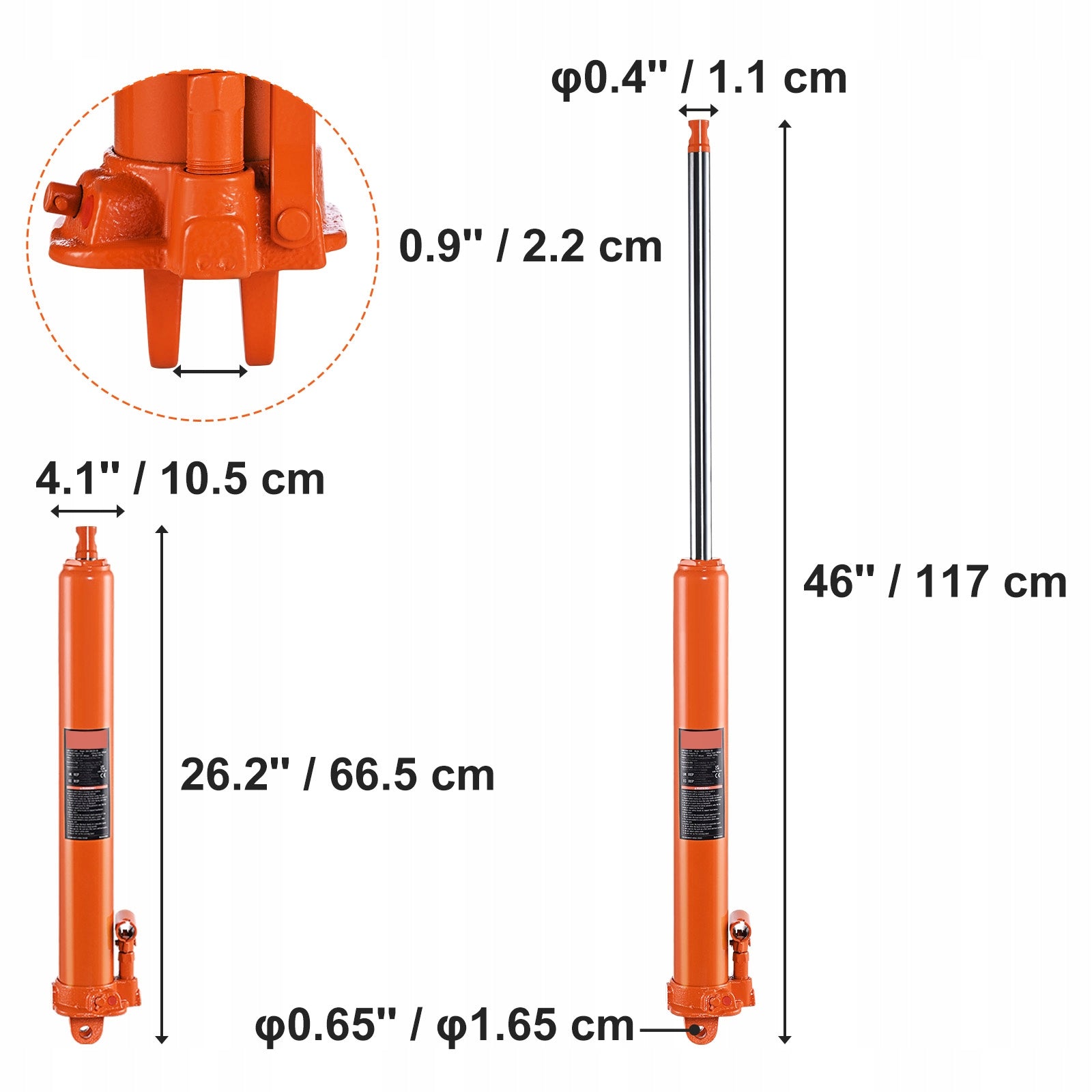

Specifications

Item Model Number: QJD-CB030A-00

Load capacity: 6600 lbs / 3 t

Lifting stroke: 19,9 inch / 505 mm

Maximum height: 46 inches / 1170 mm

Minimum height: 26,2 inches / 665 mm

Net weight: 19,58 lbs / 8,88 kg

Product Dimensions: 26,2 x 4,5 x 4,1 inches / 665 x 115 x 105 mm

Outside diameter of piston rod: φ1,1 inch / φ28 mm

Heavy-duty load capacity

Our long arm hydraulic lifter easily lifts weights up to 4 tons, making it ideal for cranes in a variety of applications, including professional machinery, maintenance, and home use. The lift transforms your crane into a practical, efficient and safe lifting solution.

Effortless lifting

With a lifting range of 26,2 to 46 inches (665 to 1170 mm) and a lifting stroke of 19,9 inches (505 mm), our motorized pallet truck allows you to move large items easily and quickly.

Sturdy construction

The 3-ton long arm pile lift is made of durable No. 45 steel and features a hard chrome finish on the pump core. A large hydraulic cylinder with a diameter of 1,1 inches (28 mm) reduces the oil pressure required to move the load. The Y-ring piston design ensures stable and safe operation of the lift and prevents slow downward movement and oil slipping.

User-friendly operation

With our hydraulic pump, you can lift heavy objects with minimal muscle strength. The oil check valve should be gradually loosened as the piston rod reverses to prevent rapid lowering.

Versatile crane companion

Engine lifting cylinder is commonly used in workshops, garages, maintenance work, etc. The enlarged flat base makes it compatible with a variety of cranes, such as gearbox lift chassis, increasing versatility and providing the perfect solution for lifting tasks.

Comfortable grip

The long cylinder hydraulic lift is equipped with a comfortable handle with a rubber coating, which provides additional comfort. The handle provides easy and convenient handling when lifting.

Package Contents

1 x Hydraulic lift long

1 x Handle

1 x User Manual

Key Features

Lifting capacity 3 tons and height adjustment: With a robust lifting capacity of 3 tons and a height adjustment range of 26,2 to 46 inches (665-1170 mm), this long actuator hydraulic floor lifter effortlessly lifts heavy loads. The automatic release feature allows you to safely control your lifting operations.

Built for durability: The main components of the motor lift are made of durable No. 45 steel with a hard chrome coating for high wear resistance. The large diameter hydraulic cylinder reduces the need for oil pressure, minimizes wear and extends the life of the Langram lift.

Effortless lifting: The lifting cylinder is designed for easy handling, requiring minimal physical effort, even when lifting heavy loads. The handle design enhances operator comfort, while the comfortable rubber grip makes it easy to lift.

Safety and reliability: Our hydraulic cylinder is equipped with an integrated oil bypass valve and overload valves that protect against overload. The hydraulic unit is corrosion-resistant and ideally suited to various temperature conditions, ensuring trouble-free operation. The unique design of the Y-shaped sealing ring and piston ensures a stable and secure lifting process, preventing slow descent and oil leaks.

Versatile applications: This motor lift is suitable for a variety of applications in workshops, shops, and maintenance work. Its fork head allows for direct installation on a variety of lifting devices, making it a versatile and ideal lifting solution for homes and commercial facilities.

Specifications
