Trumpai apie prekę
Prekė: Automobilių atramos STIX 3T, reguliuojamos, su kaiščio fiksavimu, 2 vnt.. Kategorija: Darbo ožiai.
- Gamintojas: Stix
- Modelis: 23-03-77751

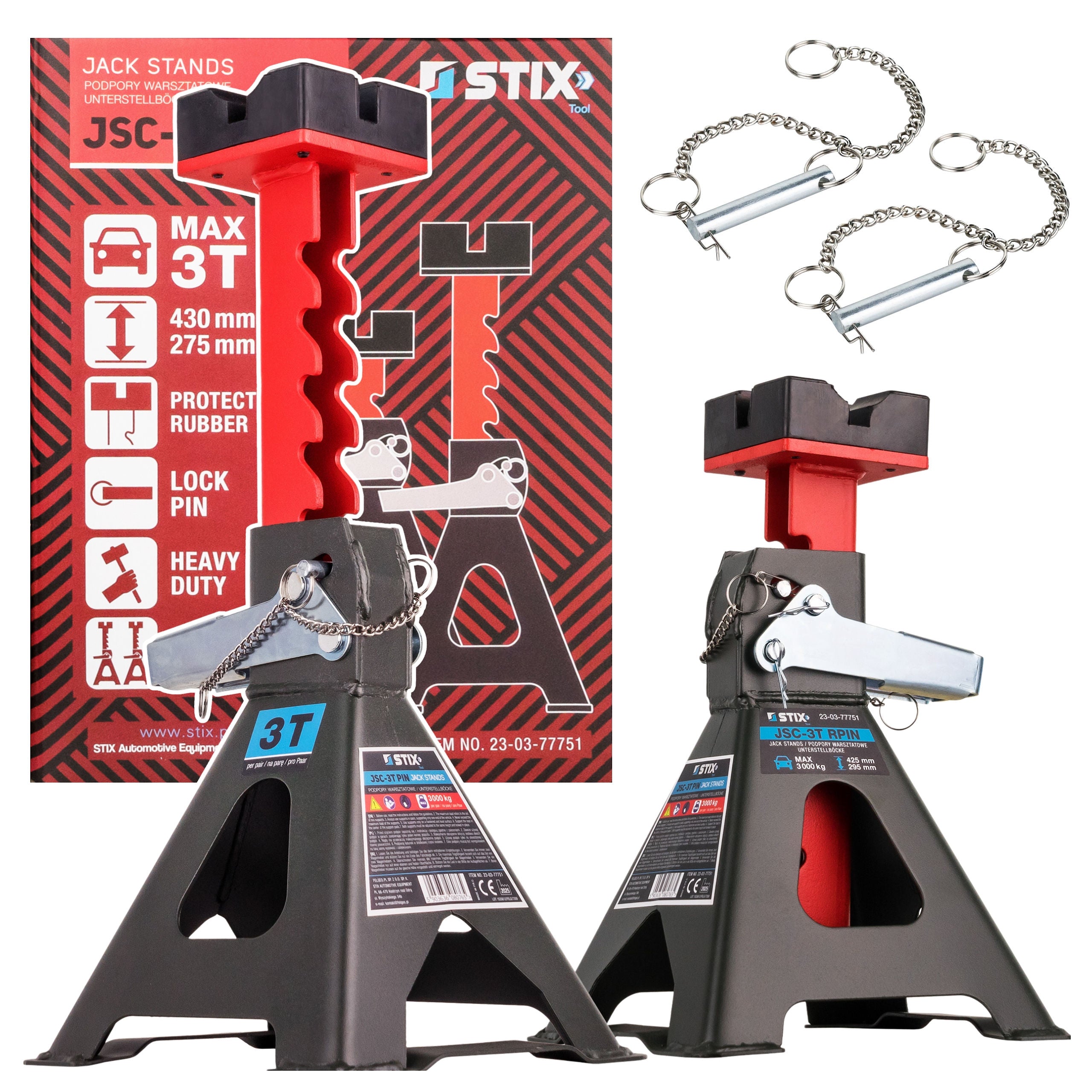

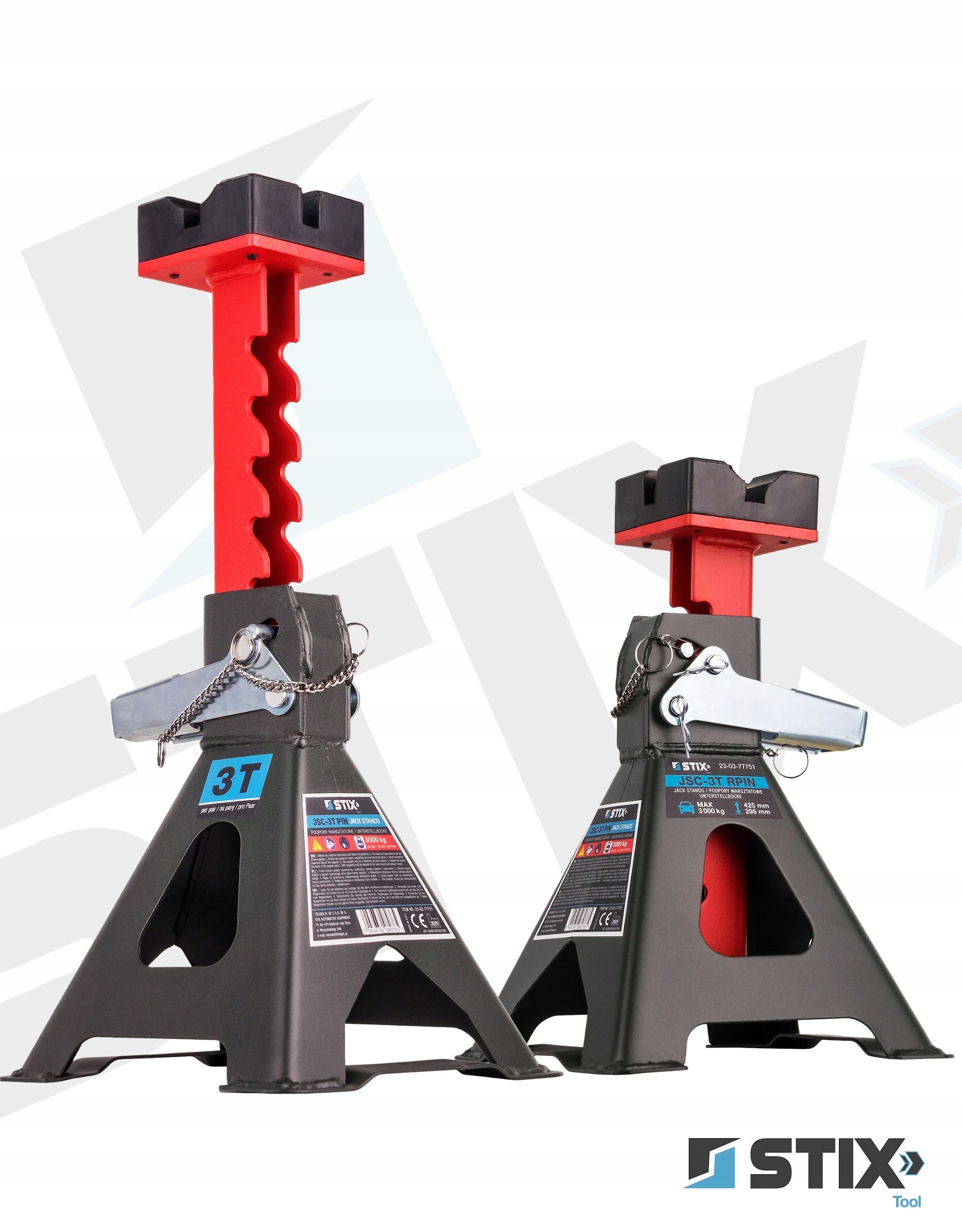

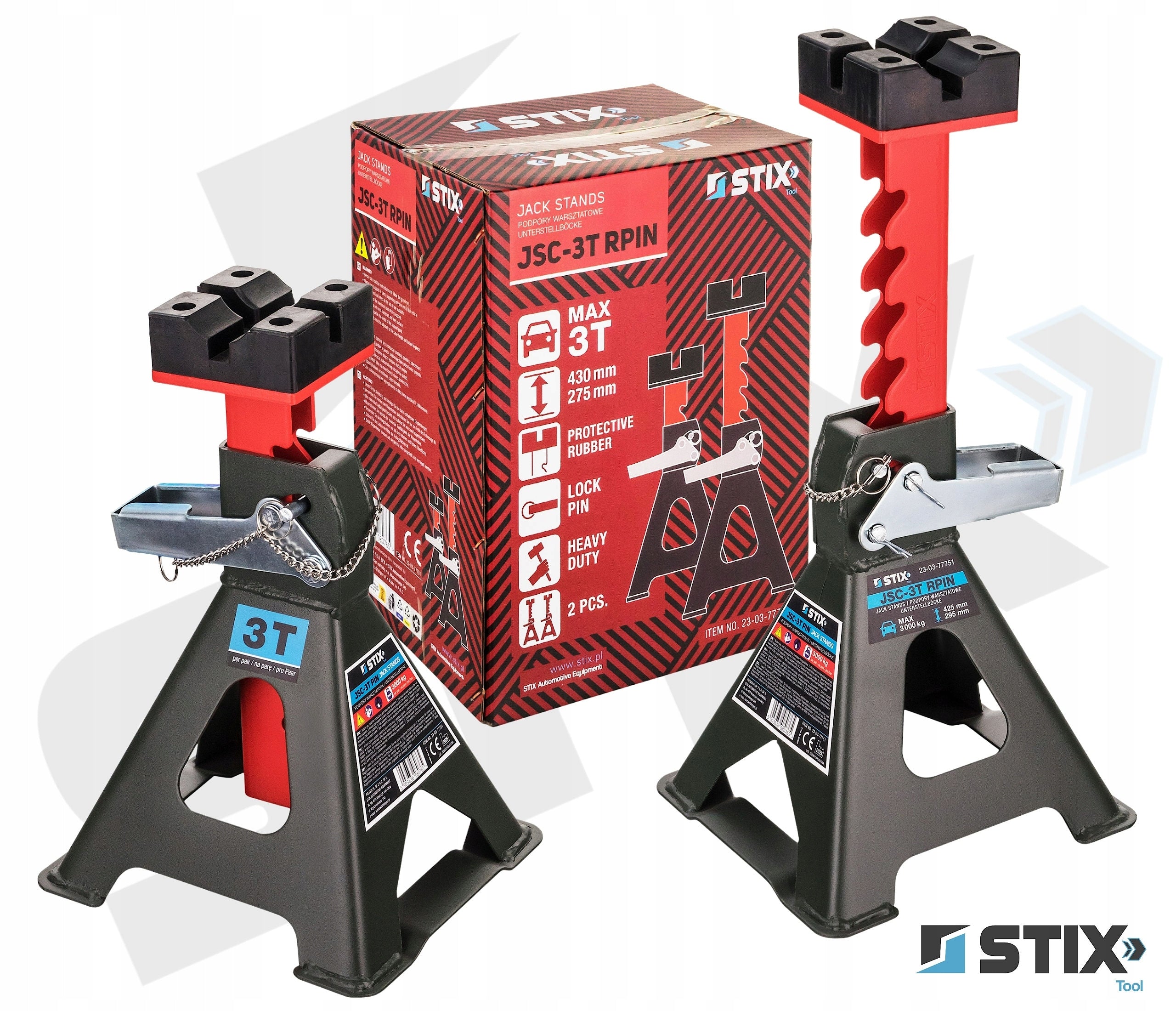

Workshop supports STIX Tool JSC-3T RPIN is a set of two mare designed to safely support a vehicle weighing up to 3 tons. The model is equipped with 6-degree height adjustment (275 – 430 mm), double protection system (detent + PIN) and screwed, square rubber overlays. The structure has been reinforced with additional profiles for increased stability.
Catalog number: 23-03-77751
Manufacturer: Stix Tool
Model: JSC-3T RPIN
Quantity included: 2 pcs.
⚙ Technical specification:
- Maximum set load: 3 tons
- Minimum height: 275 mm
- Maximum height: 430 mm
- Height adjustment: yes, 6-degree
- Set weight: 5,6 kg
➡ 3T workshop supports for stable vehicle support
The JSC-3T RPIN model is designed for safe support of a previously raised vehicle, e.g. during wheel replacement or service work.
Kobyłki are not used to lift the car – their task is stable maintenance of the vehicle after using the lift.
The set includes two supports that should be used at the same time.
➡ Adjustable mare 275 – 430 mm – 6 degrees high
The supports are equipped with a ratchet mechanism that allows you to adjust the height in 6 levels.
The range of 275 – 430 mm allows you to adjust the support to different vehicles.
✅ Double protection: ratchet + PIN
The design uses a double lever ratchet mechanism and an additional steel locking pin.
The pin is equipped with a chain and pin, which prevents it from getting lost and allows you to secure the column with confidence. This solution reduces the risk of accidentally leaving the support.
✅ Reinforced steel construction with additional stiffeners
The construction of the supports is made of durable steel adapted to work under load up to 3 tons (set).
Additional reinforcements in the form of two contoured flat bars connecting the legs of the base increase the rigidity of the structure and reduce the risk of deformation.
The support column made of U-profile (3,5 mm) ensures stability during operation.
✅ Screwed Square Rubber Overlays 80 × 80 × 30 mm
Rubber overlays are screwed to the steel platform, which eliminates the risk of them slipping during operation – unlike slip-on solutions.
Cross-cuts make it easy to adjust to the vehicle's support points and thresholds.
Overlays are interchangeable – they can be easily unscrewed and replaced with new ones in case of wear.
➡ Anti-corrosion protection and workshop application
The surface of steel elements is covered with powder paint, which protects the structure against corrosion and moisture. Thanks to this, the supports can be used both in professional workshops and in home garages. The simple design and easy-to-read locking mechanism make it easy to use every day. The product is designed to work with vehicles within the permissible load range of up to 3 tons.
➡ What distinguishes JSC-3T RPIN workshop supports?
- Lifting capacity up to 3 tons (set)
- Double protection: ratchet + steel PIN
- Screw-on rubber pads 80 × 80 mm
- 6-stage height adjustment 275 – 430 mm
- Reinforced base design
- Thick steel support column (U profile 3,5 mm)
- Anti-corrosion coating (powder coating)
➡ Why is it worth it?
The JSC-3T RPIN model is distinguished by a combination of double protection and screw-on rubber overlays that increase stability and reduce the risk of shifting the support point. The reinforced construction and steel support column ensure durability during regular workshop work.
💡 FAQ – Frequently Asked Questions
1. Are the supports used to lift the car?
- No. The product is intended only to support a previously raised vehicle.
2. Can one mare be used?
- No. For stability and safety, use two supports at the same time.
3. What is a PIN lock?
- This is an additional protection in the form of a steel pin that locks the column and prevents it from leaving.
4. Can rubber pads be replaced?
- Yes. The covers are screwed on and can be easily replaced when the screws are unscrewed.
5. Are they suitable for everyday work in the workshop?
- Yes. The design is designed for regular use in workshop and garage conditions.
📷 Gallery
Specifications
| Group | Name | Value |
|---|---|---|
| Parametry | Condition | new |
| Parametry | Invoice | With VAT invoice |
| Parametry | Brand | Stix |
| Parametry | Product weight with unit packaging | 6.03 kg |
| Parametry | Manufacturer code | 23-03-77751 |
| Parametry | EAN (GTIN) | 5903636080765 |
