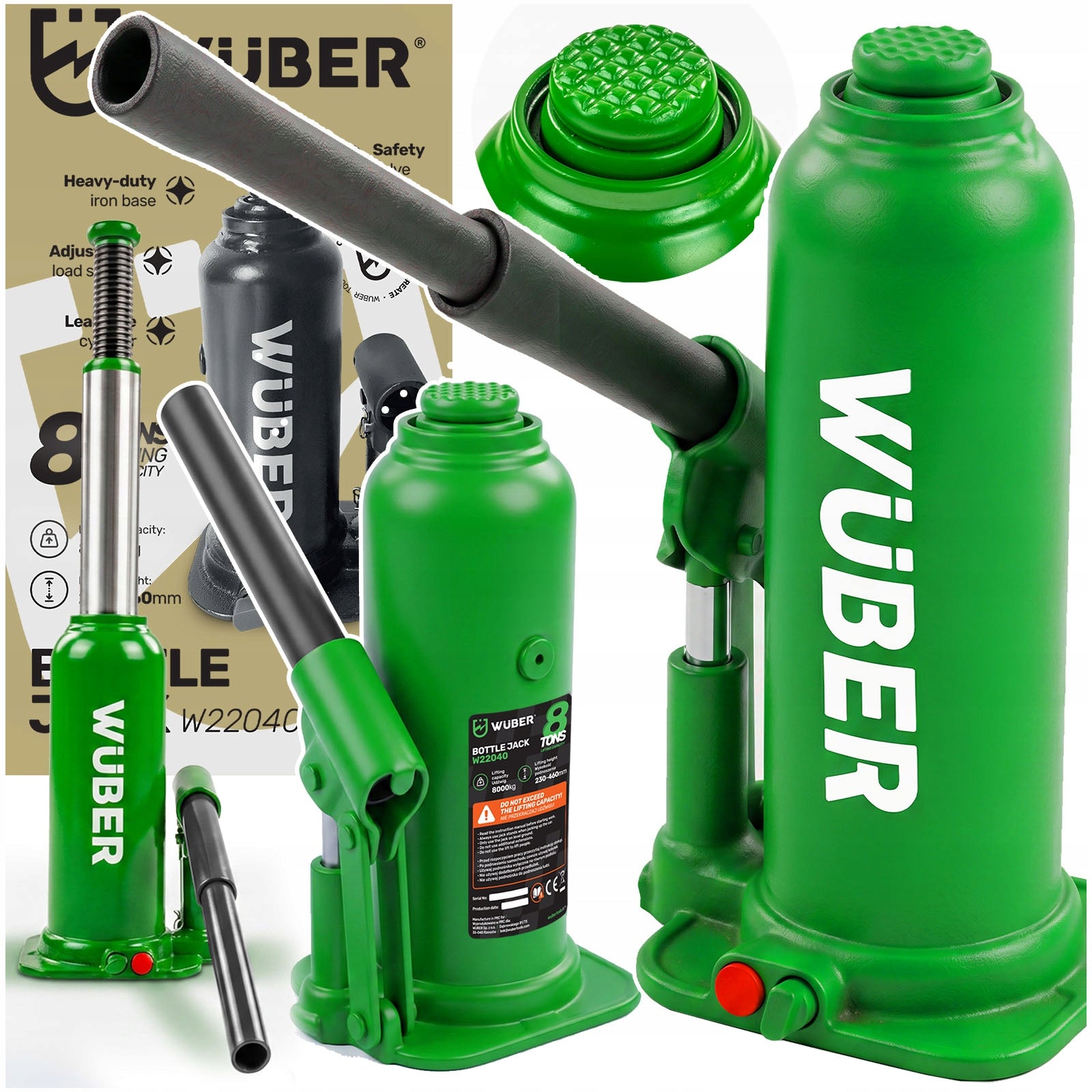

Automobilio hidraulinis butelinis keltuvas 8 t 230–460 mm

Trumpai apie prekę

Prekė: Automobilio hidraulinis butelinis keltuvas 8 t 230–460 mm. Kategorija: Butelių kėlimo įtaisai.

• Gamintojas: Wuber
• Modelis: W22040 PODNOŚNIK SAMOCHODOWY SŁUPKOWY 8 TON

⚙ TECHNICAL SPECIFICATION:

Producer: WUBER

Model: W22040

Maximum lifting capacity: 8000 kg (8 Tons)

Actuator stroke: 150 mm

Minimum height: 230 mm

Maximum height: 460 mm (sum of piston and screw extension)

Length of screw: 80 mm

Saddle thickness: 8 mm

Saddle diameter: 31 mm

Weight of the device: 4,8 kg

Type of construction: Post (Bottle)

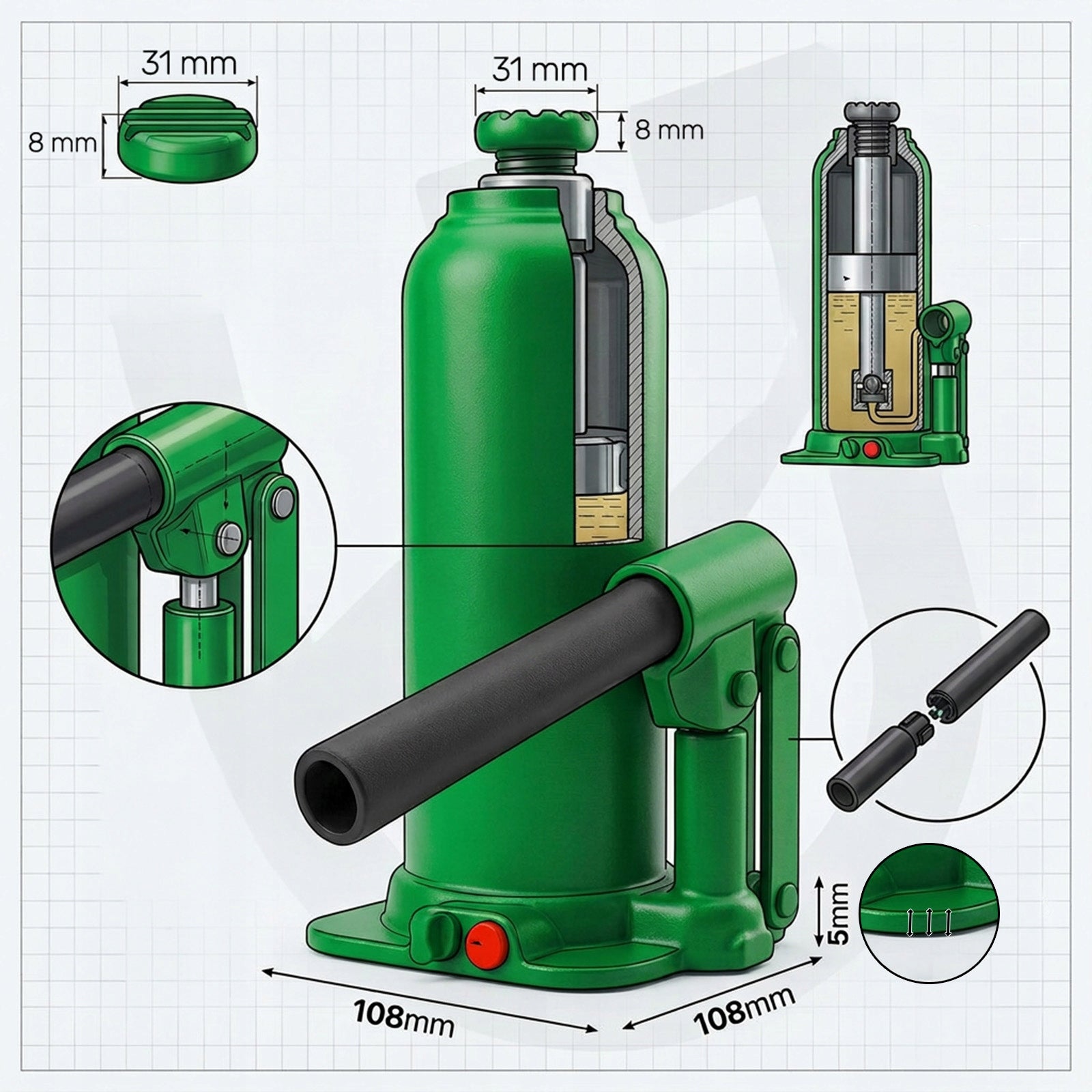

Base dimensions: 108 x 108 mm

Base thickness: 5 mm

Safety valve: YES

Liquid: Hydraulic oil

❗❗ Remember: Always keep the lift upright

✅ LIFTING CAPACITY 8000 KG

✅ RANGE 230-460 MM

✅ TWISTED GROOVED SADDLE 80 MM

✅ SADDLE THICKNESS 8 MM

✅ MASSIVE, WIDE BASE 108 X 108 MM

✅ SAFETY VALVE

✅ HARDENED STEEL PISTON

✅ ENHANCED TIGHTNESS OF THE HYDRAULIC SYSTEM

✅ LONG, FOLDABLE HANDLE

✅ PISTON STROKE 150 MM

✅ POWERFUL FORCE IN A COMPACT HOUSING

Hydraulic bollard lift designed to handle heavy-duty vehicles, agricultural machinery and special tasks in the workshop.

✔ Minibuses ► safely lift a fully loaded vehicle using a large power reserve of the hydraulic system.

✔ Agricultural and construction machinery ► use a stable base to work on more difficult terrain with heavy equipment.

✔ Off-road vehicles ► work with a large safety margin without straining the actuator to its strength limits.

⭐ WHY DOES OUR LIFT MEET YOUR REQUIREMENTS?

✅ Lifting capacity 8 Ton ► lift the heaviest loads without the risk of damaging the sealants, maintaining smooth operation.

✅ 80 mm twisted saddle (included in max. range) ► perfectly match the support point to the chassis and reduce lifting time to an absolute minimum.

✅ Wide base ► ensure stability, which cheap substitutes do not offer

✅ Built-in Safety Valve ► protect yourself and your equipment from overload; the system will not allow you to lift a load exceeding the permissible standards.

✅ High lifting range (460 mm) ► gain the operating space necessary for comfortable wheel replacement or suspension repair.

✅ Double tightness ► rely on a precisely fitted cylinder that maintains pressure and prevents self-falling.

✅ Two-piece handle ► long lever facilitates pumping and allows you to operate the lift with a safe distance, without having to go deep under the vehicle.

⚡ LIFTING PARAMETERS

✅ Minimum height: 230 mm ► free substitution for minibuses, off-road vehicles and agricultural machinery.

✅ Maximum height: 460 mm ► optimal extension allowing the wheels to be detached even in vehicles with high suspension travel.

✅ Screw adjustment: 80 mm ► key function to eliminate distance without the use of hydraulics.

⭐ A SOLID TOOL FOR YOUR WORKSHOP

✅ The stroke of the actuator 150 mm ► is the actual lifting distance using the actuator itself. Such a supply of work allows you to easily tear the wheel off the ground.

✅ Weight of the device 4,8 kg ► perfect balance between mobility and stability of the structure. You can easily move the lift in one hand, maintaining a secure support under the load.

✅ Curing steel piston ► perfectly smooth surface does not scratch sealants 3 times extending the life of the lift.

✅ 8 mm thick saddle ► solid casting, which will not deform the weight of your vehicle.

✅ Thick cast iron body ► be sure that the structure will withstand huge internal pressures without deformation.

✅ Reinforced hydraulic seals ► forget about oil leaks characteristic of budgetary structures.

✅ Intuitive drain valve ► lower the load smoothly and under full control, avoiding sudden .

✅ Versatility of applications ► one tool that will handle both your off-road vehicle, as well as agricultural or truck equipment.

⭐ WHY SHOULD YOU CHOOSE OUR EQUIPMENT?

✔ Our lifts are made of high quality materials and using proven technological solutions,

This makes them the most advantageous in their price range

► High quality

► Attention to the smallest details technical and visual

► Brand equipment with established market position

► Full access to spare parts and fast service

► Door to door - we will do everything for you!

⭐ BET ON PROVEN EQUIPMENT FROM THE RENOWNED BRAND WUBER ⭐

💡 WHAT AND HOW TO LIFT?

The lifter is for lifting only. Never work under a vehicle without workshop mare.

First, unscrew the screw so that the saddle touches the support point in the car, and only then use the hydraulic lever.

In our offer you will find mares that will provide you with stability and safety during such works as:

• ► ✅ Efficient wheel change

• ► ✅ Oil change

• ► ✅ Exhaust system repair

• ► ✅ Regular inspection of vehicle condition

• ► ✅ Suspension Repair

• ► ✅ Replacement of vehicle consumable parts

✅ HYDRAULIC SYSTEM WITH A LIFTING CAPACITY OF 8 TONS

• Precision hydraulic cylinder ► core of the device made with the utmost attention to detail.

• Stability and safety ► thanks to high-quality oil and sealants, the lift maintains its position for a long time.

• Powerful lifting capacity 8 tons ► versatility of operation: from off-road vehicles, through minibuses, to agricultural machinery.

• Extended service life ► working on minimal load with lighter vehicles protects the system from wear and tear.

✅ WHAT GIVES YOU A PISTON STROKE OF 150 MM?

The stroke of the actuator is the lifting distance with hydraulics alone (without a screw being unscrewed). This lift offers you up to 15 cm of actuator operating range:

Sure detachment of the wheel ► the jump stock easily overcomes the stretching suspension, which is crucial in buses or off-road vehicles.

Safety ► you reach the target height in one cycle, without putting boards or blocks under the lever.

Saving time and effort ► the right range means that you can lift your car quickly, smoothly and without unnecessary effort.

✅ REINFORCED PISTON

Perfect surface smoothing ► microscopic grinding precision makes the piston work without resistance, eliminating friction destroying rubber O-rings.

Surface hardening ► hardness that resists mechanical scratches

Zero deformation ► the uniform structure of hardened steel carries powerful loads without the risk of damage to integrity, which is crucial for your safety under the car.

✅ TWIST-OFF SADDLE (ADJUSTMENT SCREW)

• Adjustment screw 80 mm ► mechanically unscrewed screw (saddle) allows you to instantly reduce the distance between the lift and the chassis.

• Elimination of "empty movements" ► manual removal of the screw causes the plumbing to start lifting the vehicle from the first movement of the lever.

• Saving time and effort ► you do not have to repeatedly pump for the piston to only touch the support point.

• Faster work ► less lever movements means less time needed to complete the task

✅ REINFORCED BASE

• Solid base 108 x 108 mm ► made of reinforced cast with a wall of 5 mm provides the highest strength.

• Resistance to deformation ► rigid structure does not bend even under maximum load.

• Low center of gravity ► guarantees stability and prevents the lift from wobbling during operation.

✅ ADVANCED SECURITY SYSTEMS

The lift is equipped with two key valve systems.

• Safety valve: Automatically cuts off the possibility of further lifting if the load exceeds the permissible limit of 8 tons. This protects the structure from tearing.

• Precision drain valve: Allows controlled, slow lowering of the vehicle.

✔ SET INCLUDES:

• ► 8T WUBER W22040 hydraulic bollard lift

• ► Folding pumping handle

• ► Original manufacturer packaging

• ► Clear instruction manual in Polish

⭐ JOIN HUNDREDS OF SATISFIED USERS AND BET ON RELIABILITY! ⭐

Specifications

Group	Name	Value
Parametry	Condition	new
Parametry	Invoice	With VAT invoice
Parametry	Product weight with unit packaging	4.85 kg
Parametry	Brand	Wuber
Parametry	Manufacturer code	W22040 PODNOŚNIK SAMOCHODOWY SŁUPKOWY 8 TON
Parametry	EAN (GTIN)	5905873307391
Parametry	Lifting capacity	8000 kg
Parametry	Minimum lifting height	230 mm
Parametry	Maximum lifting height	460 mm
