Trumpai apie prekę

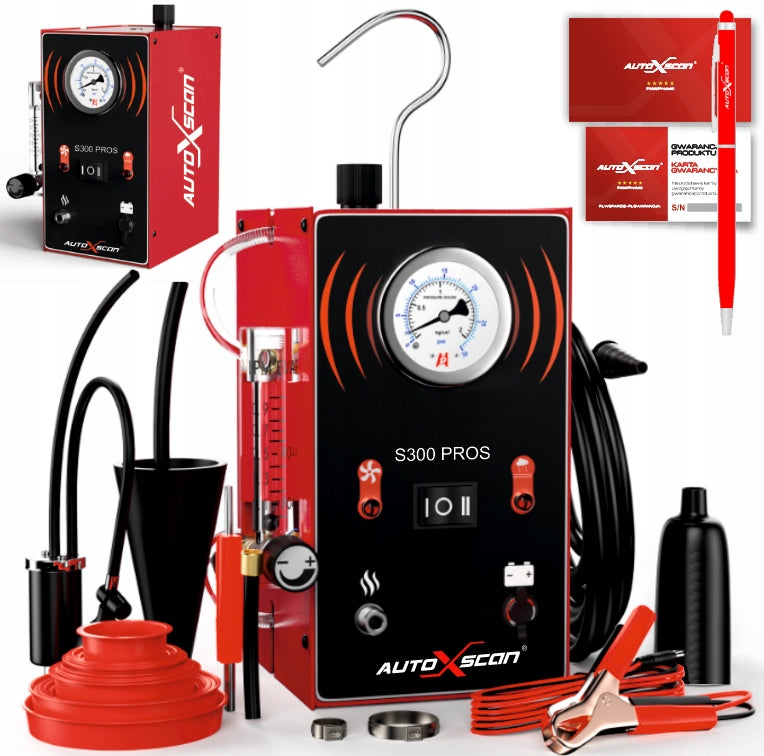

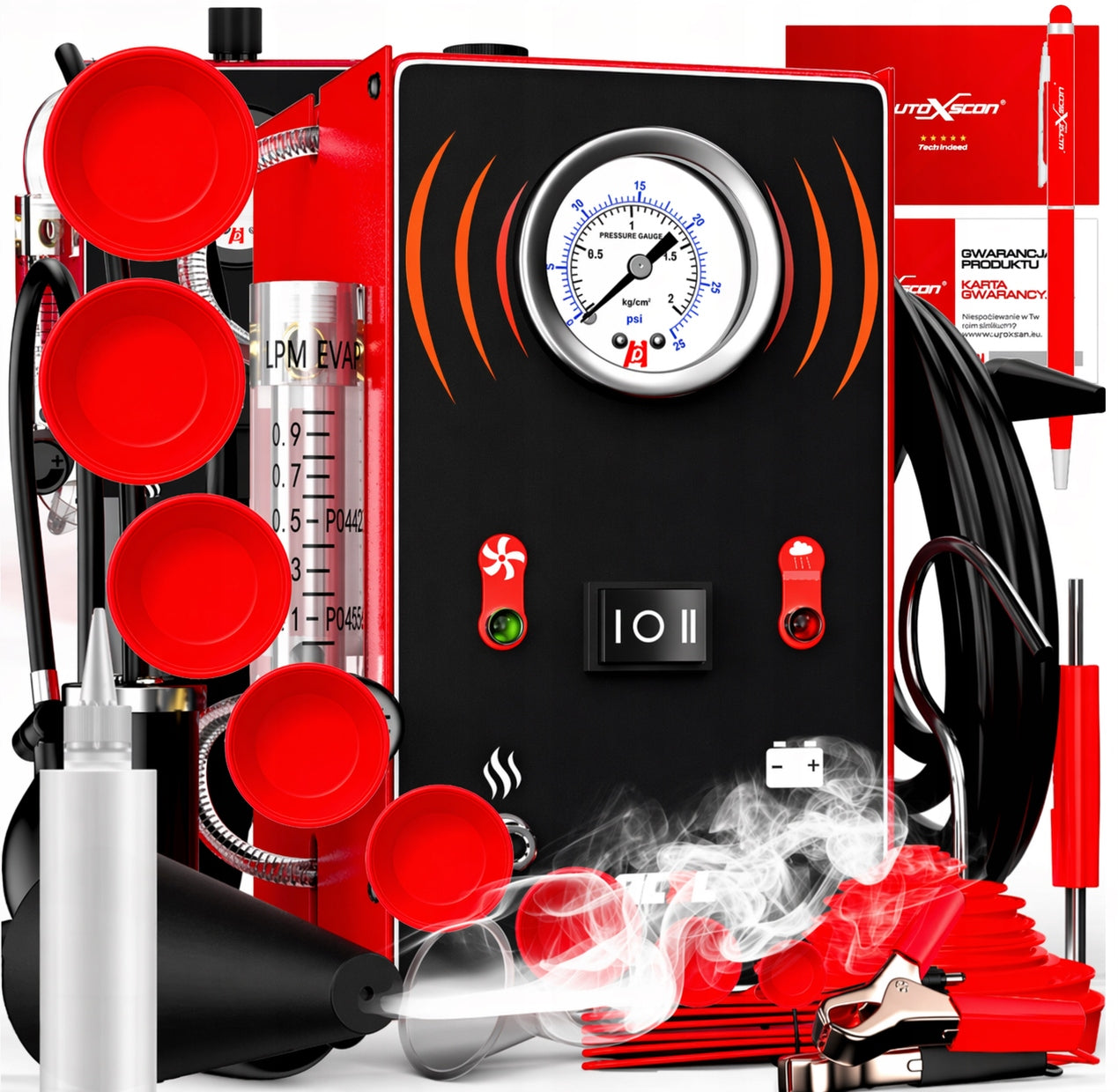

Prekė: Automobilio diagnostikos įrenginys AUTOXSCAN S300PROS su rinkiniais, manometru ir pompa. Kategorija: Diagnostikos testeriai ir sąsajos.
- Gamintojas: AutoXscan
- Modelis: S300 PROS
Professional automatic leak tester for pipes, hoses, connectors, installation using a smoke generator. This will help us to quickly and accurately locate leaks in pipe systems within minutes. Possibility of using the device in intake system tests, turbocharger test, exhaust system test, cooling system test, car sealing test, fuel tank system test, test of various pipe fittings.
Power supply the device draws from the battery 12V
Method of action:
1. You pour 20 ml into the leak detector, e.g.: olives for children
2. You open the engine cover and hang the detector in the cover
3. You disconnect the tube to be connected to the detector.
4. You connect the detector to the DC12V battery.
5. You turn on the power switch.
6. After 30 seconds, the pipe will fill with smoke.
7. Checking for leak points.
The detector has security if it exceeds the work limit, e.g.
Above 75 degrees, it will automatically turn off the power. In such
incidentally, please stop working and return after the device has cooled down.
Description of smoke generator
(A) - Hook for hanging
B). - Flow indicator
(C) - Air indicator
D). - Smoke generation regulator
E). - Smoke outlet
F). - Oil filler
G). - Pressure gauge
(I). - Smoke indicator
J). - Power indicator
Overheating and prevention of frost protection
For detecting leaks of piping systems in cars, motorcycles, snowmobiles, off-road vehicles, quads, light trucks and motorboats, suitable for all car models.
● Overheating protection
● Protection against frost
The device can also work normally at 20 ℃.
Visible pressure gauge
EVAP smoke machine equipped with liquid filled pressure gauge. Observing the change of the pressure gauge, the situation of leakage is clear at first glance.
Adjustable air flow
Output flow rate: < 6 L/min
Air flow meter with adjustable button, easy to control smoke effect.
Fast smoke output
This machine built-in air compressor, with excellent wick and heating element. It can produce smoke instantly by heating USP mineral oil or baby oil. 4ft smoke outlet pipe can help you achieve and connect perfectly.
How to use a car smoke leak detector?
Note before leak test: turn off the vehicle ignition
● Assemble the smoke machine with the supply hose, electrical outlet and hook
● Unscrew the oil filler cap and add the test oil
● Disconnect pipes that need to be connected to smoke leak detector
● Connect the car smoke machine power cord to the 12V vehicle battery (red terminal to the positive battery and black flap to the good ground, then the high power LED will be on if you still check the power supply)
● Introduce the smoke supply hose into the pipeline to be tested with the adapter cone
● Press the air control switch, wait a few seconds for the system to be under pressure, check the reading of the pressure gauge and flowmeter for leakage status. Turn on the smoke generator, adjust the amount of smoke to the right amount to quickly locate the leak position
● Leakage can be assessed depending on where the smoke appears
ANCEL S300 Smoke Machine Automotive Parameter
● Output pressure: 0.8-14.5psi
● Output flow rate:< 6L/min
● Power supply: DC12V, battery for vehicle
● Built-in compressor
● Test oil capacity: 10ml-20ml
● Power cord length: 2.5 meters
● Smoke hose length: 2.5 meters
● Oil test: mineral oil or baby oil (oil not included)
● Multiple protections: oil outlet, overheat and overload protection
● Device Size: 13cm x 8.5cm x 18.5cm
● Package Weight: 2.3kg
The set includes:
- ANCEL S300 smoke sweeper with pressure gauge and indicator
- Power cable
- Long smoke hose
- Hook with pressure nut
- Clog ends take 23 pieces!
- Standard conical adapter
- Universal adapter - air pump
- Valve Core Wrench
- Special EVAP connector
- Hard Rubber Hose Plug
- Paper instruction in English
- Guarantee card
Specifications
| Group | Name | Value |
|---|---|---|
| Parametry | Condition | new |
| Parametry | Invoice | With VAT invoice |
| Parametry | Brand | AutoXscan |
| Parametry | Product weight with unit packaging | 1 kg |
| Parametry | EAN (GTIN) | 6976074580288 |
| Parametry | Manufacturer code | S300 PROS |
| Parametry | Batteries included | yes |
