Automobilinis USB QC įkroviklis 12V/24V su įmontuotu LED voltmetru ir jungikliu

Trumpai apie prekę

Prekė: Automobilinis USB QC įkroviklis 12V/24V su įmontuotu LED voltmetru ir jungikliu. Kategorija: Automobilis.

• Gamintojas: no brand
• Modelis: 41053

➖Symbol 41053➖

⭐Dual USB Quick Charge QC3.0 12V-24V DC Charger with Voltage Indicator and Switch⭐

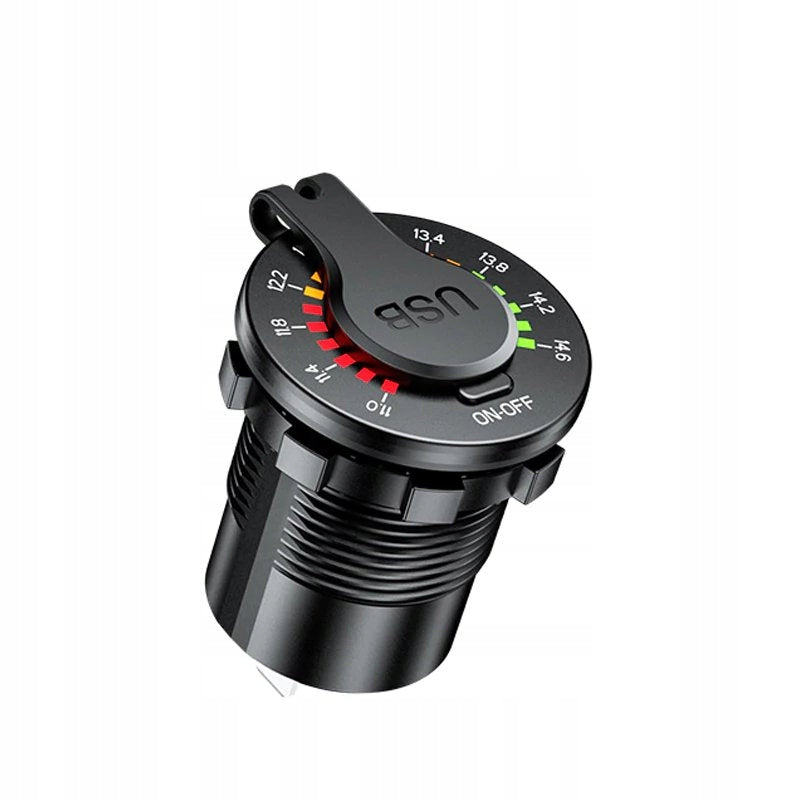

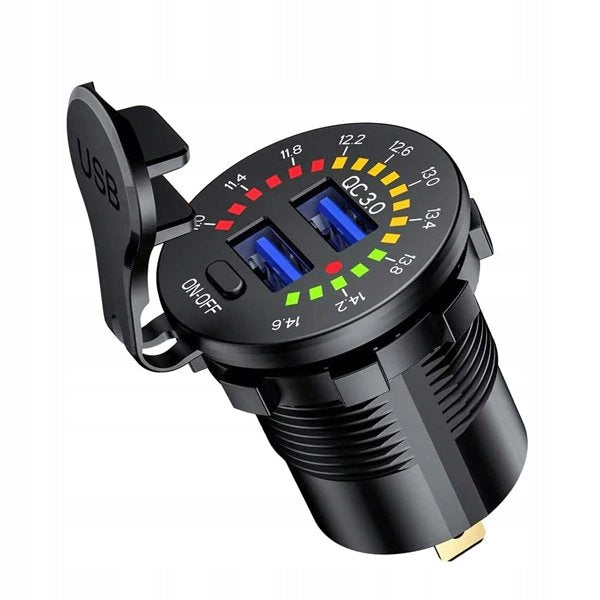

USB charger with 2 ports in Quick Charge QC3.0 standard along with a digital voltage meter displaying on the housing dial. It is equipped with a rubber socket cover to protect against splashes.

The built-in meter is designed to measure constant voltages up to 14.6V max, e.g. for measuring the voltage of installations in a car, motorcycle, etc. It is designed for direct measurement so it does not require any additional elements.

Electrical connection to M6.3mm connector connectors according to the described polarity (+ -). Crimp sockets F6.3mm are included. Installation of voltage indicator in a hole with a diameter of 28-30mm. Fastening by tightening the nut.

The charger can also be mounted in additional frames or in housings.

➖ Specifications ➖

• Model: A200
• Mounting: in 30mm hole
• Connectors: QC3.0 USB Charger
• USB: 2 ports
• Switch: YES, only turns off voltage measurement
• Power supply: 12V/24V DC with vehicle installation
• Application: Charging mobile phone standard and QC
• USB voltage: 5V/3A, 9V/2A, 12V/1.5A automatically selected
• Certificate: CE ROHS
• Material: ABS
• Color: Black
• Built-in Meter: Voltmeter
• Resolution: 1 decimal digit
• Number of digits determining the measured value: 3
• Refreshing the measurement result: approx. 1 sec.
• Meter Type: Electronic, Digital DC Voltage

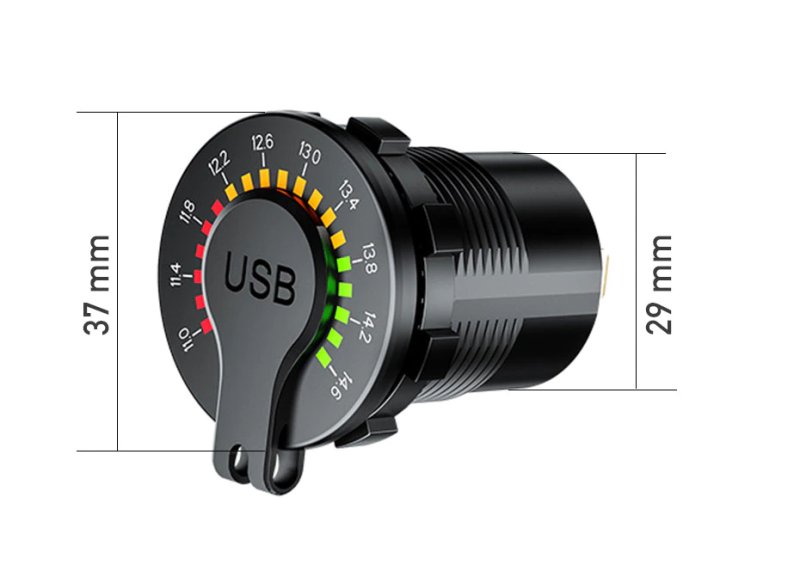

• Dimensions fi=37 x 42+10 (connectors) mm
• Operating temperature range: -10C to +50C

➖The set contains➖

• QC3.0 USB charger with voltmeter
• Connectors 2x

➖The price is for 1pc➖

Specifications

Group	Name	Value
Parametry	Condition	new
Parametry	Invoice	With VAT invoice
Parametry	Manufacturer code	41053
Parametry	Manufacturer	no brand
Parametry	Output current	3000 mA
Parametry	Ports	USB
Parametry	EAN (GTIN)	5906288906438
