Automatinis skaitmeninis multimetras FNIRSI LC1020E, 3000mAh, su laidais

Trumpai apie prekę

Prekė: Automatinis skaitmeninis multimetras FNIRSI LC1020E, 3000mAh, su laidais. Kategorija: Multimetrai.

• Gamintojas: Fnirsi
• Modelis: MIERNIK PRĄDU NAPIĘCIA LC1020E APP0000167

APP0000167

✅ RICH SET

✨ FNIRSI LC1020E ✨

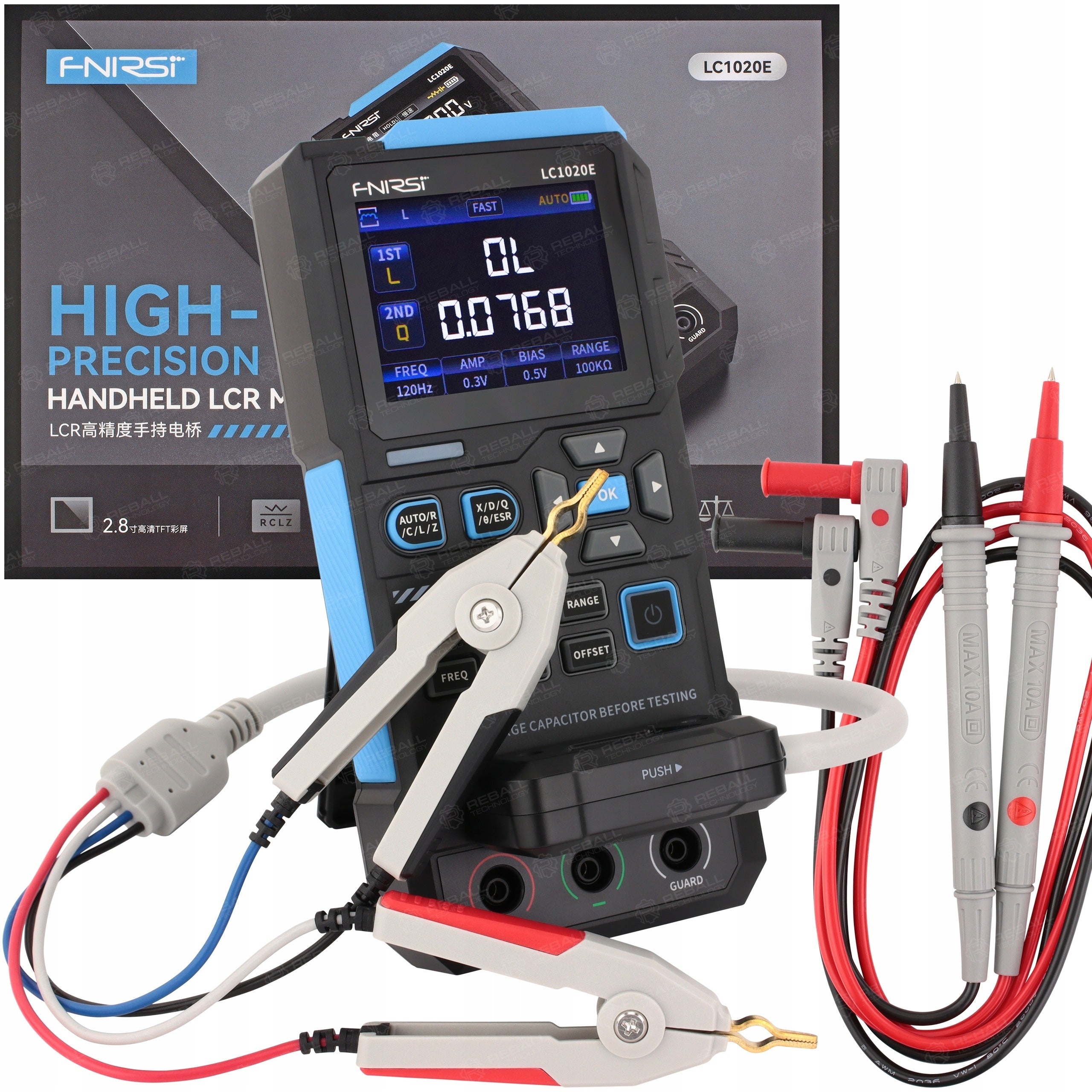

LC1020E is a high-precision portable LCR/ESR meter designed for testing capacitors, coils and resistors.

It works well during service work, electronics diagnostics, selection of elements and quality control at the workshop stand.

The LC1020E combines a compact housing with the functions found in more powerful measuring instruments.

Offers measurement at 5 test frequencies, 3 voltage levels, dual parameter reading and two measurement ports, including 5-wire Kelvin measurement for more precise applications.

✨ Characteristics ✨

✅ Automatic recognition of R/L/C elements – faster and more convenient operation.

✅ Measurement at 5 test frequencies – 100 Hz, 120 Hz, 1 kHz, 10 kHz and 100 kHz.

✅ 3 test voltage levels – 0,1 V, 0,3 V and 0,6 V.

✅ Dual reading of parameters – L/C/R/Z and X/D/Q/? /ESR.

✅ Two measuring ports – 3-wire for quick testing and 5-wire with 4-wire Kelvin measurement for greater precision.

✨ Characteristics ✨

✅ Sorting mode with Pass / Fail function – convenient for selection and quality control.

✅ Results recording and data hold function – facilitates daily measurement work.

✅ Open/short calibration – improves measurement accuracy.

✅ TFT 2,8" colour display – clear preview of the main and additional parameter.

✅ Built-in 3000mAh battery – convenient operation without constant connection to power.

✅ USB-C charging – convenient operation and quick recharging of the device.

⚙️ Technical Specifications ⚙️

➡️ Model: FNIRSI LC1020E.

➡️ Type: Portable LCR / ESR Meter.

➡️ Declared Accuracy: up to ±0.05%.

➡️ Resolution: 4.5 digits.

➡️ Test Frequency: 100Hz/120Hz/1kHz/10kHz/100kHz.

➡️ Test Voltage Levels: 0.1V/0.3V/0.6V.

➡️ Inductance Measurement Range: 0–100H.

➡️ Capacitance Measurement Range: 0–100mF.

➡️ Resistance Measurement Range: 0–100MΩ.

➡️ Display: 2.8" TFT LCD.

➡️ Additional Parameters: X/D/Q/θ/ESR.

➡️ Calibration: Open / Short.

➡️ Battery: 3000 mAh / 3.7V Lithium-ion.

➡️ Charging Interface: USB Type-C.

➡️ Output Impedance: 100Ω.

➡️ Measurement Ports: 3-terminal and 5-terminal with 4-wire Kelvin measurement.

✨ Contents of the set ✨

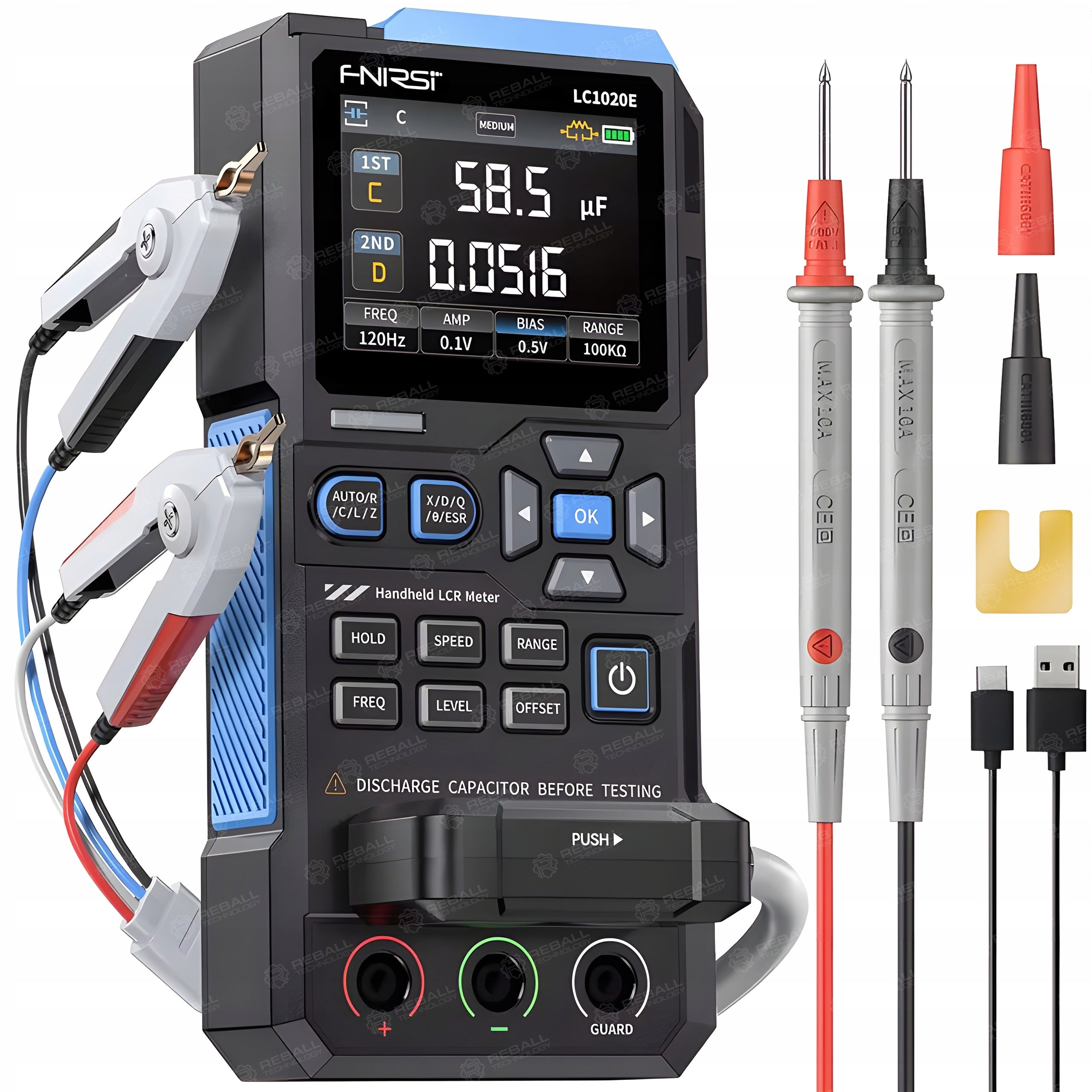

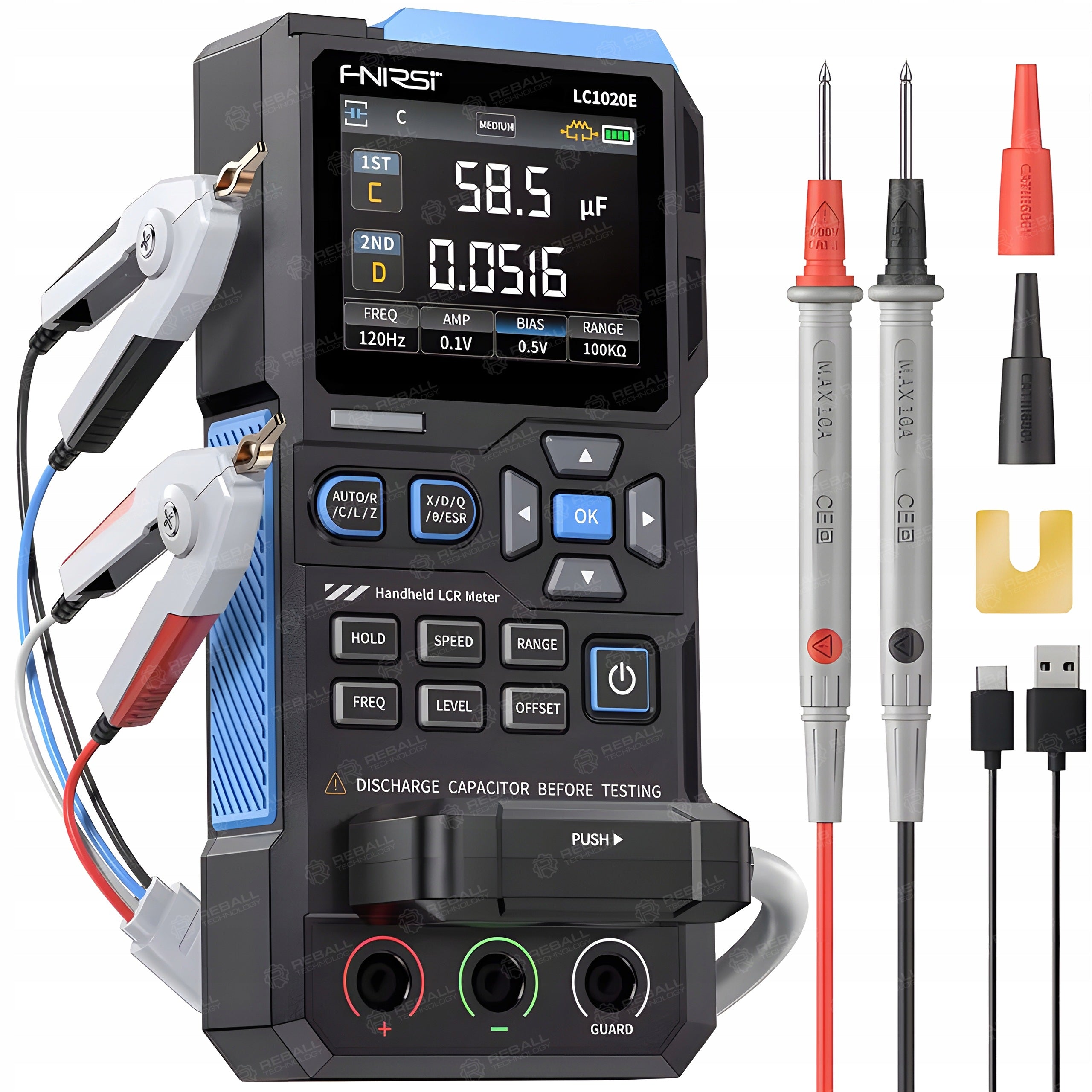

✅ LCR / ESR FNIRSI LC1020E meter – 1 pc.

✅ Straight measuring cables – 1 set

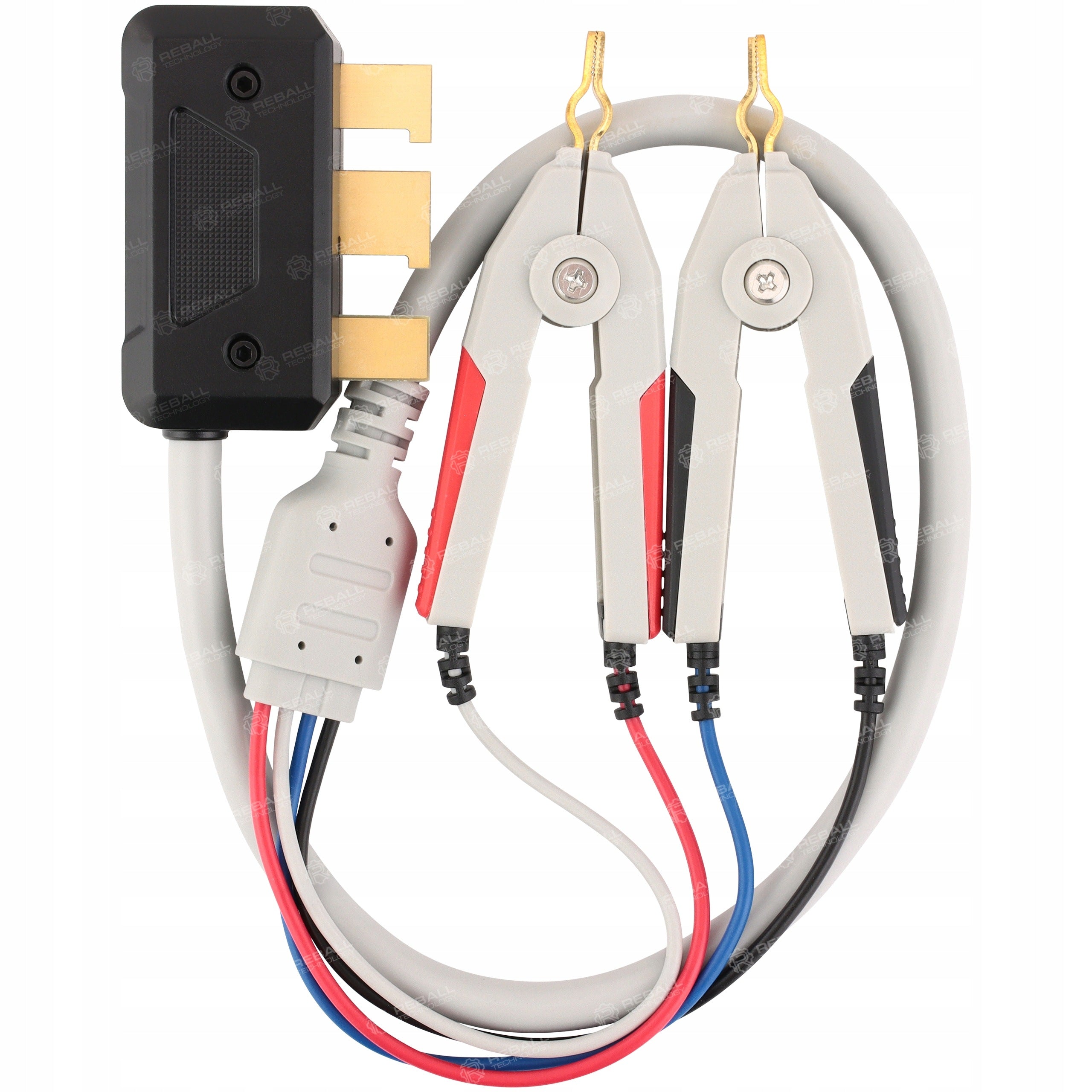

✅ Terminal measuring cables – 1 set

✅ Short-circuit plate for calibration – 1 pc.

✅ USB-C cable – 1 pc.

✅ User manual – 1 pc.

You need other soldering or service accessories - check out our other listings.

Specifications

Group	Name	Value
Parametry	Condition	new
Parametry	Invoice	With VAT invoice
Parametry	Brand	Fnirsi
Parametry	EAN (GTIN)	5903815935077
Parametry	Manufacturer code	MIERNIK PRĄDU NAPIĘCIA LC1020E APP0000167
Parametry	Batteries included	no
