Automatinis pavienio vartų variklis DRIVE 4.3 su 2 nuotolinio valdymo pulteliais ir lempa

Trumpai apie prekę

Prekė: Automatinis pavienio vartų variklis DRIVE 4.3 su 2 nuotolinio valdymo pulteliais ir lempa. Kategorija: Kietieji diskai.

• Gamintojas: Safe
• Modelis: V6
• Įtampa: 220 V

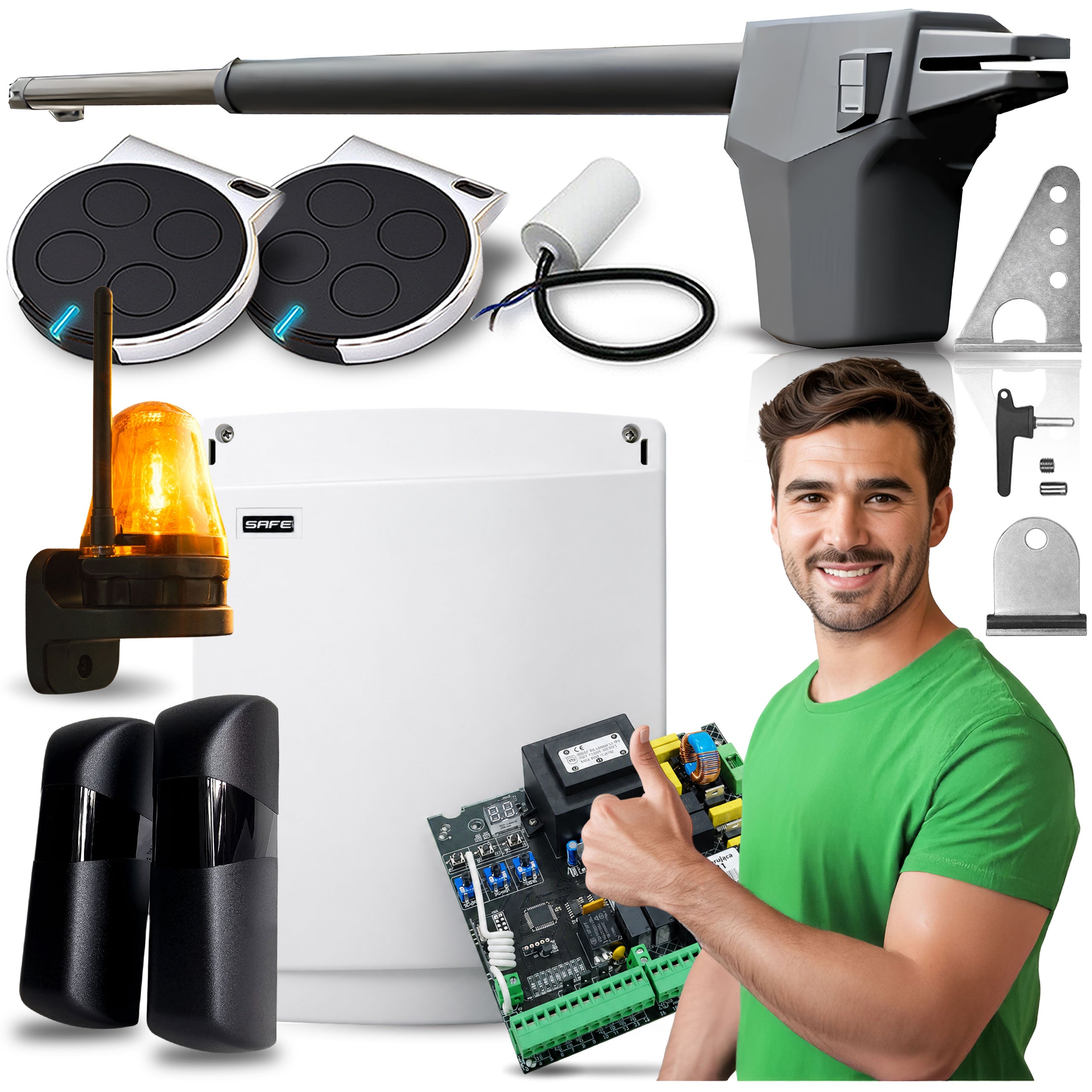

The Safe set includes:

• 1x Safe actuator up to 4,3 m RIGHT
• 1x Control panel S81
• 1x Control panel housing
• 1x Warning lamp with antenna
• 1x 180 Degree Adjustable Rotary Photocells
• 1x Built-in universal 3-channel radio receiver
• 2x Elegant 4-channel remote control (color sent randomly),
• 1x Starting capacitor
• 1x Cable Connection Cubes
• 1x Mounting brackets for gate and pole
• 1x Mounting accessories and unscrewing key
• 1x PL manual and warranty card

⭐ POWER, COMFORT AND RELIABILITY

• ✅ SMOOTH AND QUIET OPERATION – the Safe actuator opens your gate quietly and efficiently
• ✅STRONG CONSTRUCTION – a durable internal screw mechanism ensures durability even in harsh weather conditions.
• ✅ LARGE POWER – high thrust, up to 4000 N allows you to operate a gate weighing up to 400 kg per wing and up to 4,3 meters long.
• ✅ SELF-LOCKING ACTUATORS – increase the safety of your property

⚙ FEATURES THAT WILL MAKE YOUR LIFE EASIER

• ▶ SOFT START/ STOP – Adjustable acceleration and braking protect the mechanism and increase comfort.
• ▶ AUTOMATIC CLOSING – the gate will close itself when you forget about it!
• ▶ EMERGENCY MODE – manual opening in the absence of power with a key
• ▶ SMOOTH POWER AND SLOWDOWN ADJUSTMENT- adapting the pace of work to your needs and weather conditions
• ▶ UNIVERSAL RADIO RECEIVER – Works with remote controls of different brands (LIST BELOW)
• ▶ CONTROL FROM THE BUTTON- Control from the bell button with the "step by step" function.
• ▶ OPENING FROM THE INTERCOM

▶ HOW DOES THE DRIVE WORK? SEE SAFE IN ACTION

⭐ COPY THE LINK TO YOUR BROWSER AND WATCH THE VIDEO! :

▶ https://youtu.be/n6uJ0GOaZAs

• The film uses mounting on a double-leaf gate with additional joints, which are not part of the offer.
• This offer includes the set described in the first paragraph.
• Review photo, computer is not part of the set

▶ WILL THE DRIVE WORK FOR MY GATE?

• ✅ The SAFE drive is designed to handle gates up to 4,3 m long!
• ✅ In order to achieve support for the maximum length of the gate, the installation must be carried out with appropriate mounting parameters.
• ✅ Property gates usually weigh from 150-350kg

⚡ DESCRIPTION:

FIG. A: actuator dimensions

FIG. B:

• 1 hinge
• 2 pole
• 3 mount No. 1
• 4 fixing No. 2

▶ PARAMETERS FOR OPENING ANGLE 95˚:

• X= 160
• Y= 220
• Z= 1185

▶ PARAMETERS FOR OPENING ANGLE 120˚:

• X= 165
• Y= 165
• Z= 1185

▶ DO YOU HAVE ANY QUESTIONS? CHECK THE FAQ SECTION AT THE BOTTOM OF THE OFFER ⏬

⚙ TECHNICAL PARAMETERS

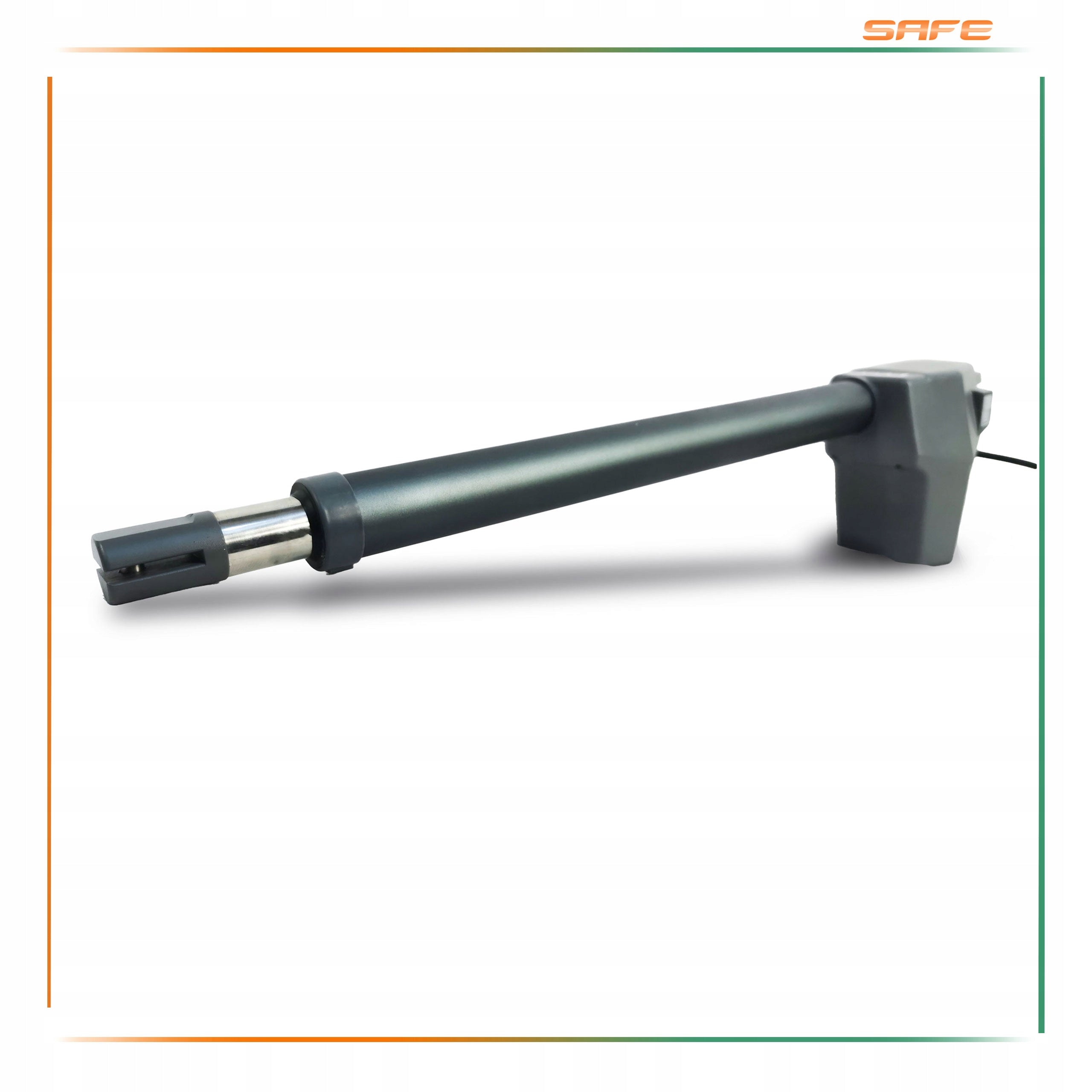

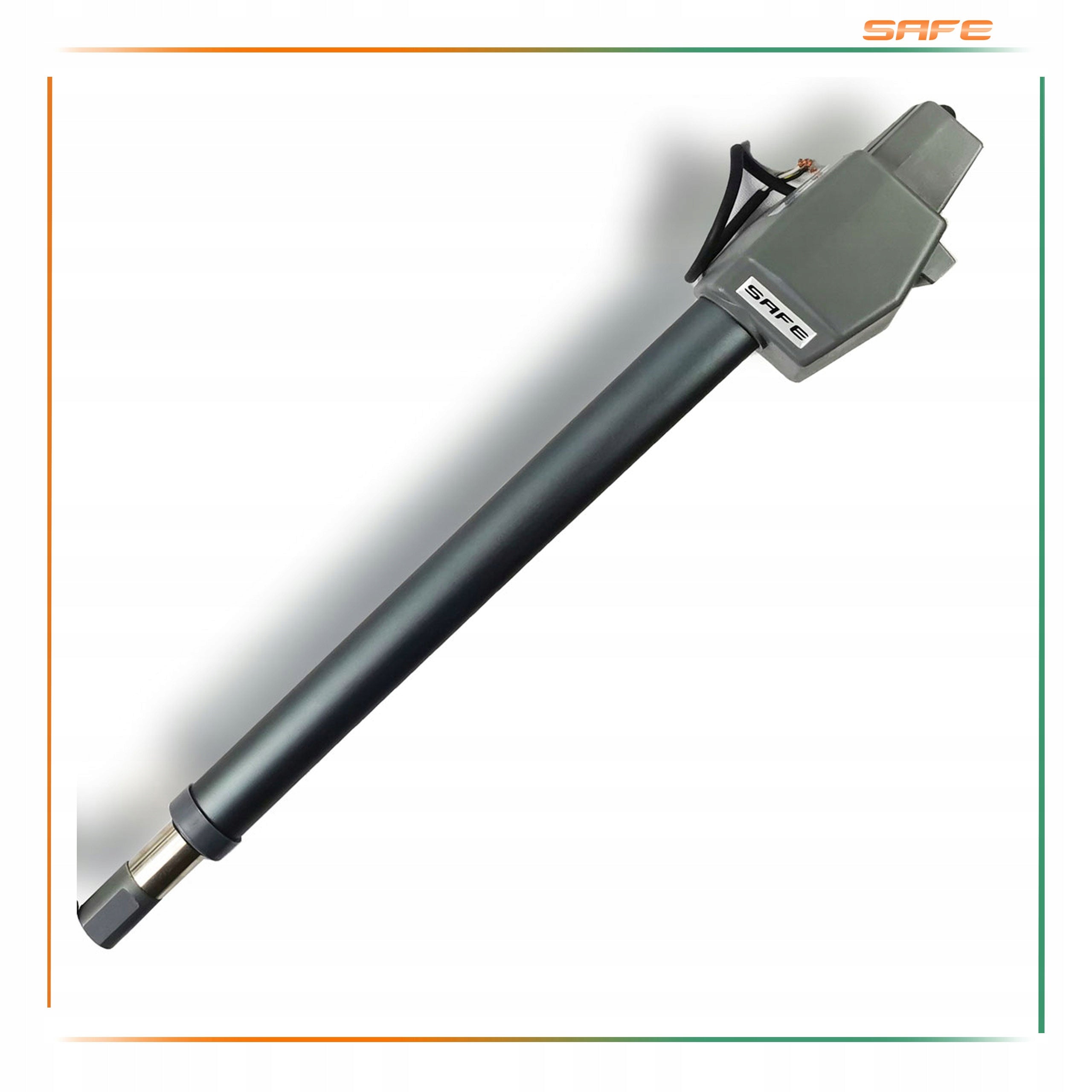

1x actuator SAFE RIGHT

• Power supply voltage: AC220V/AC110V
• Engine power: 150W
• Extension length: 600 mm
• Maximum thrust: 4000N
• Maximum wing length: 4,3 m
• Maximum wing weight: Up to 400 kg
• Noise level: < 56 dB
• IP class: 54
• Certificates: CE, ROHS
• Operating temperature range: -45°C~+65°C
• Color: Graphite
• Dimensions (L. x H x width ): 1596x174x102

✅ EASY INSTALLATION AND RELIABLE OPERATION

▶ HIGH QUALITY- Electronics is based on microprocessors from the renowned company Microchip Technology Inc., dealing with the production of integrated circuits since 1987.

▶ EASY INSTALLATION – you can install the drive yourself if you have the right knowledge and experience

▶ CONVENIENT ACCESS – the arrangement of electronics and wires facilitates configuration and servicing.

✅ COMPATIBLE RADIO RECEIVER

▶ COOPERATION WITH PILOTS OF OTHER BRANDS – the S81 control panel supports a 433,92 MHz system based on Keeloq technology.

▶ ONE REMOTE CONTROL FOR ALL GATES – there is a good chance that your current remotes will be compatible with our receiver! Check out the list below:

➡ List of cooperating pilots:

• SAFE - all variable-code
• KEY - 900TXW-42R, 900TXW-44R, 900TXB-42R, 900TXB-44R
• NICE Smilo (SM2, SM4)
• FAAC - FIX2, FIX3, FIX4, LC, RCBE
• CAME - Space series (SP2, SP4)- OLD VERSION
• TOUSEK - RS433 series
• DICKERT S10-433A1K00
• SATEL - all variable-code
• DTM - all (ZSP series)
• NORMSTAHL - mini, micro series
• BENINCA - series TO.GO, T.WK, IO (does not work with remote controls based on ARC encoding)
• INEL - PIL-01XT, PIL-02XT
• EL-EM
• GORKE - all
• BFT - mitto2, mitto4
• BIG TOR - solo
• DICKERT S10-433A1K00
• Wisniowski - 2k433
• ELMES and many others

⭐ CERTIFICATES: RoHS, CE

• They confirm that the product meets EU safety, health and environmental standards.
• This ensures that it is safe for you and your surroundings. ✅

➡ UNIVERSAL LED DC/AC LAMP WITH ANTENNA

• Safe LED is a modern warning lamp with a built-in antenna with a frequency of 433,92 MHz, improves the signal of remote controls, increasing the comfort of use.
• Working mode to choose from – the lamp can shine with continuous or intermittent light (1Hz), adapting to your needs.
• Improved visibility after dark – gate opening signal increases safety by alerting household members and passers-by.
• Universal DC/AC power supply – compatibility with various gate automation systems.

➡ SAFE ROTARY PHOTOCELLS adjustable, viewing angle 180˚

• Effective protection – a set of barriers protecting the gate against accidental closure, increasing the safety of users.
• Adjustable electronics – the ability to precisely adjust the settings inside the housing for maximum efficiency.
• Easy installation on poles – thanks to the built-in adjustment, you can install photocells without additional angle brackets, which speeds up and facilitates installation.

➡ REMOTE CONTROL SAFE GV (color sent randomly) WITH BATTERY

The set includes Safe GV remote controls, which feature:

• elegant appearance- highlighted by chrome inserts,
• large, comfortable buttons, ensure comfortable operation of the remote control even with gloves,
• convenient and practical pendant - thanks to it you can always have remote controls with you,
• resistance to low temperatures and splashes- the remote control can operate at temperatures up to -20 °C and has IP44 protection

➡ ACCESSORIES

• Assembly elements– contains elements that facilitate installation.
• Extreme switches – precise control of the gate position for greater safety and comfort of use.
• Emergency unlock key – allows you to manually release the drive and switch to idling in the event of a power outage.

▶️ FAQ - FREQUENTLY ASKED QUESTIONS

1️⃣ Can I install the gate opener myself?

✅ Yes, you can install it yourself – this will not affect your warranty. However, keep in mind that if the opener is damaged due to incorrect installation, the repair will not be covered by the warranty. Installation should be performed by a person with adequate knowledge and experience. If this is your first installation, it is worth seeking the help of a specialist.

2️⃣ Where can I find the installation manual?

✅ You will find the manual attached to the listing. The file is available at the bottom of the page – just click and download it. We will include a printed copy with your order.

❗️❕Attention – important clarification: One of the previous versions of the manual contained a printing error regarding the maximum wing length (3 m). The correct specification is up to 4.3 m per wing (i.e., 8.6 m in total). This error has been corrected in the current materials. The opener itself is fully adapted to handle larger gates – as described in the listing. You can be sure that you are buying equipment that can handle a solid construction.

3️⃣ How do I determine whether I need a right or left actuator?

✅ Stand inside your property, facing the gate. If the post for mounting the actuator is on the right side – choose the right actuator, if on the left – the left one.

4️⃣ Is the set complete?

✅ You will find details about the elements included in the set in the listing description. Several variants are available, so you can tailor the set to your needs. Remember that you need to provide the wires for connecting the drive yourself.

5️⃣ I need additional accessories (remote control, lamp, handles for opening the gate from outside the property, etc.). Where can I find them?

✅ Check our other listings – enter the product you need in the search engine and add it to your cart. This way you can complete the perfect set for yourself!

⭐ ⭐ ⭐ ⭐ ⭐ WHY CHOOSE SAFE DEVICES?

SAFE drives – reliability, convenience and safety for years!

⭐ Durability and reliability – robust construction and high-quality components ensure a long service life and trouble-free operation, even in harsh weather conditions.

⭐ Experience, knowledge and passion – for over 12 years we have been developing solutions in the field of gate automation, video intercoms and access control systems. We create products tailored to the real needs of users, combining high quality with competitive price.

⭐ Easy installation and simple programming – our drives are designed to make installation and configuration intuitive. With clear instructions, starting the system is easy and quick.

⭐ Safety and comfort of use – our automation systems are equipped with modern security features that protect users and vehicles while providing the convenience of everyday use.

Choose SAFE and enjoy reliable drive for years!

Specifications

Group	Name	Value
Parametry	Condition	new
Parametry	Invoice	With VAT invoice
Parametry	Brand	Safe
Parametry	Drive type	for swing gates
Parametry	Maximum wing weight	400 kg
Parametry	Maximum wing length	4.3 m
Parametry	Supply voltage	220 V
Parametry	Maximum opening angle	120°
Parametry	Engine power	150 W
Parametry	Opening time	12 s
Parametry	Manufacturer code	V6
Parametry	Packaging status	original
Parametry	Certificates of conformity	CE
Parametry	Batteries included	no
Parametry	Set contents	control unit,photocells,mounting elements,drive,remote control,warning light
Parametry	Additional features	automatic closing function,controlled from intercom
