Automatinio vartų komplektas FAAC ALFA 414, 8 m, su 3 pulteliais XT4 ir LUCY LED

Trumpai apie prekę

Prekė: Automatinio vartų komplektas FAAC ALFA 414, 8 m, su 3 pulteliais XT4 ir LUCY LED. Kategorija: Kietieji diskai.

• Gamintojas: Faac
• Modelis: 414_EXT_XLED

Automation set for swing gate with a wing length of up to 3 m (up to 4 m with electromagnetic lock).

Designed for backyard use.

Choose the correct version of FAAC 414 automation

X - Length of tube for fixing (depending on version 2 or 3 screws)

Y - Embedding the hinge relative to the corner of the post

Maximum tube extension: FAAC 414 SHORT - 290 mm | FAAC 414 ALFA - 390 mm | FAAC 414 LONG - 490 mm

⚠ Attention!

For extension, due to the movement of the gate wings, it is recommended to leave minimum 20 mm of stock.

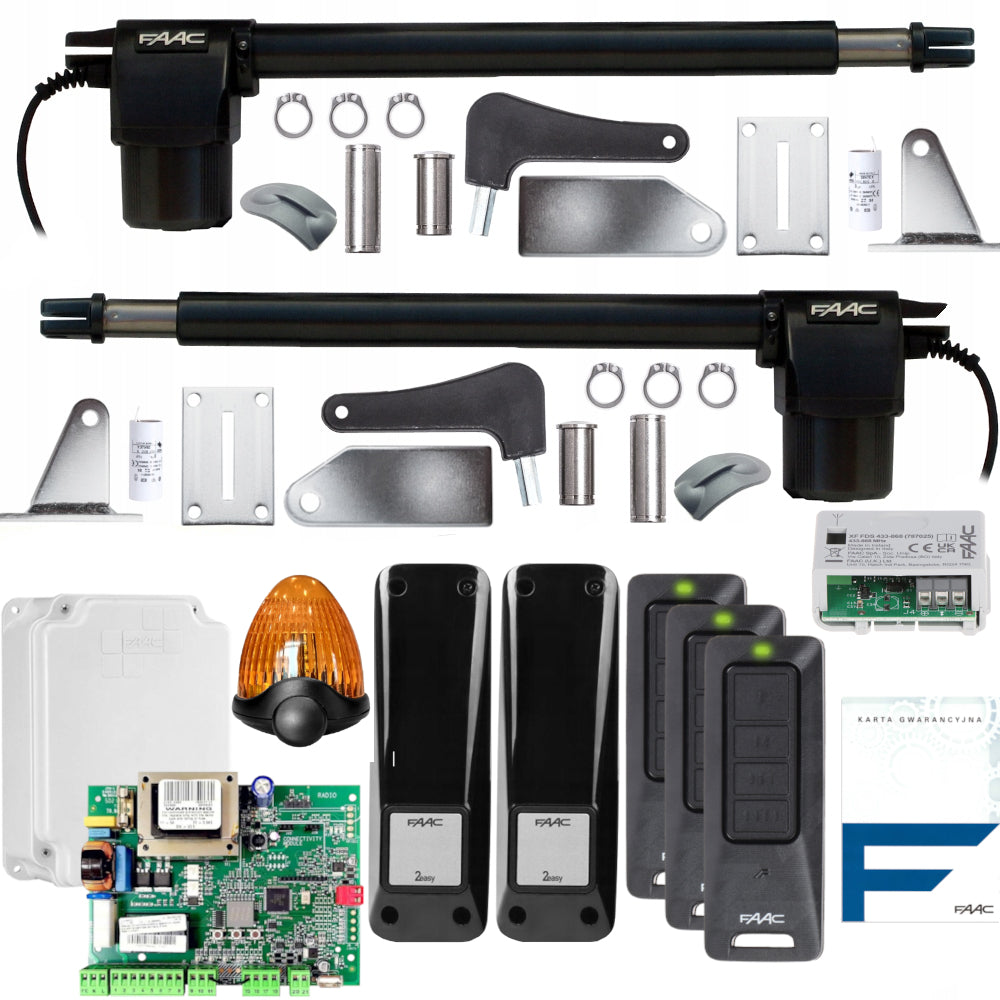

By purchasing FAAC ALFA 414 on our auction you will receive:

✅ FAAC 414 - Actuator 230 Vac for swing gate x 2 units

✅ FAAC E045S - control panel x 1 unit

✅ FAAC XF FDS 433 - 868 - control unit 433 - 868 MHz x 1 pc.

✅ FAAC XT4 FDS 433 - 868 - four-channel remote control 433 - 868 MHz x 3 pcs.

✅ FAAC XP20B D - Safety photocells x 1 set

✅ SM LUCY LED - LED signal lamp with antenna x 1 pc.

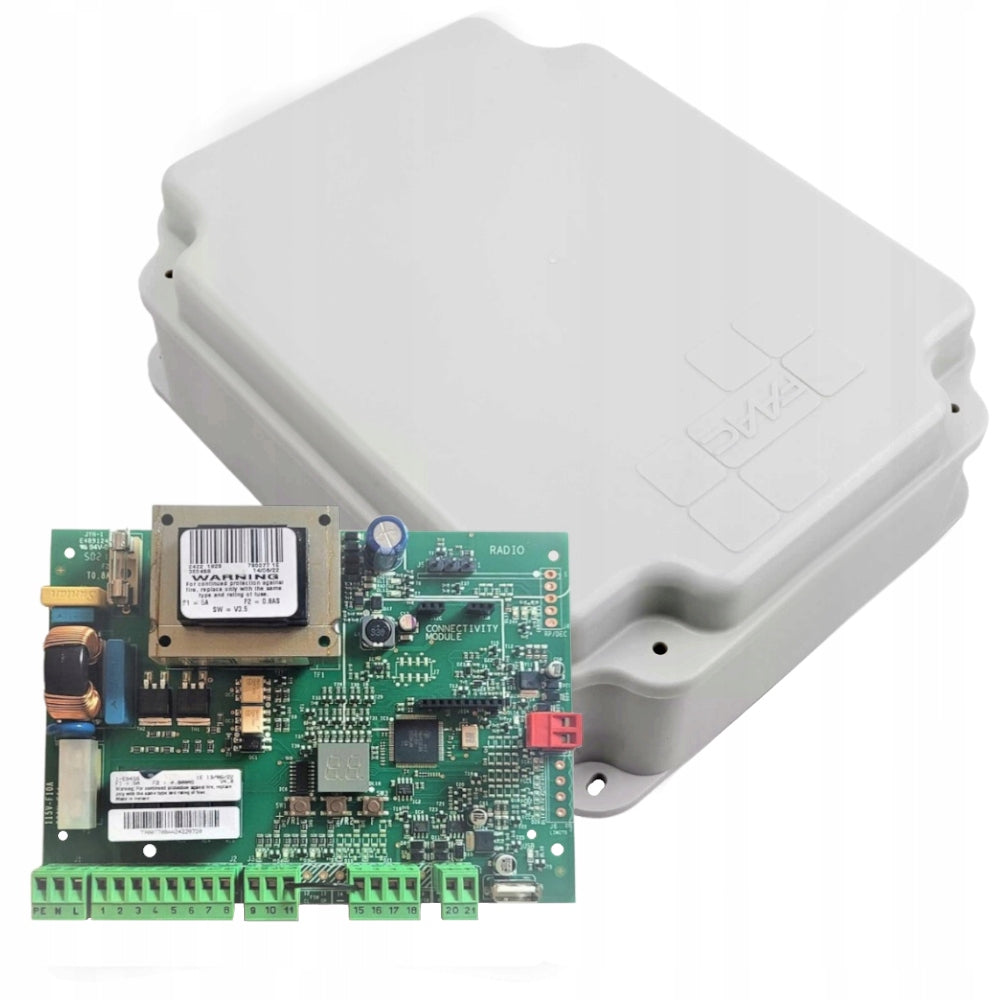

✅ FAAC 720119 - Control panel housing mod. E x 1 pcs.

✅ Personalized Emergency Unlock Key x 1 Set

✅ Starting capacitor x 1 set

✅ Mounting accessories x 2 sets

✅ Operation and assembly manual - download

✅ Warranty card from an authorized distributor of FAAC Poland Sp. z o. o.

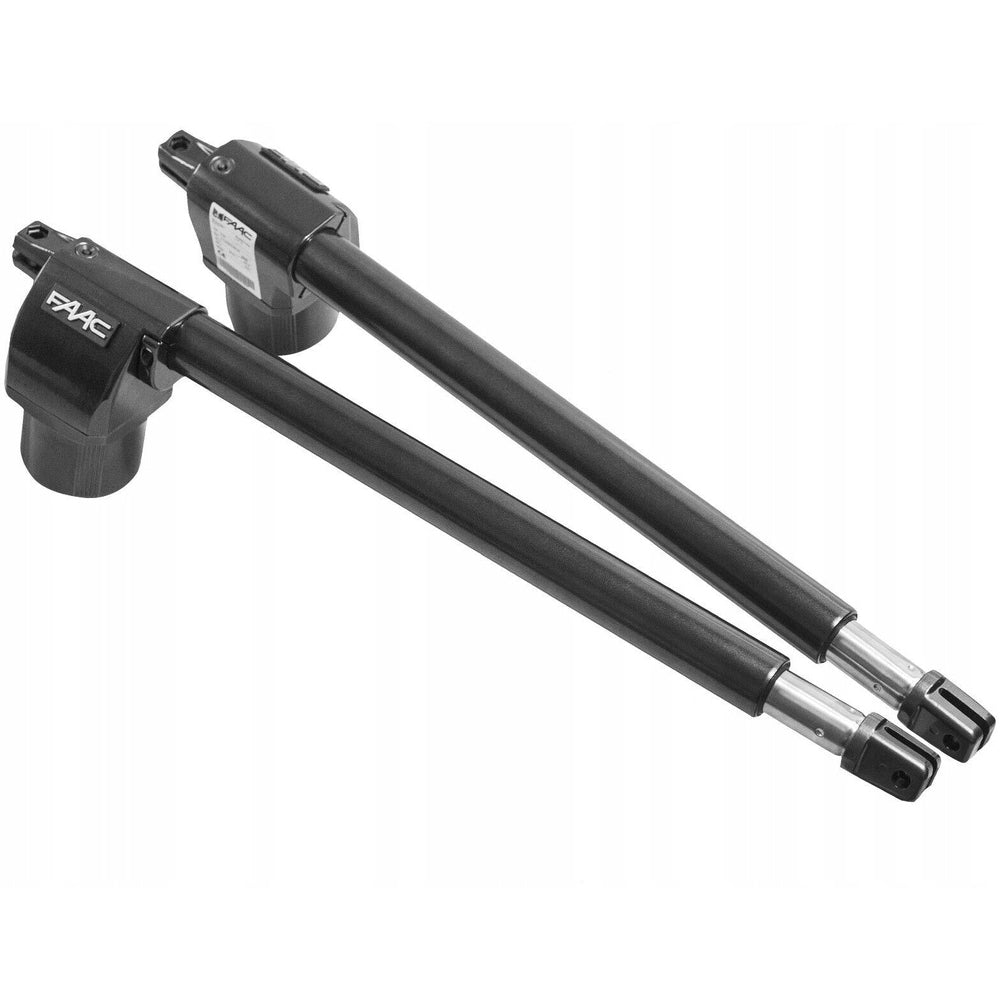

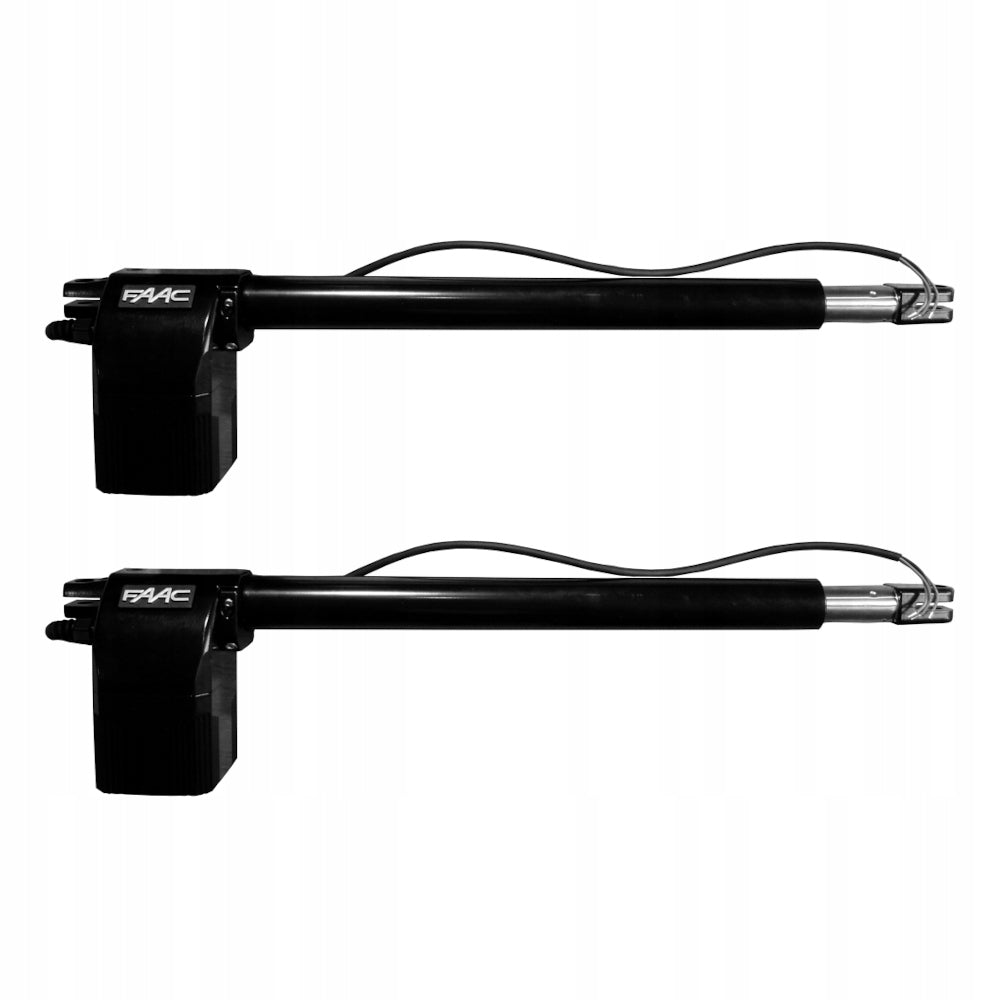

FAAC 414

A reliable combination of tradition and modernity for your swing gate!

FAAC ALFA 414 is a robust and reliable electromechanical actuator designed for swing gate automation.

It is ideal for backyard use, ensuring safety, comfort, and long-lasting performance.

FAAC 414 - Drive functions:

✅ Ease of installation: The actuator is designed for simple and quick installation, making it easy for both installers and end users.

✅ Sturdy construction: The housing is made of high-quality weather-resistant materials, which ensures a long lifespan of the device.

✅ Silent operation: The actuator mechanism operates quietly, which minimizes noise when opening and closing the gate.

✅ Safety: Integrated safety systems such as obstacle detection and emergency unlocking guarantee safe use.

FAAC 414 - Technical specification of the drive:

✅ Manufacturer: FAAC

✅ Power supply: 230 Vac 50-60 Hz

✅ Power supply: 230 Vac

✅ Engine type: asynchronous, single-phase

✅ Maximum power consumption: 280 W

✅ Maximum thrust: 3500 N

✅ Maximum linear speed (piston): 16 mm per second

✅ Usable working stroke: 390 mm

✅ Maximum wing opening angle: 110°

✅ Working temperature: -20°C to +55°C

✅ Thermal protection: 140°C

✅ Degree of protection: IP44

✅ Weight: 6,5 kg

✅ Frequency of use: 18 cycles/hour (home use)

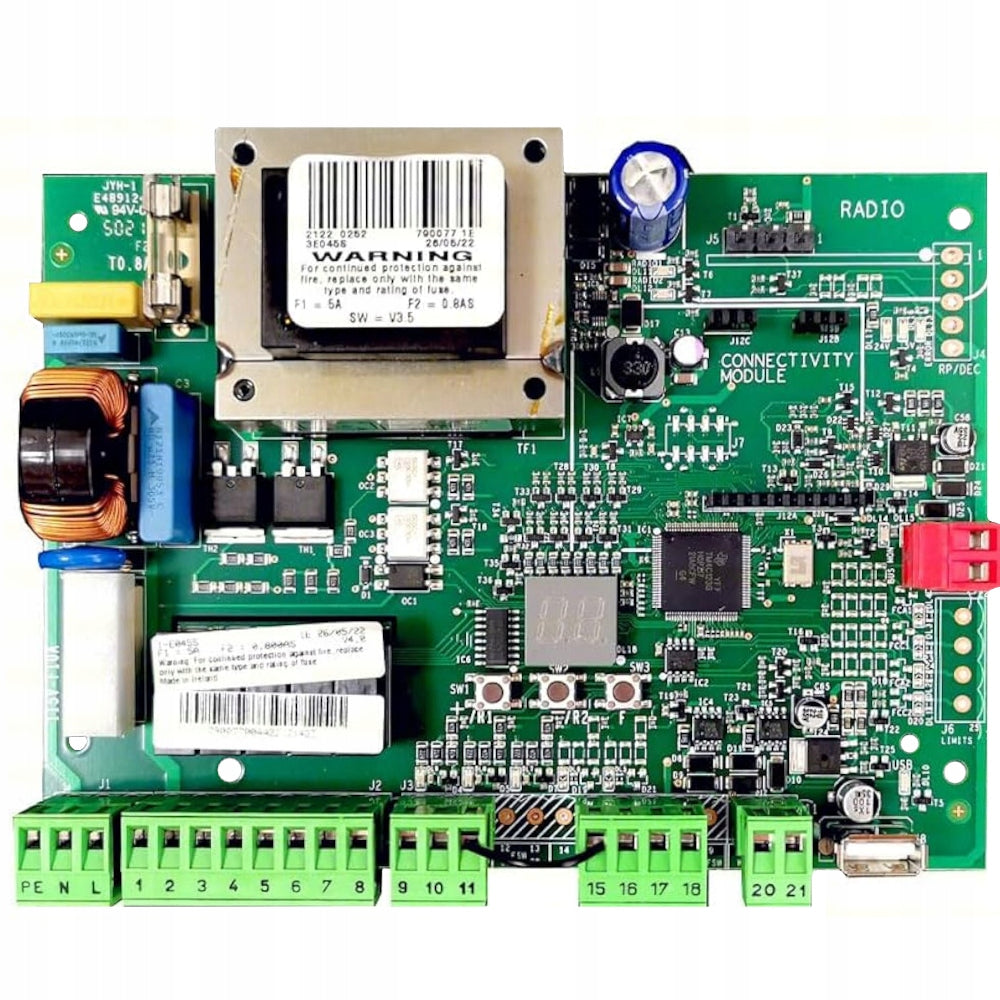

FAAC E045S

Advanced technology for reliable automation of your gate!

The FAAC E045S control panel is an advanced solution dedicated to swing gate automation, offering unparalleled performance and versatility. Equipped with state-of-the-art electronics, the control panel provides precise control and a range of functions such as automatic closing, speed control, gate function and obstacle detection. The intuitive interface allows you to easily configure and adjust the settings to suit your individual needs.

Robust construction and high-quality components guarantee reliability and long-term use in all conditions. The E045S also features ease of installation and compatibility with a wide range of accessories, making it an ideal choice for both residential and commercial installations.

Innovative technical solutions make gate management simpler and more efficient than ever before. The FAAC E045S control panel is synonymous with reliability, advanced technology and comfort of use in gate automation.

FAAC E045S - Control panel functions:

✅ 2 levels of programming (SHORTENED and ADVANCED) using buttons and LCD display.

✅ Built-in BUS - 2 EASY system that allows you to connect photocells with two wires.

✅ Power supply: 230 V

✅ Accessory power supply: 24V D.C maximum 500 mA

✅ Support total and partial gate opening

✅ Maximum motor load: 800 W, fuses: 2,5 A, lamp power supply 230 V maximum 60 W

✅ Automatic closing function, force adjustment

✅ Wing delay when closing, lamp pre-flashing

✅ Dimensions of the control panel 163x120x43 mm

✅ Inputs on connector: Module XF433/868, USB

✅ Inputs on terminal block: Mains power supply, BUS-2EASY, OPEN-A, OPEN-B, STOP

✅ Output on terminal block: Flashing light, Motor, Electrolock (LOCK), W.L., Power supply accessories

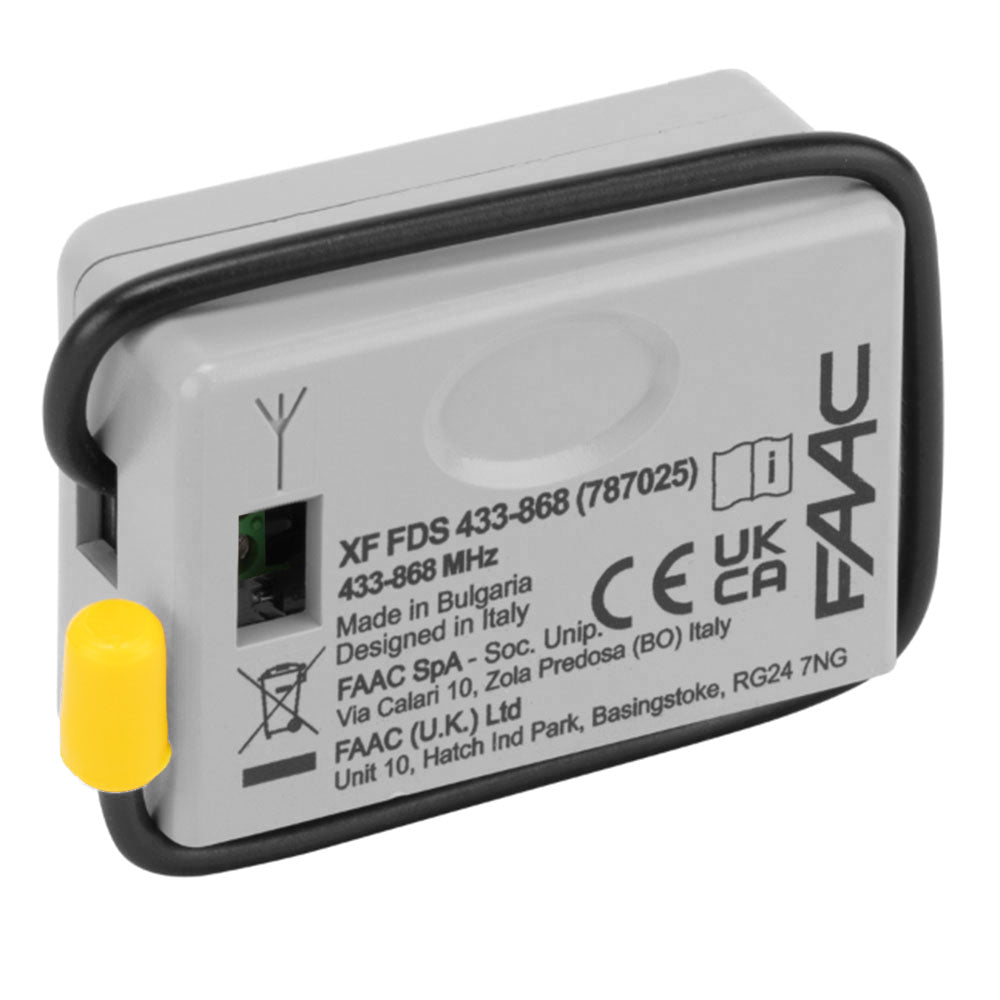

FAAC XF FDS 433 - 868

High quality 868 MHz dual channel radio module!

✅ Model: XF FDS 433 - 868

✅ Catalog number: 787832

✅ Number of channels: 2

✅ Frequency: 433 - 868,35 MHz

✅ Radio code: FDS - FAAC Digital Signature

✅ Power supply: 24 Vdc (from control panel)

✅ Connection: Quick coupler

✅ Memory: 248 pilots

✅ Dimensions: 52 x 36 x 22 mm

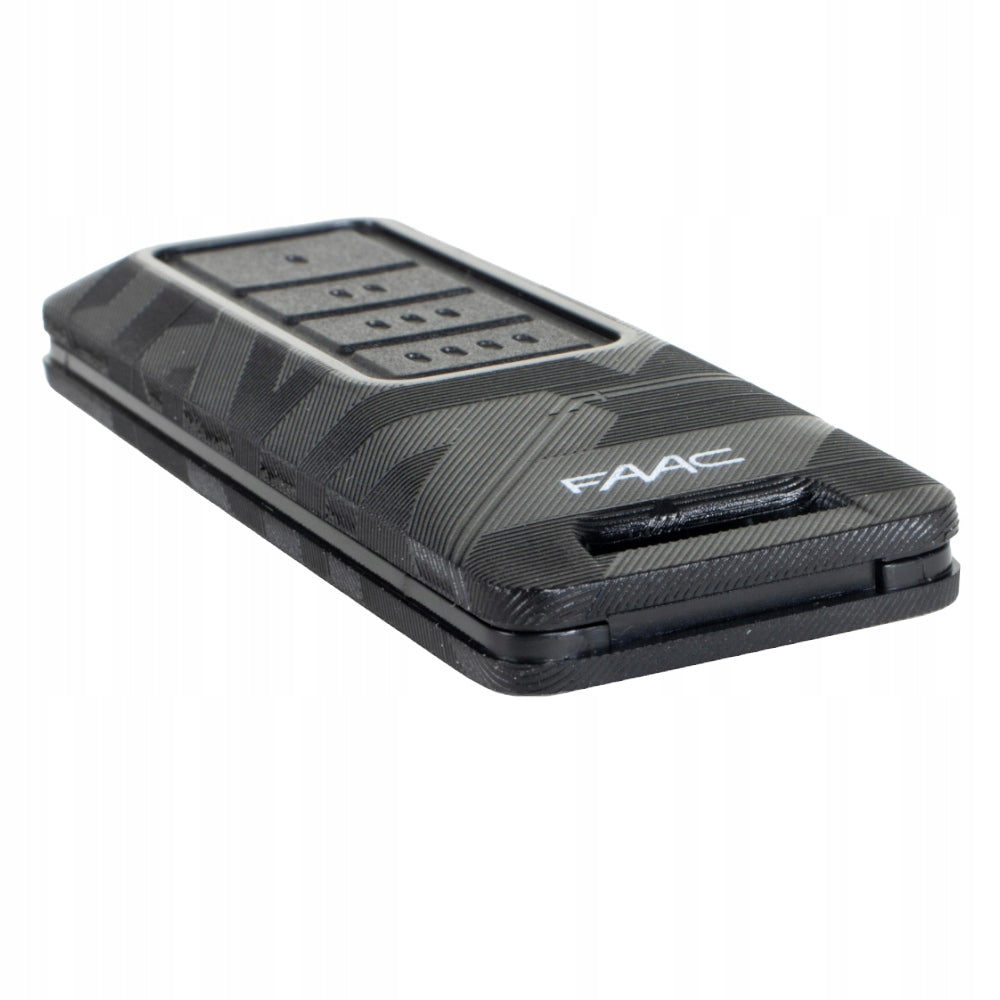

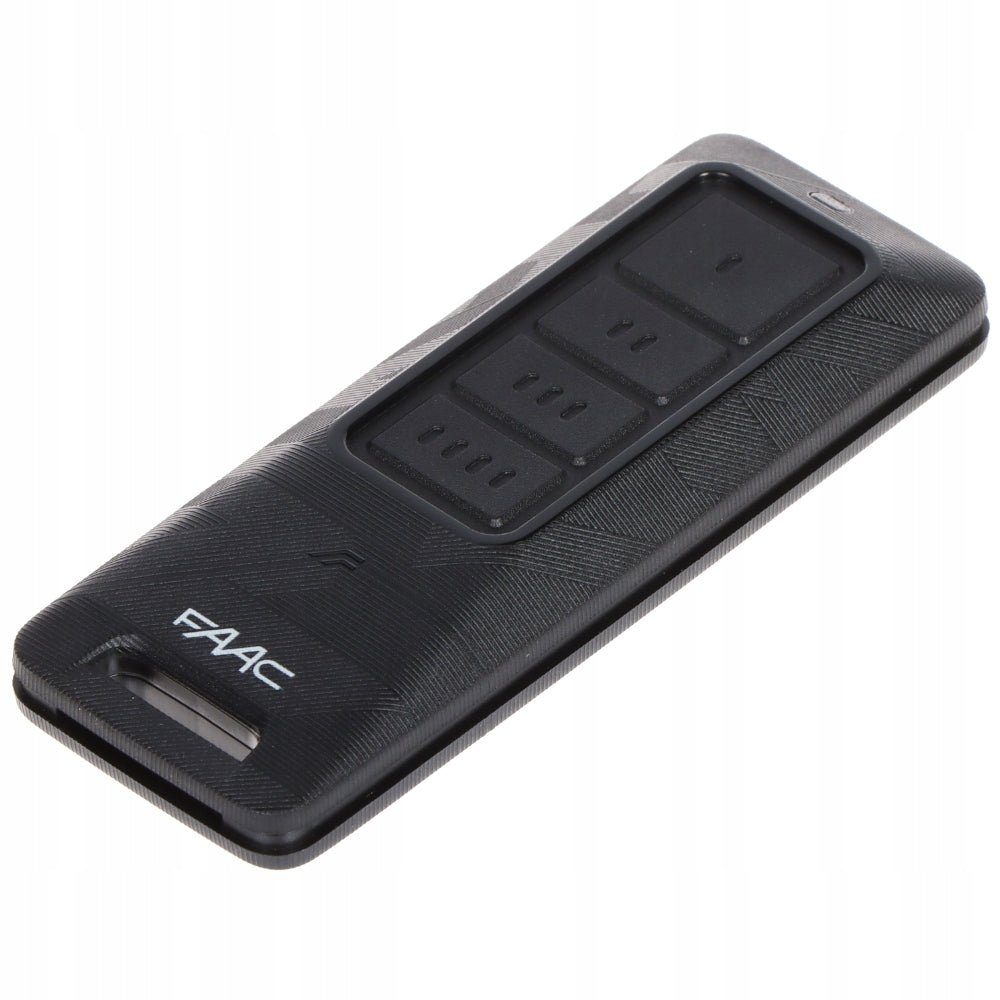

FAAC XT4 433 - 868 FDS LR

Modern remote control that provides comfort and safety of controlling your gate!

The XT4 remote control is a reliable and modern solution for controlling gate automation. With its compact and ergonomic design, the remote control is comfortable to use and easy to carry. Featuring advanced radio transmission technology, it ensures a stable and secure connection to your gateway system. With its simple setup and intuitive operation, the remote control is the perfect choice for both individual and commercial users.

The remote control also stands out for its high durability and reliability, thanks to its robust housing and high-quality components. It is compatible with many gate automation systems manufactured by FAAC, making it a versatile tool for everyday use.

The FAAC XT4 433 - 868 FDS remote control combines modern technology with ease of use, guaranteeing comfort and increased safety of gate control.

FAAC XT4 433-868 - Technical specification

✅ Model: XT4 FDS 433-868 SLH LR

✅ Catalog number: 787018

✅ Number of channels: 4

✅ Working frequency: 433 - 868 MHz

✅ Range: up to 200 m

✅ Decoding type: FDS

✅ Type code: dynamically variable

✅ Power supply: CR2032 battery (included)

FAAC XP 20B D

Elegance and safety in a modern photocell for your gate!

FAAC XP 20B D photocells are advanced devices that provide the highest level of security for your gate system. The compact and sleek design makes them a perfect match for any installation, while also offering reliable protection against collisions and damage. Equipped with modern technologies, XP 20B D photocells guarantee precise detection of obstacles, which prevents accidental closing of the gate. The simple installation and configuration make them an excellent choice for both new systems and upgrading existing installations.

FAAC XP 20B D photocells are also characterized by high resistance to weather conditions, thanks to which they work reliably in all conditions. Their robust construction and high-quality components ensure long-lasting and trouble-free use.

FAAC XP 20B D photocells are a combination of elegance, modernity and reliability that guarantee the safety and comfort of use of your gate.

FAAC XP 20B D - Technical specification of photocells:

✅ Power supply voltage: Through BUS rail (2easy) 24 V DC

✅ Nominal range: 20 m

✅ Installation: Wall-mounted or on column

✅ Protection rating: IP54

✅ Self-adjustment angle: ± 7° (20 m) ± 13,5° (5 m)

✅ Level adjustment angle: -90° +90°

✅ Dimensions of the device (WxSxG): 41,5x42,5x130 mm

✅ Power consumption: Rx (10 mA) + Tx (10 mA)

✅ Ambient temperature during operation: -20°C ÷ +55°C

SM LUCY LED

It is a reliable and universal warning lamp that is perfect for places that require an increased level of safety – m.in. in industrial plants, in parking lots, at entrance gates, barriers or in areas with high pedestrian and vehicle traffic.

The LED technology used in combination with the robust construction guarantees a long service life and stable operation even in harsh environmental conditions, ensuring effective signaling and safety at the highest level.

SM LUCY LED - Technical specification:

✅ Power supply: 24 V D. C. / 230 V A. C.

✅ Working mode: pulsed or continuous

✅ LED: high durability, no need to replace bulbs

✅ Material: Solid polycarbonate lampshade

✅ Working temperature: from -25°C to +55°C

✅ Simple installation: vertical or horizontal installation

⚠ Important information!

Depending on the current batch of delivery, the label on the actuator may be FAAC 412 or FAAC 414. We would like to inform you that regardless of the marking on the sticker, it is the same model of the device, with identical technical parameters, power and application. The difference is solely due to production markings and does not affect the functionality or compatibility of the product.

Authorized Partner FAAC Poland

HAMEON Sp. z o.o.

As the official trading partner of FAAC Poland Sp. z o.o., we offer our customers not only products of the world leader in automation, but also a guarantee of safety and professional service. By choosing HAMEON, you get:

✅ Original products FAAC – full compliance with the manufacturer’s specifications

✅ Guarantee and technical support – directly from an authorized distributor

✅ Access to the latest FAAC solutions and technologies

✅ Professional advice and service – trained team with current product knowledge

✅ Certainty of legal source of purchase – investment safety and long-term use

Bet on quality and reliability – choose a proven partner FAAC.

If you are looking for a different configuration or drive, we encourage you to familiarize yourself with our wide range of products and solutions adapted to different types of automation for entrance and garage doors.

We offer, among others:

✅ Drives and sets for swing and double-leaf gates

✅ Drives and sets for sliding gates

✅ Drives and sets for garage doors

✅ Road / parking barriers

✅ Intercom and video intercom sets

✅ Accessories for entry automation

Specifications

Group	Name	Value
Parametry	Condition	new
Parametry	Invoice	With VAT invoice
Parametry	Brand	Faac
Parametry	Product weight with unit packaging	19 kg
Parametry	Drive type	for swing gates
Parametry	Maximum wing weight	350 kg
Parametry	Maximum wing length	5 m
Parametry	Maximum number of cycles per day	240
Parametry	Engine power	280 W
Parametry	Manufacturer code	414_EXT_XLED
Parametry	Packaging status	original
Parametry	Certificates of conformity	CE
Parametry	Batteries included	no
Parametry	Set contents	control unit,photocells,unlock key,mounting elements,drive,remote control,warning light,other
Parametry	Additional features	automatic closing function,obstacle detection function,gate function,key switch opening function,controlled from video intercom,controlled from intercom,other
