Ausinės Baofeng radijo ryšiui, atviras „K“ tipo jungtis, GAPILOT

Trumpai apie prekę

Prekė: Ausinės Baofeng radijo ryšiui, atviras „K“ tipo jungtis, GAPILOT. Kategorija: Domofonai.

• Gamintojas: no brand
• Modelis: ZESTAW SŁUCHAWKOWY DO RADIA KASK OTWARTY K

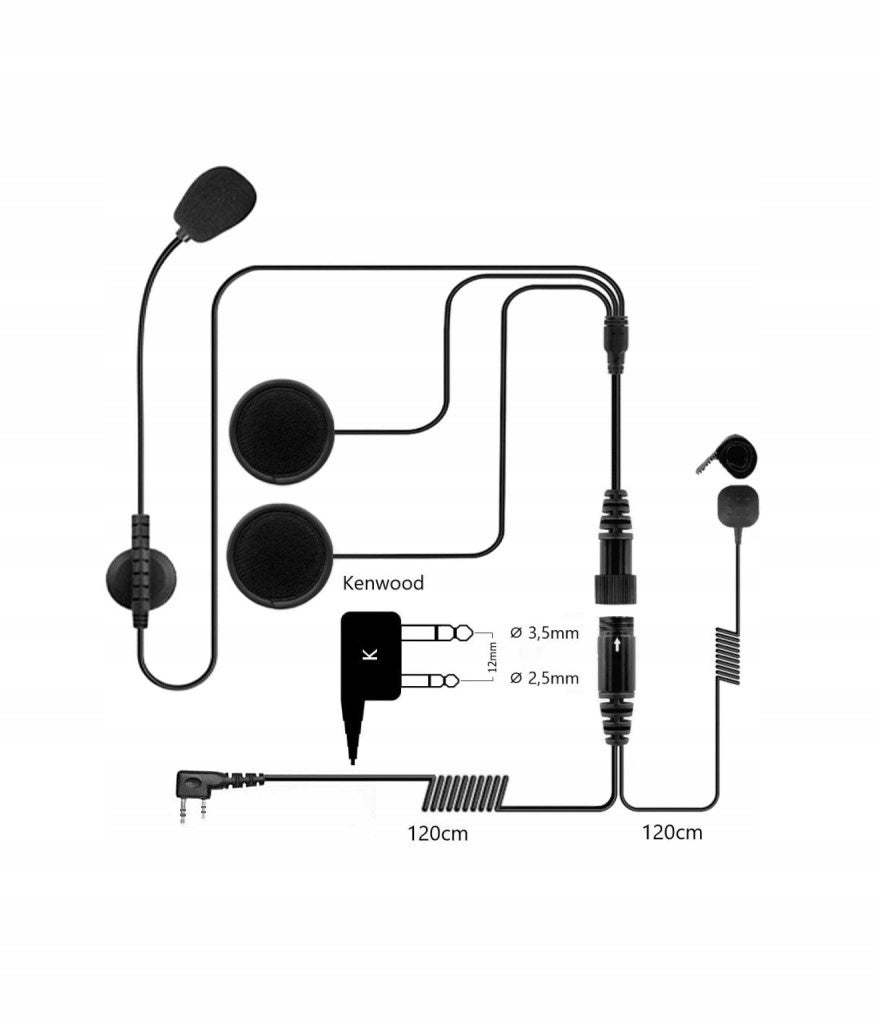

RSO-1 is a headset with a microphone consisting of two speaker inserts (ultra-thin), a microphone and a PTT button. The set is dedicated to a helmet with a closed (with jaw) or open (without jaw) design. It is equipped with a type K plug compatible with devices equipped with a type K socket (double socket 2,5mm and 3,5mm distant from each other by 12mm)

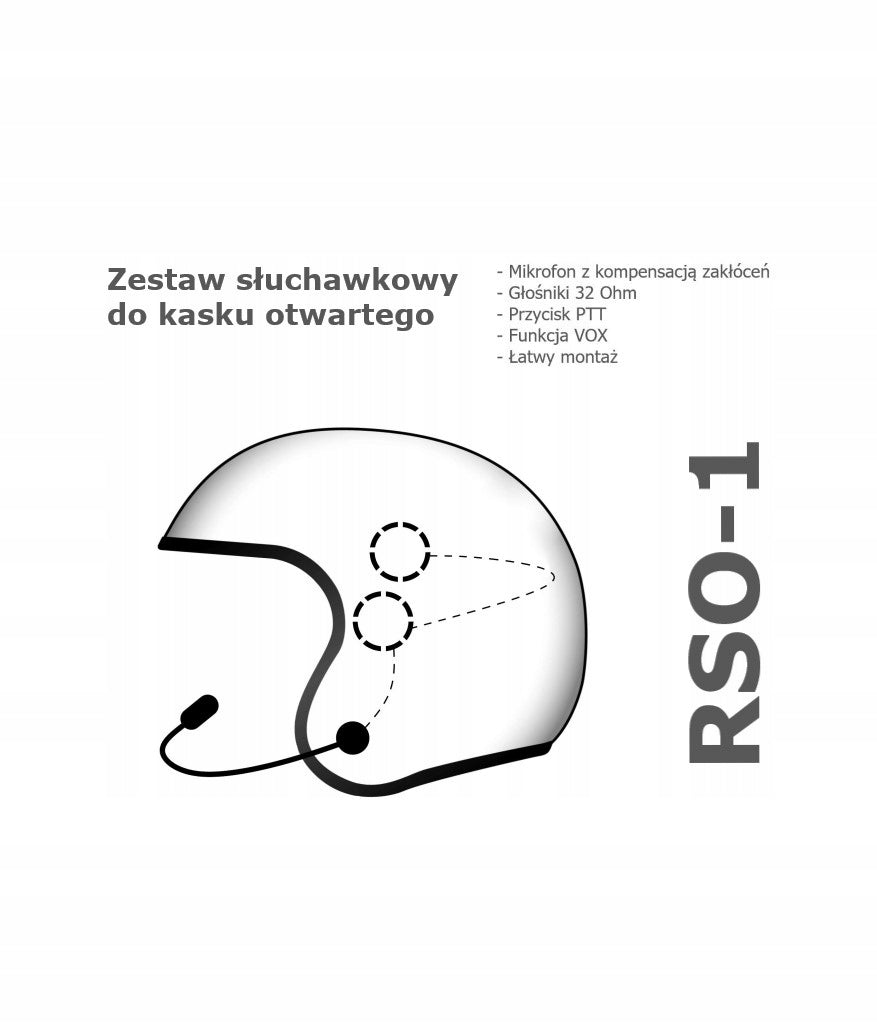

The speakers are located in soft material mounting pockets equipped with Velcro and self-adhesive layer. Installation of the speakers is carried out using Velcro or strong double-sided tape from 3M. Depending on the construction of the helmet, it is also possible to place the speaker inserts themselves in the helmet (without sachets).

The headset for closed or open helmet is equipped with a condenser microphone with interference compensation. Mounting the microphone is possible with Velcro or strong double-sided tape.

In addition, the headset is equipped with a small PTT button. The button can be placed using the included velcro strap on the finger or e.g. on the steering wheel (or wheelhouse when used in a paraglider).

The headset allows you to use VOX functions.

The RSO-1 model was designed for motorcyclists and paragliders. The use of the set allows communication without the need for hands.

The design of the set allows simple and quick installation in the helmet.

The kits are new, unused, factory sealed.

The helmet headset has been adapted to work with radios with a K plug.

It is compatible with radio stations:

• Baofeng UV3R Plus
• Baofeng UV5R
• Baofeng DM-1801
• Baofeng DM-1702
• Baofeng UV-82
• Baofeng BF-888S
• HT-500D Dual Band GPS
• INTEK KT960/980 HP
• Navcomm TK-750/TK-760
• Navcomm TK-890
• Navcomm NC-900
• Wouxun KG-UV2D
• Wouxun KG-UV8D

Technical parameters:

• Frequency Response of Speaker Inserts: 20-17000 Hz
• Speaker Insert Impedance: 32 Ohms
• Speaker Insert Efficiency: 90 dB +/-3dB
• Microphone Type: Capacitive with interference compensation
• Microphone Impedance: 2,2k Ohms
• Microphone sensitivity: -36 dB+/-2 dB
• Speaker insert diameter: 36 mm
• Waterproof Class: IP54
