Atlas 4 O4 Pro LR FPV drono rėmas

Trumpai apie prekę

Prekė: Atlas 4 O4 Pro LR FPV drono rėmas. Kategorija: Dronai ir multikopteriai.

• Gamintojas: no brand
• Modelis: FF02885

⬇ See more ⬇

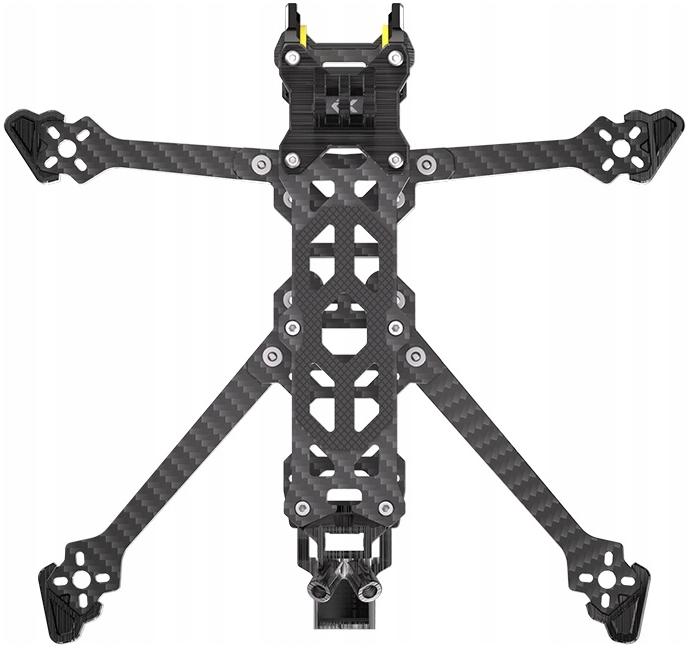

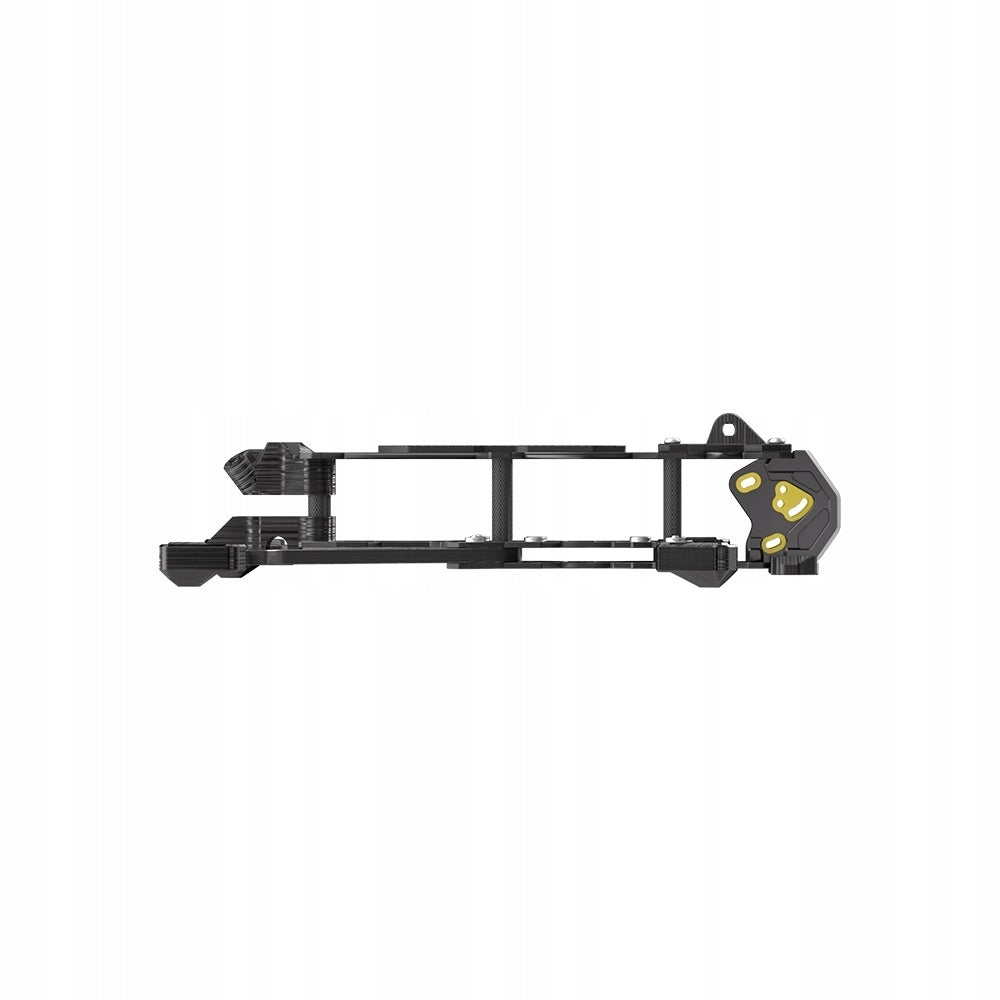

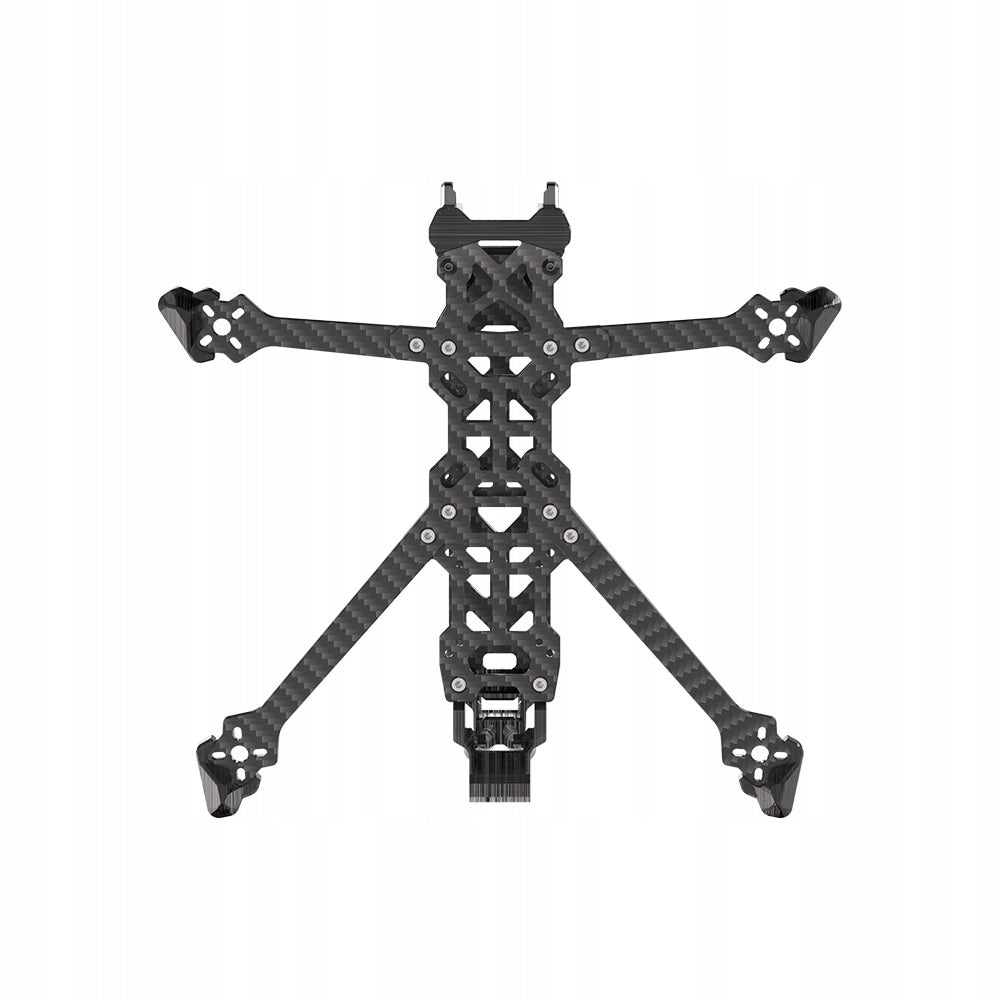

The Atlas 4 O4 Pro LR FPV frame is a lightweight and refined 4-inch design for people who are looking for a combination of low weight, strength and great freedom of configuration. The deadcat layout improves the view from the camera, and the thoughtful design works well in both sub-250 g builds and more dynamic configurations.

Key features of the product:

• lightweight construction – only 55,6 g with TPU elements,
• high-quality carbon fiber T700,
• deadcat geometry limiting propellers in the frame,
• aluminum CNC camera plates with silicone damping,
• compatibility with 19 mm and 20 mm cameras,
• possibility of building a drone below 250 g,
• set of accessories for analog and HD configuration,
• XT30 connector integration and space for a small capacitor,
• high-quality TPU components included,
• Class 12.9 screws with pre-applied thread protection.

The Atlas 4 is designed for versatile FPV flying. It is a frame that will work well for extending the flight time, but also allows for free freestyle. Thanks to its low weight and wide mounting compatibility, it gives you great flexibility when building your own quad.

Specification:

• Model: Atlas 4,
• wheelbase: 173 mm,
• Propeller size: 4 inches,
• arm thickness: 3,5 mm,
• thickness of upper / middle / lower plate: 1,5 mm,
• CNC plate thickness: 4 mm,
• dimensions: 108 × 139 × 28 mm,
• FPV camera mounting: 19 mm / 20 mm,
• stack mounting holes: 20 × 20 mm / 25,5 × 25,5 mm (M2),
• VTX mounting holes: 20 × 20 mm / 25,5 × 25,5 mm (M2),
• Engine mounting holes: 9 × 9 mm / 12 × 12 mm (M2),
• Weight: 55,6 g with TPU elements.

Composition of the set:

• 1 x Atlas 4 frame set.
