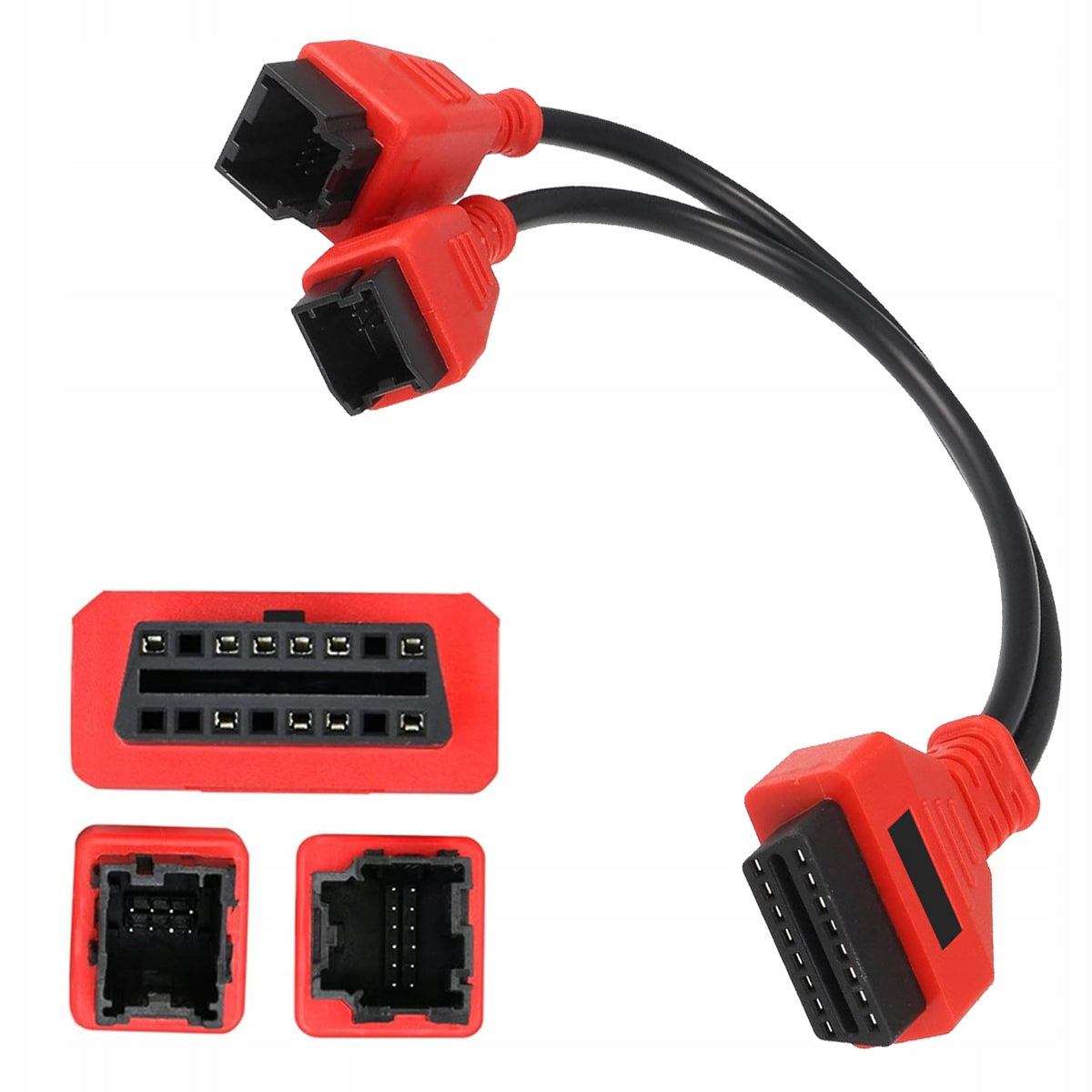

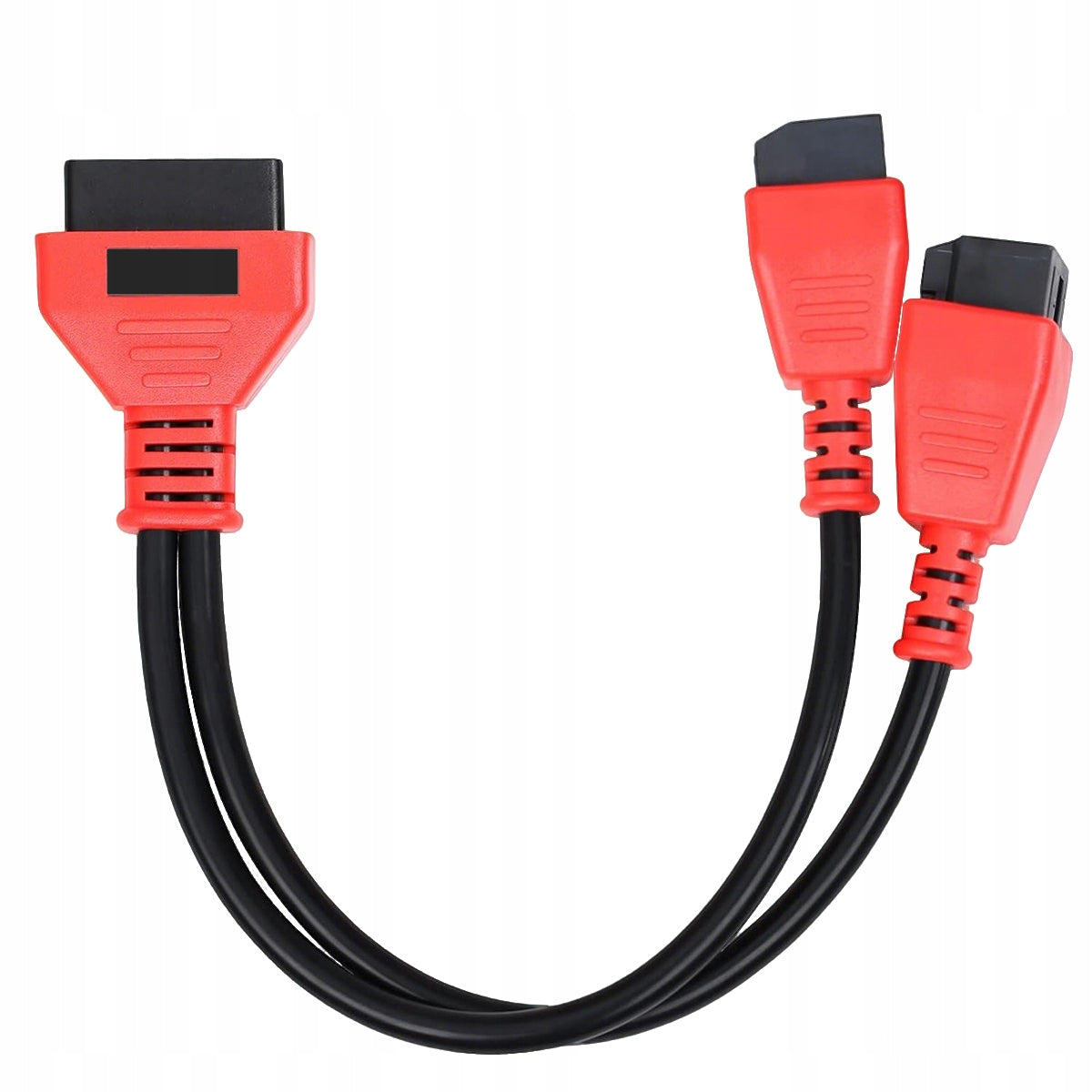

Apsaugos šliuzo adapteris 12+8 PIN FIAT DODGE ALFA ROMEO JEEP SGW OBD2

Trumpai apie prekę

Prekė: Apsaugos šliuzo adapteris 12+8 PIN FIAT DODGE ALFA ROMEO JEEP SGW OBD2. Kategorija: Diagnostiniai testeriai ir sąsajos.

• Gamintojas: no brand
• Modelis: 4069943634365

Replacement 12+8 connector for Chrysler Cable Adapter programming. This cable adapter can be used with Autel Maxisys series scanners such as MS906, MS906BT, MS906TS, MS908, MS908S, MS908S PRO, Maxisys Elite etc.

Features: Autel 12+8 cable, used with Autel MaxiSys scanner for Chrysler Renegade Wrangler 300C diagnostics after 2018. The Autel 12+8 connector adapter is a bypass of Chrysler's Security Gateway (SGM) module.

High quality and durability: Plug & Play, stable transmission, interference resistance. The high-quality materials provide excellent flexibility and durability for the cable. Cable length about 36 cm.

How to use? Only 3 steps. First, find and disconnect the 12-pin and 8-pin connectors of the SGW module. Then connect the FCA 12+8 directly to the 12-pin and 8-pin connectors (two connectors connected to the SGW) in the car. At this point, you can get normal communication with the car.

YOU NEED TO USE THE APPROPRIATE CONVERTER. REIMBURSEMENTS OF DAMAGE CAUSED BY THE USE OF THE WRONG TYPE OF POWER SUPPLY WILL NOT BE ACCEPTED.

1. Read/delete codes

2. Performing active tests

3. Real-time display of general and manufacturer data

4. Performing TPMS OBDII relearning

5. Encoding and Adapting with Maxisys Tablet Tools MS906BT+

6. ADAS calibration (requires Maxisys ADAS software)

The Chrysler 12+8 adapter is Autel’s solution for bypassing Chrysler’s Security Gateway (SGM) module, which limits the diagnostic tester for reading DTC codes and displaying data.

The SGM (Secure Gateway) module for the Chrysler, Dodge, Ram, Jeep and Fiat models from 2018 and newer is now available in Chrysler, Dodge, Ram, Jeep and Fiat cars from 2018 and newer. This SGM module prevents the diagnostic tester from controlling the two-way vehicle. Autel has provided a cable to bypass SGM. The new Chrysler 12+8 diagnostic cable enables communication with the latest models of Chrysler, Dodge, Jeep, Fiat and Alfa cars.

The cable adapter can be used with Autel Maxisys series scanners such as MS906, MS906BT, MS906TS, MS908, MS908S, MS908S PRO, Maxisys Elite etc.

• 1. Use with the Autel MaxiSys scanner to diagnose Chrysler Jeep Renegade Wrangler 300C after 2018.
• 2. Most FCA vehicles from 2018 and newer are equipped with the Security Gateway module.

• 80% of 2018 data required for Chrysler and Fiat vehicles
• Required access to 100% of 2019 data for Chrysler and Fiat vehicles
• Chrysler 12+8 adapter required for vehicles with Secure Gateway

RAM Promaster 2013+; Fiat 500x 2015+; RAM Promaster City 2015+; Jeep Renegade 2016+; Alfa Romeo Giulia 2017+;Jeep Compass 2017+; Jeep Cherokee 2017+; Jeep Wrangler 2018+; Ram Trucks 2018+; Dodge Durango 2018+; Jeep Wrangler 2018+ (JL body only,no JK); Dodge 2018+ Travel:Jeep Grand Cherokee 2018+; Chrysler Pacifica 2018+; Chrysler 300 2018+; Dodge Charger 2018+; Dodge Challenger 2019+;Most Fiat/Chrysler/Jeep/Ram 2019+ vehicles; All FCA 2020+ vehicles;

• 1 x FCA 12+8 Cable Adapter (36 cm)

Specifications
