Akumuliatorinis stalo pjūklas FESTOOL CSC SYS 50 su stalu ir 2 akumuliatoriais

Trumpai apie prekę

Prekė: Akumuliatorinis stalo pjūklas FESTOOL CSC SYS 50 su stalu ir 2 akumuliatoriais. Kategorija: Diskiniai pjūklai.

• Gamintojas: Festool
• Modelis: 577371

2 Batteries are sent directly from the manufacturer after machine registration!

Catalogue No. 577371

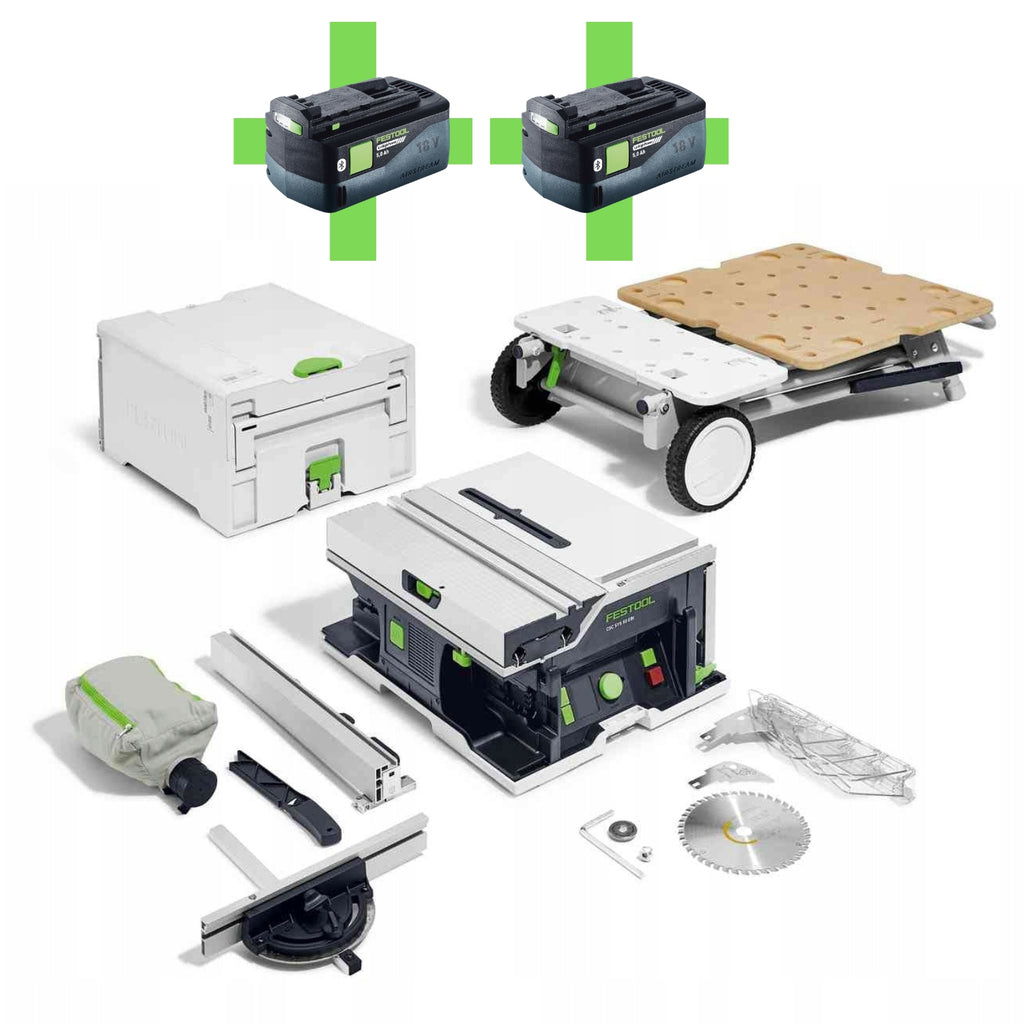

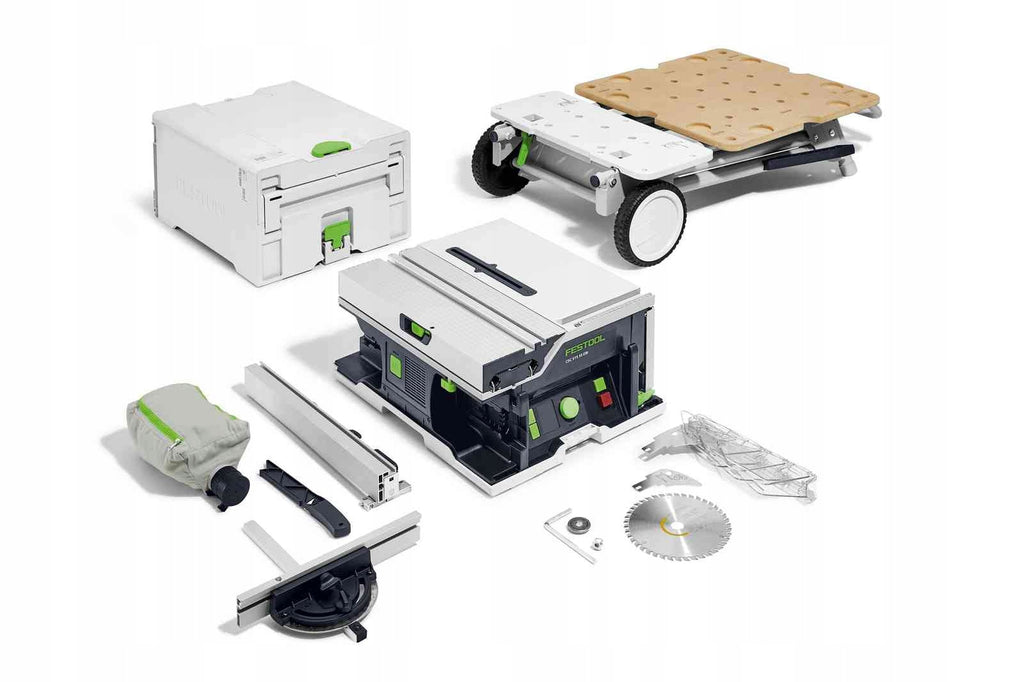

The set includes

• CSC SYS 50 EBI
• UG-CSC-SYS transport module
• wedge splitter for hidden cuts
• wedge switchgear with cover
• Allen wrench SW 6
• tool for operation
• pusher
• parallel guide
• Angular sampler
• saw blade WOOD FINE CUT HW 168x1,8x20 WD42
• chip bag
• POSSIBILITY TO PICK UP 2 5,0 HP BATTERIES AFTER REGISTERING THE MACHINE ON THE MANUFACTURER'S WEBSITE!

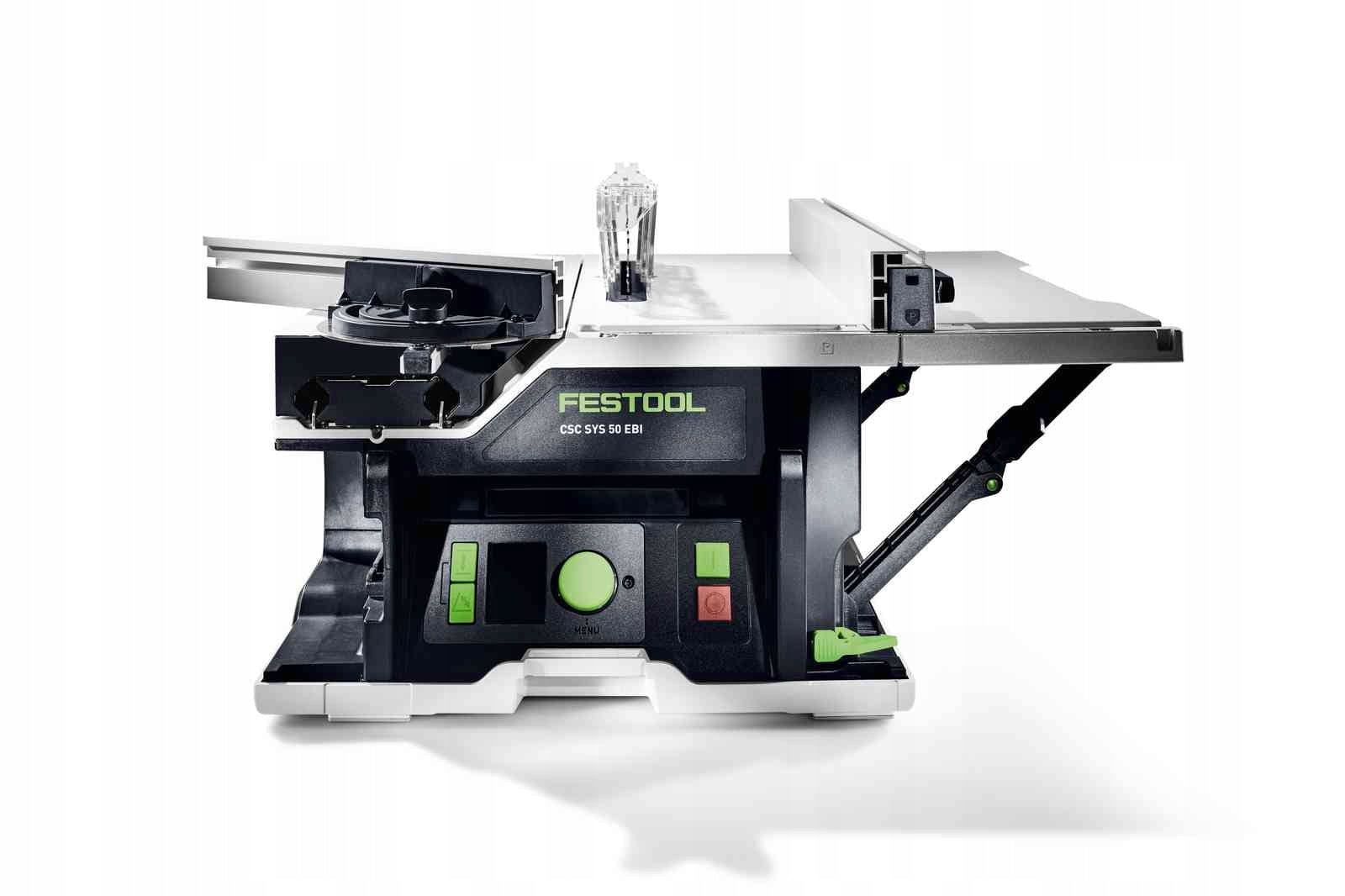

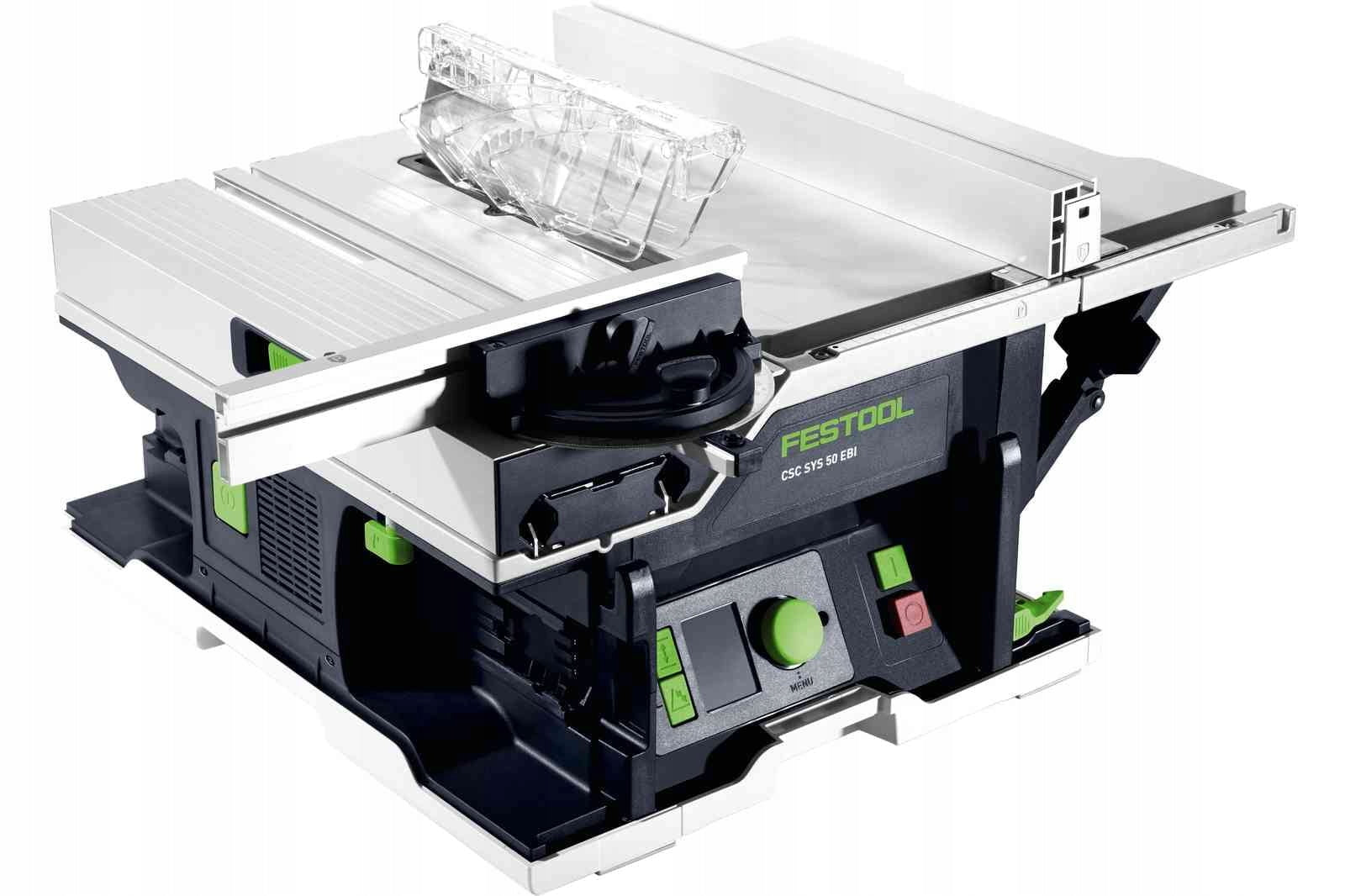

Precise cutting in the mobile version. Cordless table circular saw the size of a Systainer.

The CSC SYS 50 battery circular saw is so compact that it fits in the Systainer. Despite its extremely handy external dimensions, it is surprisingly versatile in application. It allows you to make parallel cuts up to 280 mm wide, cross-cuts up to 450 mm and cuts at an angle from -2° to 47°. The unique digital operation ensures precise results with an accuracy of tenths of a millimeter. The 2 x 18 V dual battery system combined with the EC-TEC brushless motor impresses with its power and efficiency – there is basically no difference compared to mains powered machines. In combination with the transport module, the UG-CSC-SYS creates an ideal work table, and transport from the vehicle to the place of use is effortless. In short: precise cutting in the mobile version!

• Versatility: parallel cuts up to 280 mm; transverse cuts up to 450 mm. Cuts at an angle of -2° to 47°.
• Practical: cuts at an angle of up to -10° with a cutting height of up to 35 mm; ideal for cutting fitted strips.
• Compact and mobile: The practical Systainer format allows transport with one hand. The UG-CSC-SYS transport module is an additional convenience.
• Highest precision: height and angle are electrically adjustable by pressing a button on the digital display – with an accuracy of tenths of a millimeter.
• Repeatability: Height and angle settings (in mm and inches) can be made without parallax using a digital display, which means it is more accurate than any visual measurement.
• The extremely precise double-mount parallel guide (with just one clamping lever) allows precise positioning and provides excellent cutting results.
• Extremely precise angular sampler: the angular sampler is optimally positioned and centrally fixed thanks to the outlet on the sledge. For punch angles from -70° to +70°
• Completely -free: sled on ball bearings for making parallel cuts and cutting at an angle with the utmost precision
• High power: EC-TEC brushless motor with high rotation speed of 6800 rpm. /min guarantees fast cutting progress and perfect results
• Durability: The combination of EC-TEC brushless motor and dual battery system with two 18V batteries (from 4,0Ah) ensures long working time
• Durability: The EC-TEC brushless motor is durable, robust, and maintenance-free
• Work tailored to the material: suitable saw blades for each material; pre-setting of rotational speed taking into account the properties of the material being processed is carried out using a digital display
• Minor dusting: The dust container ensures dust-free operation even without a mobile vacuum cleaner
• Healthy operation with the system: the ideal solution also in combination with Festool cordless vacuum cleaners
• Compatibility: Fits the entire Festool Systainer system and bott vehicle equipment

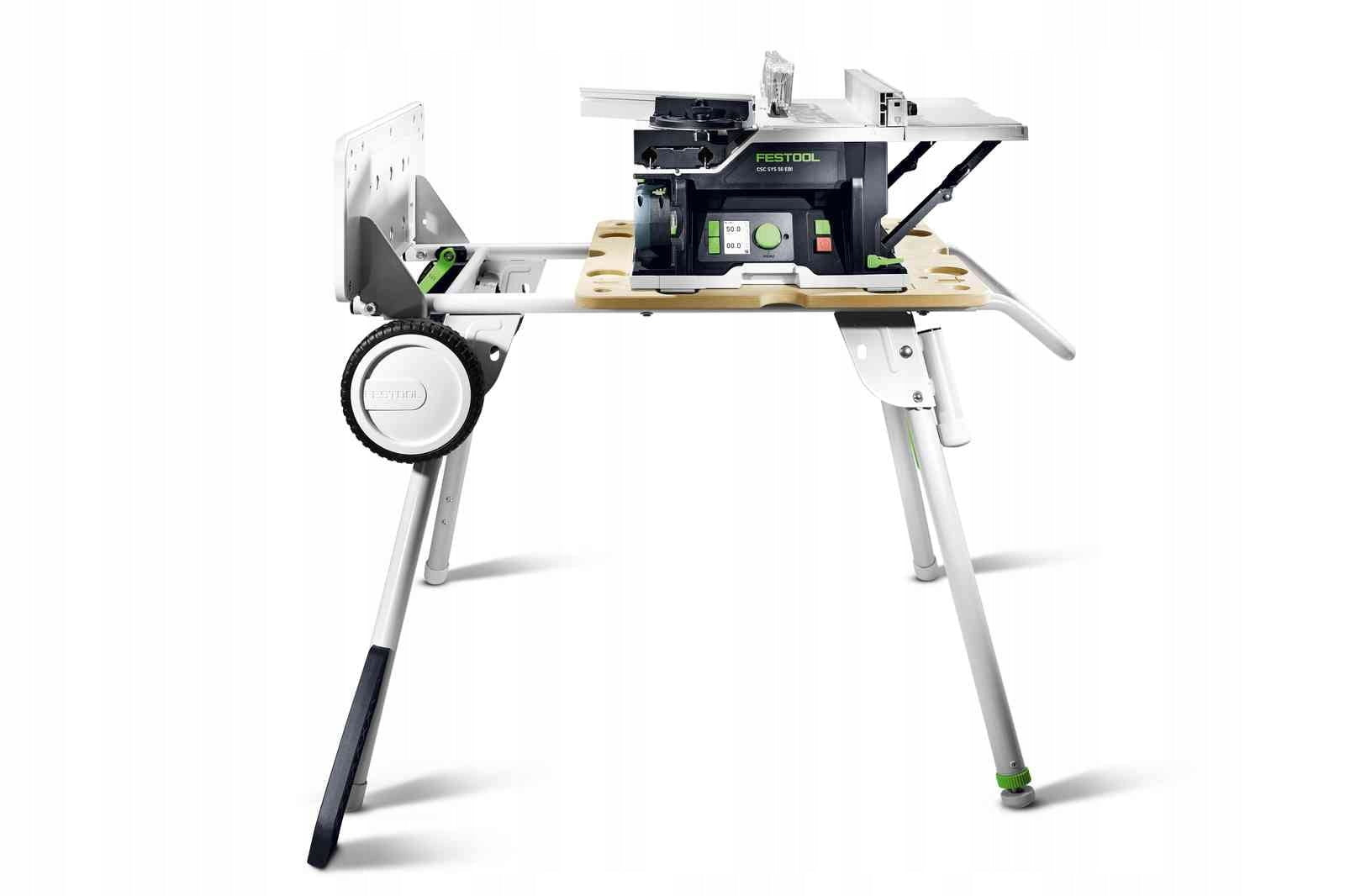

• Flexible transport module: The UG-CSC-SYS transport module is the perfect solution for transporting to your destination, as well as the ideal work table in one

Key applications

• Cross-cuts up to a width of 450 mm, precisely and quickly thanks to integrated sleds
• Longitudinal cutting up to a cutting height of 48 mm and a width of 280 mm using a stable overlay on the integrated folding table
• Cuts at an angle of -10° to 47° thanks to the tilting saw blade
• Precise height and angle adjustment with electric stepper motors. Adjustable to an accuracy of 0,1 mm and controllable via display
• Practical transport in a handy Systainer format

• Battery voltage: 36 V
• Idle speed: 4 500 – 6 800 min⁻¹
• Saw blade mounting hole: 20,00 mm
• Angle of inclination: -10 - +47 °
• Cutting height 0°: 0 - 48 mm
• Cutting height 45°: 0 - 34 mm
• Cutting height -10°: 21 - 32 mm
• Bevel angle: 0 - 70 °
• Parallel cutting width: 280,00 mm
• Table height: 280,00 mm
• Dimensions (L. x width x H ): 512 x 396 x 296 mm
• Dust extraction connection Ø: 27/36 mm
• Type of drive: Battery
• Product weight: 21,00 kg
