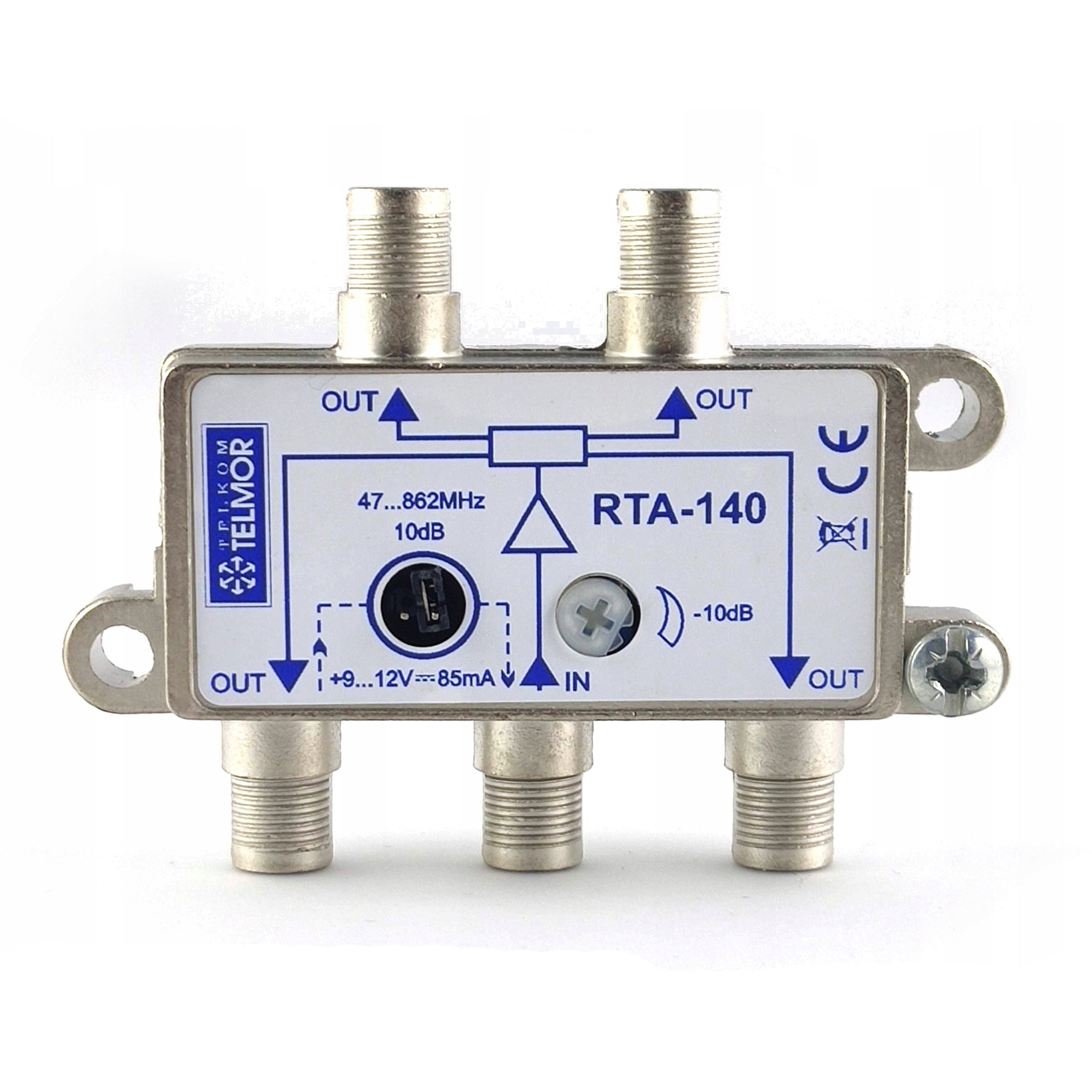

Aktyvus TV skirstytuvas Telmor RTA140 4 DVB-T

Trumpai apie prekę

Prekė: Aktyvus TV skirstytuvas Telmor RTA140 4 DVB-T. Kategorija: Stiprintuvai.

• Gamintojas: Telkom-Telmor
• Modelis: RTA-140

Aactive splitter type RTA-140 designed to work in individual installations of distribution of RTV signals. Depending on the type of splitter used, it is possible to power two or four TV sets with an antenna signal or cable TV. Each type of splitter has a built-in gain control potentiometer and a jumper that allows you to transfer the supply voltage from the marked output (OUT) to the input (IN). The power supply of the splitters is carried out via a coaxial cable using an optional voltage separator.

RTA-120 and RTA-140 have been placed in metal, solid housings, which are equipped with standard F-type connection sockets. Thanks to this, the installation of the device is extremely quick and simple.

Product Features:

• 1-input and 4- (RTA-140) RTV outputs,
• built-in adjustable silencers,
• low noise coefficient,
• power supply via coaxial cable from the output side (OUT),
• the possibility of transferring the supply voltage from the output (OUT) to the input (IN),
• solid, cast metal housing,
• high shielding rate.

NOTE: For the splitter to work properly, it is necessary to use all 4 antenna outputs. If one is not used, it should be blinded with a 75 ohm choke. Please let us know in this case.

Specifications
