Aktyvi 50K-500MHz imtuvo antena su pilnu HF AM FM VHF UHF SDR kilpiniu elementu

Trumpai apie prekę

Prekė: Aktyvi 50K-500MHz imtuvo antena su pilnu HF AM FM VHF UHF SDR kilpiniu elementu. Kategorija: Antenos.

• Gamintojas: no brand
• Modelis: 50K-500MHz

Wide Frequency Ranges: This small loop antenna is designed for a wide frequency range, ranging from 50 kHz to 500 MHz. It is suitable for various radio equipment such as radios, SDRs, and transceivers, providing exceptional reception capabilities in the HF, AM, FM, VHF, and UHF bands.

Active reception technology: Equipped with an active amplifier and top-notch components, this antenna ensures optimal signal reception. The Moebius loop design allows for twice the voltage gain compared to traditional loop antennas, while the shielded loop design effectively reduces interference caused by external factors such as lightning or static discharges.

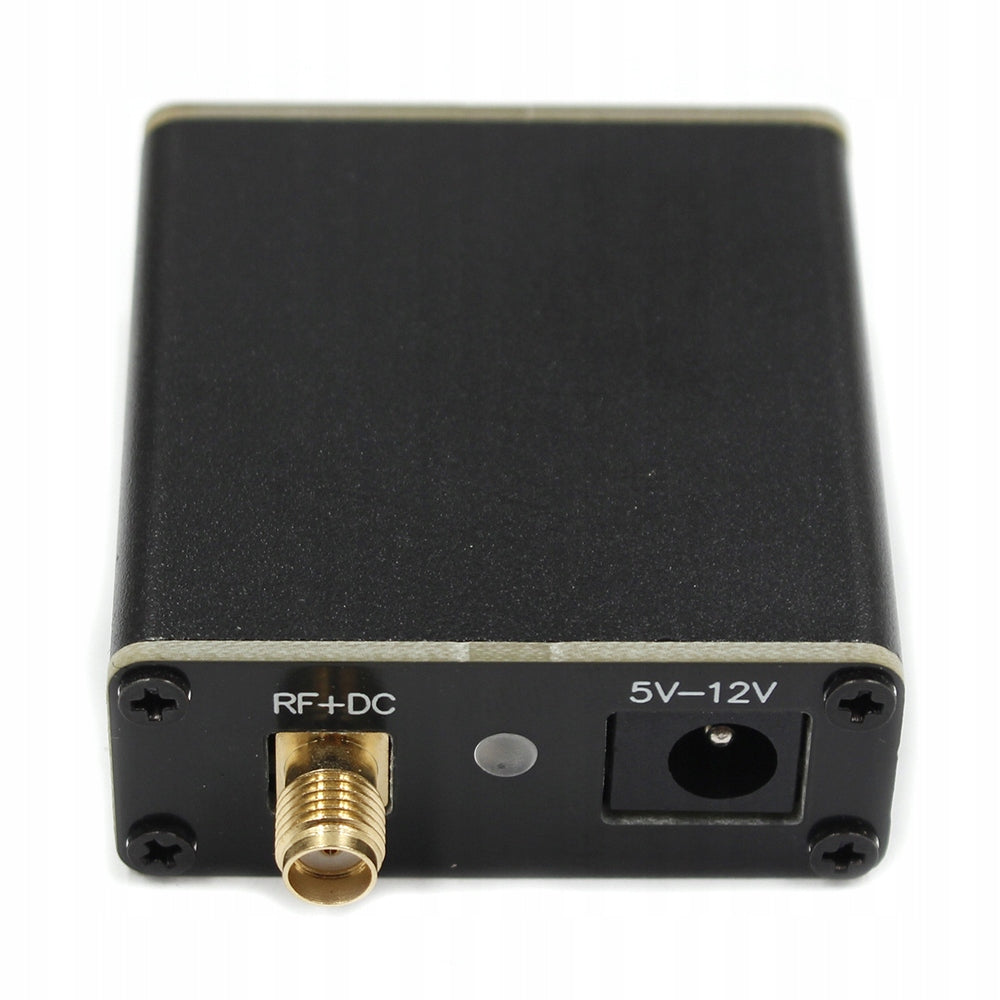

Easy installation and adjustment: The antenna consists of topjumper board, small loop amplifier board, loop coil, power supply and 12V power supply. With multiple switches on the top jumper board and small loop amplifier board, you can easily customize the antenna configuration to suit your needs. Plus, its simple and compact design allows for easy modification and hassle-free installation.

Superior performance and low-noise amplifier: Designed with an improved LZ1AQ low-noise amplifier, this antenna achieves remarkable performance both indoors and outdoors. With a gain of more than 10 dB and a low input impedance of 1,2 Ω at 1 MHz, it effectively reduces electrical field interference. The antenna works reliably even in harsh weather conditions, ensuring consistent reception quality.

Reliable power and performance: Powered by a 12V linear power supply, this antenna uses less than 150mA of current, making it energy-efficient and cost-effective. The sturdy construction and high-quality materials allow for long-lasting outdoor use without sacrificing performance. Experience reliable and efficient reception with this 50 kHz-500 MHz full-band loop antenna.

Technical data:

Frequency range reception: 50 KHz-500 MHz

Gain: 17 dB at 10 MHz

Output noise: - 125 dBm (at 10 MHz, BW = 100 Hz)

P1dB: +15,5 dBm at 10 MHz

OIP3: +38 dBm at 10 MHz

Supply Voltage: 9 V-12 V

Power Current: 130mA-150mA

Antenna Interface: SMA(M)

Output Interface: SMA(F)

Small Ring Coaxial Cable Model: RG402

Small Ring Coaxial Cable Attenuation: 0,145 dB/m

Diameter of small loop antenna: 600 mm

Package Size: 210 * 150 * 40 mm / 8,3 * 5,9 * 1,6 inch

Package Weight: 380 g/13,4 oz

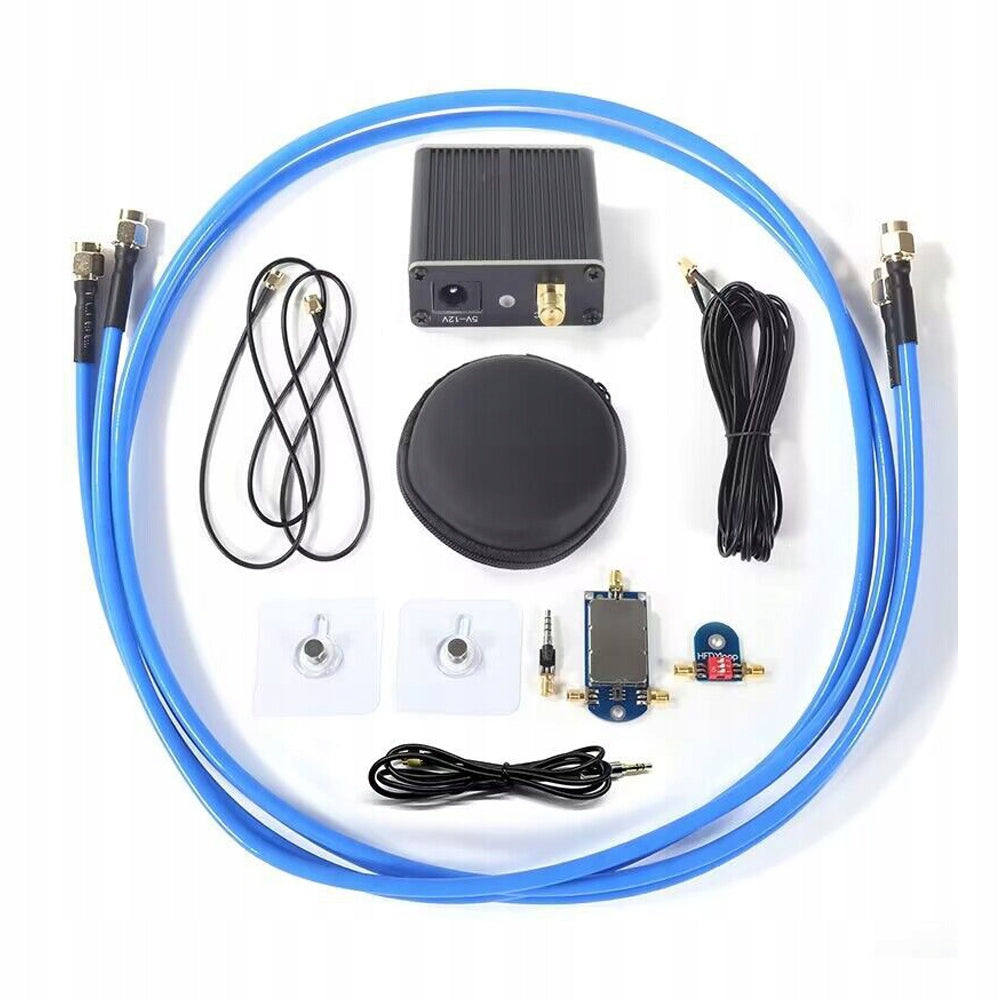

List of things to pack:

1 * Antenna Amplifier Board with Small Loop

1 * headphone jack adapter cable

1 * top patch panel

2 * Small loop coils (RG402 coaxial cable)

Power cable with a length of 1*7 meters

Power cable 1*1 meter

2 * self-adhesive hooks

1 * EVA storage bag
