Trumpai apie prekę

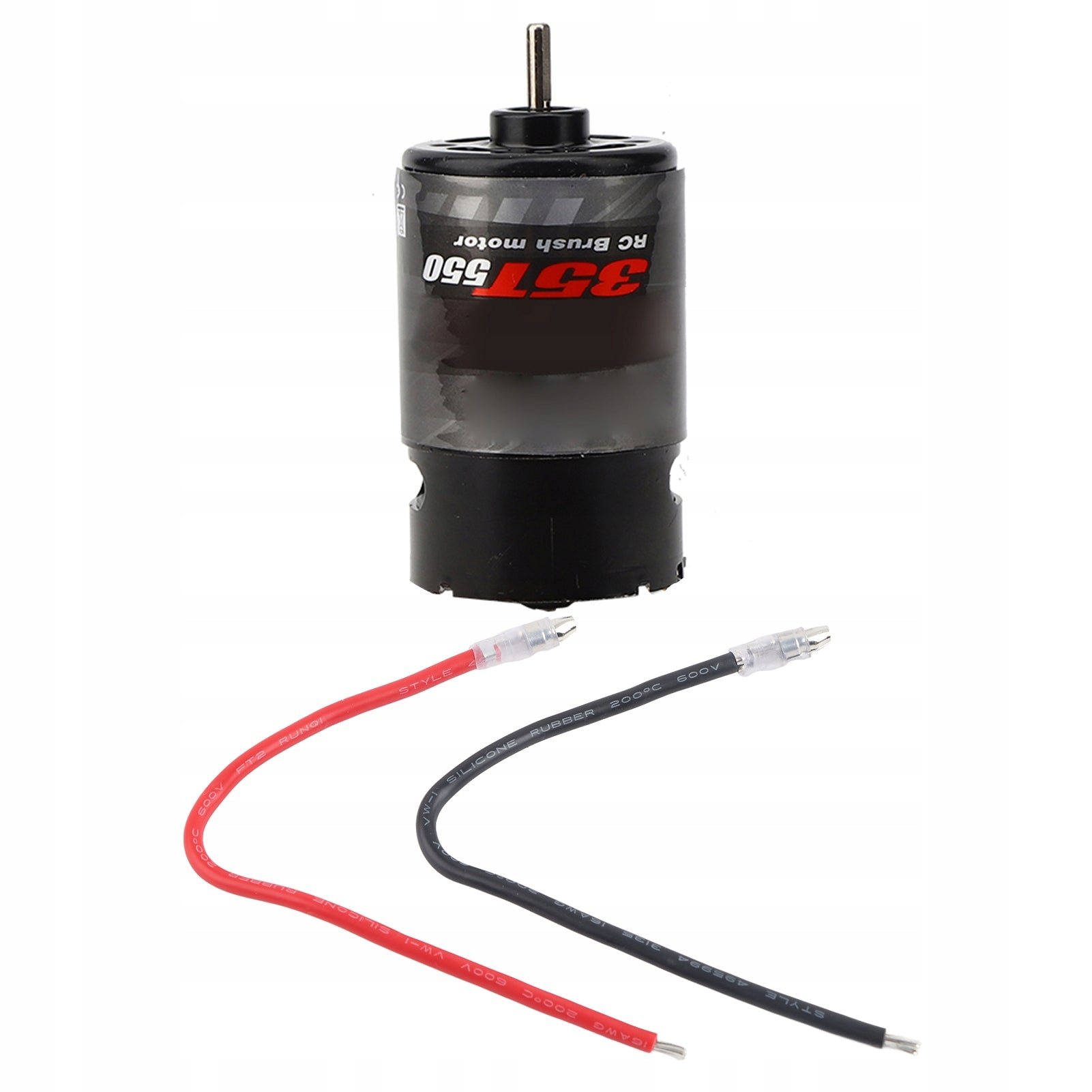

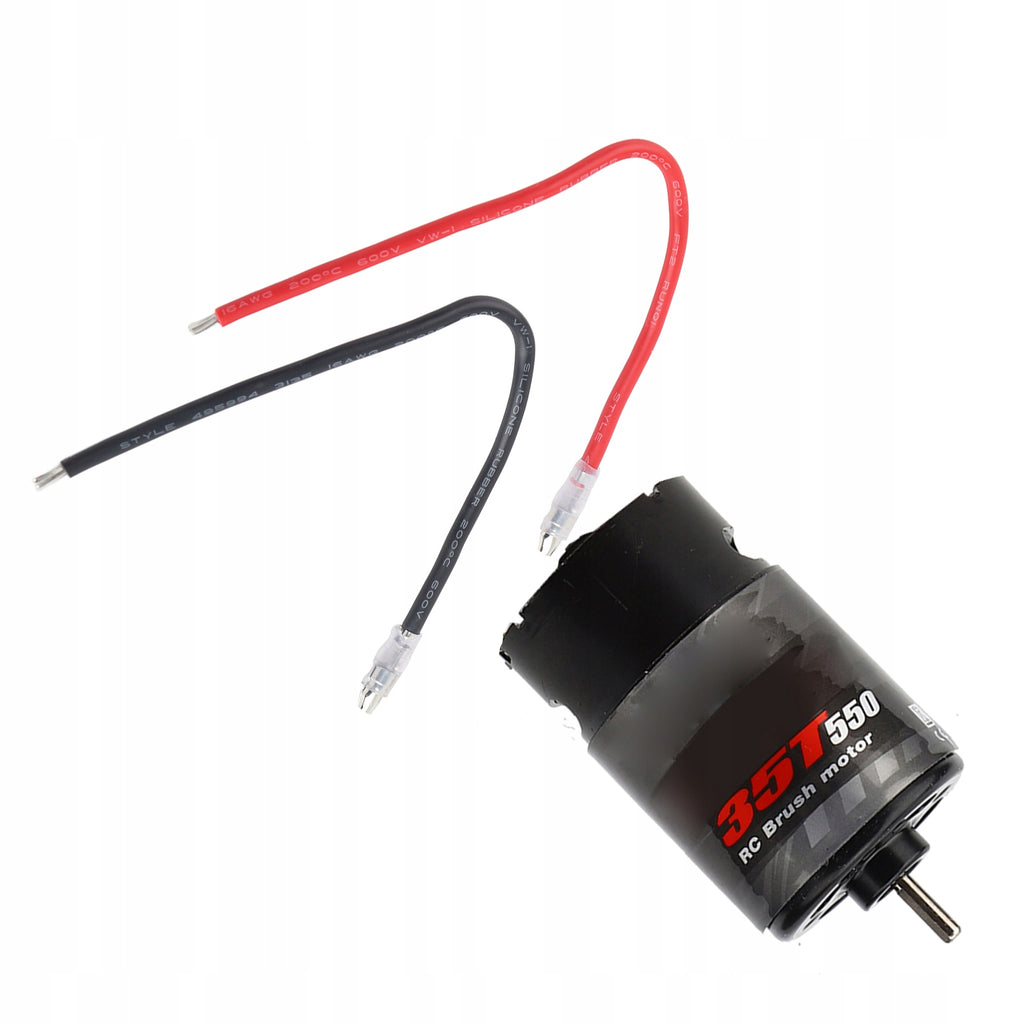

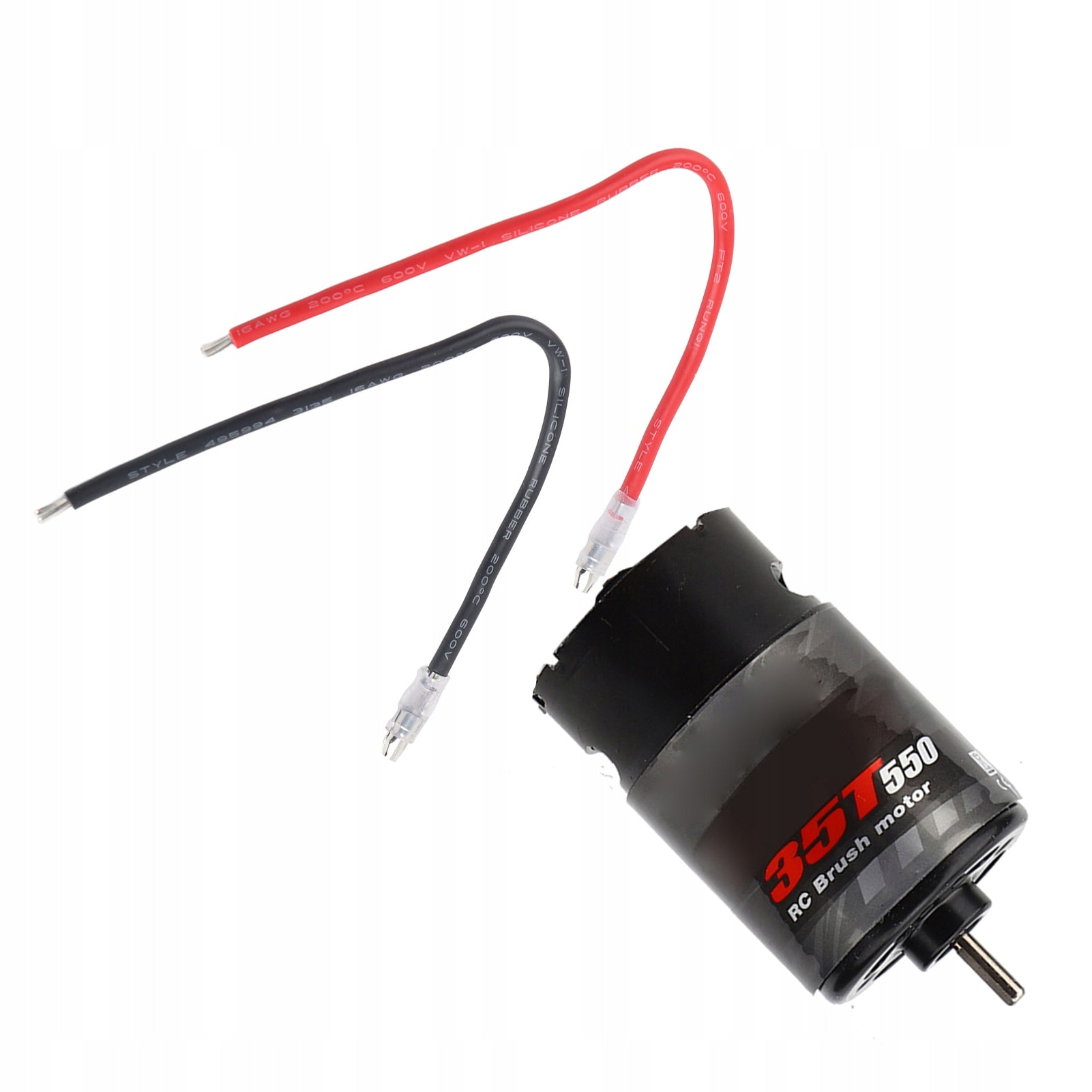

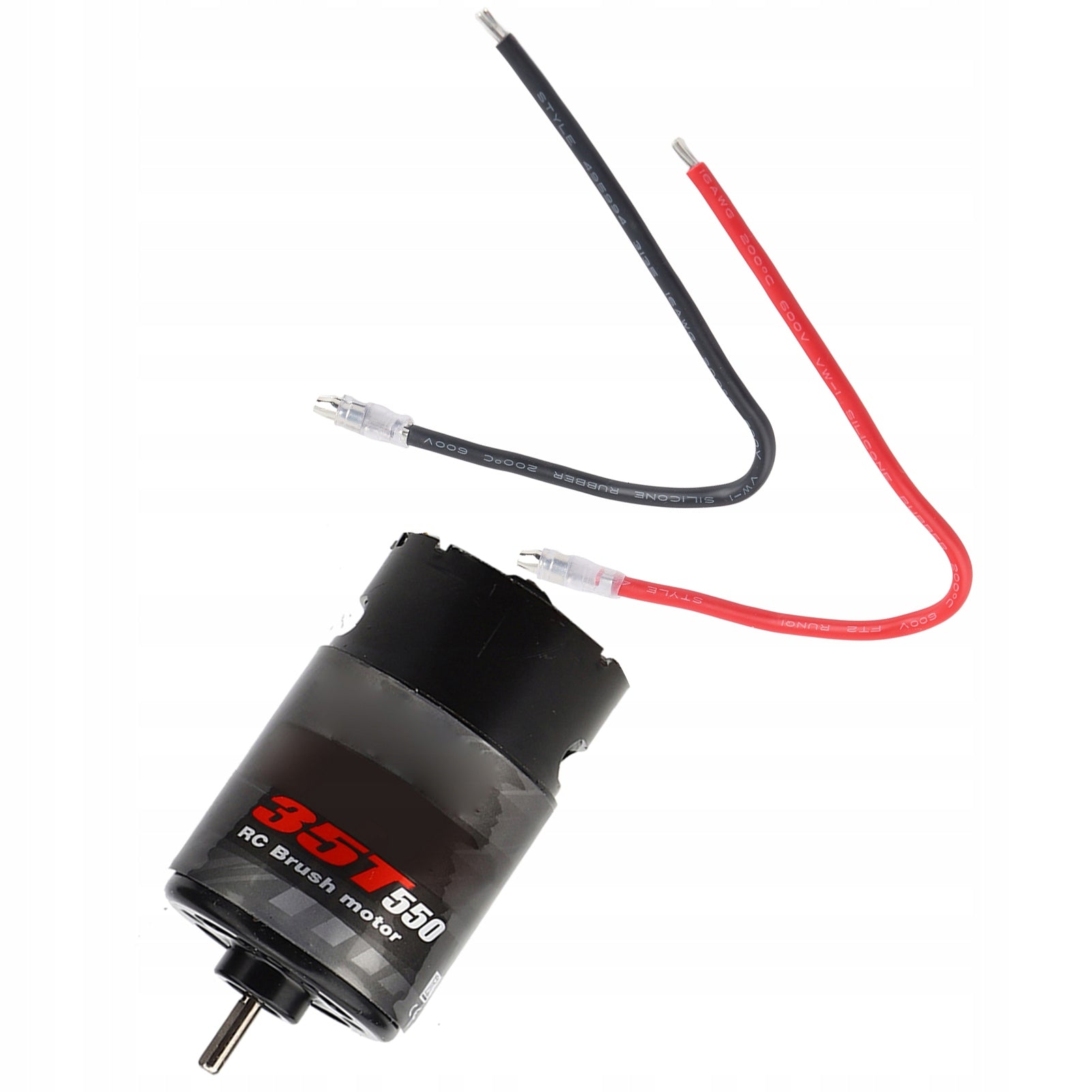

Prekė: 550 aukštos tikslumo ir tylus šepetėlinis variklis. Kategorija: Motociklai.
- Gamintojas: no brand
- Spalva: beige
Technical data:
Condition: 100% new
Item Type: Brushed Motor
Material: Metal
Optional Type: 12T, 21T, 29T, 35T
Size: 550
Colour: black< br >Axle diameter: D axis 3,175 mm
Output shaft length: approx. 15 mm / 0,6 inch Outside diameter: approx. 36 mm / 1,4 inch
Body length: approx. 60 mm / 2,4 inch
Mounting hole distance: approx. 25mm/1in
Screw hole: approx. 3 mm / 0,1 inch
Fits John Deere AM103290 tractor
Fits the model of the 4 series car
Fits the model of the 6 series car
12T
No load
Maximum efficiency
Maximum output power
Impeller blocked
Current (A)
3
14,4
36,2
70
Efficiency (%)
73< BR >51
Output power (W)
78
137
RPM
22500
18600
112500
Torque (G.CM)
410
1190
2370
Voltage (V)
7,4V
Temperature
10
50
21T
No burden
Maximum efficiency
Maximum output power
Impeller blocked
Current (A)
1
7
24,7
48,3
Efficiency (%)
77
49,5
Output power (W)
40
91
RPM< BR >12900
11300
6450
Torque (G.CM)
350
1370
2730
Voltage (V)
7,4VTemperatura
10
50
29T
No burden
Maximum efficiency
Maximum output power
Impeller blocked
Current(A)
1
6,3
20
39,1
Efficiency (%)
72,8
47,8
Output power (W)
34
71
RPM
10500
9050
5250
Torque (G.CM)
370
1320
2630
Voltage(V)
7,4V
Temperature
10
50
35T
No load
Maximum efficiency
Maximum output power
Impeller blocked
Current (A)
0,6
3,8
12,5
24,3
Efficiency (%)
76,149,7
Output power (W)
22
46
RPM
7900
6830
3950
Torque (G.CM)
310
1130
2260
Voltage(V)
7,4V
Temperature
10
50< BR >
List of packages:
1 x Brushed Motor
Features:
1. Standard specification 550 brushed motor with high torque and low noise for RC cars and boats. 2. The front part is a ball bearing with high precision and long service life; Elongated oil bearing shaft on tail, low noise and long service life. 3. Extended oil bearing sleeve at the end, quiet, built-in cooling fan, with demagnetizing sleeve outside. 4. The internal rotor uses multipolar winding, characterized by high torque and low speed. Ordinary motor with 3-winding rotor has better linearity. 5. There are 4 different types that you can choose according to your needs.
Specifications
| Group | Name | Value |
|---|---|---|
| Parametry | Condition | new |
| Parametry | Invoice | With invoice (excluding VAT) |
| Parametry | Brand | no brand |
| Parametry | Color | beige |
| Parametry | Maximum speed | 0 km/h |
| Parametry | EAN (GTIN) | 9313597750359 |
