3D ratų geometrijos sistema ALIGN MASTER NSL, 4 ratų matavimas, HD duomenų bazė

Trumpai apie prekę

Prekė: 3D ratų geometrijos sistema ALIGN MASTER NSL, 4 ratų matavimas, HD duomenų bazė. Kategorija: Ratų suvedimo matuokliai.

• Gamintojas: Mell Pro
• Modelis: ALIGN MASTER NSL

ALIGN MASTER NSL - 3D wheel geometry system | 4 wheel measurement and adjustment | advanced suspension diagnostics

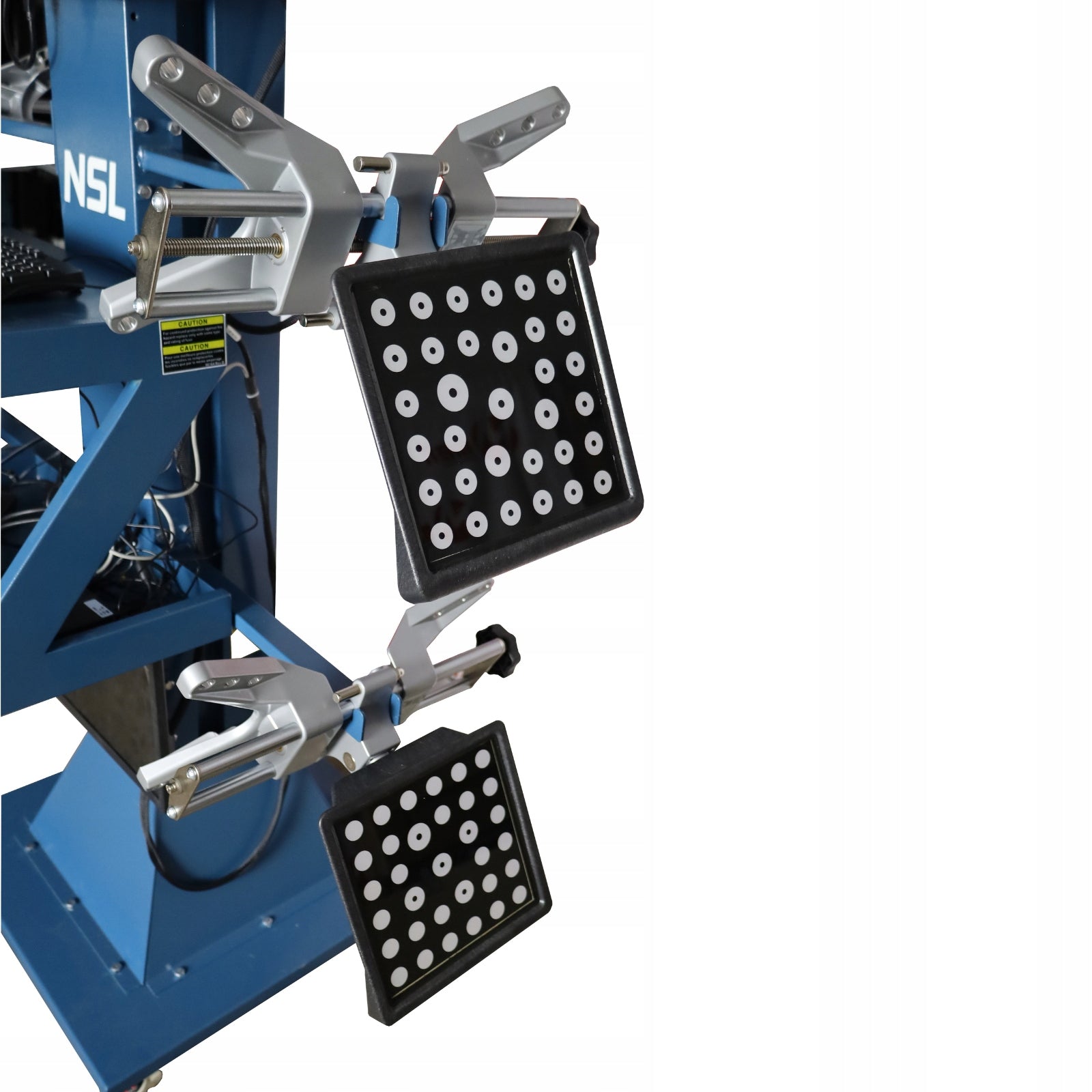

• ALIGN MASTER NSL is a professional 3D wheel geometry system using cameras and sight discs, providing precise measurement and analysis of wheel alignment parameters in real time.

The device enables full diagnostics of suspension geometry and fast detection of irregularities thanks to 3D visualization and intuitive software.

3D wheel geometry system ALIGN MASTER NSL – precise measurement and advanced diagnostics

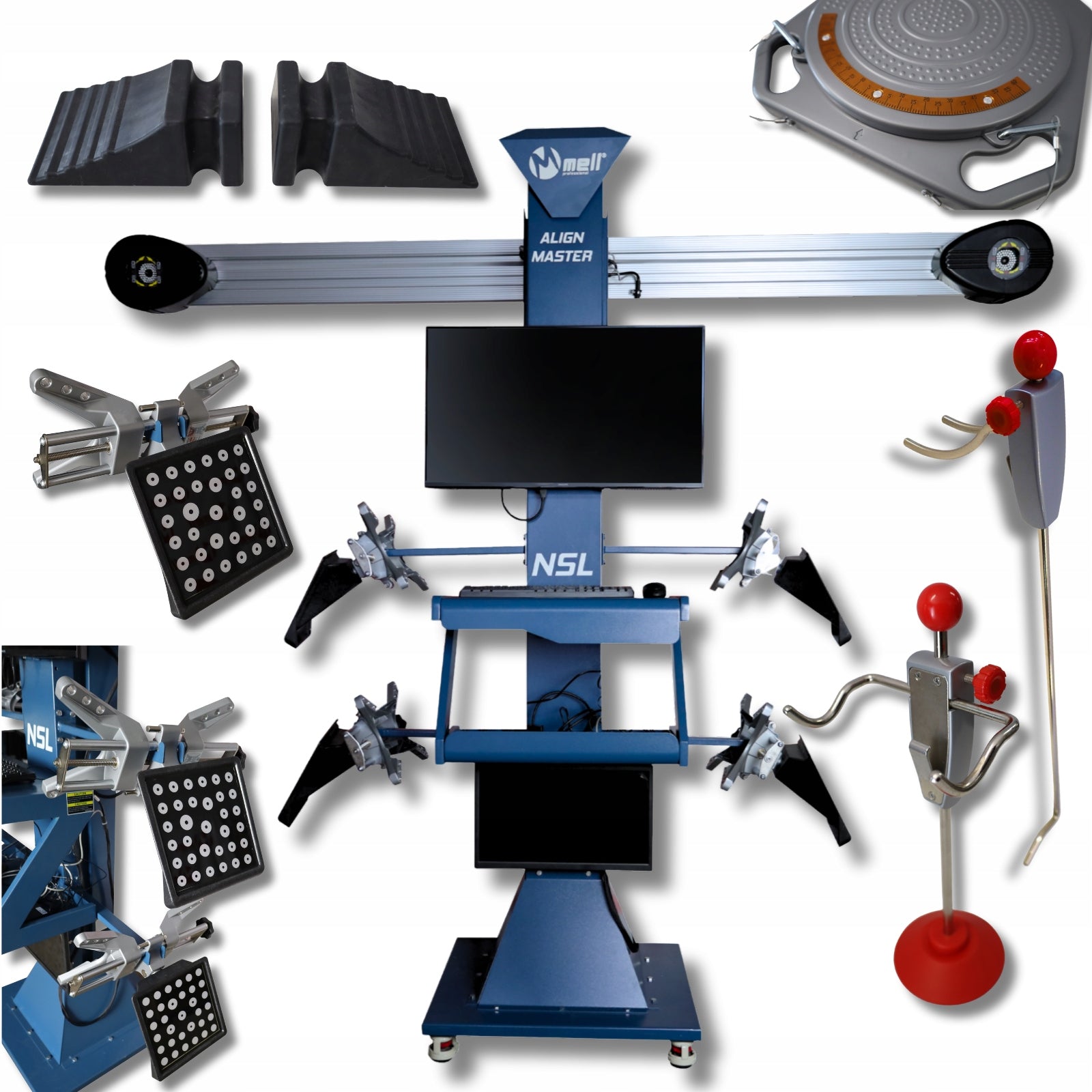

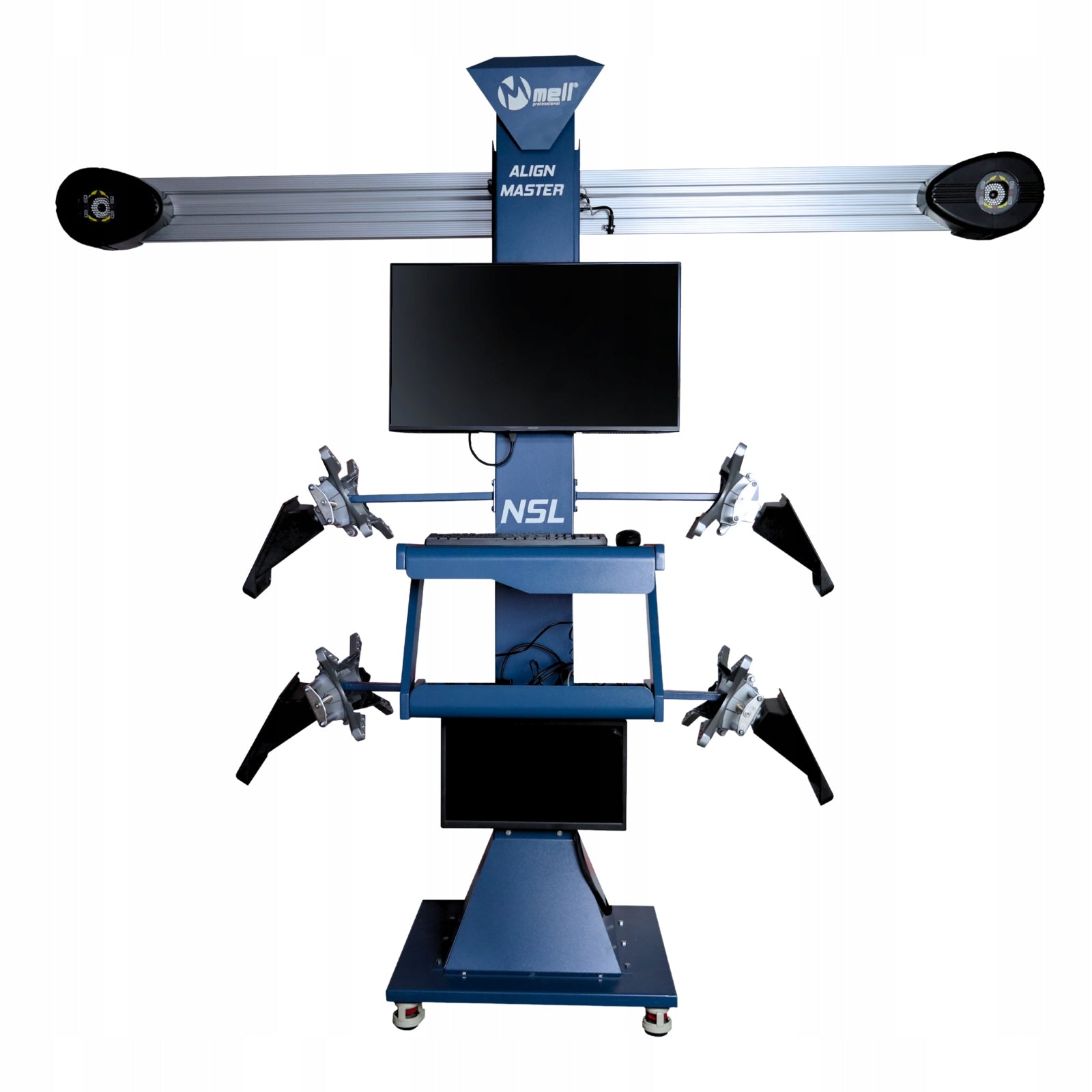

ALIGN MASTER NSL is an advanced 3D wheel geometry system designed for professional measurement and adjustment of 4 wheel geometry in passenger and delivery vehicles.

The device uses camera technology and sight shields, which enables:

• A thorough analysis of parameters in real time
• dynamic measurement (vehicle offset)

Supported geometry parameters:

• camber (wheel tilt angle)
• toe (wheel convergence)
• caster (angle of advance of the crossover pin)
• SAI (turn axis inclination)
• thrust angle

With its features:

• dynamic measurement
• turn angle analyses (caster/SAI, toe-out-on-turns, maximum turn)

The system enables accurate diagnostics of the suspension and steering system.

Visualization and operation

The results are presented in the form of:

• readable 3D visualization
• real-time meters

which allows for:

• current control during adjustment
• fast detection of deviations

The software (Windows) offers:

• automatic measurement procedures (Wizard)
• vehicle and customer database
• measurement and inspection reports
• support: mouse / keyboard / remote control

What does ALIGN MASTER NSL solve?

• uneven tyre wear
• downloading the vehicle
• curve set steering wheel
• problems with driving
• geometry errors after repair

Technology and operation

• cameras + targets
• dynamic measurement (vehicle offset)
• Real-time 3D visualization
• analysis of turning angles
• automatic operator guidance (Wizard)
• suspension reports and diagnostics

Technical data

• Model: ALIGN MASTER NSL
• Type: 3D wheel geometry system
• Measurement and adjustment of 4 wheels: YES

Supported parameters:

• camber
• toe
• caster
• SAI
• thrust angle

Functions:

• dynamic measurement
• Turn angle measurement (caster/SAI, toe-out-on-turns, max. twist)
• 3D visualization + meters
• customer and vehicle database
• reports and inspections

Software:

• Windows
• Operation: mouse / keyboard / remote control

Compatibility:

• 2006/42/WE
• 2014/30/UE

Why it is worth it:

• high accuracy of measurements
• faster customer service
• extended diagnostics = higher revenue
• less complaint
• professional image of the workshop

For whom:

• car workshop
• tire services
• diagnostic stations
• suspension services

Summary

ALIGN MASTER NSL is an advanced tool for precise measurement, adjustment and diagnostics of wheel geometry, which increases the efficiency of the workshop and the quality of services.

Steering wheel and pedal locks for wheel geometry

Professional set of wheel geometry locks designed to stabilize the steering wheel and brake pedal when measuring and adjusting the suspension geometry. Necessary equipment for every car workshop and diagnostic service.

Most important features:

• stable immobilization of the steering wheel,
• brake pedal lock,
• quick adjustment and installation,
• solid metal construction,
• convenient adjustment knobs,
• universal application for many vehicles.

The set facilitates precise geometry measurements and increases the comfort of the mechanic.

Wheel turntables for geometry

Professional wheel turntables used when measuring and setting suspension geometry. They allow the wheel to rotate freely during adjustment, ensuring accurate measurements and smooth operation of the steering system.

Most important features:

• clear measurement scale,
• solid and stable construction,
• non-slip surface,
• comfortable transport handles,
• intended for workshops and diagnostic stations.

Turntables are essential equipment for professional wheel geometry setting and suspension diagnostics.

Geometry Wheel Wedges - Set of 2

A set of wheel wedges designed to stabilize the vehicle during geometry measurements and service work. Made of durable material with high resistance to pressure and abrasion.

Most important features:

• set of 2 pieces,
• durable and resistant material,
• lightweight and comfortable to use,
• universal use in the workshop.
