Žvejybos echolotas Lucky FF1108-1CWLA, žuvų aptikimo nuotolis 100 m

Trumpai apie prekę

Prekė: Žvejybos echolotas Lucky FF1108-1CWLA, žuvų aptikimo nuotolis 100 m. Kategorija: Echolotai.

• Gamintojas: no brand
• Modelis: SONAR Lucky FF1108-1CWLA PL na ryby łódź

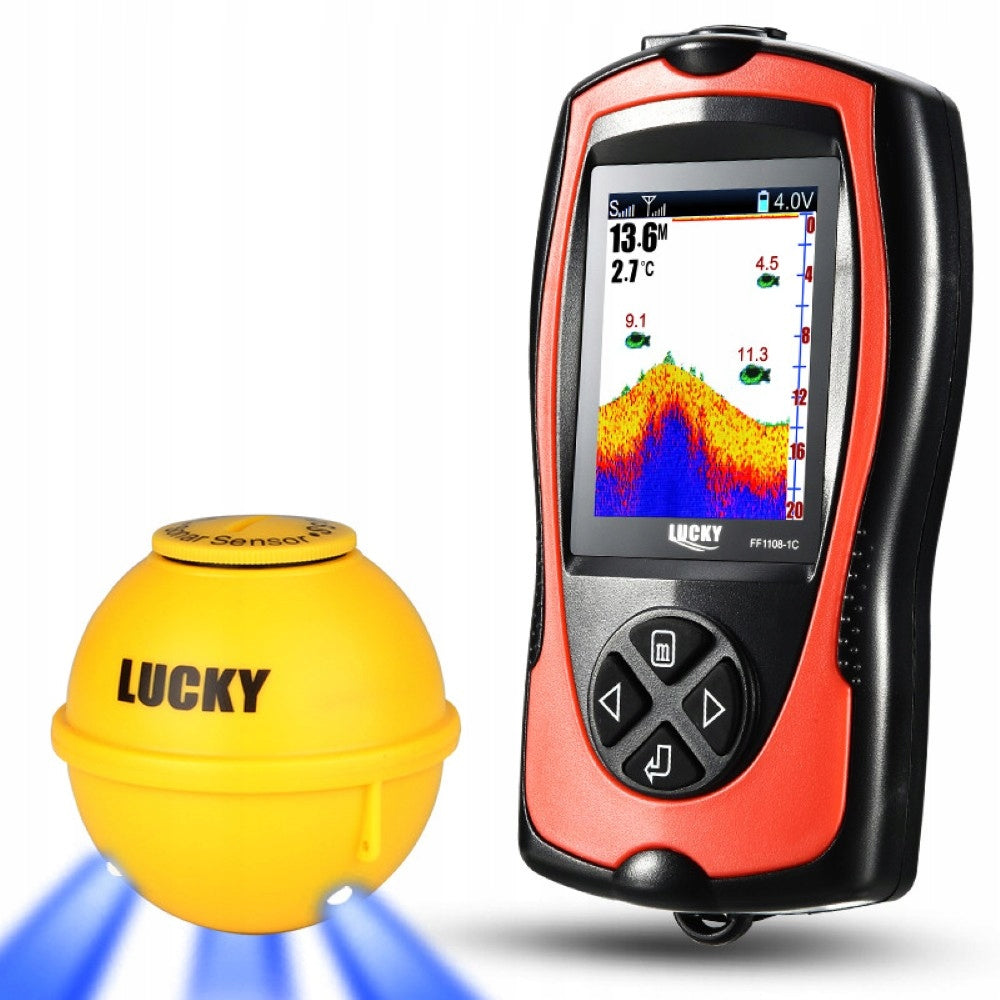

Wireless Color Fishing Sonar – Fish Finder LUCKY model: FF1108-1CWLA

• Sonar / fish finder for fish detection
• Wireless range: 100 m
• Depth measurement up to 45 m
• TFT LCD color display 2,4" (240 x 320 px) with LED backlight
• Fish detection alarm - small, medium and large - graphic and sound signalling
• Shallow alarm (1 m) — safety when towing and swimming with a bait boat
• Wide beam angle 90° at 125 kHz — large scanning area
• To the lake, river and sea
• The sonar has the latest sonar sensor with LEDs
• Blue LEDs provide excellent visibility in the dark
• Instant reading of fish depth and location
• Sonar can be thrown out of the rod and towed
• Possibility of mounting sonar to a controlled and bait boat
• MENU and user manual in Polish

Features and functionality of the sonar:

• The echo sounder allows you to locate fish and the depth of their feeding
• It has up to 10 degrees of sensitivity, thanks to which it determines the location of fish very precisely
• The presence of fish is indicated graphically and audibly
• Determination of fish size (small, medium, large)
• Fish detection alarm (small, medium, large)
• Measurement of depth of water
• 9 levels of screen brightness
• 9 levels of data display speed
• Shallow alarm 1m (scale up to 45m)
• Image magnification (scale from 1 to 45m)
• Measurement of water surface temperature
• Bottom structure mapping – jump character symbolizes pits or the presence of stones
• Bottom recognition: green symbolizes a soft bottom - e.g. seaweed, silt; no color hard bottom - e.g. stones, sand
• Possible work from the boat and on the ice
• Possibility of mounting sonar to a controlled and bait boat
• Battery status indicators
• Possibility of sonar exchange

Technical specification of the sonar:

• Model: FF1108-1CWLA
• Wireless range: 100 m.
• Fish detection range under water: 0.7 - 45m
• Display: color 2.4 inch TFT LCD 240 x 320
• Backlight: LED
• Dimensions: 135 x 70 x 35mm
• Sensor dimensions: ⌀ 80 x 60mm
• Sensor color: yellow
• Sensor weight: 67g
• Operating frequency: 125kHz
• Scanning angle: 90°
• Communication: wireless
• Degree of display protection: IP64
• Operating temperature range: from -10°C to 50°C
• Power supply for LCD device: LiPo battery 3.7V 850mAh
• Sensor power supply: LiPo battery 3.7V 850mAh
• Battery life: up to 12 hours
• Charging time: up to 4 hours
• Charging input: micro USB cable - USB 5V/1A
• Menu in language: POLISH, English, Russian, German, Chinese, Spanish, French, Italian, etc.

INCLUDED:

• 1 x Portable LCD Device - Fish Finder LUCKY FF1108-1CWLA PL
• 1 x Wireless sonar sensor with LEDs
• 1 x Charger with USB cable
• 1 x Neck Strap
• 1 x User manual in Polish
• 2 x Safety pin system + swivel super small
• 1 x Waterproof Case
• 1 x Transparent stopper with sonar seal

Support for sonar:

1. sonar battery status indicator
2. signal strength
3. Measurement of depth of water
4. temperature of the water surface
5. localised large fish and its depth
6. mapping the structure of the bottom of the body of water
7. left arrow of choice
8. sensitivity
9. sonar battery status indicator
10. characteristics of the water surface
11. upper magnification range
12. localised small fish and its depth
13. localised medium fish and its depth
14. lower magnification range
15. MENU button
16. right arrow elections
17. on/off button

Sonar support:

1. button 1 - turn the sonar on/off
2. sonar work indicator
3. USB charging port
4. button 2 - turn on/off LEDs
5. charging indicator

Menu and user manual in Polish:
