Žoliapjovės velenas Weibang WB537SCV, WB537, 3 pavaros

Trumpai apie prekę

Prekė: Žoliapjovės velenas Weibang WB537SCV, WB537, 3 pavaros. Kategorija: Benzininės žoliapjovės.

• Gamintojas: Weibang
• Modelis: WB537SC V 3IN1
• Galia: 3600 kW

MODEL WB537SC V - Profi design!!!

From the well-known Polish Distributor CEDRUS

100% ORIGINAL GOODS - ✔ New MODEL ✔

✅ SALES HIT - NEW MODEL!!!

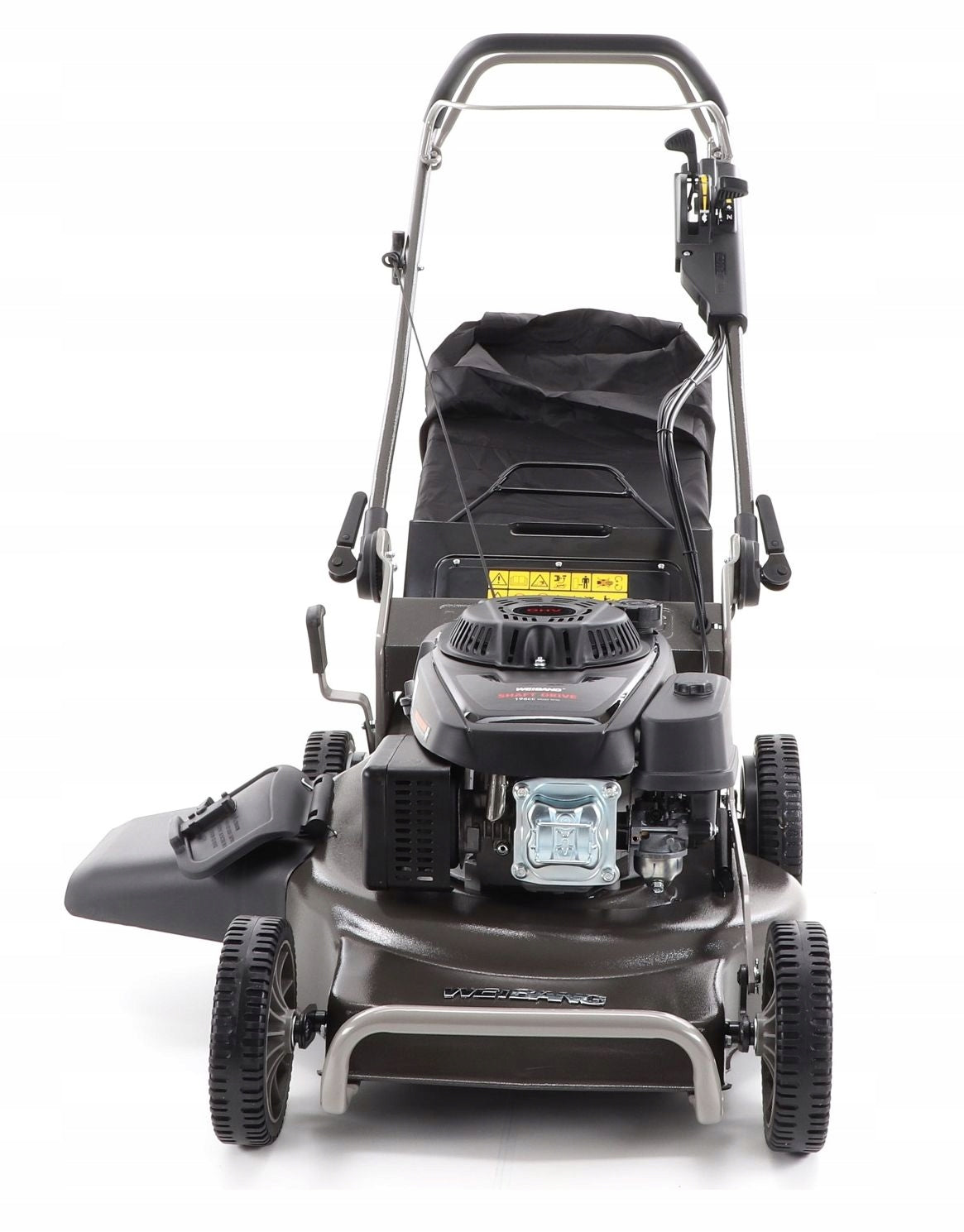

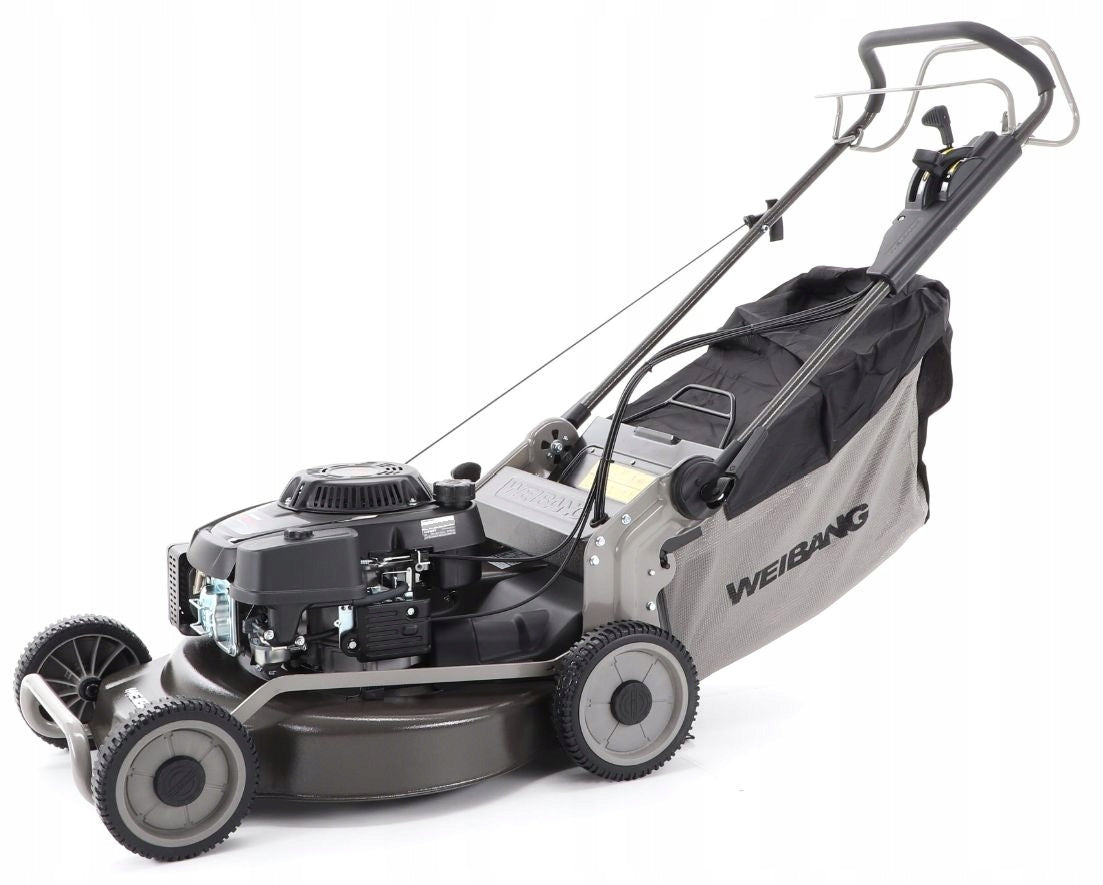

Weibang WB537SC V with LONCIN PROFI 196cm engine

The WB537SC V 3IN1 mower is equipped with a PROFESSIONAL EDITION of the Loncin engine with a capacity of 196 cm3 and durable 3-speed drive without straps - CARDAN SHAFT. The mower has a knife clutch and is made of strong and resistant materials and at the same time is perfectly balanced which ensures perfect, effortless maneuvering. It is designed for mowing very large household lawns as well as for professional work.

DRIVE - 3-speed professional transmission combined with the transmission of the drive through the cardan shaft makes it a mower designed for the most difficult tasks.

KNIFE CLUTCH - protection against damage to the motor shaft

Weibang mower with transmission using KARDAN shaft - no straps

5in1 mower with a width of 56 cm.

• Milling cap , side outlet included!!!

• ( mounted collection knife for basket with collecting shovels ) ✅ ✔

• New Model - Super MAXX

✅ Advantages of the Weibang WB537SC V 3IN1

• professional 3-speed gearbox, metal gears allow you to work in difficult conditions
• patented drive shaft, more reliable and durable
• central control panel
• HAMMERITE chassis and handle
• knife clutch - engine protection
• 3-in-1 function: basket, side ejection, grinding
• extremely durable transmission - 3 speed CARDAN SHAFT
• steplessly adjustable, foldable handle - makes it easy to transport and store (steel interlocking teeth - not plastic )

The cutting height can be adjusted with a 10-step lever, which gives you the opportunity to perfectly adjust the cutting height to your needs.

The mower housing without belt and its cover in combination with a profiled knife perfectly collects mowed grass.

Thanks to the quick folding handle system, the mower is very comfortable and convenient to store.

Grass basket with a capacity of 70L does not require frequent emptying.

The cutting height can be adjusted from 2,5 to 8,5 cm with a lever for central adjustment of the cutting height.

• Engine: WEIBANG by LONCIN shaft-drive 4-stroke, air-cooled OHV
• Gross engine power : 6,5 HP
• Net engine power (according to SAE J1349*) - 3,6 kW at 3600 rpm
• Net mower power: 3,6 kW/ 4,89 HP
• Rotary torque: 10,5 N.m/2500 rpm
• Knife clutch: YES

• Mower width: 56 cm
• Mowing width: 53 cm
• Mowing height adjustment: Central - 10 degree
• Height adjustment range: 25-85 mm
• Drive: YES - Cardan shaft
• Drive wheels: Rear
• Housing material: Steel with varnish coating - resistant to damage
• Basket capacity: 70 L
• Bearing wheels: YES with additional Teflon
• Wheel Size: 8 / 9 inch
• Weight: 49,5 kg

EQUIPMENT

• ✔ The Key to the Candle ✔

✅ PROFESSIONAL LONCIN I/C ENGINE in the profi edition for Weibang with ball-bearing shaft of the engine, iron cylinder sleeve I/C is a very high quality engine that provides high durability and reliability. The Loncin OHV engine guarantees reliable operation in all conditions, ensuring high comfort of operation with low fuel consumption.

• Engine manufacturer: LONCIN shaft-drive
• Engine type: 4 stroke, OHV - top-valve
• Engine series: 1P70F
• Net power (according to SAE J1349*) - 3,6 kW at 3600 rpm
• Rotary torque: 10,5 N.m/2500 rpm

• Maximum Engine speed 3600rpm
• Double air filter
• Capacity of oil pan: 0,6 l
• Capacity of fuel tank: 1,0 l

✔ Durability, Reliability, Functionality and very high comfort of work.

Instead of belt drives, we have improved the roller-driven mower to make it stronger and more durable due to material losses and rotting of the original belt. Another advantage is that we have eliminated the possibility of the belt “falling off”, which wastes a lot of time both you and the person repairing the machine. More power is another advantage of a shaft-driven mower, the mower is able to transfer power with much higher efficiency, because the belt drive often loses friction or slip energy.

The professional 3-speed gearbox and all-metal transmission parts inside ensure durable and stable performance in many complex situations. Suitable for a variety of tedious commercial working conditions.

Fantastic steel inner and outer guard design protects the blade well in any harsh working conditions, except for patented, more durable and reliable axle

Patented cardan axle, more durable and reliable.

The central control box provides comfort of use and greater convenience.

HOUSING - DIFFERENTIAL - CLUTCH

• It was made in the form of an extrusion made of steel sheet with increased thickness. The shape of the housing and side embossing ensure exceptional rigidity of the body and very good filling of the basket. The housing has been fully protected against corrosion and powder coated.
• Made of thick steel - rigid, resistant to damage
• KNIFE CLUTCH - protection against damage to the motor shaft!!!!!!
• Drive axle mounted in special hubs with bearing and sealant - + powerful drive box with brass gearsi drive - 3 gears - patented bearings in wheels - front axle held in the hub and anti-vibration sleevesi - high profil grass passage, etc.
• No strip guard - no blockage of the passage of discarded grass - (no strips )
• Knife with large shovels + high through and large contoured outlet opening - increases the effectiveness of throwing grass into the basket
• Embossed mounting hub made of one block of steel - without projections - sliding knife attachment (knife clutch)

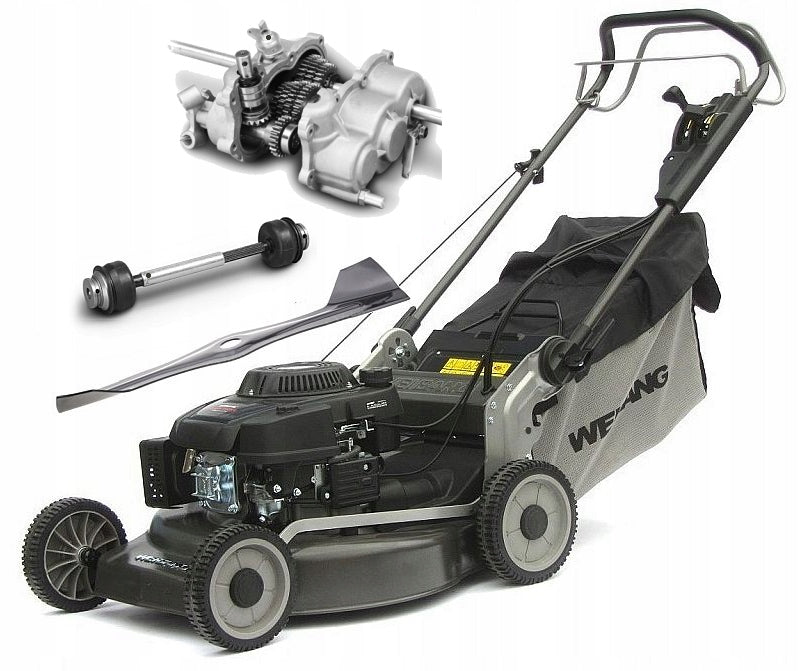

DRIVE - 3SPEED - with KARDANA roller

• 3-SPEED DRIVE - with KARDANA roller
• Patented Cardan shaft, more durable and reliable design - "no drive belts".
• The professional 3-speed gearbox and all-metal transmission parts inside ensure durable and stable performance in many complex situations. Suitable for a variety of tedious commercial working conditions.
• Drive axle (rotating ) held in hubs with bearings and sealant additionally fixed with housing not corrosion steel clamp.

HEIGHT ADJUSTMENT + LEVER AND HANDLE ADJUSTER

• STRONG Central cutting height adjustment, with one lever we change the position of all wheels. Powerful, comfortable handle adjustment lever with STEEL comb for adjustment.
• POWERFUL handle ARMS with cast iron stepless adjuster handle height - DURABILITY and RELIABILITY additionally counterweight to maneuver - makes WEIBANG mowers the LIGHTEST TO MANEUVER ON THE MARKET.
• Steel basket attachment - knife with large blades for accurate collection

LEVERS & REGULATORS

• STRONG STEEL gas handle and steel gear lever
• COMFORTABLE contoured handle in the tires - levers work without resistance additionally fixed in the bushings - no corns and comfort
• Wide grass outlet and rubber strip to secure and increase ejection vacuum, etc.

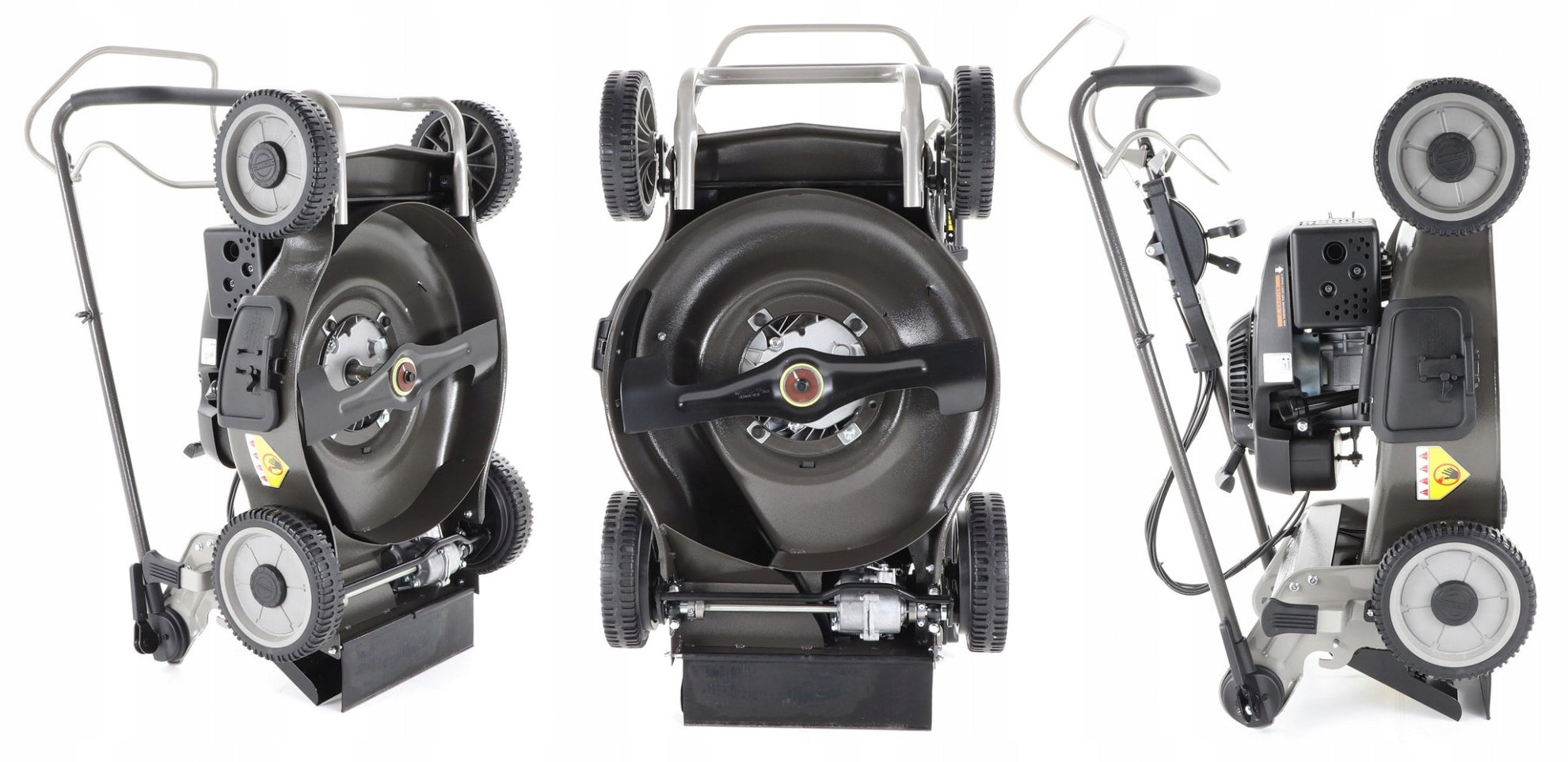

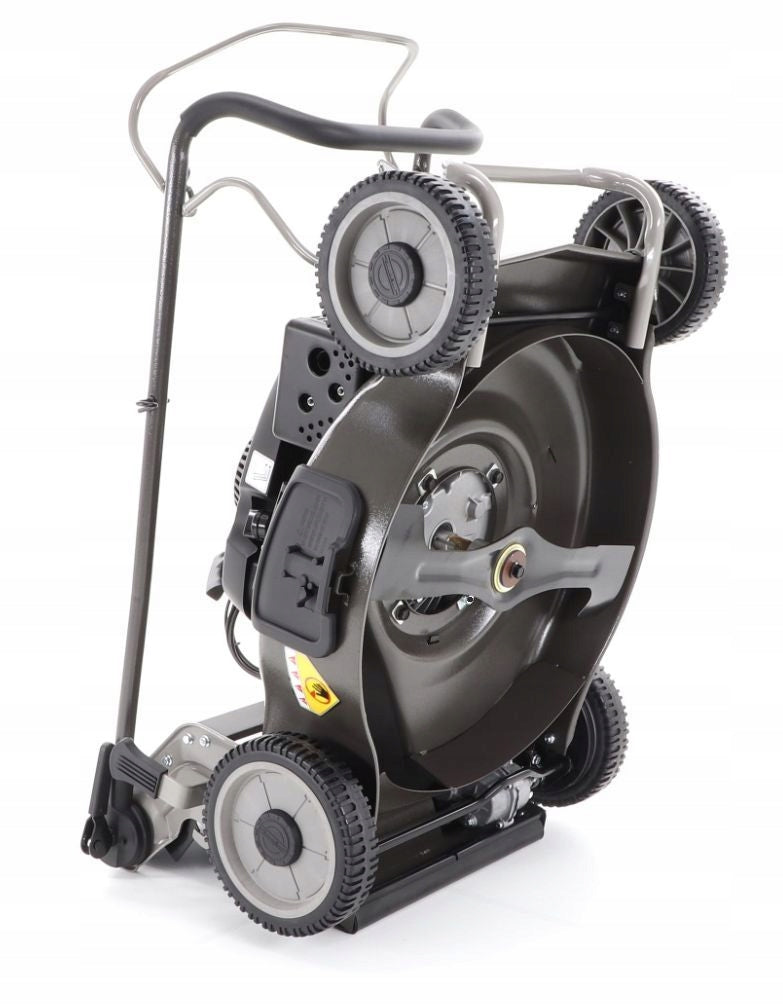

VERTICAL position for maintenance and storage

The possibility of placing the device vertically - convenience of the position for maintenance ( cleaning, washing or replacing the knife is already trouble-free ) additional position is also used for storage.

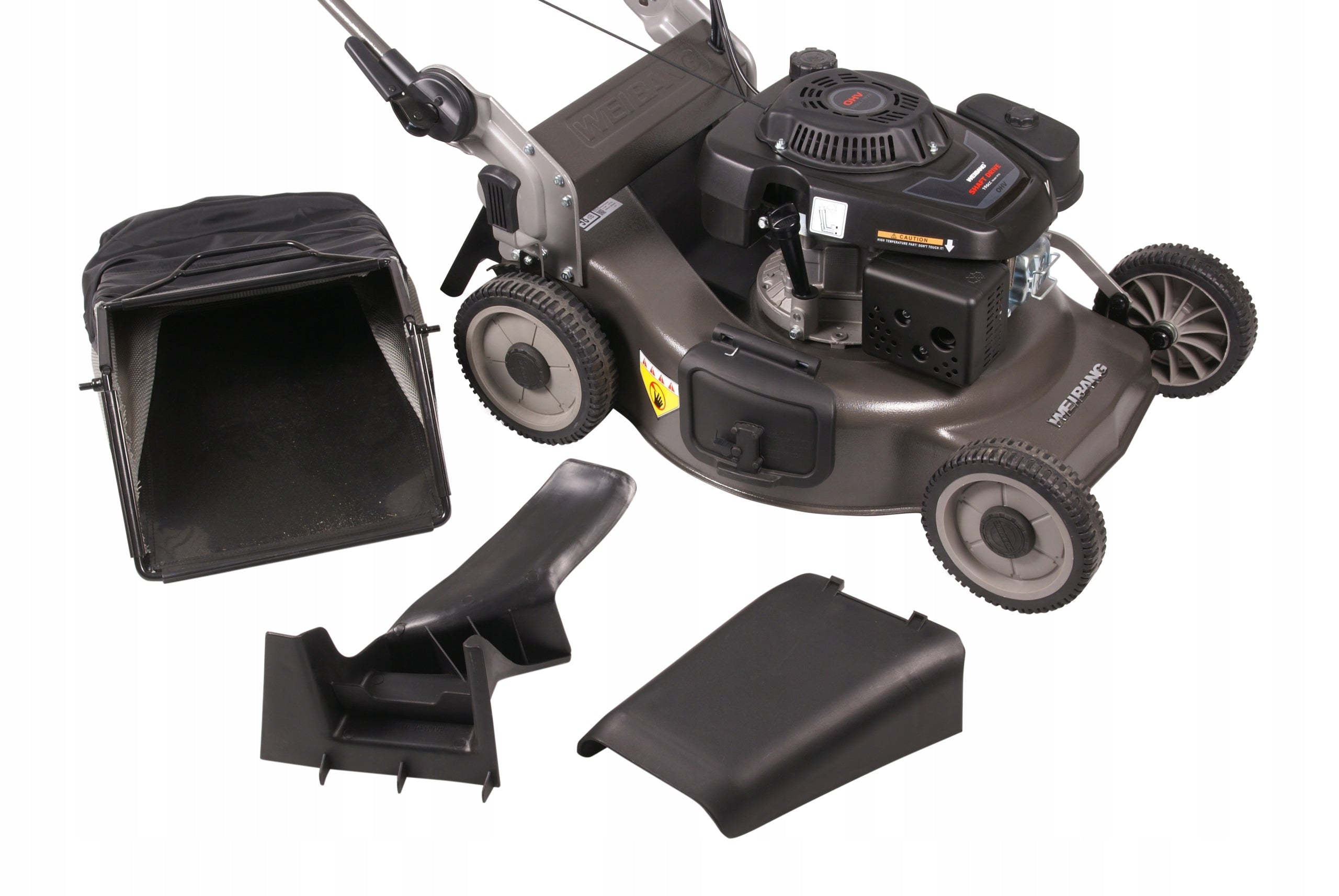

5in1 mower

• Trash collection, side ejection, grass grinding, mowing without basket, drive
• Outlet cap with anti-opening protection + steel rear ejection cover - grinding cap + wide powerful basket with anti-dust system and filling sensor
• Wide grass outlet and rubber strip to secure and increase ejection vacuum, etc.
• Large, wide with a comfortable grip. The upper part of the basket protects the operator well from dust and additionally has a basket filling function, which informs us when we should empty it. Bottom - made of fabric provides maximum air throughput so that the container is fully filled with mowed grass.

WIBANG WB537 SC V 3in1 diesel mower

• Key to the Candle ✅ ✅
• Cutting blade ( mounted ) ✅
• Basket frame - 1 pc
• Basket cover - 1 pc
• Side ejection cover
• Rear ejection cap

• Warranty card manufacturer
• User manual in Polish

Version from the official distribution WEIBANG POLAND.

WEIBANG - over 25 years of experience in the production of professional equipment!!!

• + TRANSPORT pallet

It provides protection for your device and ensures that it is delivered safely to you!!

• In addition, The product is delivered on a PALLET with the option of FULL UNloading: FULL COMFORT ❌ ✅

The possibility of placing the device vertically - convenience of the position for maintenance ( cleaning, washing or replacing the knife is already trouble-free ) additional position is also used for storage.
