Trumpai apie prekę

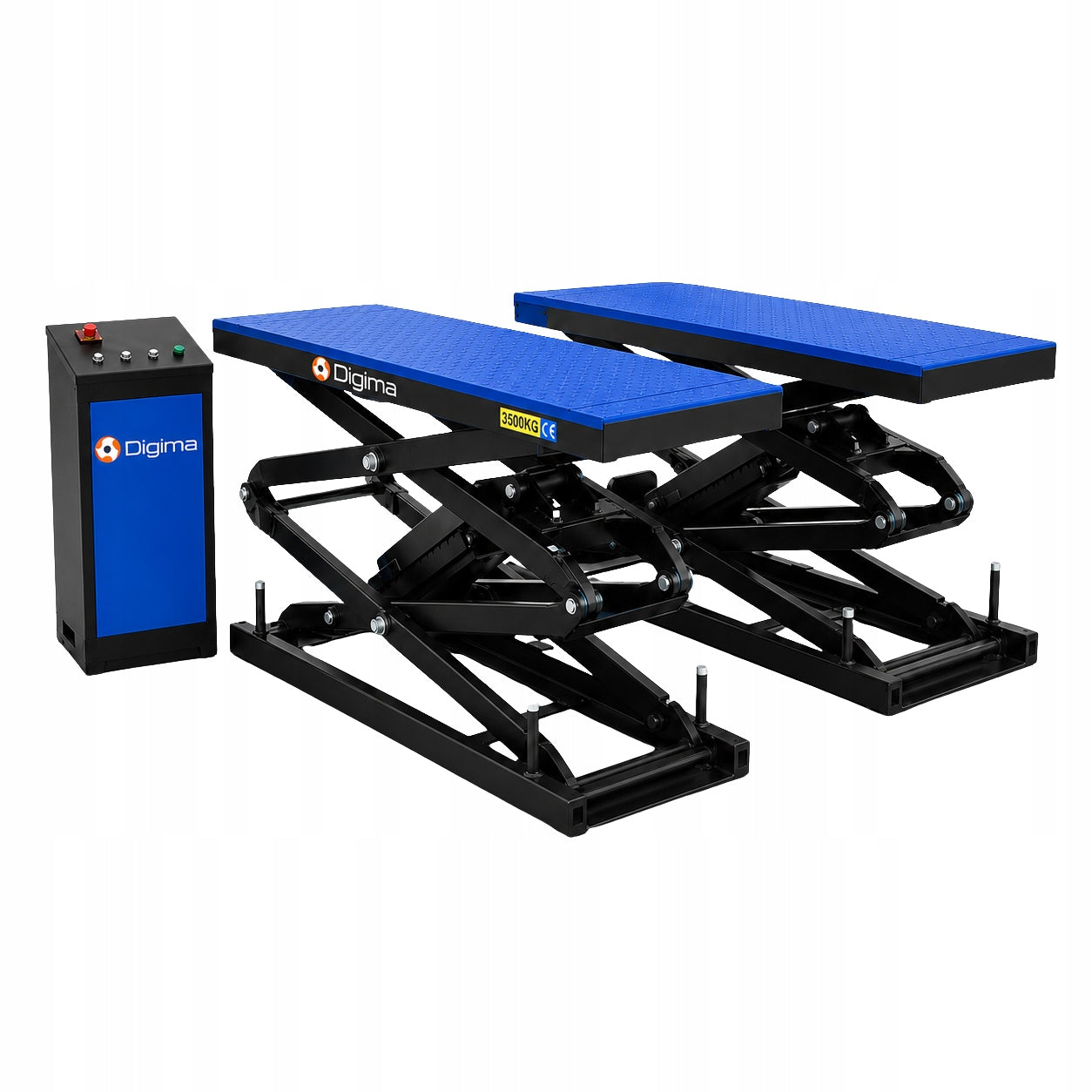

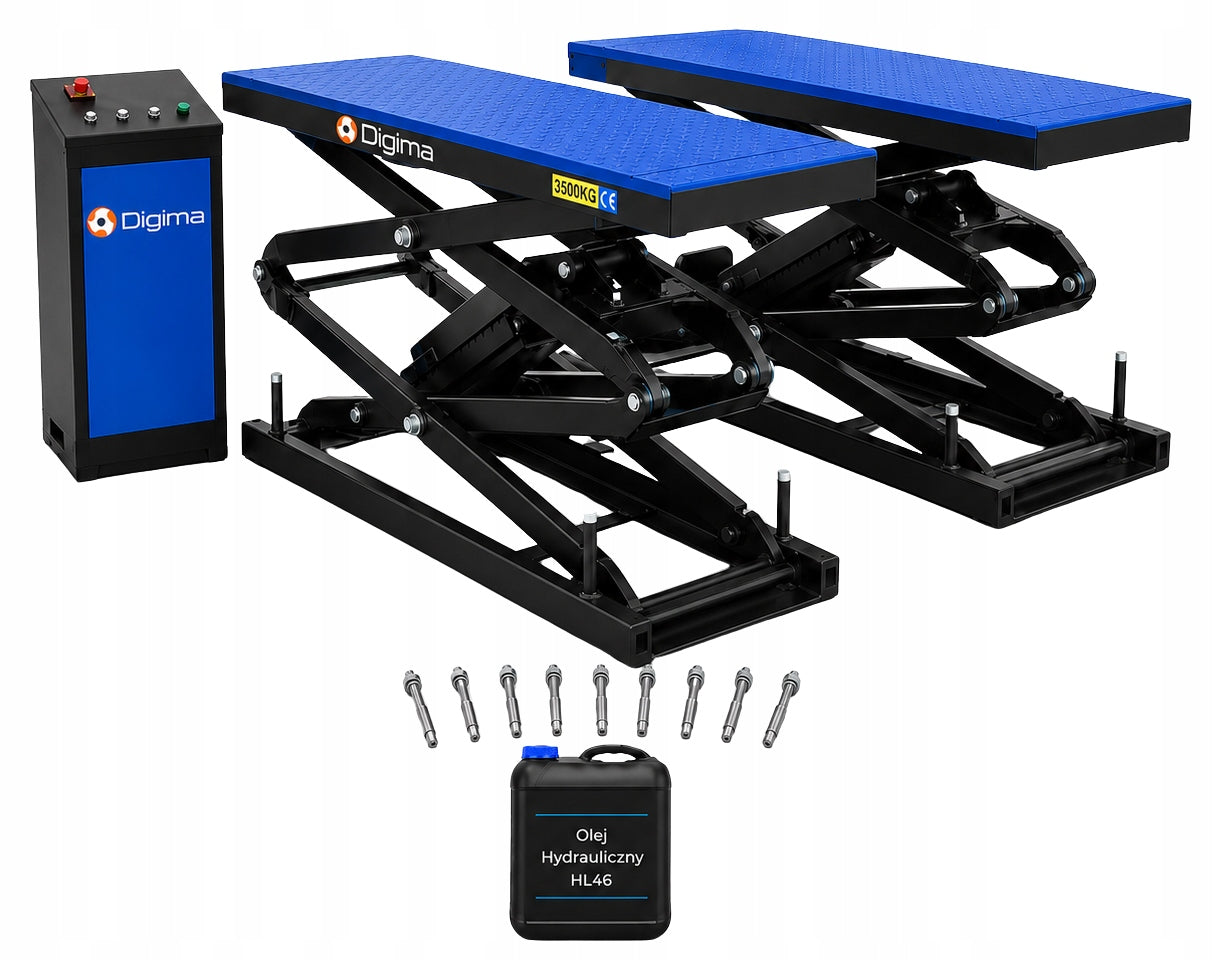

Prekė: Žirklinis keltuvas Digima TW635FW, 3,5 t, su pneumatiniu užrakto atleidimu. Kategorija: Keltuvai stulpams.
- Gamintojas: Digima
- Modelis: TW635FW
TW635FW is a low profile scissor lift designed for professional workshops, mechanical services, vulcanization, fast service and repair stations. The structure has been prepared to work with vehicles weighing up to 3500 kg.
The model has pneumatic release of the safety lock, low-voltage control 24 V, protection against excessive stretching of actuators, mechanical lock strip with pneumatic release and raids that can be locked horizontally as an extension of the platform.
Low profile scissor lift for fast vehicle operation
Leverage 3500 kg — for passenger cars, SUVs and service vehicles.

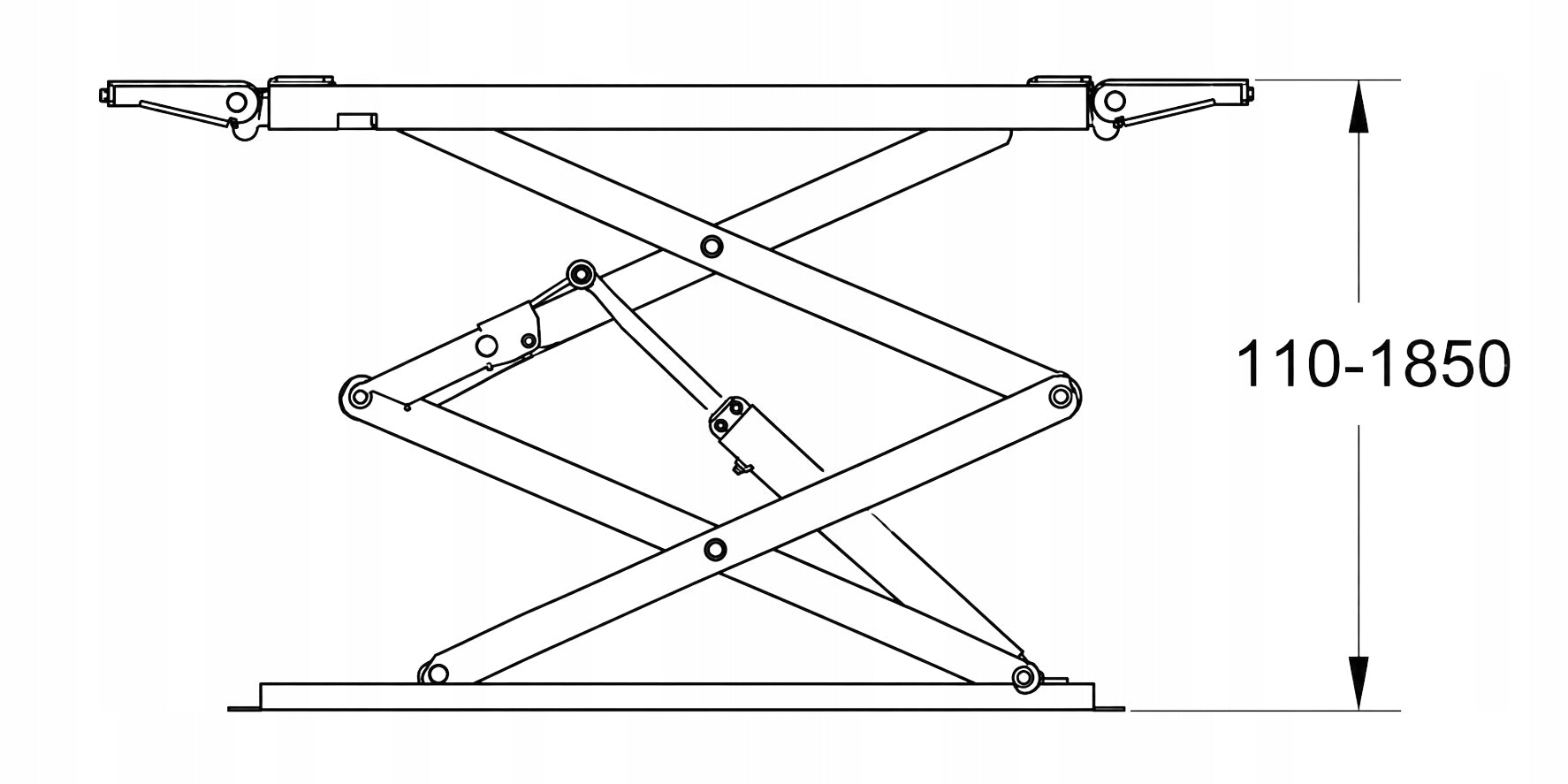

Lifting height 1850 mm — convenient access to chassis and service components.
Minimum height of 110 mm — very low profile for easy handling of lower vehicles.
Pneumatic lock release – fast and convenient security operation.
Control 24 V — low-voltage control box with up/down/lock buttons.
Invasions as an extension of platform — invasions can be blocked horizontally.
Mechanical lock bar — protection with pneumatic release.
Actuator protection — the limit switch protects against excessive stretching.
Where will the TW635FW lift work?
Car workshop
Mechanical repairs.
Chassis operation.
Replacement of consumables.
Tire services
Exchange of wheels.
Fast service of vehicles.
Suspension control.
Quick service stations
Oil change.
Working on low vehicles.
Daily service and diagnostics.
Model - TW635FW
Device type - Low profile scissor lift
Lifting capacity - 3500 kg
Engine power - 2,2 kW / 3,0 HP
Air supply - 6 – 8 kg/m³
Lifting height - 1850 mm
Minimum height - 110 mm
Overall length - 2020 mm
Overall width - 2090 mm
Platform width - 620 mm
Working distance - 850 mm
Length of working part - 1535 mm
Power supply - 110 V / 220 V / 380 V
Lock release type - Pneumatic release of safety lock
Control - 24 V control box with main switch and up/down/lock buttons
Protection of actuators - Limit switch protecting against excessive stretching
Invasions - Invasions can be blocked horizontally as an extension of the platform
Safety lock - Mechanical lock strip with pneumatic release
Application - Quick service, tire change, oil change, chassis service, car workshop
Specifications
| Group | Name | Value |
|---|---|---|
| Parametry | Condition | new |
| Parametry | Invoice | With VAT invoice |
| Parametry | Brand | Digima |
| Parametry | Manufacturer code | TW635FW |
| Parametry | EAN (GTIN) | 5908054751419 |
| Parametry | Number of columns | 2 |
| Parametry | Column connection | bottom |
| Parametry | Overall width | 2090 mm |
| Parametry | Overall height | 1850 mm |
| Parametry | Power supply | 400 V |
| Parametry | Engine power | 2.2 kW |
| Parametry | Lifting capacity | 3500 kg |
| Parametry | Minimum lifting height | 110 mm |
| Parametry | Maximum lifting height | 1800 mm |
