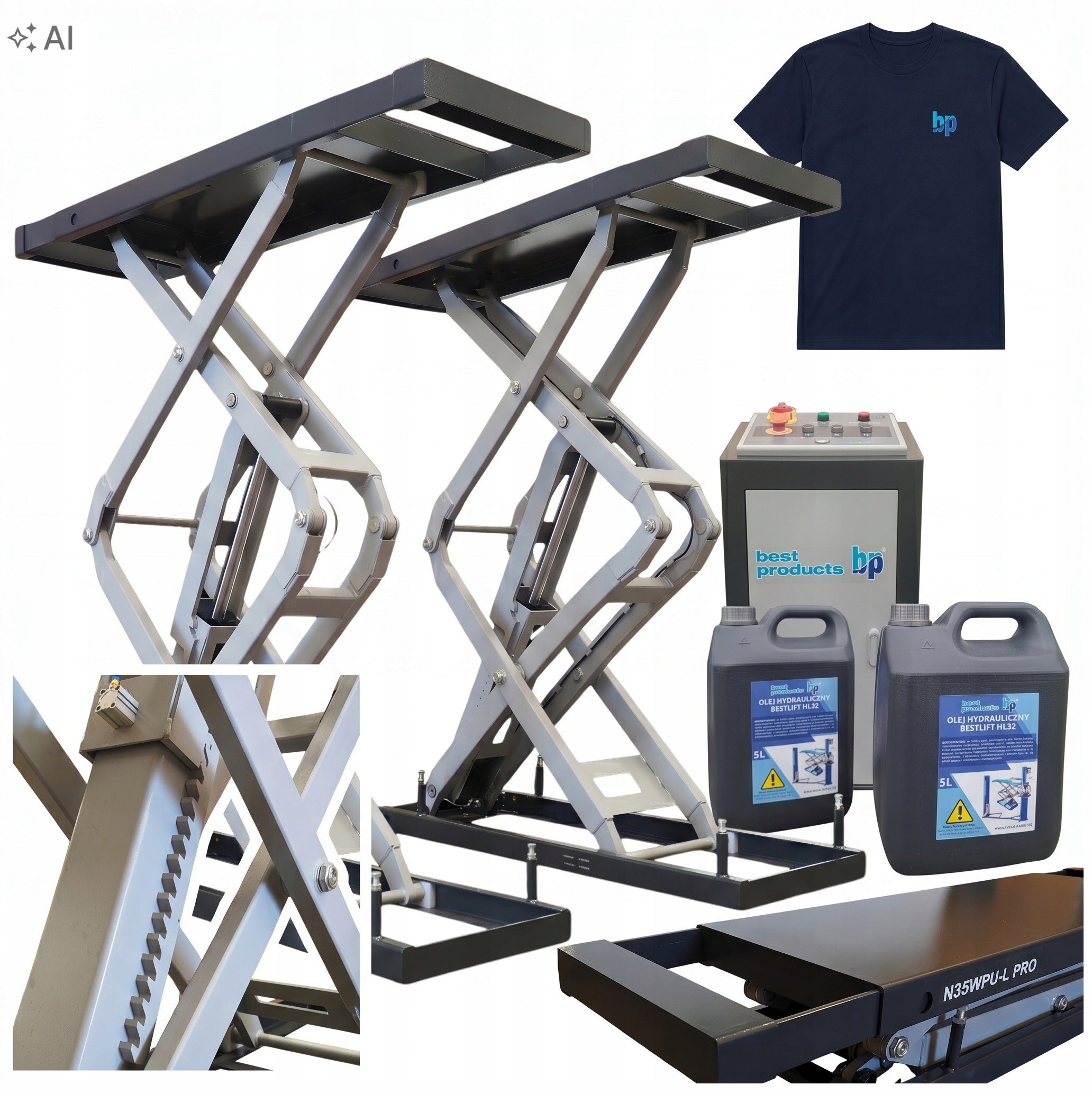

Žirklinis automobilių keltuvas BESTLIFT N35WPU-L PRO HIGH, 3,5 t, 2,03 m

Trumpai apie prekę

Prekė: Žirklinis automobilių keltuvas BESTLIFT N35WPU-L PRO HIGH, 3,5 t, 2,03 m. Kategorija: Žirkliniai keltuvai.

• Gamintojas: Bestlift
• Modelis: N35WPU-L PRO

Electrohydraulic subliminal lift recessed into the floor – perfectly flush with the ground, perfect for cars with very low suspension!

Hydraulic oil 2x5l Bestlift HL32 and T-shirt FREE!

Do you want to save space in the workshop, maintain a perfectly flat floor and easily operate even the most lowered sports cars?

Traditional two-column lifts limit the maneuvering space, and threshold lifts create thresholds that are easy to damage low bumpers?

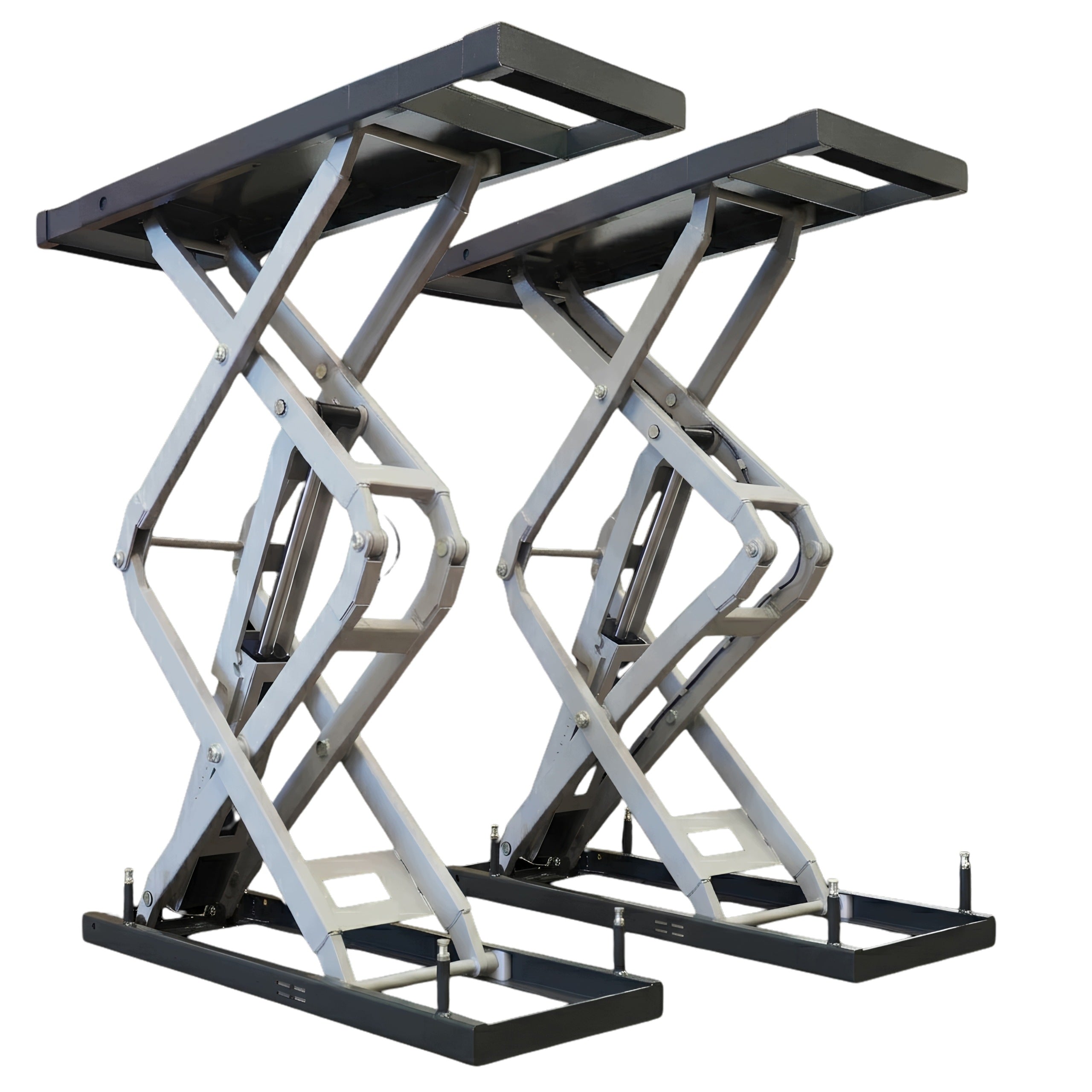

Bestlift N35WPU-L PRO is an electrohydraulic scissor lift designed for underfloor installation. When completely lowered, the platforms hide perfectly on par with the floor (0 mm), which ensures a completely free passage and excellent aesthetics of the workstation. With a height extension of up to 2030 mm and a lifting capacity of 3500 kg, the device guarantees the highest comfort of the mechanic and full safety.

🏆 Why is Bestlift N35WPU-L PRO the best investment in your workshop?

• Perfectly flush with the floor (0 mm): Underfloor installation eliminates obstacles in the hall. The absence of protruding raids allows trouble-free entry of cars with very low clearance.
• High lifting (up to 2030 mm): Provides a comfortable, upright standing position for the operator under the lifted vehicle, facilitating chassis work.
• Double-sided retractable platforms (1680 – 2140 mm): They allow for immediate extension of the support plane and safe lifting of vehicles with different and large wheelbases.
• Fully automatic control: Just press the button on the console – the lifting, locking and lowering process takes place automatically from the control cabinet.
• Pneumatic release of safety bolts: Mechanical ratchets are released automatically with compressed air before lowering, eliminating manual levers.
• Serial synchronization of actuators: The system based on two hydraulic actuators with compensation function ensures precise and even movement of both platforms.
• Audio signal and limit sensors: Built-in safety position sensors and acoustic signal in the last phase of lowering protect the operator's feet from crushing.

📊 Technical data:

• Nominal load capacity: 3500 kg (3.5 T)
• Maximum lifting height: 2030 mm
• Height after lowering: 0 mm (faced with the floor)
• Platform length (basic / with extension): 1680 mm / 2140 mm
• Single platform width: 550 mm
• Overall dimensions: 1680 x 1940 x 2030 mm
• Drive motor power: 2.2 kW
• Electrical power supply: 230V/50Hz
• Lifting time: approx. 90 s
• Maximum hydraulic pressure: 25 MPa
• Required air pressure: 0.4 – 0.8 MPa (4 – 8 bar)

🛡 Safety systems and design

Work safety under a raised vehicle is an absolute priority. Bestlift N35WPU-L PRO is equipped with a set of advanced protections:

• Pneumatic locking ratchets: The automatic locking mechanism secures raised platforms on steel lock teeth, relieving the hydraulic system.
• Hand pump connection (emergency lowering): In the event of a sudden power failure, it allows you to manually unprotect the bolts and safely lower the vehicle down.
• Sturdy powder coating: Rigid steel construction has been protected with durable powder coating, resistant to workshop chemistry and harsh operating conditions.

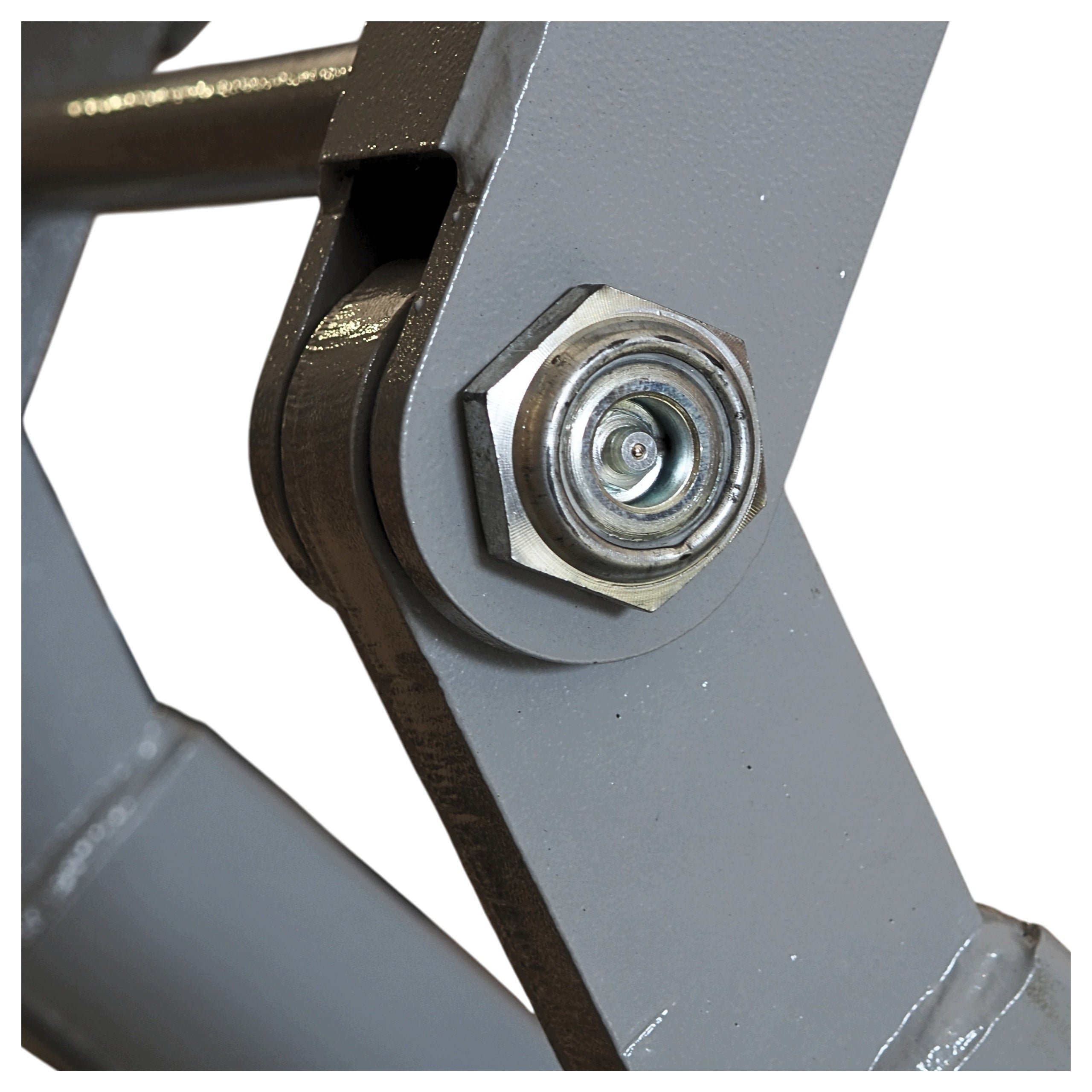

• Scissor lubricators: Dedicated lubrication points on the pins of the scissor set extend the service life of moving parts and composite sleeves.

🛠 Application

The Bestlift N35WPU-L PRO floor lift is the perfect solution for modern service stations:

• Sports and tuned car services: No threshold (0 mm) eliminates the risk of damage to bumpers, threshold pads or low exhaust.
• Mechanical workshops and Fast-Fit services: Full, unlimited access to thresholds, suspension, braking system and wheels.
• Vulcanization services: Instantly lift the entire vehicle for simultaneous replacement of all four wheels.
• Auto-Detailing stations and paint shops: The lack of columns covering the sides of the vehicle facilitates polishing, application of ceramic coatings or PPF film.

🛡 Double-sided extended platforms and underfloor installation

Letting the lift into the floor ensures that the workshop space remains 100% used – after leaving the lift, you pass through the station as on an ordinary floor.

The device is equipped with double-sided sliding platforms. You can easily increase the working length from 1680 mm to as much as 2140 mm. This solution allows you to easily support both short city cars and long limousines, station wagons or SUVs.

📐 Installation requirements and substrate

To ensure safe installation, the Bestlift N35WPU-L PRO requires prior preparation of foundation cavities (recommended at least 21 days before installation):

💡 KEY BUILDING REQUIREMENTS:

• Dimensions of mounting cavities: Two recesses with dimensions: Length 1720 mm x Width 590 mm x Depth 300 mm each.
• Depth spacing: 800 mm.
• Flatness of the bottom of the cavities: Deviation of the bottom level of the main and auxiliary cavity ≤ 3 mm.
• Concrete quality: The bottom of the recesses should be poured with concrete class C20/25 (B25) with a minimum thickness of 200 mm (strength approx. 3000 psi).
• Underground installation: A protective pipe (peszel/PVC) with a diameter of 100 mm should be carried out between the cavities and the control cabinet and the water drainage in the middle of each cavity should be provided.

Why choose Best Products?

When you buy Best Products equipment, you choose a product that comes directly from the manufacturer. We provide access to spare parts, which facilitates the operation and service of equipment in the long term. After purchase, we offer technical support, helping in the proper use of the equipment. Each device has a in Polish, which makes it easy to install and use. It is possible to use professional advice to choose the right equipment for the needs of the workshop. We focus on clear terms of cooperation and reliable service at every stage.

10 Liters of Hydraulic Oil Bestlift HL 32 and a T-shirt.

Take care of the heart of your workshop!

Original hydraulic oil Bestlift HL 32 is a high-quality working fluid, specially selected for trouble-free operation of BEST PRODUCTS workshop equipment and equipment from other manufacturers.

🛡 Why choose the original Bestlift oil?

The use of dedicated hydraulic oil is crucial for the durability of your machinery. Bestlift HL 32 oil provides:

• ✅ Smooth operation – optimal viscosity guarantees smooth lifting and lowering without .
• ✅ Protection against wear and tear – extends the life of hydraulic pumps, valves and actuators.
• ✅ Corrosion protection – protects internal metal components from rust.

Choose quality from a Polish leader with 30 years of experience in the workshop industry!

⚙ Application:

Ideally suited for devices operated in moderate temperature conditions, in light and medium-loaded hydraulic control systems and hydrostatic drives.

Recommended in particular for:

• Two-column lifts
• Four-column lifts
• Scissor lifts
• Truck fitters

Specifications

Group	Name	Value
Parametry	Condition	new
Parametry	Invoice	With VAT invoice
Parametry	Brand	Bestlift
Parametry	Manufacturer code	N35WPU-L PRO
Parametry	EAN (GTIN)	5908128330069
Parametry	Power supply	230 V
Parametry	Engine power	2.2 kW
Parametry	Lifting capacity	3500 kg
Parametry	Maximum lifting height	2030 mm
