Žirkliniai keltuvai 140 cm ELPRO PM35.14

Trumpai apie prekę

Prekė: Žirkliniai keltuvai 140 cm ELPRO PM35.14. Kategorija: Žirkliniai keltuvai.

• Gamintojas: no brand
• Modelis: EL PM35.14

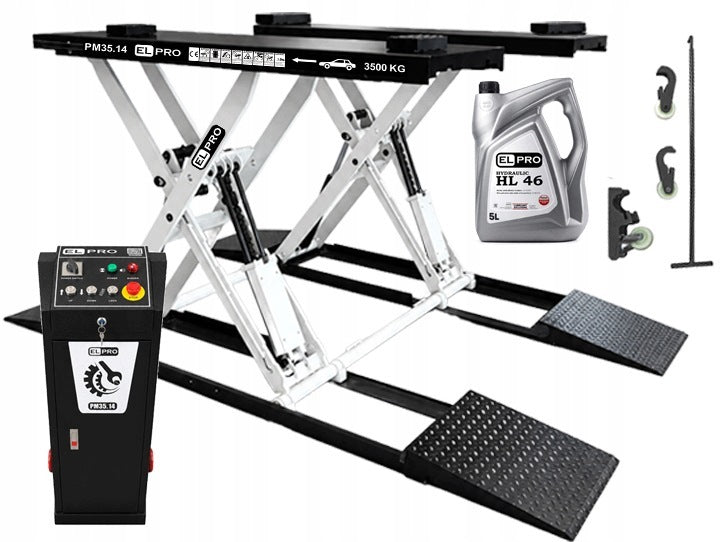

✅ Mobile scissor lift high 140 cm 1,4m ELPRO PM35.14 + 10 l oil

UP TO 140 CM

+ Thermal mug ELPRO

+ 10 l lift oil

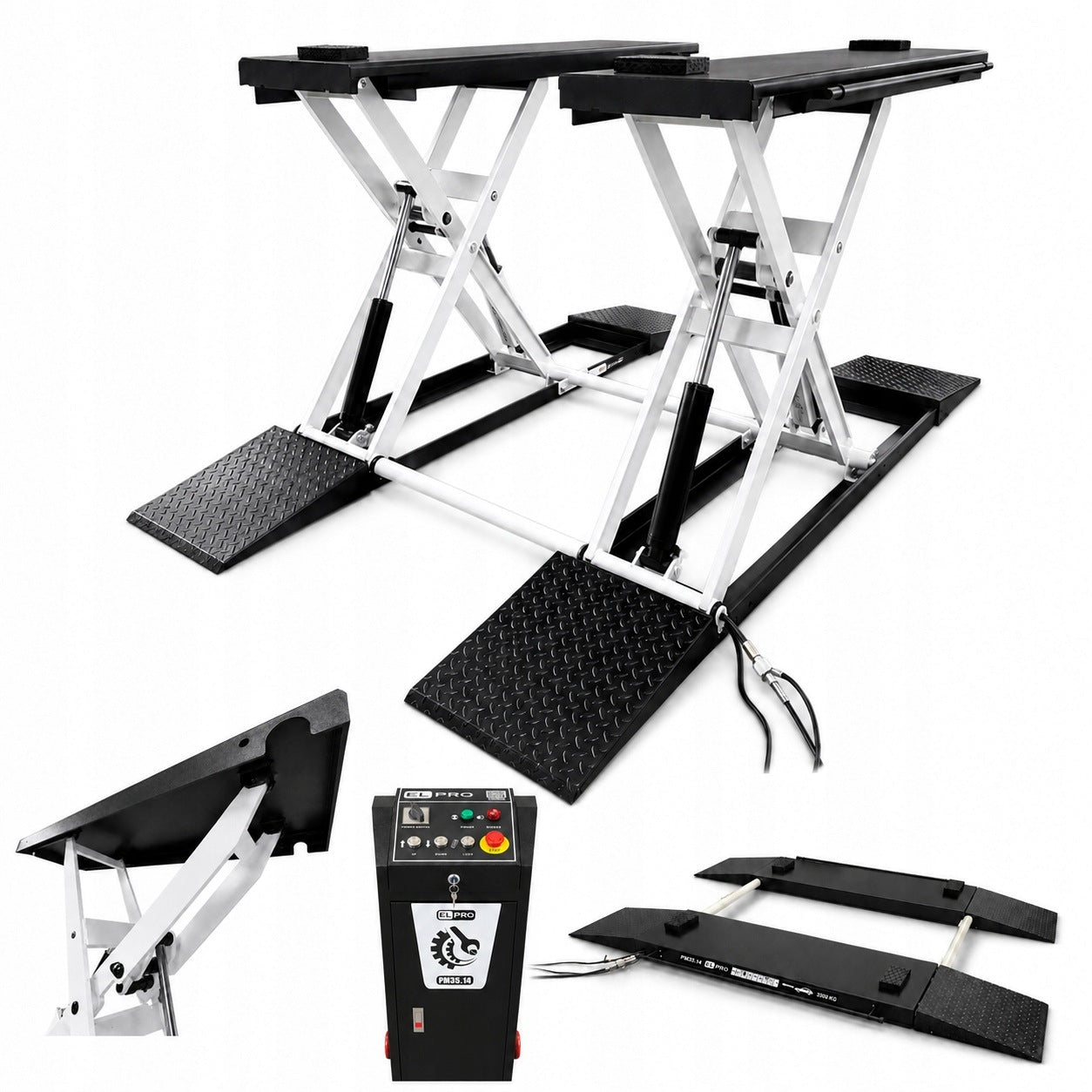

➡ ELPRO mobile scissor lift

high - 140 cm

• Low lift electrohydraulic lift with the possibility of movement
• Stable support structure
• Height lock released electrically - no need to connect the compressor
• Rubber washers as standard
• Safety devices according to EN1493:2010.
• 230V power supply

➡ As one of the few on the market offers

height up to 140 cm

The lift lifts up to 140 cm, providing the mechanic with convenient access to the chassis, suspension, braking system and other components. This height allows comfortable work in a standing position, improves ergonomics, facilitates repairs and significantly reduces operator fatigue.

➡ Technical data:

• Lifting capacity - 3500kg
• Power supply - 230V/50Hz
• Engine power - 2,2 kW
• Lifting height - 110 - 1400 mm
• Length of platforms - 1735 - 2935 mm
• Width of platforms - 530 mm
• Noise level - < 65 dB
• Lifting time: 30 s
• Weight - 580 kg

➡ Stable construction

Stable support structure combined with strong, durable actuators guarantees stable operation under load up to 3,5 T lifting the vehicle to a height of up to 140 cm which definitely facilitates operation

➡ Low ramps - after folding the lift

has a height of only 11 cm

You can be sure that even the lowest car with sports suspension will enter this lift without any problem, its height when fully folded is about the same as your favorite cup from which you drink delicious coffee every morning.

➡ Limit switch

The lift also has an additional protection in the form of a tip, thanks to which it will automatically stop when the maximum height is reached.

➡ Mechanical locks

The lift features an advanced safety lock mechanism, designed for maximum stability and safety in use. The entire load is taken over by solid scissor arms, so that the base and construction of the lift are not exposed to excessive compressive and tensile forces. This solution increases the durability of the entire device.

The support points of the scissor arms have been precisely adjusted to the operating points of the hydraulic cylinder. The load is distributed evenly, so the structure maintains high rigidity and stability even when operating at full lifting capacity.

This design solution requires high precision, but instead provides:

• high stability during lifting
• effective protection of the lift base
• longer lifespan of the device
• safe operation even under heavy loads

In addition, there is a DOUBLE LOCK system in the lift - double protection - After setting the lift on the ratchets, the weight of the vehicle is taken over by durable mechanical protection. Thanks to this, the lift remains stable even in the event of a pressure drop or failure of the hydraulic system.

➡ Electric ratchet release

safety

The lift is equipped with an electric safety lock release system. Mechanical ratchets are activated by actuators powered by a voltage of 230 V.

Thanks to this, the device does not require a compressor, and its installation and operation are much simpler. Access to a standard 230 V socket is sufficient for operation.

➡ SOFT START system

Thanks to this system, the lift works at full power from the very beginning, facilitating the lifting of low sports cars, which standard lifts usually cannot cope with. This extra short shear provides a smooth start and less strain on the plumbing.

➡ Lubricants

Lubricants (i.e. popularly kalamitki) in the scissor lift play a very important role in maintaining the efficiency of the mechanism. Here’s how they work and how they help:

• Reduce friction – the grease layer separates metal surfaces.
• Protects against wear – grease reduces abrasion and extends the life of pins, bushings and bearings.
• They protect against corrosion – fresh grease pushes out moisture and dirt.
• Improve the smoothness of work – the lift rises and lowers without jams.
• They facilitate service – instead of disassembling the mechanism, it is enough to feed the grease through the calamite.

Regular lubrication by calamites is the key to safe and long-term operation of the lift.

➡ Safety at work

The safety guard effectively reduces the risk of accidentally slipping the foot under the lift, increasing the protection and comfort of the operator.

➡ Control box

Easy-to-use control box with safety switch. Equipped with backlit metal buttons to control up and down movement and lock function. In addition, it has a safety switch, power indicator, as well as light and sound signaling.

➡ Mobility

With the help of the drawbar and the included wheels, the ELPRO lift can be quickly and safely positioned anywhere in your workshop, in the vulcanization season it is ideal as a tire change station, in the off-season as an additional workstation thanks to which you will be able to serve more customers.

➡ Washers

The standard equipment includes four washers for safe vehicle support. They also increase the height of the lifted vehicle

ADDITIONAL FEATURES OF THE LIFT:

• Power supply 230V - thanks to the use of a 1 phase motor, the lift can be used anywhere, just pull up the power supply 230V, or connect the lift to the generator.
• Emergency lowering valve - the lift has an emergency lowering valve, so you can lower the lift despite the lack of power.
• Leaving speed adjustment - you can quickly adjust the drop rate of the lift is quite important in the case of heavy cars and changes in ambient temperature.

• 10l hydraulic oil
• thermal mug

✅ ELPRO is a polish brand created by Elkur.

We have been creating it for years and are proud of it.

Bet on quality you can trust. ELPRO machines are manufactured in renowned factories, which guarantees the highest standard of workmanship and reliability in everyday work.

As a brand owner on the Polish and European markets, we provide:

➡ Professional advice – we will help you choose the perfect equipment for your needs,

➡ Full technical support – from the moment of purchase to use,

➡ Proven brand – thousands of workshops and services have already trusted us

ELPRO – the choice of professionals who focus on reliability.
