Žirkliniai elektromagnetiniai keltuvai TW S35-20E-G Twin Busch

Trumpai apie prekę

Prekė: Žirkliniai elektromagnetiniai keltuvai TW S35-20E-G Twin Busch. Kategorija: Žirkliniai keltuvai.

• Gamintojas: Twin Busch
• Modelis: TWS35-20E-G

✅ Reputable brand

Twin Busch® Germany

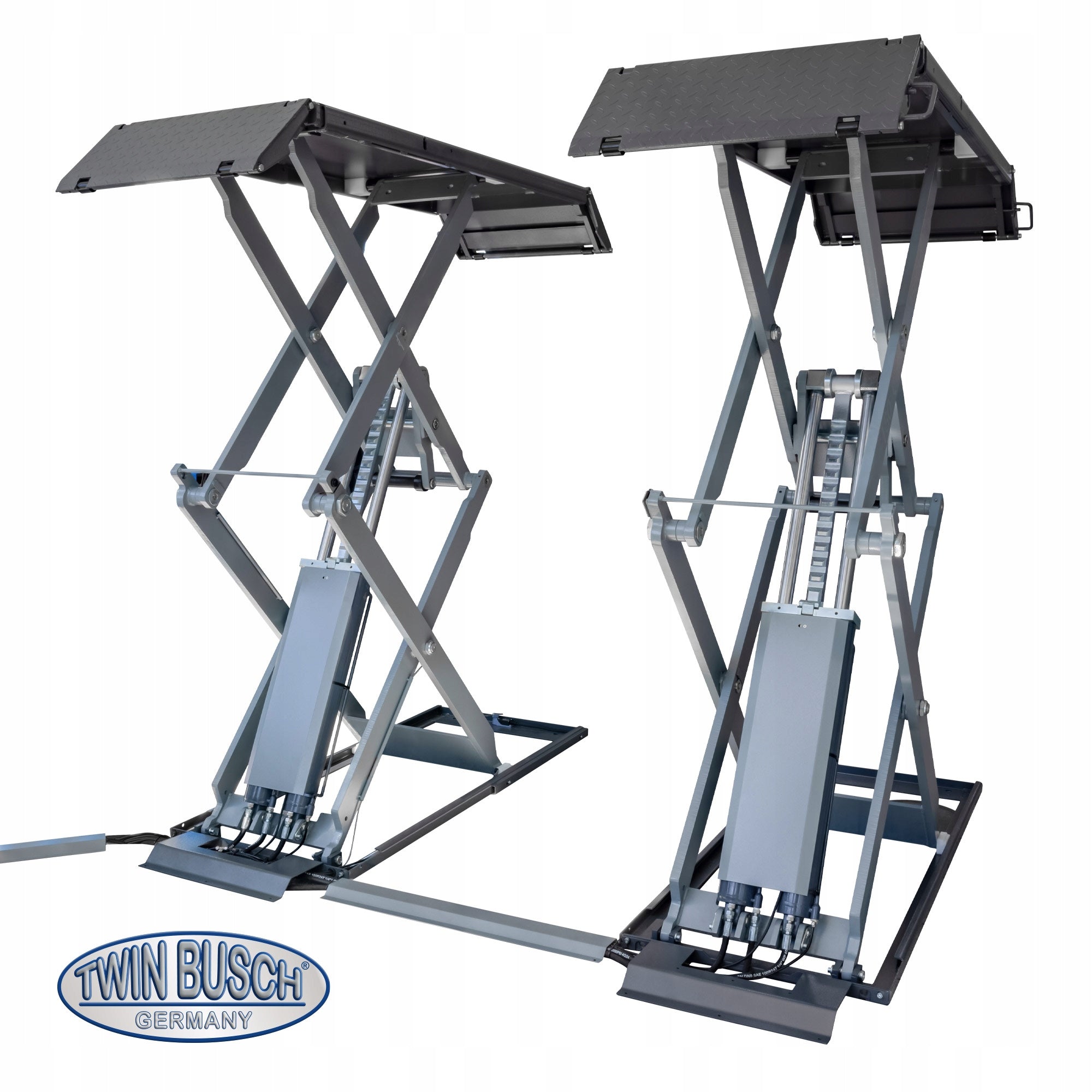

The scissor lift double impresses with its ultra-flat design, and thanks to its travel height of only 110 mm it is also ideal for low-hanging sports cars. Dual actuators on both sides, combined with a solid control arm system, provide a powerful and safe lift. Thanks to the retractable supports, even longer vehicles can be easily lifted. In addition, the lift has an electromagnetic release – this eliminates the need to connect compressed air.

✅ Compare the benefits of the product!

• Highest quality made with CE certificate
• Production in accordance with ISO 9001
• CE stop and beep when lowering
• IR system: synchronization monitoring with photocell
• Hydraulic control synchronization based on the principle of cylinder order
• Electromagnetic unlock – no compressed air connection required
• Extendable vehicle supports (up to 2240 mm) for long vehicles
• Tilt lever system for efficient lifting
• Acoustic warning signal (foot protection)
• Emergency lowering function for maximum safety
• High-quality, solid construction
• No cumbersome cross-connection

Technical data 🛠

• Lifting capacity: 3500 kg
• Max. Lifting height: 2000 mm
• Overrun height: 110 mm
• Lifting / lowering time: 45/30 sec.
• Power supply: 230 V / 400 V
• Engine power: 2,2 kW
• Protection: 16 A
• Weight: 960 kg

✔ IR

The lifting platform is equipped with an IR system that allows monitoring of synchronization using a light barrier.

✔ Shield

The cover provides additional protection of all hydraulic lines.

✔ Hydraulic cylinders

Four strong, hard-boiled chrome hydraulic cylinders provide efficient lifting and lowering.

✔ Overrun ramps

Flexible ramps provide a longer inrun surface, e.g. in models such as MB Class S.

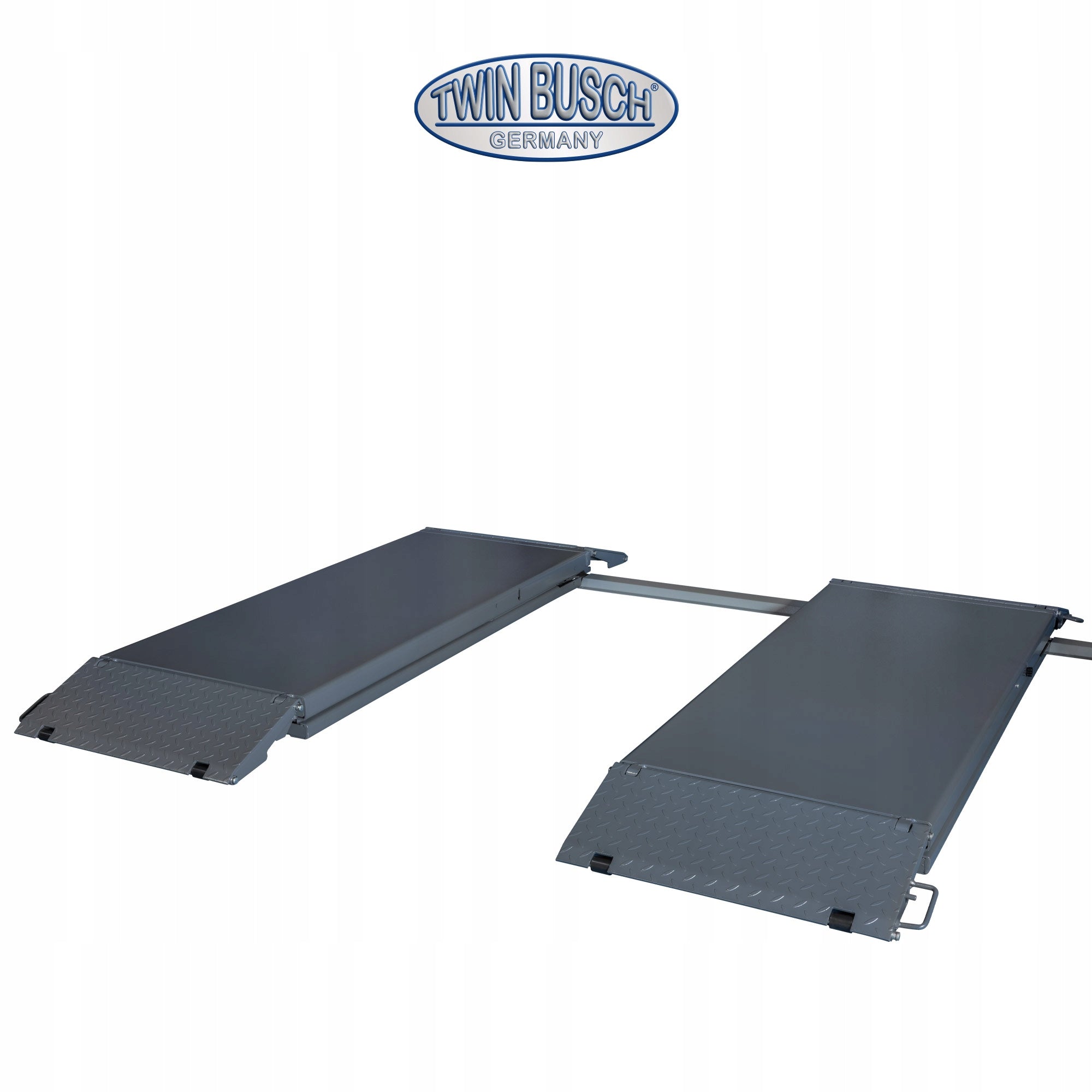

✔ Ultra-flat design

The ultra-flat (only 110 mm) design is ideal for sports cars.

✔ Control unit

The (24 V / IP 54) control unit in combination with two limit switches and a CE limiter provides a high level of safety and ease of use.

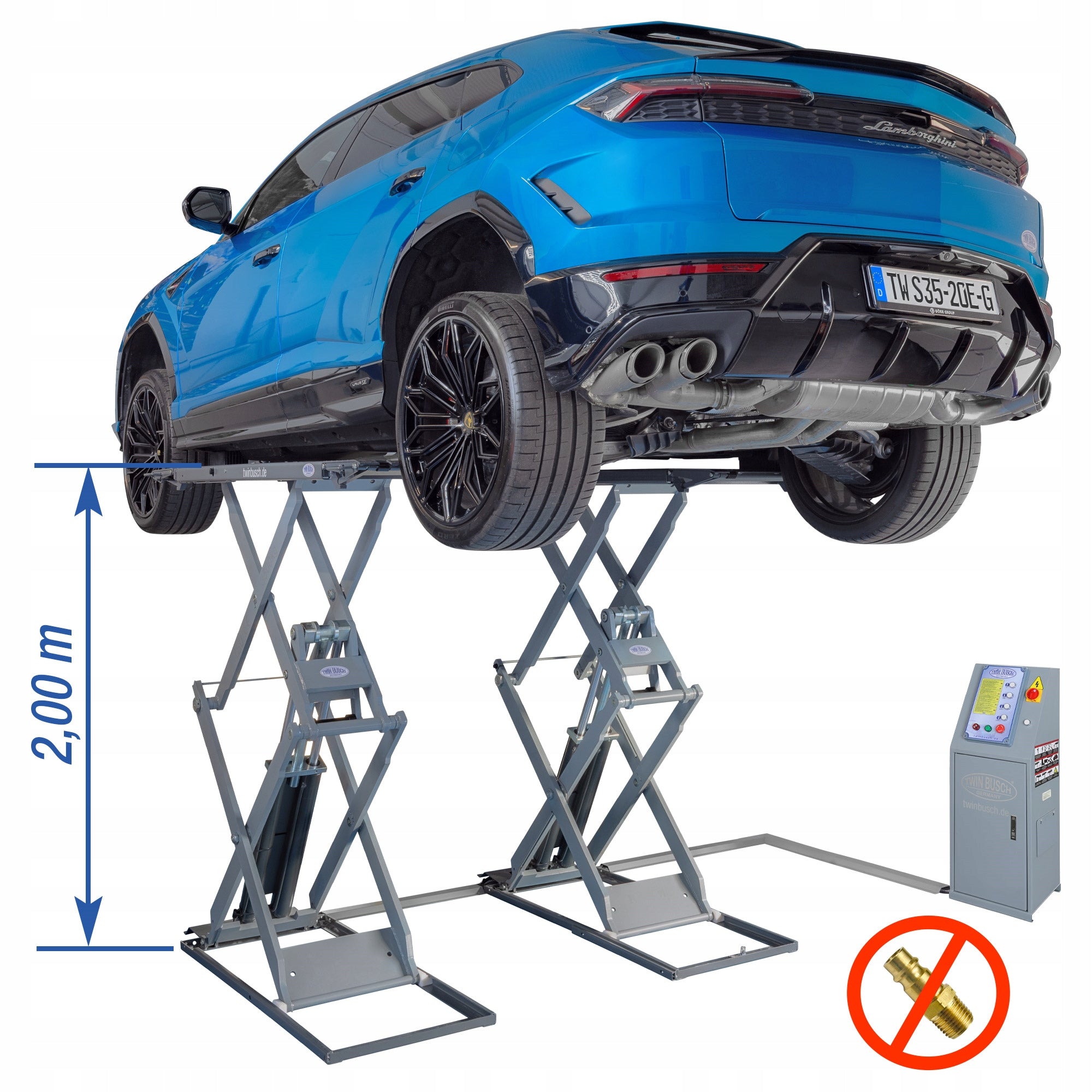

Lifting height 2000 mm

No compressed air required

• Production according to ISO 9001 standards
• Current Certificate CE
• Declaration of conformity EC
• Instruction in Polish, German and English
• Satisfaction of customers
• German quality

Specifications
