Žemės paviršiaus matuoklis su GPS Ermenrich Reel BD30

Trumpai apie prekę

Prekė: Žemės paviršiaus matuoklis su GPS Ermenrich Reel BD30. Kategorija: Matavimo priemonės.

• Gamintojas: Ermenrich
• Modelis: 84546
• Ilgis: 0 m

Ermenrich Reel BD30 is a land surface meter with GPS developed to measure plots of any contour and terrain. It can be used to measure agricultural land, orchards, forests, water reservoirs, industrial warehouses, beaches, etc. The device has a small size and weight, intuitive controls and a built-in screen for displaying measurements.

The surface meter with GPS can display the length measurement of the plot and the measurement of its surface (along the circuit or inside). In automatic mode, simply press the button at the starting point of the measurement, bypass the area you want to measure yourself, and then press the button again at the end point. In manual mode, intermediate measuring points can be set. The device has several operating modes for measuring flat and inclined surfaces.

In addition, there is a function for measuring the width of a plot of regular shape, which is grown with agricultural equipment (e.g. agricultural fields). In this case, it is enough to place the device inside the vehicle in the middle of the cabin and set the transport width. Measurements will be made along the route. Another useful feature of the device is the option to set the price per unit of measurement (area and length). In this case, the surface meter will automatically calculate the total price of the measured area.

The measurement results can be stored in memory – a total of 99 memory places are available. The power source is a built-in battery that allows for 10 hours of continuous operation on a single charge.

Most important properties:

• Measurement of length and surface area in different units of measurement in a wide range of applications
• Can be used in any terrain: flat, hilly, inclined
• Up to 99 measurement locations, built-in screen, up to 10 hours of continuous operation

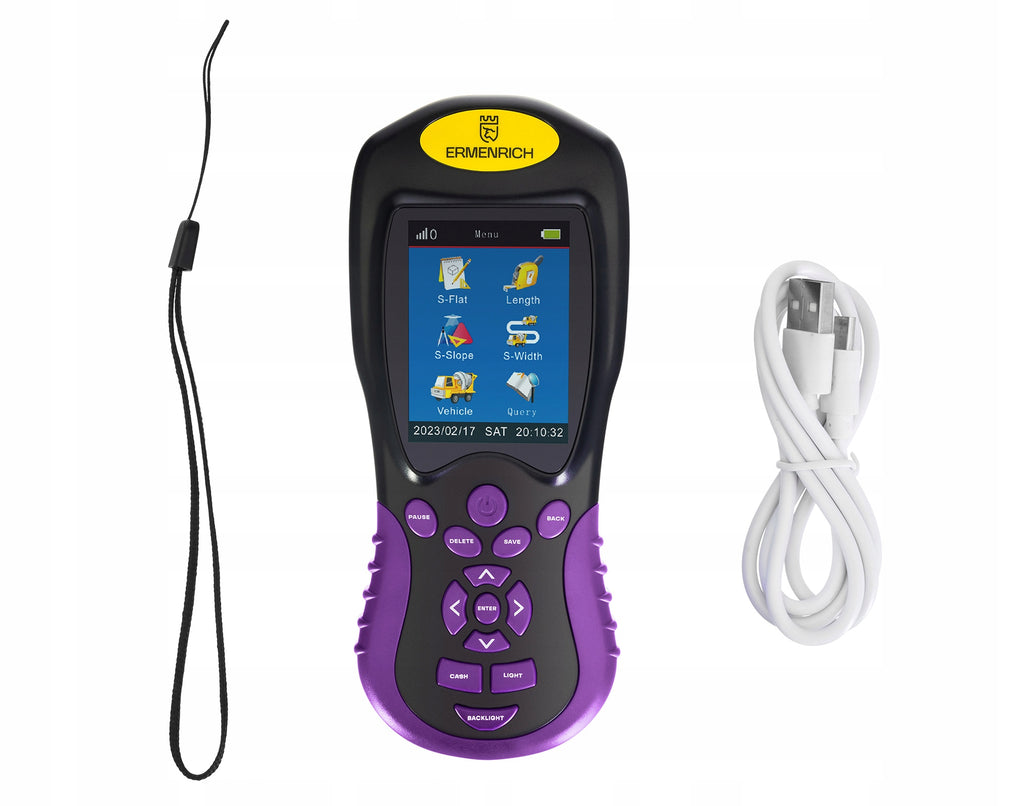

Contents of the set:

• Land surface meter with GPS

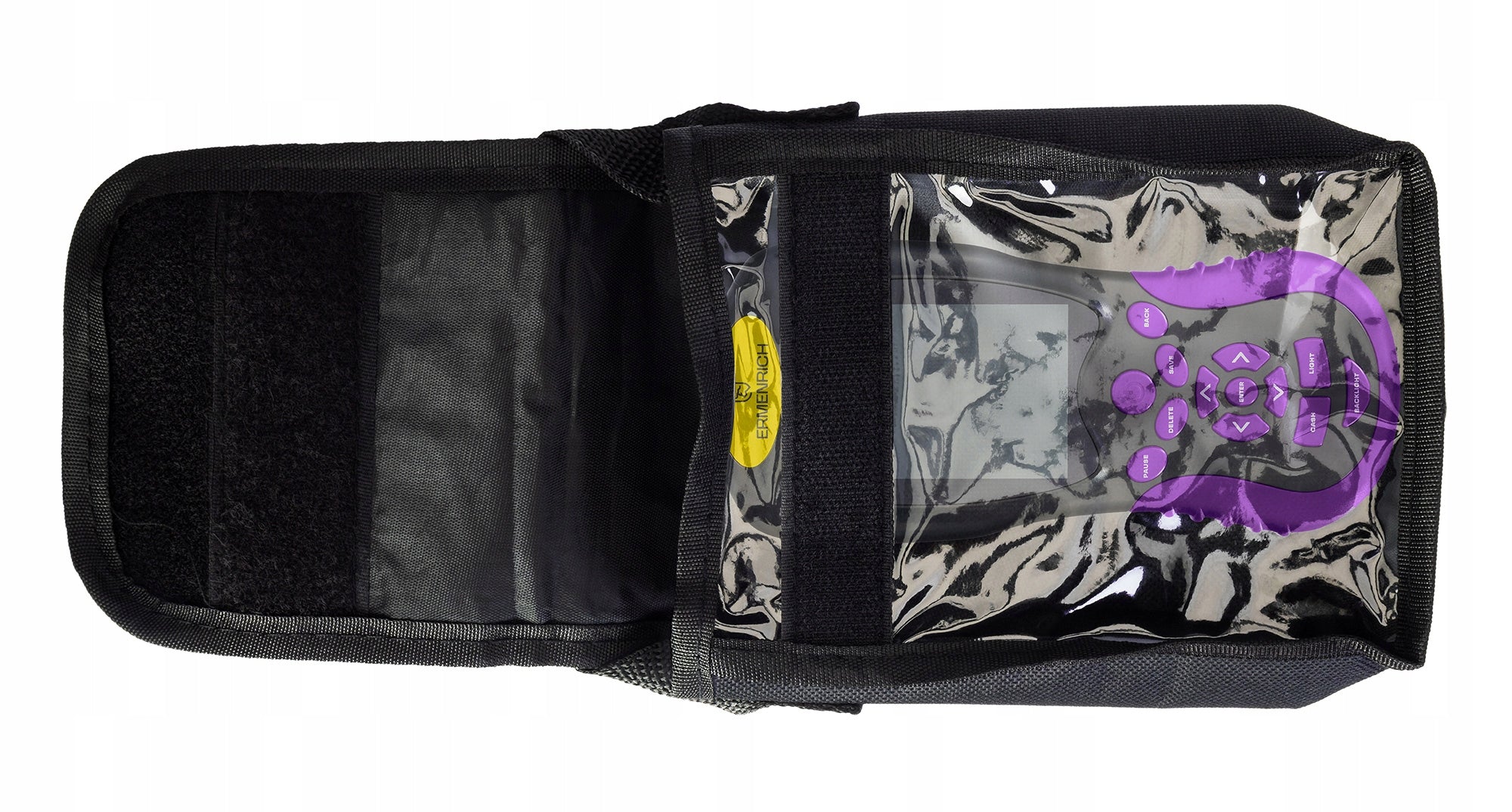

• Cover
• Micro USB cable
• Operating manual and warranty card

Technical data

• dl. x width x depth: 19x15x6 cm
• Measurement of surface area, m²: 0–999999,99
• Measuring range: 0 – 999999,999
• Units of measurement (length): meters, km
• Units of measurement (area): acre, m², ha, km²
• Length measurement error, m: 0,5–3
• Memory: 99 seats
• Backlight: ✓
• Brightness adjustment: ✓
• Light: ✓
• Body: high-strength ABS plastic

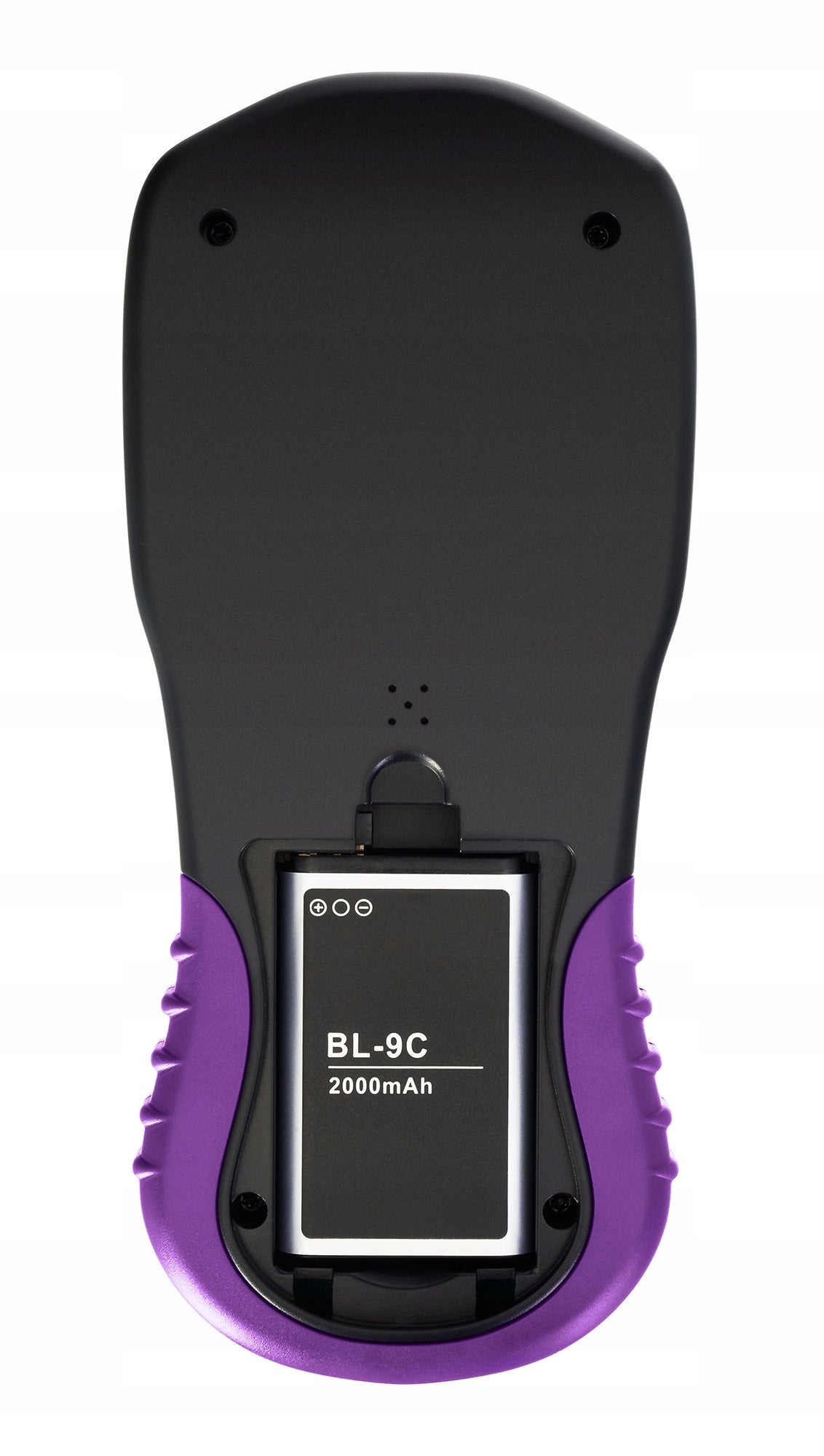

• Power supply: 2000 mAh battery, 3,7 V; charging via micro USB cable (included)
• Battery life, h: 8 — 10
• Charging time: 4 to 5
• Automatic shutdown: ✓
• Temperature range, °C: -10...+45
• Working humidity range, %: < 75
